J7IYS-97649 MHZ WALKIE TALKIE - TRANSMITTER

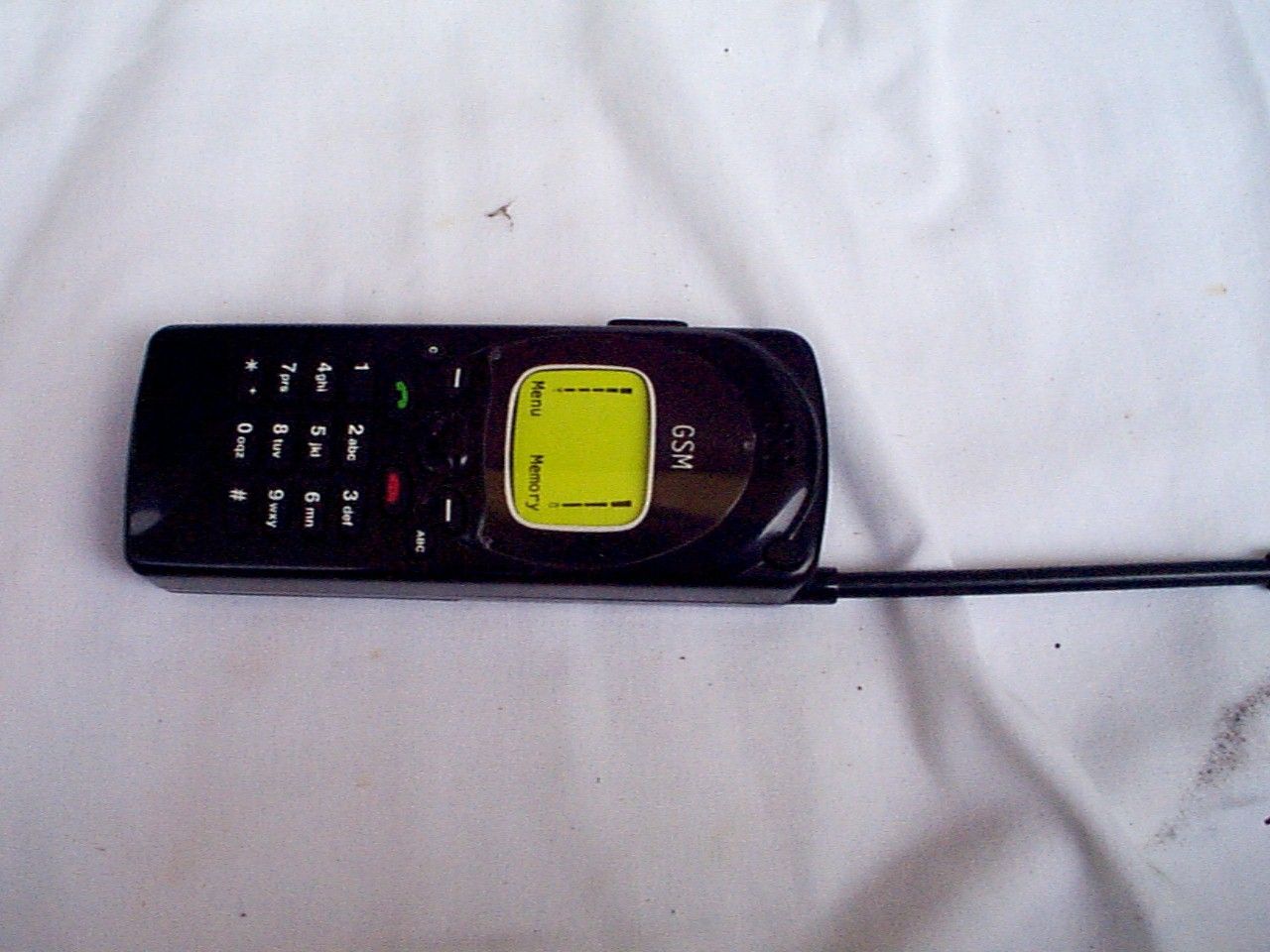

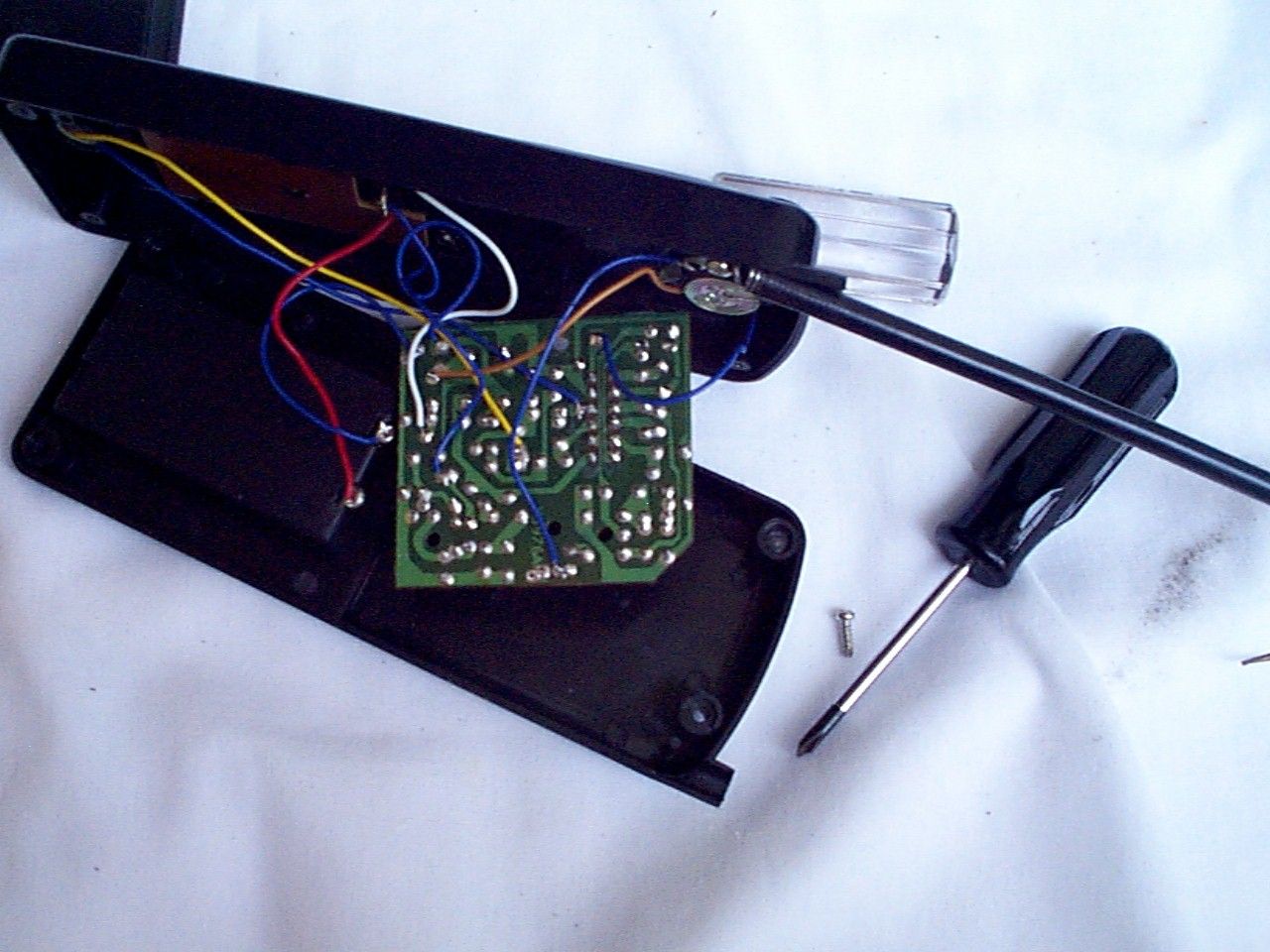

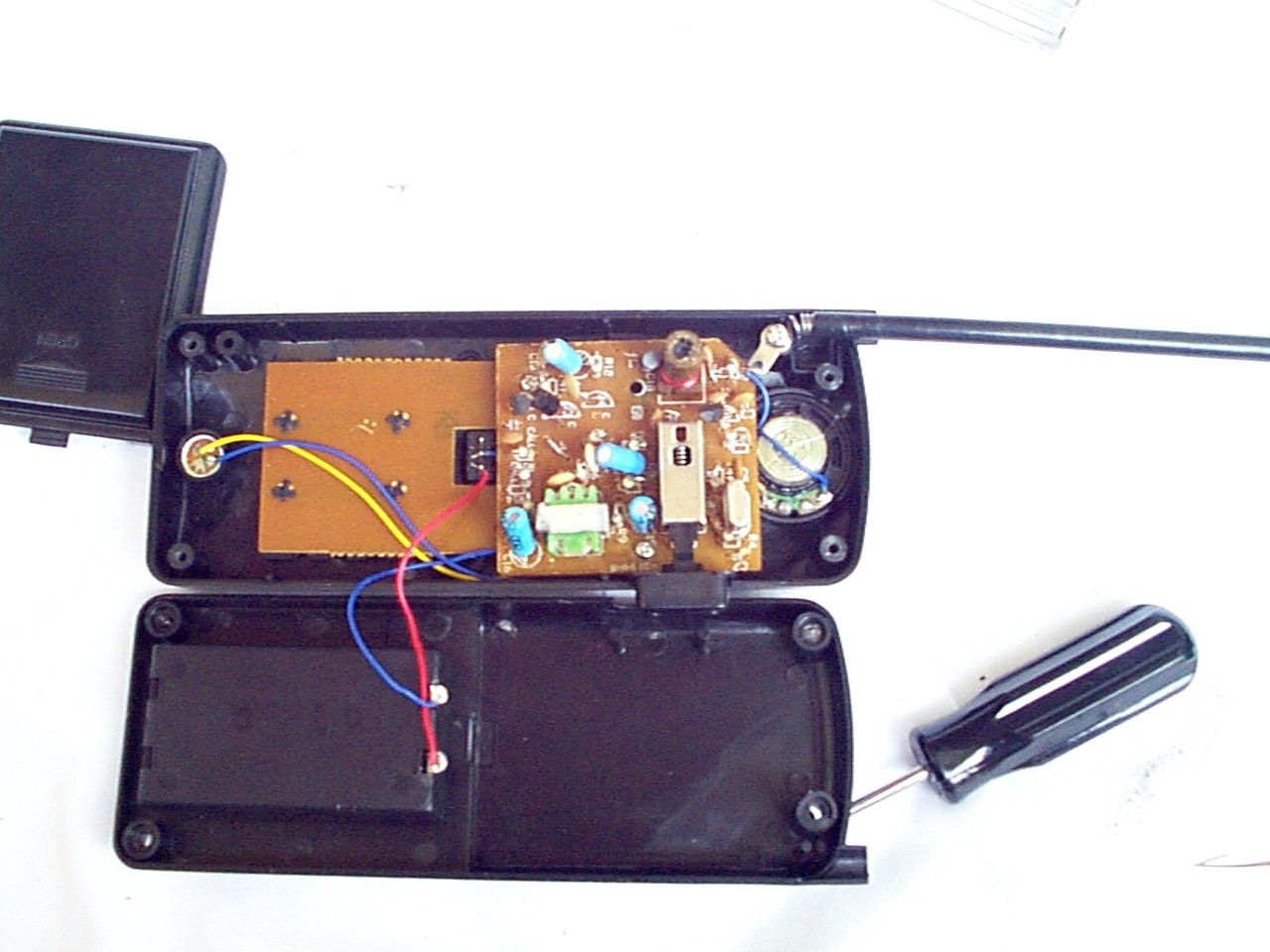

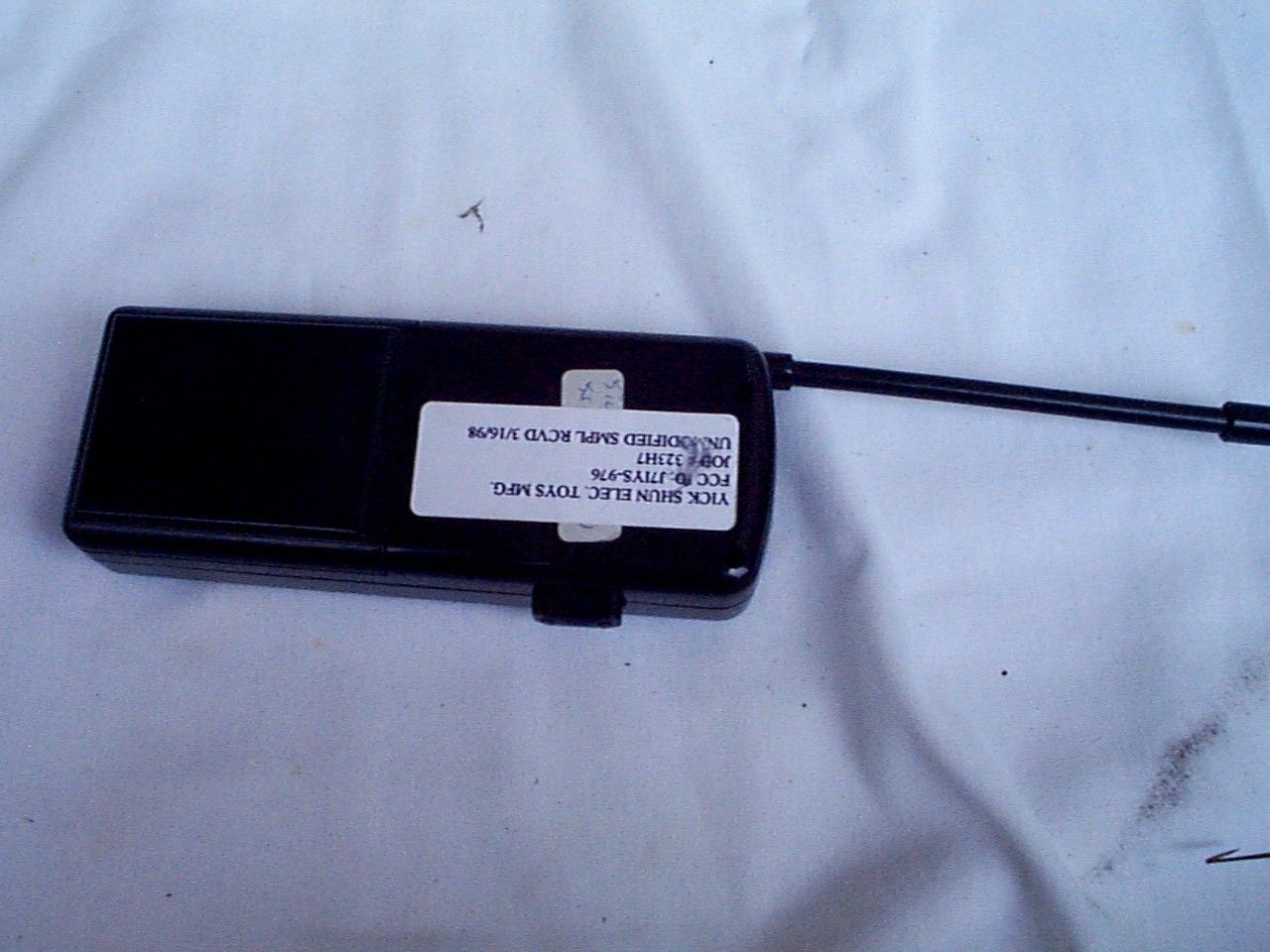

TABLE OF CONTENTS APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 PAGE 1.............731 FORM PAGE 2.............POWER OF ATTORNEY LETTER PAGE 3-4...........TEST PROCEDURE PAGE 5.............CIRCUIT DESCRIPTION PAGE 6.............RADIATION INTERFERENCE TEST DATA PAGE 7-9...........OCCUPIED BANDWIDTH TEST DATA PAGE 10.............BLOCK DIAGRAM PAGE 11.............SCHEMATIC PAGE 12.............SAMPLE OF FCC ID LABEL PAGE 13.............INSTRUCTION MANUAL PAGE 14-17..........PHOTOGRAPHS FCC ID LABEL LOCATION NOTED ON PAGE 15 F:\CUS\Y\YICK\YET323A7.RPT APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B, with preselector HP 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B OPT H02 Cal. 9/30/97 2. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 9/17/97 3. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA 25 cal. 5/15/97 4. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 9/24/97 5. Electro-Metric Antennas Model TDS-25-1, TDS-25-2, 9/3/97 6. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. 9/30/97 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. 9/30/97 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80.2oC with a humidity of 56%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 80.2oC with a humidity of 56%. APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 REPORT #: F:\CUS\Y\YICK\YET323A7.RPT PAGE #: 3 TEST PROCEDURES CONTINUED APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 REPORT #: F:\CUS\Y\YICK\YET323A7.RPT PAGE #: 4 APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCCID: J7IYS-976 CIRCUIT DESCRIPTION: In the receive mode the signal comes in on the antenna to the double tuned circuit to the super-regenerative detector Q-1, where the audio is detected. From Q-1 the audio goes to the volume resistor R8 to the input to the two(2) stage audio am- plification, Q2, & Q3. Q3 drives the audio output transformer T2 which is connected to the speaker. In the transmit mode the speaker is switched so that it is con- nected to the input to the audio amplifiers Q2, & Q3 and the output of Q3 drives the transformer T2, which modulates the voltage of the crystal controlled oscillator. Q1, the crystal controlled oscillator is the transmitter. Q1 is connected to the antenna via the output filter made up of T1, C1, C2, & L1. ANTENNA AND GROUND CIRCUITRY This unit makes use of a short, antenna. The antenna is induc- tively coupled. The antenna is self contained, no provision is made for an external antenna. This unit is powered from a 9.0V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 REPORT #: F:\CUS\Y\YICK\YET323A7.RPT PAGE #: 5 APPLICANT: YICK SHUN ELECTRONIC TOYS MANUFACTORY LTD. FCC ID: J7IYS-976 NAME OF TEST: RADIATION INTERFERENCE - TRANSMITTER RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 49.88 54.90 0.25 11.00 66.15 13.85 V 99.76 28.90 0.80 8.36 38.06 5.44 V 149.60 23.20 0.80 16.90 40.90 2.60 V 199.43 24.50 0.90 12.66 38.06 5.44 V 249.29 25.50 1.20 13.35 40.05 5.95 V 299.15 26.60 1.40 15.65 43.65 2.35 V 349.03 25.80 1.40 15.52 42.72 3.28 V 398.06 24.80 1.40 16.94 43.14 2.86 v 398.06 25.80 1.40 16.94 44.14 1.86 V 448.58 24.80 1.60 18.12 44.52 1.48 V 498.58 17.80 1.60 19.27 38.67 7.33 V 548.46 18.10 1.60 19.69 39.39 6.61 V 598.30 22.30 1.60 20.09 43.99 2.01 V 648.05 21.70 1.60 21.16 44.46 1.54 V 747.90 19.90 2.00 21.88 43.78 2.22 V 797.90 10.60 2.00 22.01 34.61 11.39 V 847.66 4.2…
