RTMS™ User Manual for Model K4 Draft 1 Page i IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING HEED ALL WARNINGS IN THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING RTMS units must be installed and adjusted in accordance with the installation instructions contained in this manual. Use the RTMS only for its intended purposes as described in this manual. Changes or modifications not expressly approved by EIS Electronic Integrated Systems Inc. could void the user's authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their expense. Contact EIS Please contact EIS with any questions or concerns about the RTMS or other EIS products, toll free at 1-800-668-9385. More information about our complete product line is available on the web at www.eistraffic.com. EIS Electronic Integrated Systems Inc. RTMS™ User Manual for Model K4 Draft 1 Page ii EIS Electronic Integrated Systems Inc. RTMS™ User Manual for Model K4 Draft 1 Page iii Brief Description The RTMS (Remote Traffic Microwave Sensor) measures the distance to objects in the path of its microwave beam. This ranging capability allows it to detect moving and stationary vehicles in multiple detection zones. The sensor can be mounted on road-side poles and aimed at a right angle to the road; refered to as the side-fired configuration. A single sensor can monitor traffic in up to 8 lanes. Sensors may also be mounted on overhead structures to monitor traffic in a single lane; the forward-looking configuration. The internal processor calculates volume, occupancy and average speed as well as vehicle class by length in each lane and transmits the information using its data port. Optional contact closure outputs are also available for for compatibility with loop based systems. For optimal accuracy, EIS strongly recommends installation of all RTMS and RTMS related products by personnel trained by EIS. EIS also strongly recommends surveying of installation sites for all RTMS and RTMS related products by personnel trained by EIS. For more information about our installation, surveying, and training programs, contact EIS at 1-800-668-9385. WARNING: Consult EIS before using the RTMS or other RTMS related products for any purpose not expressly described in this manual or any of the other RTMS product manuals. Do not use the RTMS to control or operate a gate opening mechanism. Use of the RTMS for this, or any other unauthorized purpose, may lead to serious injury. Scope of this Document This user manual provides information on setup, operation and troubleshooting of the RTMS sensor model K4, and its setup employing the RTMS Setup Utility (WinRTMS) version 3.5. It is backwards compatible with all previous RTMS versions. EIS Electronic Integrated Systems Inc. RTMS™ User Manual for Model K4 Draft 1 Page iv Revision History Issue No. Issue date Reason for issue Draft 1.0 June 2007 Initial Revison based on V6.8 firmware EIS Electronic Integrated Systems Inc. RTMS™ User Manual for Model K4 Draft 1 Page v Table of Content 1 INCOMING INSPECTION.................................................................................................1 2 RTMS OPTIONS..................................................................................................................1 3 RTMS INSTALLATION – SIDE FIRED CONFIGURATION.......................................2 M OUNTING AND AIMING..............................................................................................................2 S ETBACK/HEIGHT DIAGRAMS......................................................................................................3 4 CABLING..............................................................................................................................4 S URGE SUPPRESSION....................................................................................................................4 THE RTMS CABLE......................................................................................................................4 MS Connector pin-out............................................................................................................. 5 Standard RS-232 Port Wiring.................................................................................................6 The RS-485 Port.....................................................................................................................6 The TCP/IP Port with RS-232.................................................................................................7 The TCP/IP port with RS-485.................................................................................................7 C ONNECTING RTMS TO REMOTE SYSTEMS.................................................................................8 Modem Cables........................................................................................................................8 Modem Sharing.......................................................................................................................9 RS-485 Multidrop.................................................................................................................. 10 5 SETUP OF THE RTMS .....................................................................................................11 T HE RTMS SETUP UTILITY (WINRTMS)..........…

Text truncated - open the document above for the full version.

June 25, 2007 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: EIS Electronic Integrated Systems Inc. Product: RTMS Model: K4 FCC ID: J7TRTMS-K4 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. Yours truly, Dan Manor President Electronic Integrated Systems Inc. 150 Bridgeland Avenue, Suite 204, Toronto, Ontario, Canada M6A 1Z5 Tel: 416.785.9248 Fax: 416.785.9332 www.eistraffic.com

July 26, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: J7TRTMS-K4. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram K4_BlkDia.pdf Schematics K4_Schem_1of4.pdf Schematics K4_Schem_2of4.pdf Schematics K4_Schem_3of4.pdf Schematics K4_Schem_4of4.pdf Operational Description K4_OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Yours truly, Dan Manor President Electronic Integrated Systems Inc. 150 Bridgeland Avenue, Suite 204, Toronto, Ontario, Canada M6A 1Z5 Tel: 416.785.9248 Fax: 416.785.9332 www.eistraffic.com

August 15, 2007 TIMCO ENGINEERING INC. P.O. Box 370 849 N.W. State Road 45 Newberry, Florida USA 32669 Subject: Equipment Authorization Application under FCC Part 15, Subpart C, Section 15.245, Field Disturbance Sensor Operating in the Frequency Band 24075-24175 MHz. Applicant: EIS Electronic Integrated System Inc. Product: RTMS K4 Model: K4 FCC ID: J7TRTMS-K4 Dear Sir/Madam, As appointed agent for EIS Electronic Integrated System Inc., we would like to submit this application for FCC Certification of the above product. Please review all necessary files uploaded to TIMCO Upload site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/JWC UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

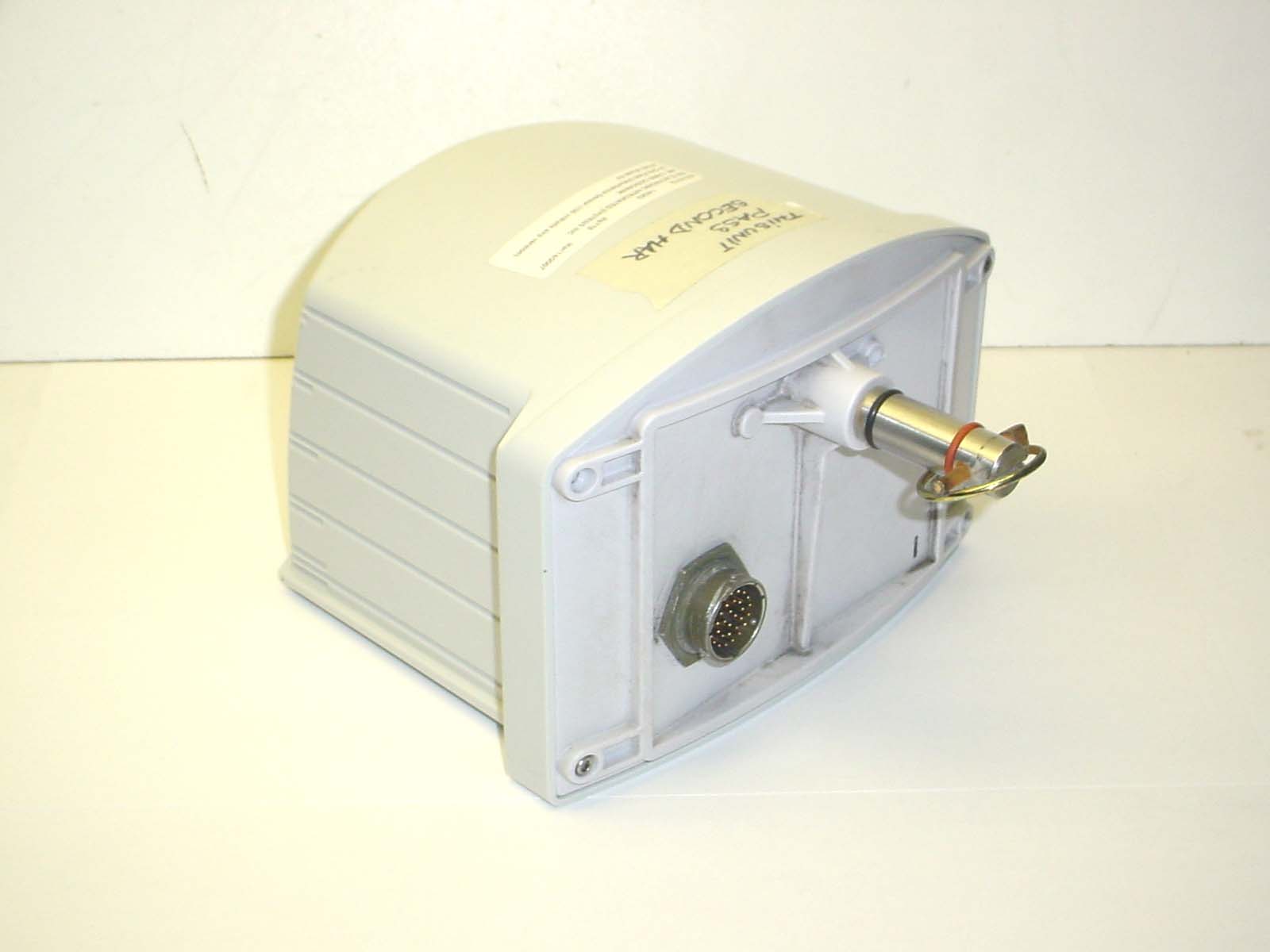

Annex 2 – External Photographs of Model: K4 Photo # 1 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 2 – External Photographs of Model: K4 Photo # 2 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4

Annex 3 – Internal Photographs of Model: K4 Photo # 1 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 3 – Internal Photographs of Model: K4 Photo # 2 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 3 – Internal Photographs of Model: K4 Photo # 3 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 3 – Internal Photographs of Model: K4 Photo # 4 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 3 – Internal Photographs of Model: K4 Photo # 5 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4

ENGINEERING TEST REPORT RTMS K4 MODEL NO.: K4 FCC ID: J7TRTMS-K4 Applicant: EIS Electronic Integrated System Inc. 150 Bridgeland Ave. Suite 204 Toronto, Ontario Canada, M6A 1Z5 Tested in Accordance With FCC Part 15, Subpart C, Section 15.245 Field Disturbance Sensor Operating in the Frequency Band 24075-24175 MHz UltraTech's File No.: EIS-032F15C245 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: August 15, 2007 Report Prepared by: Dharmajit Solanki, RF Engineer Issued Date: August 15, 2007 Tested by: Mr. Hung Trinh, EMC/RFI Technician Test Dates: August 1-9, 2007 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Part 15, Subpart C, Section 15.245 – Intentional Radiators Content i RTMS K4, Model: K4 FCC ID: J7TRTMS-K4 ULTRATECH GROUP OF LABS File #: EIS-032F15C245 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 15, 2007 Tel.: 905-829-1570, Fax. : 905-829-8050 All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................. 3 3.3. OPERATIONAL DESCRIPTION .............................................................................................................................. 4 3.4. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................. 5 3.5. LIST OF EUT’S PORTS ............................................................................................................................................. 5 3.6. GENERAL TEST SETUP........................................................................................................................................... 6 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 7 4.1. CLIMATE TEST CONDITIONS................................................................................................................................ 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS............................................................. 7 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 8 5.1. LOCATION OF TESTS .............................................................................................................................................. 8 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS.............................................................. 8 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ....................................... 8 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ............................... 9 6.1. TEST PROCEDURES................................................................................................................................................. 9 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 9 6.3. MEASUREMENT EQUIPMENT USED ................................................................................................................... 9 6.4. POWER LINE CONDUCTED EMISSIONS [§ 15.107(A) & 15.207]..................................................................... 10 6.5. 20 DB BANDWIDTH ............................................................................................................................................... 14 6.6. FUNDAMETAL FIELD STRENGTH AND HARMONIC EMISSIONS AND BAND-EDGE RADIATED EMISSONS (RADIATED @ 3 METERS) [§ 15.245, 15.209 & 15.205]................................................................. 17 EXHIBIT 7. MEASUREMENT UNCERTAINTY.........................................................................................................23 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ................................................................ 23 7.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY............................................................................... 24 FCC Part 15, Subpart C, Section 15.245 – Intentional Radiators Page 1 RTMS K4, M/N: K4 FCC ID: J7TRTMS-K4 ULTRATECH…

Text truncated - open the document above for the full version.

Annex 1 – Test Setup Photographs of Model:K4 Photo # 1 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 1 – Test Setup Photographs of Model:K4 Photo # 2 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 1 – Test Setup Photographs of Model:K4 Photo # 3 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 1 – Test Setup Photographs of Model:K4 Photo # 4 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 1 – Test Setup Photographs of Model:K4 Photo # 5 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4 Annex 1 – Test Setup Photographs of Model:K4 Photo # 6 FCC ID: J7TRTMS-K4, IC: 1868A-RTMSK4
