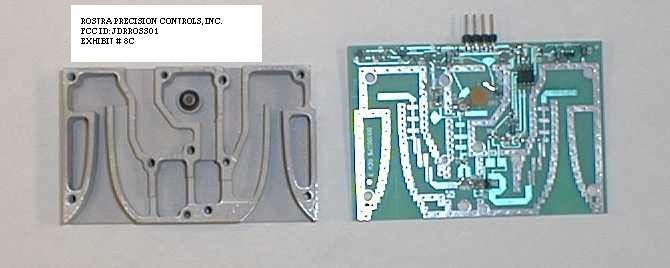

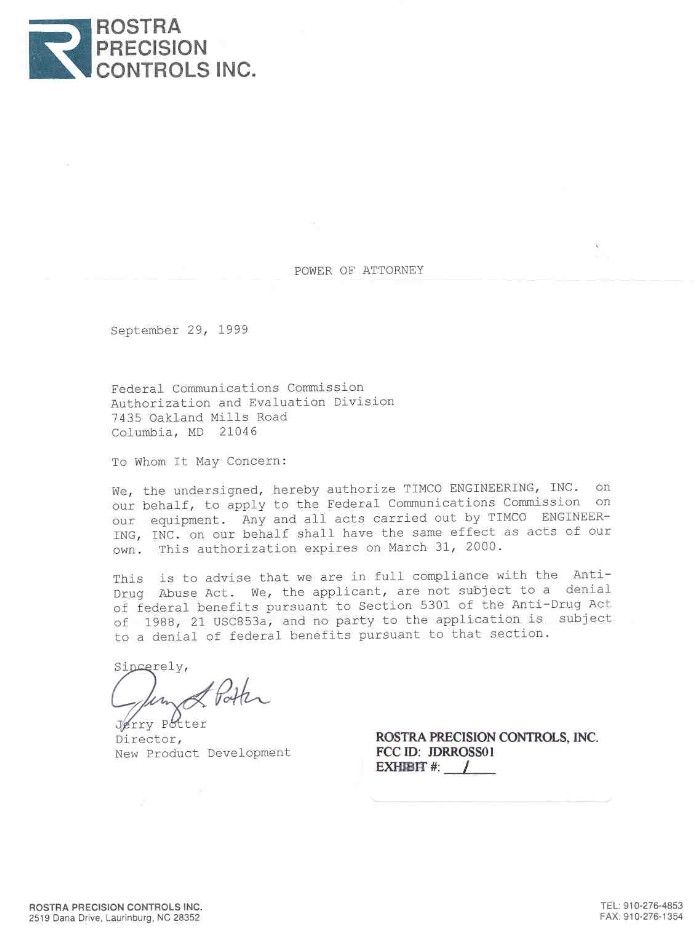

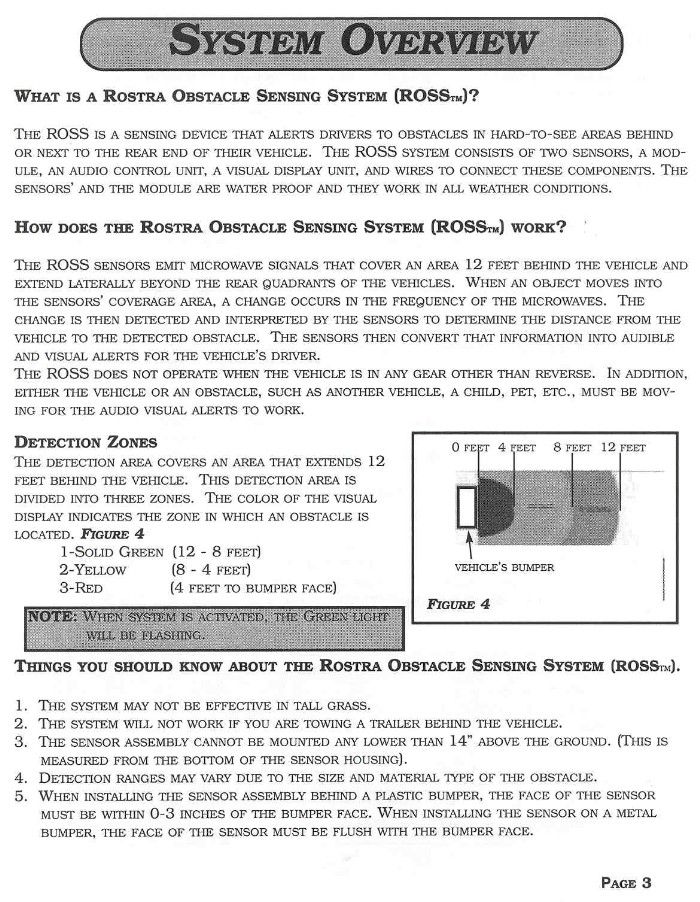

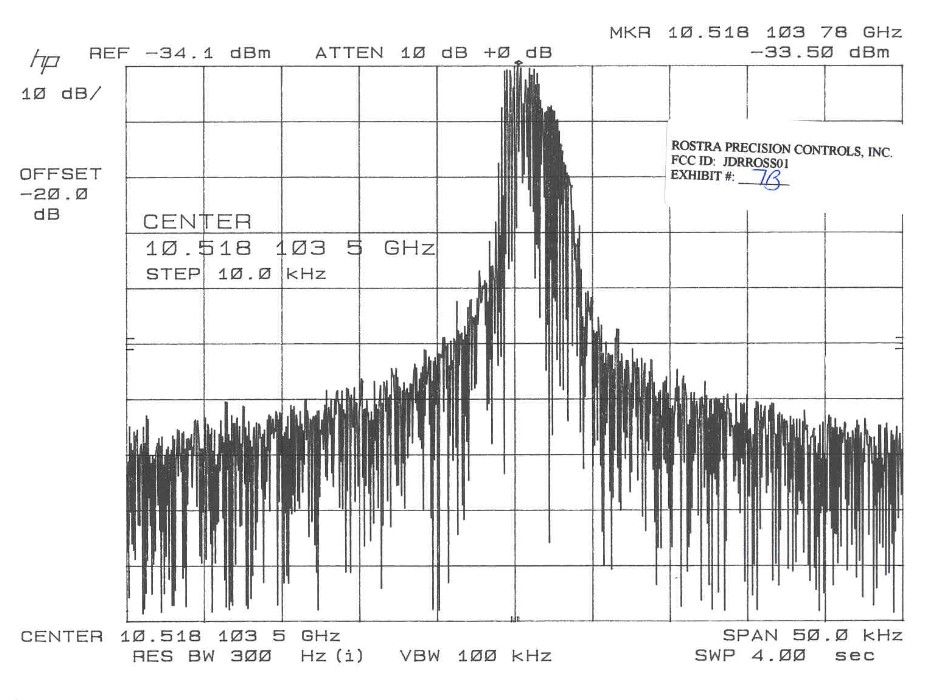

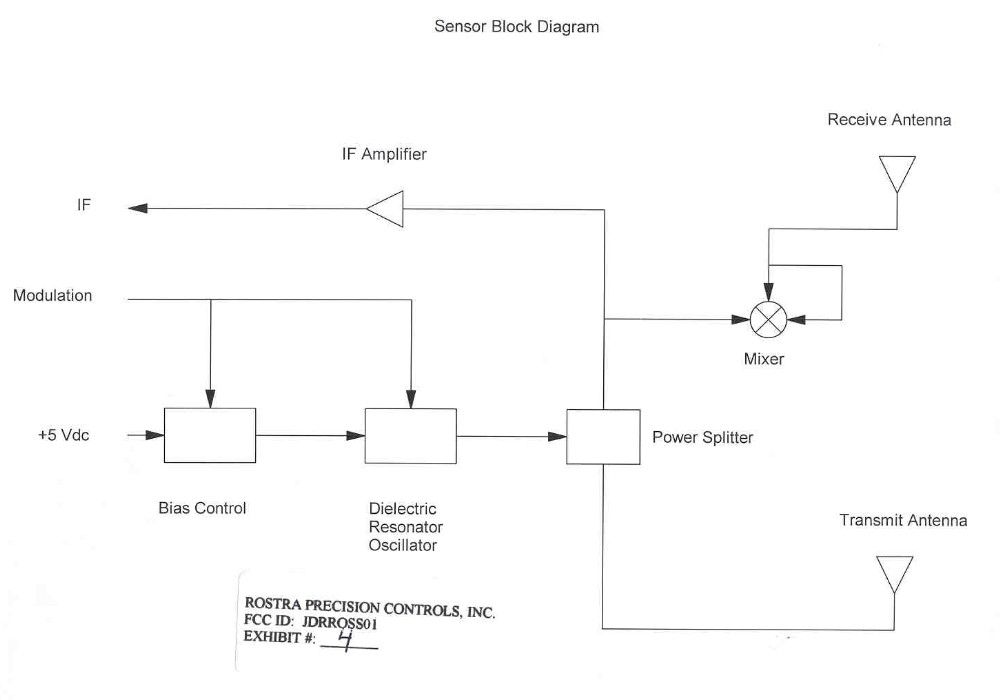

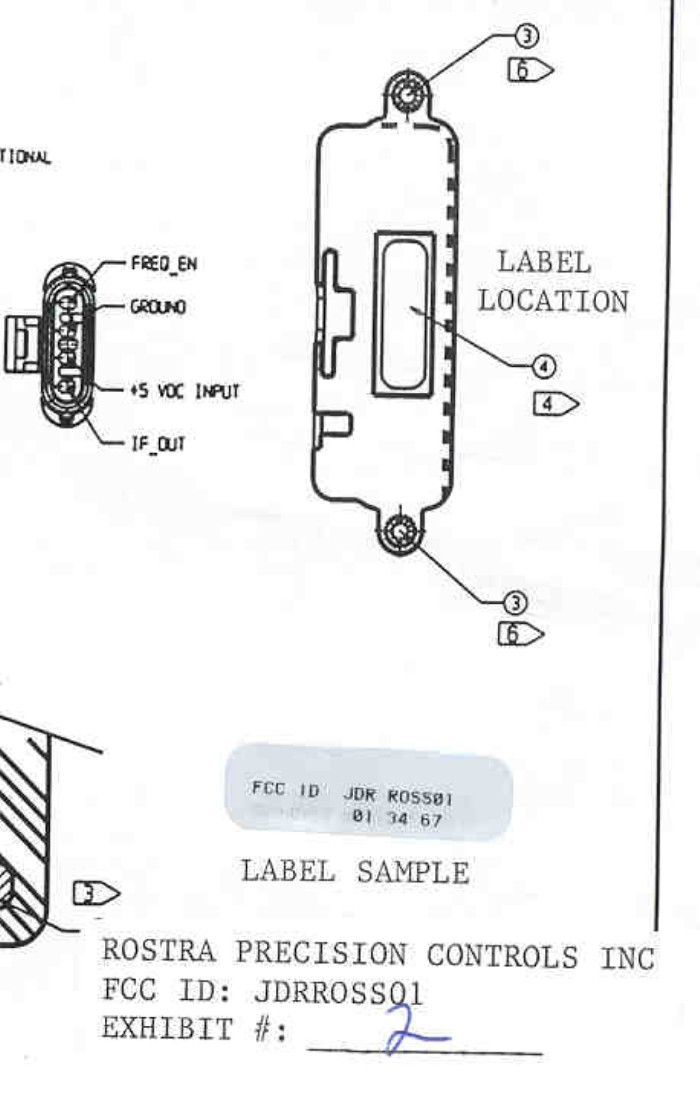

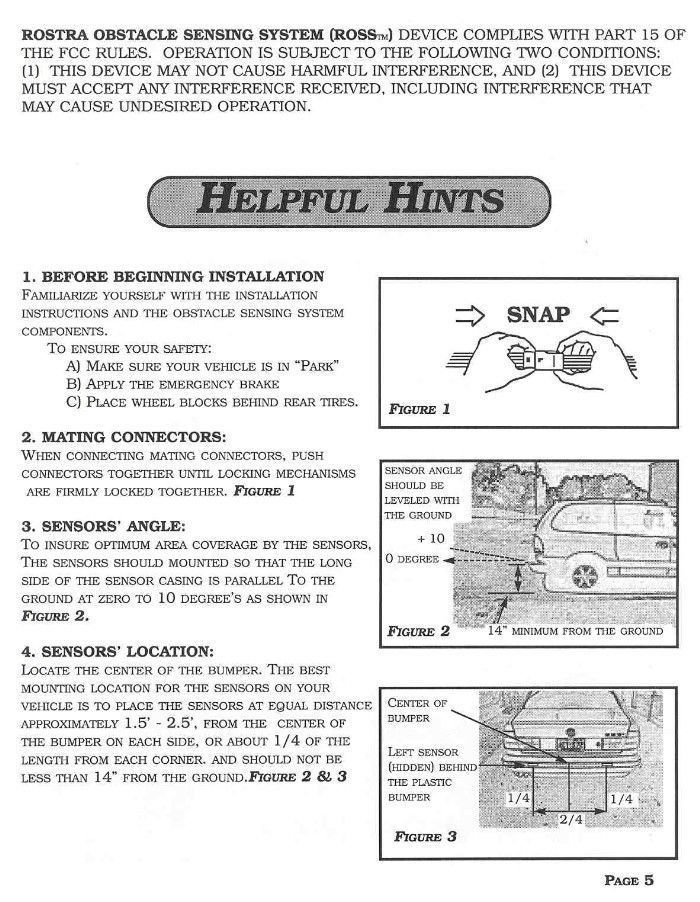

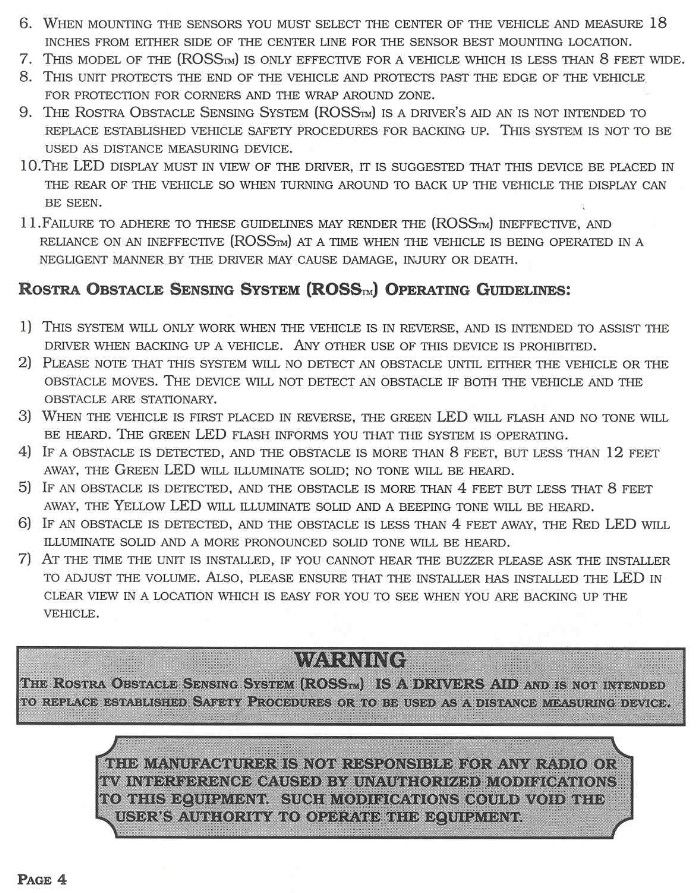

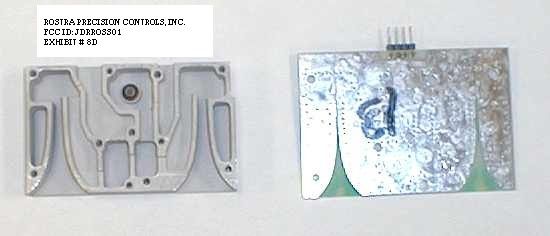

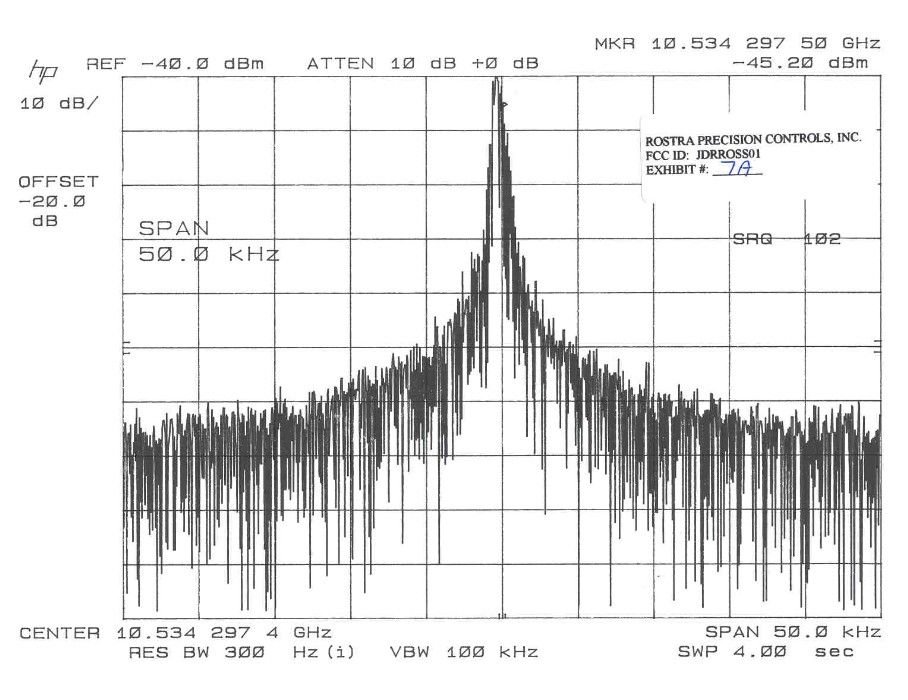

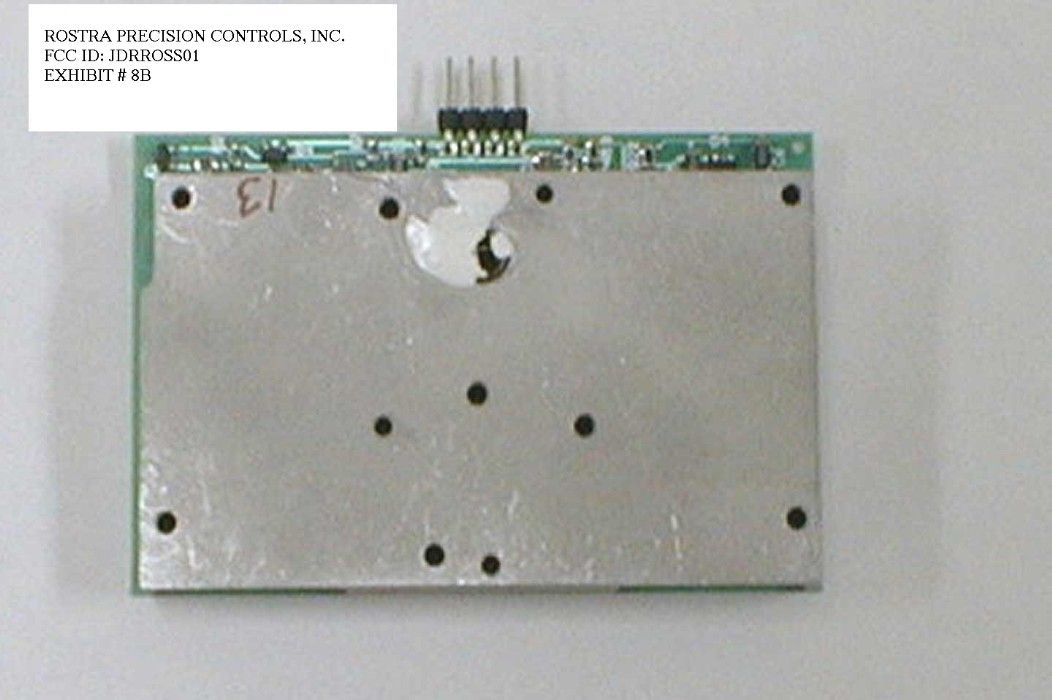

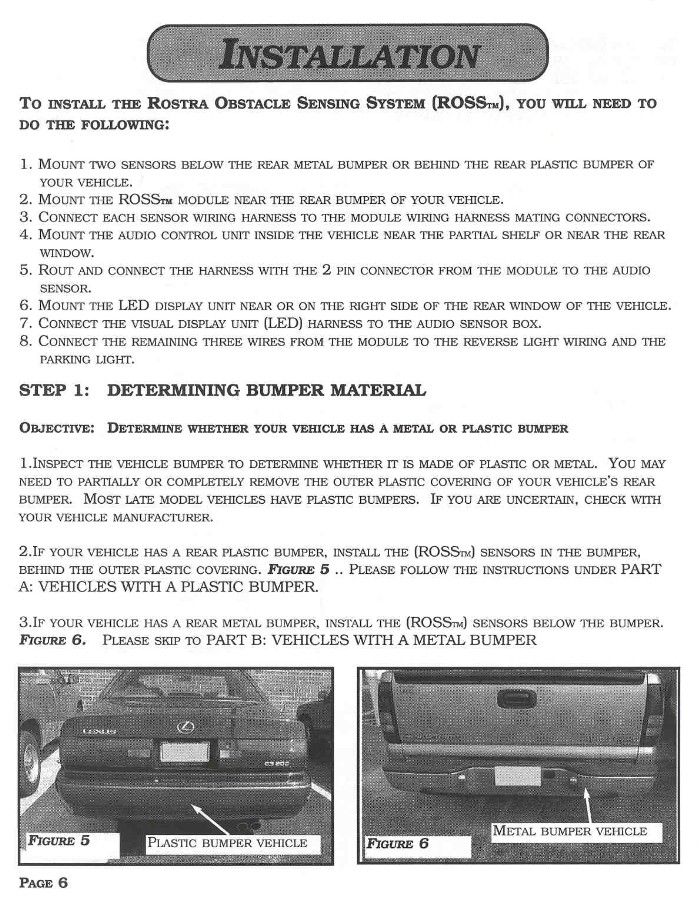

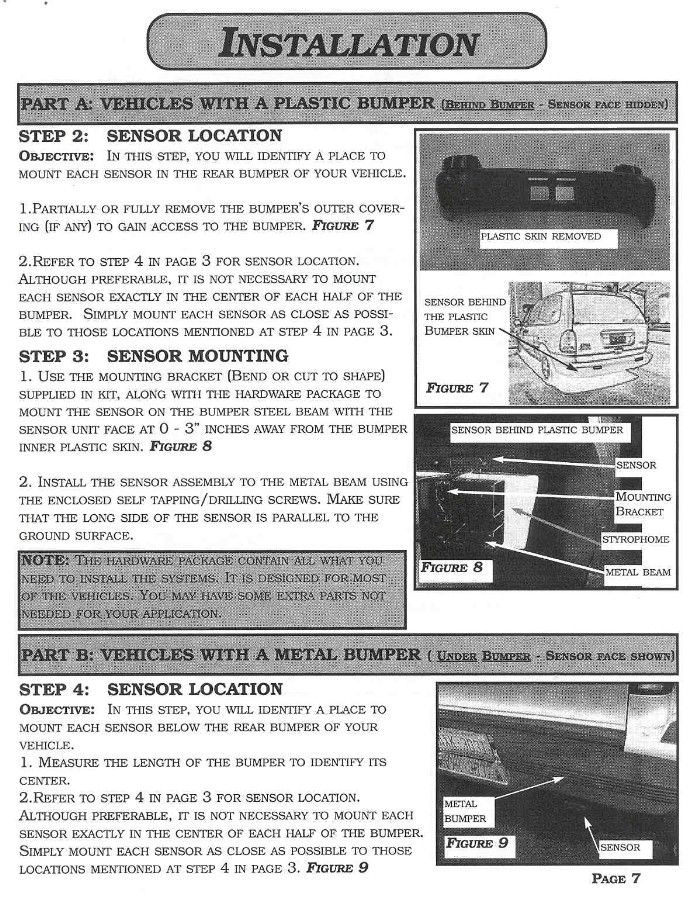

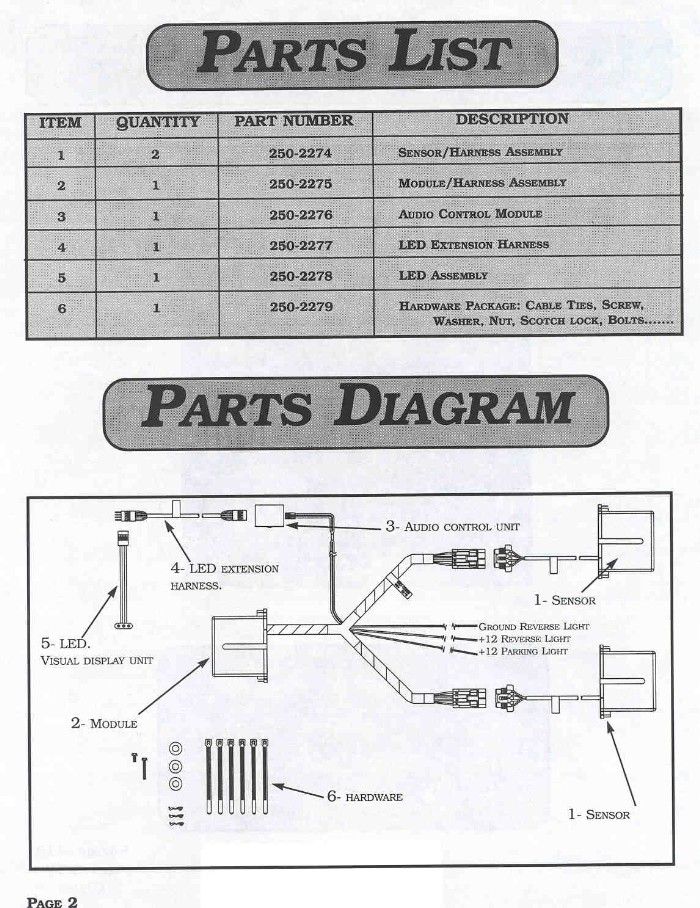

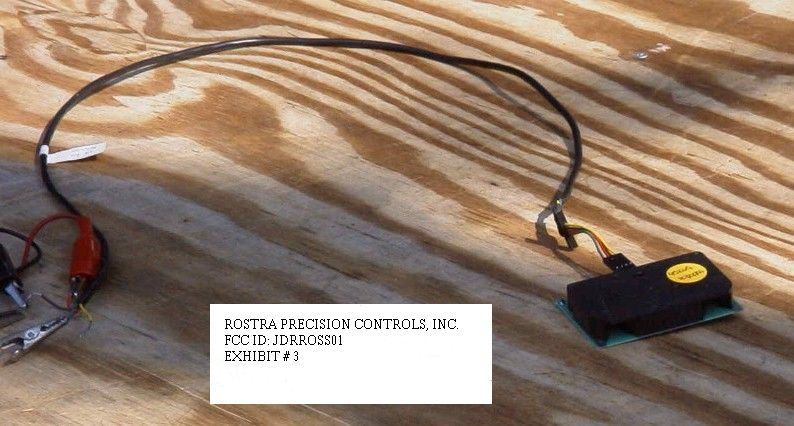

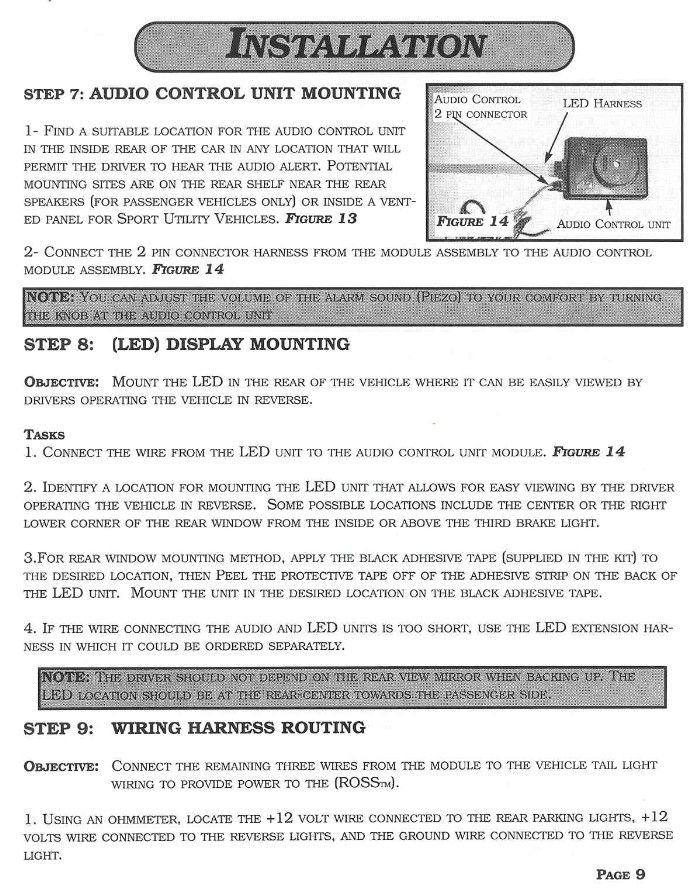

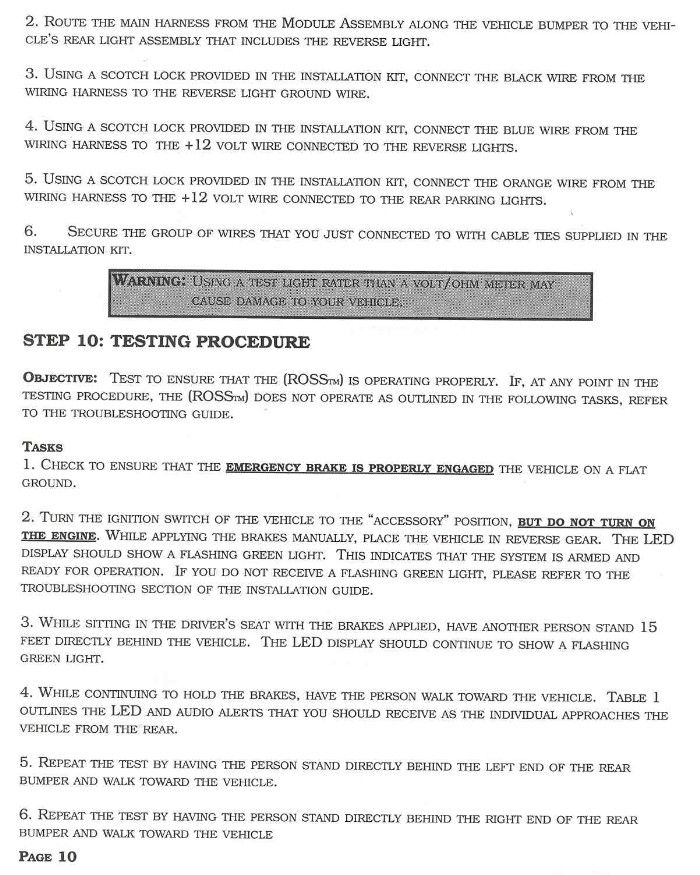

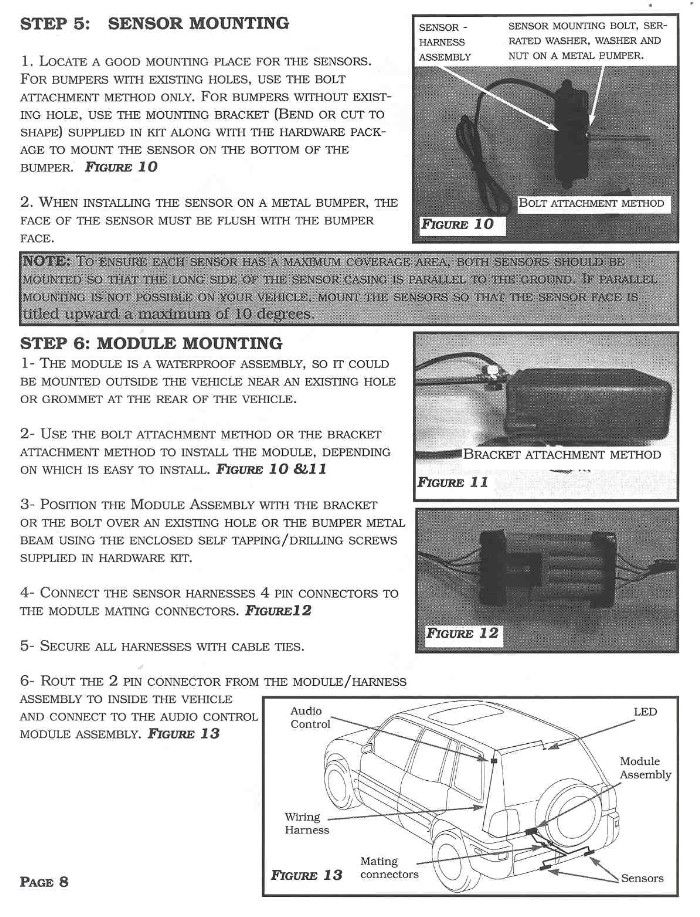

TABLE OF CONTENTS APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURES PAGE 3............ CIRCUIT DESCRIPTION PAGE 4-5...........RADIATION INTERFERENCE TEST DATA PAGE 6.............OCCUPIED BANDWIDTH PAGE 7.............POWERLINE CONDUCTED EXHIBIT ATTACHMENTS: EXHIBIT 1...........POWER OF ATTORNEY LETTER EXHIBIT 2...........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3...........TEST SET UP PHOTO EXHIBIT 4...........BLOCK DIAGRAM EXHIBIT 5...........SCHEMATIC EXHIBIT 6A-6J.......INSTRUCTION MANUAL EXHIBIT 7A-7B.......OCCUPIED BANDWIDTH PLOTS EXHIBIT 8A..........TOP VIEW EXTERNAL PHOTO EXHIBIT 8B..........BOTTOM VIEW EXTERNAL PHOTO EXHIBIT 8C..........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 8D..........SOLDER SIDE INTERNAL PHOTO APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 DATE: 28 Oct. 1999 REPORT #: T:\CUS\R\ROSTRA\ROS452U9\ROS452U9.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 10/17/99 2. Signal Generator, Hewlett Packard 8640B, cal. 9/23/99 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 9/30/99 4. Electro-Metric Log-Periodic Model No. EM-6950 Ser#632 9/18/99 5. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 6. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 4/27/99 7. Systron Donner Horn 18-26.3GHz Model DBE-520-20 7/14/99 8. Systron Donner Horn 26.5-40.2GHz Model DBD-520-20 7/14/99 9. ATM HOrn 40-60GHz Part #19-443-6R 9/15/99 10. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 11. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 12. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 13. Special low loss cable was used above 1 GHz 14. Tenney Temperature Chamber 15. AC Voltmeter, HP 400FL, Serial No 2213A14499. Cal. 9/21/99 16. Digital Multimeter, Fluke 8010A/12A, Serial No. 4810047. Cal 9/21/99 17. Digital Multimeter, Fluke 77, Serial No. 43850817. Cal 9/21/99 18. Oscilloscope, Tektronix 2230, Serial No. 300572. Cal 9/23/99 19. Frequency Counter, HP 5385A, Serial No. 3242A07460. Cal 10/6/99 APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 DATE: 28 Oct. 1999 REPORT NO.: T:\CUS\R\ROSTRA\ROS452U9\ROS452U9.RPT PAGE #: 1 APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmit- ting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 1.0MHz above 1.0GHz. For frequencies above 1.0GHz measurements were made at a distance of 1.0 meter and adjusted for 3 meters. The ambient temperature of the UUT was 74.3oF with a humidity of 69%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 74.3oF with a humidity of 69%. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. The measurements were made at 1.0 meter with the antenna being moved around to find the highest emission. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. FCC ID: JDR ROSS01 REPORT NO.: T:\CUS\R\ROSTRA\ROS452U9\ROS452U9.RPT PAGE #: 2 CIRCUIT DESCRIPTION: The 10.5GHz transmitter is a short range obstacle sensor for automo- biles. Its range of use is expected to be 10 to 15 feet. This unit is a low power OBSTACLE SENSOR operating in the 10,500- 10,550MHz band. ANTENNA & GROUND: This unit uses a horn antenna. The antenna is self contained and there is no provision for connecting an external antenna. No ground connection is provided. The only ground used is the ground track on the PC board. APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 DATE: 28 Oct. 1999 REPORT NO.: T:\CUS\R\ROSTRA\ROS452U9\ROS452U9.RPT PAGE #: 3 APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.245, 15.205 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.245 & 15.205 & 15.209 of Fundamental: of Harmonics 10.5-10.55GHz 2500mV/m or 127.95dBuV/m 25.0mV/m or 87.95dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPE…

Text truncated - open the document above for the full version.

APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.245, 15.205 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.245 & 15.205 & 15.209 of Fundamental: of Harmonics 10.5-10.55GHz 2500mV/m or 127.95dBuV/m 25.0mV/m or 87.95dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST RESULTS: This unit DOES meet the FCC requirements. TEST DATA: ANTENNA PEAK EMISSION METER READING COAX CORRECTION FIELD FCC FREQUENCY AT 3 METERS LOSS FACTOR STRENGTH LIMIT ANT. MHz dBuV dB dB dBuV/m@3m dBuV/m POL. 10517.00 34.20 2.19 39.18 75.57 127.95 52.38 H 21034.00R 6.00 3.19 41.00 50.19 54.00 3.81 V 10524.00 32.50 2.20 39.18 73.88 127.95 54.07 H 21048.00R 4.30 3.19 41.00 48.49 54.00 5.51 V 10533.00 29.20 2.20 39.19 70.58 127.95 57.37 V 10600.00R -2.60 2.20 39.23 38.83 54.00 15.17 V 21066.00R -2.10 3.19 41.00 42.09 54.00 11.91 V Measurement were made to the fifth harmonic of the fundamental for all of the measured frequencies. APPLICANT: ROSTRA PRECISION CONTROLS, INC. FCC ID: JDR ROSS01 DATE: 28 Oct. 1999 REPORT NO.: T:\CUS\R\ROSTRA\ROS452U9\ROS452Z9.RPT PAGE #: 4
