JFZ-ATSP3XPowered Bluetooth BookShelf Speakers

AT-SP3X Powered Bookshelf Speakers User Manual 1 Safety precautions Important information Warning To prevent fire or shock hazard, do not expose this apparatus to rain or moisture. Caution • Do not expose this apparatus to drips or splashes. • To avoid electric shock, do not open the cabinet. • Refer servicing to qualified personnel only. • Do not expose this apparatus to excessive heat such as sunshine, fire or the like. • Do not subject this apparatus to strong impact. • This apparatus should be located close enough to the AC outlet so that you can easily grasp the AC adapter at any time. • In case of emergency, disconnect the AC adapter quickly. • Do not place any objects filled with liquids, such as vases, on this apparatus. • To prevent fire, do not place any naked flame sources (such as lighted candles) on this apparatus. • Do not install this apparatus in a confined space such as a bookcase or similar unit. • Install this apparatus only in the place where ventilation is good. For customers in the USA FCC Notice Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. 2 Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the f ollowing measures: −Reorient or relocate the receiving antenna. −Increase the separation between the equipment and receiver. −Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. −Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter used in other systems. RF Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation. (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Contact Responsible Company: Audio-Technica U.S., Inc. Address: 1221 Commerce Drive, Stow, Ohio 44224, USA Tel: 330-686-2600 For customers in Canada ISED statement This device complies with Part 15 of FCC Rules [ and contains license-exempt transmitter(s) that comply with innovation，Science and Economic Development Canada’s licence-exempt RSS Standar(s)]. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference received, including interference that may cause undesired operation The digital apparatus complies with Canadian CAN ICES 3 (B)/NMB 3(B). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. This equipment should be installed and operated with minimum distance 20mm between the radiator & your body. L’appareil est conforme à la partie 15 des règles de la FCC [et contient des émetteurs exemptés de licence qui répondent aux critères du CNR d’exemption de licence d’innovation, sciences et développement économique Canada]. Les opérations sont soumises aux deux conditions suivantes: (1) Cet appareil ne peut pas causer d'interférence; Et (2) Cet appareil doit accepter toute interférence reçue, y compris celles qui peuvent entraîner un fonctionnement indésirable Les appareils numériques sont conformes à la norme canadienne can ICES 3 (b) / NMB 3 (b). L'appareil est conforme aux exigences d'exemption des limites d'évaluation de routine énoncées à la section 2.5 du CNR 102 et aux exigences d'exposition aux radiofréquences du CNR 102, qui permettent aux utilisateurs d'obtenir des renseignements canadiens sur l'exposition aux radiofréquences et la conformité. Lors de l'installation et de l'utilisation de cet appareil, la distance minimale entre le radiateur et le corps doit être de 20 mm. 3 Notes on use • Be sure to read the connected device’s user manual before use. • Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using the product. • Minimize the volume on your device before connecting the product. • Do not subject the product to strong impact. • Do not store the product in direct sunlight, near heating devices, or in hot, humid, or dusty places. Additionally, do not allow the product to get wet. • When the product is used for a long time, the product may become discolored due to ultraviolet light (especially direct sunlight) and wear. • When using the AC adapter, be sure to hold the plug and unplug it. The cable may become severed or an accident may occur if you pull on the cable itself. • Ensure the plug is fully inserted. • If you use the product near an electronic device or transmitter (such as a mobile phone), unwanted noise …

Text truncated - open the document above for the full version.

Audio-Technica Corporation Covered Equipment Certification Attestation Letter DATE: 2024-3-22 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: JFZ-ATSP3X Audio-Technica Corporation (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by a ny of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. Audio-Technica Corporation (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. <Signature> Name: Fumio Kamimura Title: General Manager, Quality Assurance Headquarters Company: Audio-Technica Corporation

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. Audio-Technica Corporation U.S. Agent Designation for Service of Process -Certification Attestation Letter DATE: 2024-3-4 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: JFZ-ATSP3X FRN of applicant: 0028730448 Per section 2.911(d)(7) of the FCC rules, Audio-Technica Corporation (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company name: Audio-Technica U.S., Inc. Address: 1221Commerce Dr.Stow, OH 44224 USA FRN Number: 0004315917 Contact Name: James Lappin/ manager Telephone No: +1-330-686-2600 Email: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Fumio Kamimura Title: General Manager, Quality Assurance Headquarters Company Name: Audio-Technica Corporation Date: 2024-3-4 Signed: Printed name: James Lappin Title: manager Company Name: Audio-Technica U.S., Inc. Date: 2024-3-4 Agent Signed (if different from Applicant):

DATE: 2024/3/22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen POCE Technology Co., Ltd. Address:101-102 Building H5 & 1/F., Building H, Hongfa Science & Technology Park, Tangtou, Shiyan, Bao'an District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Audio-Technica Corporation Address:2-46-1 Nishi-Naruse, Machida, Tokyo 194-8666, Japan <Signature> Name: Fumio Kamimura Title: General Manager, Quality Assurance Headquarters Company: Audio-Technica Corporation

DATE：2024-3-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: JFZ-ATSP3X Product Name: Powered Bluetooth BookShelf Speakers Request for Confidentiality Pursuant t o Sections 0.457 and 0.459 of the commissions rules, we hereby request that th e following documents be held confidential: (List here th e documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Fumio Kamimura Title: General Manager, Quality Assurance Headquarters Company: Audio-Technica Corporation

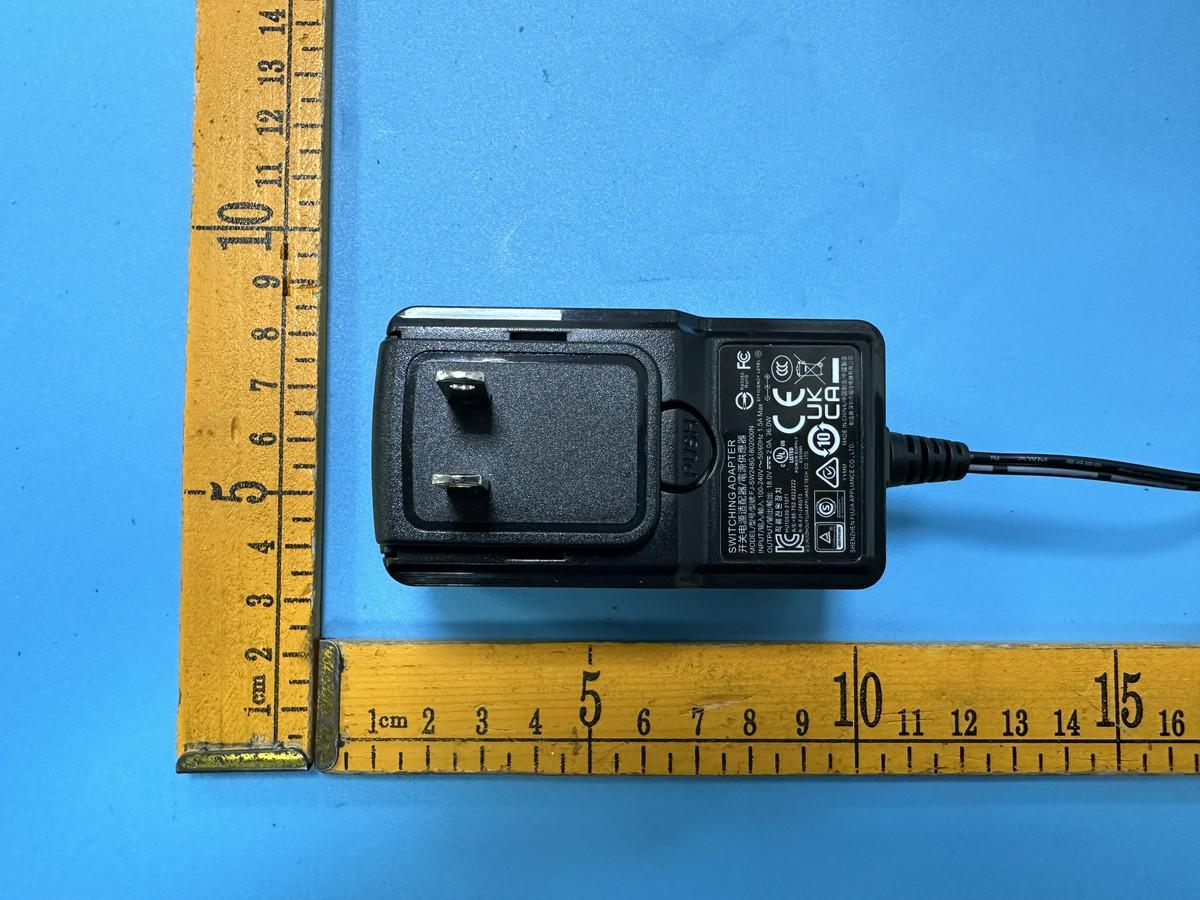

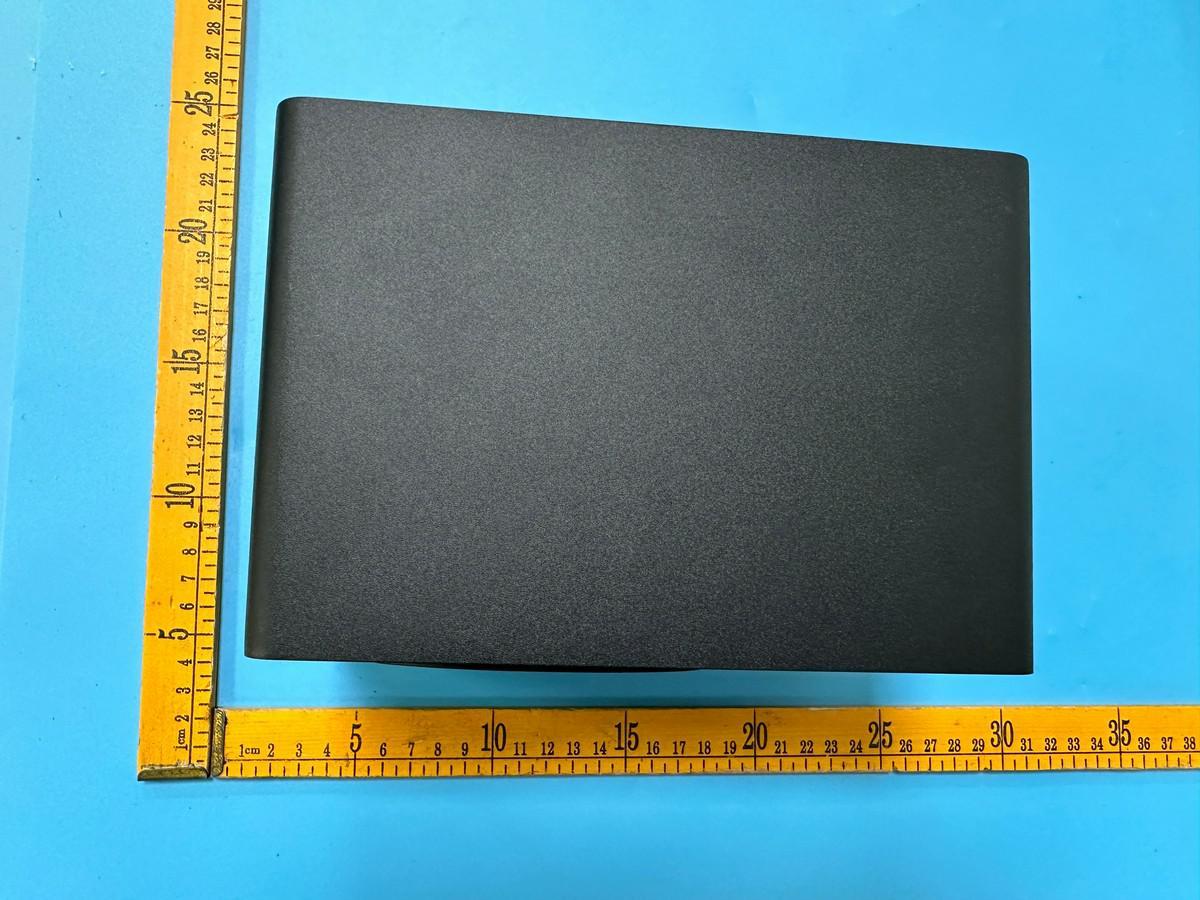

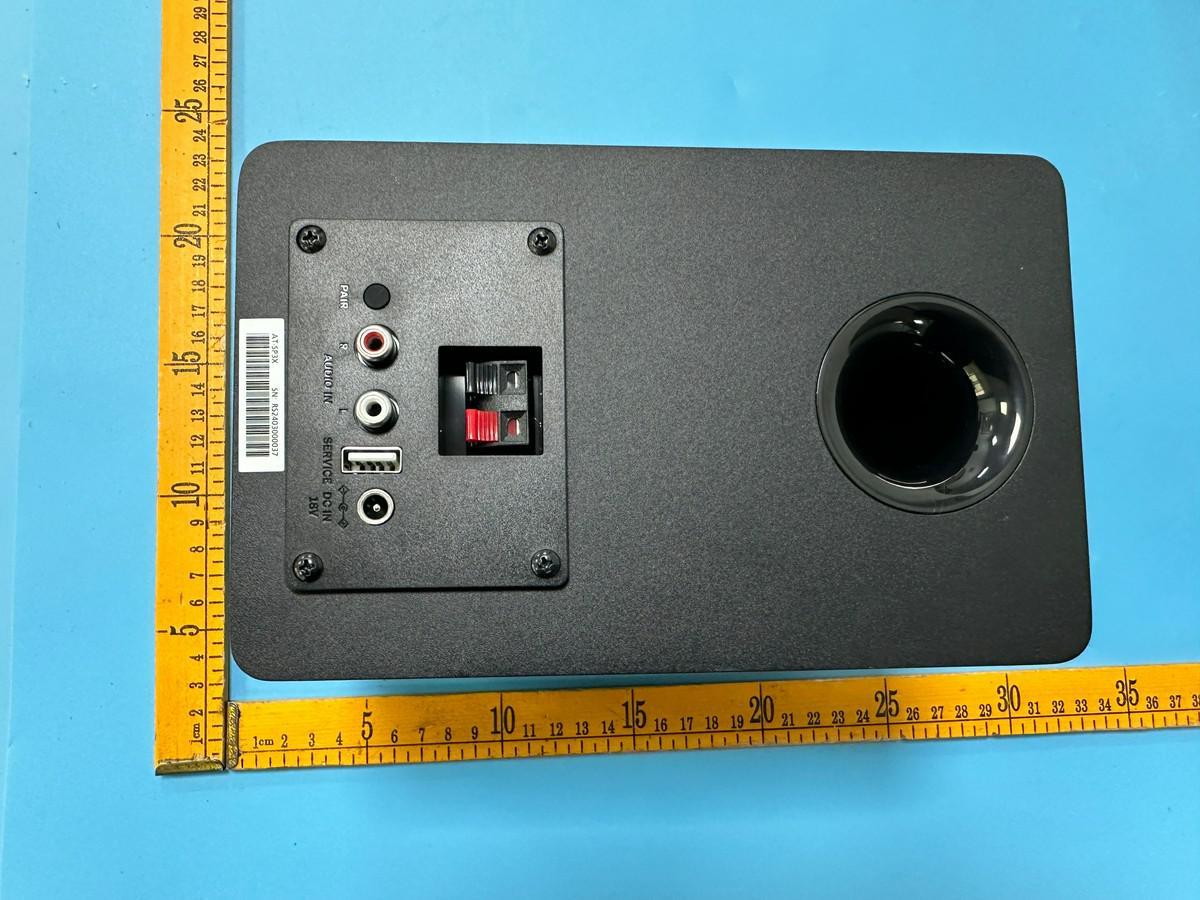

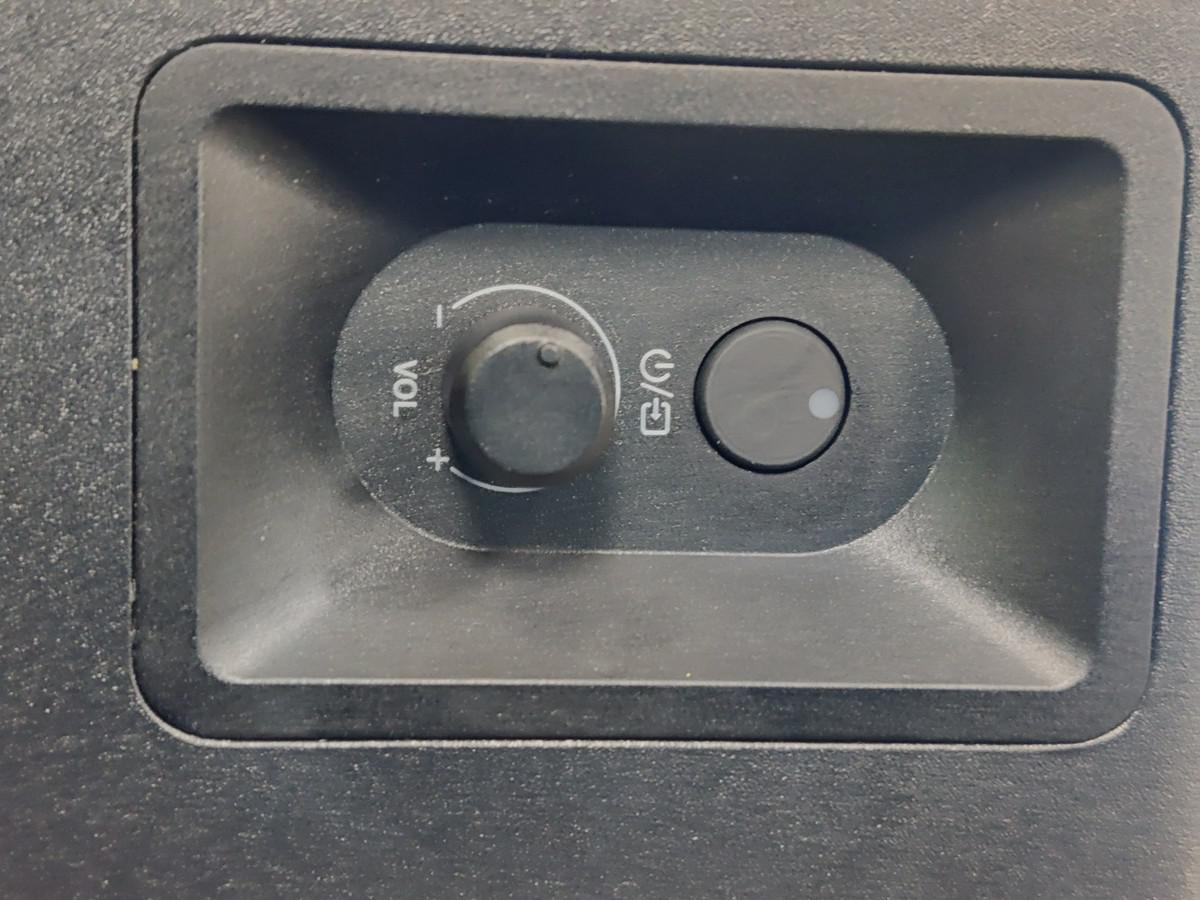

FCC ID: JFZ-ATSP3X External

Label place Sample: SIZE: 25*40mm Powered Bluetooth BookSh elf Speakers Model: AT-SP3X Power supply:AC100-240V / DC18V (using AC adapter) FCC ID: JFZ-ATSP3X IC: 1752B-ATSP3X S/N: XXXXXXXXXX

FCC ID: JFZ-ATSP3X Internal ANT

Page 1 of 1 RF Exposure Evaluation Report 1 RF EXPOSURE Product Name: Powered Bluetooth BookShelf Speakers Model No.: AT-SP3X FCC ID: JFZ-ATSP3X 2. RF Exposure Evaluation FCC KDB447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 2.1 LIMITS According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Page 1 of 1 Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.2 EUT RF EXPOSURE EVALUATION BT ANT1: 2.34dBi; Test channel (MHz) Conducted Power (dBm) Tune-up (dbm) Maximum tune-up Power (dbm) Maximum tune-up Power (mW) Calculated value (mW/cm 2 ) Limit (mW/cm 2 ) 2402 5.54 6±1.0 7.0 5.012 0.00171 1.0 2440 5.37 6±1.0 7.0 5.012 0.00171 1.0 2480 5.64 6±1.0 7.0 5.012 0.00171 1.0 Remark: 1.Pd = (Pout*G)/(4* Pi * R 2 )=( 5.012*1.714)/(4*3.1416*20*20)= 0.00171, G=10 gain/10 =1.714 2. EUT BT module is more than 20cm away from the human body. 2.3 Conclusion Calculated value is less than the limit value of 1.0mW/cm 2 , so there is no sar requirement. Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.7 in linear scale. The Max Conducted Peak Output Power data refer to report Report No.: POCE240222002RF001

V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 1 of 58 RF TEST REPORT For Audio-Technica Corporation Product Name: Powered Bluetooth BookShelf Speakers Test Model(s).: AT-SP3X Report Reference No. : POCE240222002RF001 FCC ID : JFZ-ATSP3X Applicant’s Name : Audio-Technica Corporation Address : 2-46-1 Nishi-Naruse, Machida, Tokyo 194-8666, Japan Testing Laboratory : Shenzhen POCE Technology Co., Ltd. Address : 101-102 Building H5 & 1/F., Building H, Hongfa Science & Technology Park, Tangtou, Shiyan, Bao'an District, Shenzhen, Guangdong, China Test Specification Standard : 47 CFR Part 15.247 ANSI C63.10-2013 & KDB 558074 D01 15.247 Meas Guidance v05r02 Date of Receipt : February 19, 2024 Date of Test : February 19, 2024 to February 28, 2024 Data of Issue : February 28, 2024 Result : Pass Note: This report shall not be reproduced except in full, without the written approval of Shenzhen POCE Technology Co., Ltd. This document may be altered or revised by Shenzhen POCE Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 2 of 58 Revision History Of Report Version Description REPORT No. Issue Date V1.0 Original POCE240222002RF001 February 28, 2024 NOTE1: The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Compiled by: Supervised by: Approved by: Keren Huang / Test Engineer Stone Yin / Project Engineer Tom Chen / Manager V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 3 of 58 CONTENTS 1 TEST SUMMARY ........................................................................................................................................... 5 1.1 TEST STANDARDS .................................................................................................................................. 5 1.2 SUMMARY OF TEST RESULT .................................................................................................................... 5 2 GENERAL INFORMATION ............................................................................................................................ 6 2.1 CLIENT INFORMATION ............................................................................................................................. 6 2.2 DESCRIPTION OF DEVICE (EUT) .............................................................................................................. 6 2.3 DESCRIPTION OF TEST MODES ................................................................................................................ 7 2.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................... 7 2.5 EQUIPMENTS USED DURING THE TEST .................................................................................................... 8 2.6 STATEMENT OF THE MEASUREMENT UNCERTAINTY ................................................................................. 9 2.7 IDENTIFICATION OF TESTING LABORATORY ............................................................................................ 10 2.8 ANNOUNCEMENT .................................................................................................................................. 10 3 EVALUATION RESULTS (EVALUATION) .................................................................................................... 11 3.1 ANTENNA REQUIREMENT ........................................................................................................................ 11 3.1.1 Conclusion: .............................................................................................................................. 11 4 RADIO SPECTRUM MATTER TEST RESULTS (RF) ................................................................................. 12 4.1 CONDUCTED EMISSION AT AC POWER LINE ........................................................................................... 12 4.1.1 E.U.T. Operation: .................................................................................................................... 12 4.1.2 Test Setup Diagram: ............................................................................................................... 12 4.1.3 Test Data: ............................................................................................................................... 13 4.2 OCCUPIED BANDWIDTH ........................................................................................................................ 15 4.2.1 E.U.T. Operation: .................................................................................................................... 15 4.2.2 Test Setup Diagram: ............................................................................................................... 15 4.2.3 Test Data: ............................................................................................................................... 15 4.3 MAXIMUM CONDUCTED OUTPUT POWER ..............................................................…

Text truncated - open the document above for the full version.

V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 41 of 58 Internal V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 42 of 58 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 43 of 58 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 44 of 58 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 45 of 58 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 46 of 58 Appendix 1. -6dB Bandwidth Condition Antenna Rate Frequency (MHz) -6dB BW(kHz) limit(kHz) Result NVNT ANT1 1Mbps 2402 513.31 500 Pass NVNT ANT1 1Mbps 2440 510.18 500 Pass NVNT ANT1 1Mbps 2480 511.36 500 Pass -6dB_Bandwidth_NVNT_ANT1_1Mbps_2402 -6dB_Bandwidth_NVNT_ANT1_1Mbps_2440 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 47 of 58 -6dB_Bandwidth_NVNT_ANT1_1Mbps_2480 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 48 of 58 2. 99% Occupied Bandwidth Condition Antenna Rate Frequency (MHz) 99%%BW(MHz) NVNT ANT1 1Mbps 2402 1.005 NVNT ANT1 1Mbps 2440 1.007 NVNT ANT1 1Mbps 2480 1.009 99%_Occupied_Bandwidth_NVNT_ANT1_1Mbps_2402 99%_Occupied_Bandwidth_NVNT_ANT1_1Mbps_2440 99%_Occupied_Bandwidth_NVNT_ANT1_1Mbps_2480 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 49 of 58 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 50 of 58 3. Peak Output Power Condition Antenna Rate Frequency (MHz) Max. Conducted Power(dBm) Max. Conducted Power(mW) Limit(mW) Result NVNT ANT1 1Mbps 2402 5.54 3.58 1000 Pass NVNT ANT1 1Mbps 2440 5.37 3.44 1000 Pass NVNT ANT1 1Mbps 2480 5.64 3.67 1000 Pass Peak_Output_Power_NVNT_ANT1_1Mbps_2402 Peak_Output_Power_NVNT_ANT1_1Mbps_2440 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 51 of 58 Peak_Output_Power_NVNT_ANT1_1Mbps_2480 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 52 of 58 4. Power Spectral Density Condition Antenna Rate Frequency (MHz) Power Spectral Density(dBm) Limit(dBm/3kHz) Result NVNT ANT1 1Mbps 2402 -4.29 8 Pass NVNT ANT1 1Mbps 2440 -4.66 8 Pass NVNT ANT1 1Mbps 2480 -4.19 8 Pass Power_Spectral_Density_NVNT_ANT1_1Mbps_2402 Power_Spectral_Density_NVNT_ANT1_1Mbps_2440 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 53 of 58 Power_Spectral_Density_NVNT_ANT1_1Mbps_2480 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 54 of 58 5. Bandedge Condition Antenna Rate TX_Frequency (MHz) Max. Mark Frequency (MHz) Spurious level(dBm) limit(dBm) Result NVNT ANT1 1Mbps 2402 2399.300 -32.629 -14.544 Pass NVNT ANT1 1Mbps 2480 2486.025 -38.511 -14.415 Pass 1_Reference_Level_NVNT_ANT1_1Mbps_2402 2_Bandedge_NVNT_ANT1_1Mbps_2402 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 55 of 58 1_Reference_Level_NVNT_ANT1_1Mbps_2480 2_Bandedge_NVNT_ANT1_1Mbps_2480 V1.0 Report No.: POCE240222002RF001 101-102 Building H5 & 1/F., Building H,Hongfa Science & Technology Park,Tangtou, Shiyan, Bao’an District, Shenzhen, Guangdong, China Web: http://www. poce-cert.com Tel: +86-755-29113252 E-mail: [email protected] Page 56 of 58 6. Spurious Emission Condition Antenna Rate TX_Fr…

Text truncated - open the document above for the full version.

YUAN DE DAINZI (SHENZHEN) Sample Confirmation Letter SAMPLE APPROVAL SHEET 客户（Customer） Richsound Electronic Industrial Ltd 部品名称（ Material Description ） AT-SP3X BTANT 客户料号（ Customer’s Part number ） 部品规格（Specifications） AT-SP3X BTAntenna:FPC (L25.4*W23.4mm)+black coaxial line(φ0.81 * 70mm)+welding+solder pad UV 远德料号（Supplier’s Part number） 136-ATSP3X-10A 送样日期（ Date）2024-1-4 拟 制 Prepared By 审 核 Checked By 批 准 Approved By 张登桥李岳鹏张相亭 客户签核： 承 认 Accepted By 审 核 Checked By 批 准 Approved By 承认结果： □完全接受（Full Approval） □条件接受（Conditional Approval） □不合格（Unqualified） □其它（Others）: 本样品承认书我司确保属实，如经贵司研发部门确认签核后，请以最快速度回传给我司。如有其它原因，请以 书面形式通知我。 This sample approval sheet is guaranteed to be true. If it is confirmed by your R&D department, please send it back to us as soon as possible. If there are other reasons, please inform us in writing. 1 specifications This report mainly provides the testing status of various electrical and structural performance parameters of the AT-SP3X BT antenna. 1.1 Electrical specification standards 1.1.1 Electrical performance indicators The antenna operates in the frequency range of 2400-2480MHz. The following table shows the electrical performance indicators of our designed antennas 1.1.2 Matching circuit diagram 2 Test The antenna is debugged and tested using the prototype provided by the customer. 2.1 Testing of Passive S11 2 .1.1 Test Connection The passive S11 testing device is sequentially connected as follows: network analyzer → Test line → Test fixture ANT AT-SP3X BT ANT FRE. 2400-2480MHz VSWR < 2 Efficiency > 45% Impedance 50 ohm Polarizationlinear polarization ElementValue E1(0402)N/A E2(0402)0R E3(0402)N/A 2.1.2 Passive S11 The following table shows the standing wave ratio values at the edge frequency points of the antenna operating frequency band. The waveform of Return Loss and VSWR obtained from the test is shown in the following figure. FRE.(MHz) 240024402480 VSWR1.321.151.34 Return Loss-16.98-22.86-16.64 2.2 Testing of gain and efficiency 2.2.1 Test site Yuande - Microwave Anechoic Room: Test frequency range from 400MHz to 6GHz 2.2.2 Tested instruments Network analyzer, standard horn antenna, multi probe near-field antenna testing system, testing computer, etc. 2.2.3 Test result The efficiency and gain related values tested in a microwave anechoic chamber are shown in the table below Frequency(MHz)Gain(dBi)Efficency(%) 24002.3147.30% 24102.1648.00% 24202.1249.20% 24302.1050.90% 24402.1152.60% 24502.2254.40% 24602.0853.90% 24702.1453.00% 24802.2052.00% 24902.2651.90% 25002.3450.00% 2.2.4 Passive radiation pattern 2.3 OTA 2.3.1 Test result ChannelTRP (dBm)TIS(dBm) 0-2.44-85.11 39-1.85-89.09 78-2.02-88.48

FCC ID: JFZ-ATSP3X Conducted Emission at AC power line Emissions in frequency bands (below 1GHz) Emissions in frequency bands (above 1GHz)
