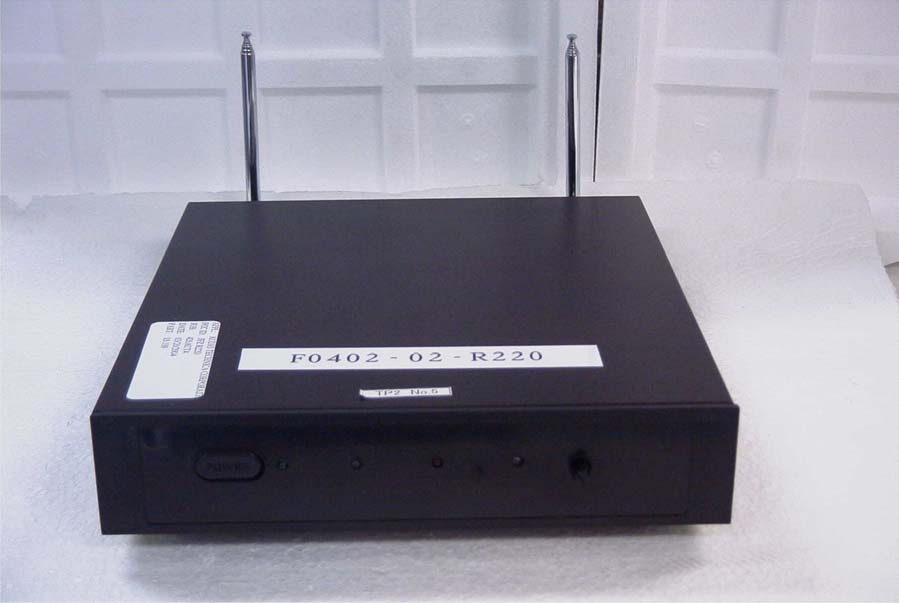

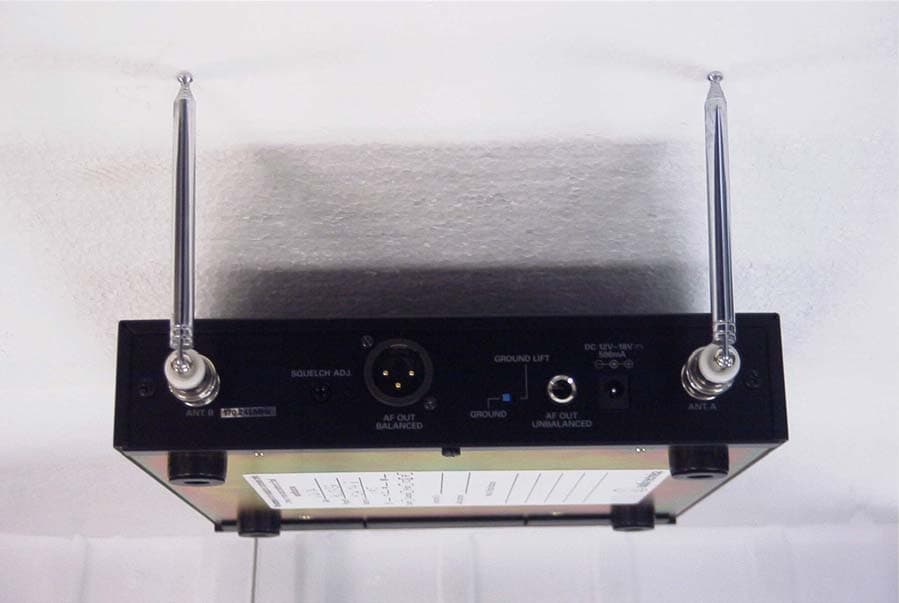

JFZATWR220Communications Receiver

220 Series Professional VHF Wireless Systems ATW-221UniPak ™ System ATW-222Handheld Microphone System Installation and Operation Professional VHF Wireless Systems Installation and Operation 2 CAUTION!Electrical shock can result from removal of the receiver cover. Refer servicing to qualified service personnel. No user-serviceable parts inside. Do not expose to rain or moisture. The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compli- ance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. Thank you for choosing an Audio-Technica professional wireless system. You have joined thousands of other satisfied customers who have chosen our products because of their quality, perfor- mance and reliability. This wireless microphone system is the successful result of years of design and manufacturing experience. This professional wireless system includes a receiver and either a body-pack or a handheld transmitter on a specific crystal-controlled frequency. The receiver features true diversity reception. Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts. The receiver is half-width for a standard 19" (1U) rack mount. Please note that in multiple-system applications there must be a transmitter-receiver combination on a separatefrequency for each input desired (only one transmitter for each receiver). Operating frequency information will be found on page 6. The versatile ATW-T201 UniPak body-pack transmitter has both a high-impedance input for instruments, and a low-impedance input with bias connection for use with dynamic and electret condenser microphones. The ATW-T202 handheld transmitter features a unidirectional dynamic microphone element. Both the body-pack and handheld transmitters use internal 9-volt batteries and have Off/Standby/On switches, input Trim (level) adjustments and battery-save switches. Introduction See pages 8-9 for illustrations. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy mayinterfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especial- ly if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off . Please contact your physician or medical-device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. Receiver Installation 3 Location For best operation the receiver should be at least 3' (1 m) above the ground and at least 3' (1 m) away from a wall or metal surface to minimize reflections. Keep the receiver antennas away from noise sources such as digital equipment, motors, automobiles and neon lights, as well as away from large metal objects. In multi-channel systems, position receivers at least 3' (1 m) apart and keep operating transmit- ters at least 6' (2 m) from the receivers to help assure maximum RF performance. Output Connection There are two audio outputs on the back of the receiver: balanced (160 mV) and unbalanced (280 mV). Use shielded audio cable for the connection between the receiver and the mixer. If the input of the mixer is a 1 / 4 " jack, connect a cable from the 1 / 4 " unbalanced audio output on the back of the receiver to the mixer. If the input of the mixer is an XLR-type input, connect a cable from the balanced XLR-type audio output on the back of the receiver to the mixer. The two isolated audio outputs permit simultaneous feeds to both unbalanced and balanced inputs. For example, both a guitar amp and a mixer can be driven by the receiver. Front Panel Controls and Functions (Fig. A) 1. POWER SWITCH: Press power switch in to turn on 2. POWER INDICATOR: Lights when power is supplied to the receiver. 3. TUNER OPERATION INDICATOR: Indicates which tuner has the better reception and is in operation. 4. AF PEAK INDICATOR: Only lights when audio distortion is present at maximum modulation. Not affected by position of AF Level Control. 5. TUNER OPERATION INDICATOR: Indicates which tuner has the better reception and is in operation. 6. AF LEVEL CONTROL: Adjusts the level at both audio output jacks. Power Connection Connect the included [need number] adapter to the DC power input on the back of the receiver. Then plug the adapter into a standard 120 volt 60 Hz AC power outlet. Antennas Attach the antennas to the antenna input jacks. Receiver Controls and Functions Rear Panel Controls and Functions (Fig. B) 7. ANTENNA INPUT JACK: BNC-type antenna connector for Tuner “A.” Attach the antenna directly, or extend it with a low-loss antenna cable. 8. SQUELCH CONTROL: Adjusts level of noise-muting circuit (Preset at factory but can be adjusted as circumstances warrant.) 9. BALANCED AUDIO OUTPUT JACK: XLRM-type connector. A standard 2-conductor shielded cable can be used to connect the receiver output to a balanced aux-level input on a …

Text truncated - open the document above for the full version.

Audio-Technica U.S., Inc. 1221 Commerce Drive Phone: 330-686-2600 [email protected] Stow, OH 44224-1760 Fax: 330-688-3752 March 18, 2004 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZR220 Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio Technica, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for ATW-R220 wireless receiver Block diagram for ATW-R220 wireless receiver This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION Test Report Product Name: COMMUNICATIONS RECEIVER FCC ID: JFZATWR220 Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN Date Receipt: MARCH 26, 2004 Date Tested: APRIL 16, 2004 FCC ID: JFZATWR220 REPORT #: A\AudioTechnica_JFZ\426AUT4\426AUT4TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION TABLE OF CONTENTS LIST APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZATWR220 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4...............POWER LINE CONDUCTED EMISSIONS PAGE 5...............POWER LINE CONDUCTED PLOTS EXHIBITS CONTAINING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH FCC ID: JFZATWR220 REPORT #: A\AudioTechnica_JFZ\426AUT4\426AUT4TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZATWR220 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 out for Cal Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 REPORT #: A\AudioTechnica_JFZ\426AUT4\426AUT4TestReport.doc Page 1 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZATWR220 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2001 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHZ with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 80ºF with a humidity of 70%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2001 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. REPORT #: A\AudioTechnica_JFZ\426AUT4\426AUT4TestReport.doc Page 2 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZATWR220 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZATWR220 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 169.5 180.20 15.7 V 1.96 14.77 32.43 11.07 169.5 180.20 20.5 H 1.96 14.18 36.64 6.86 169.5 360.40 11.5 H 2.90 15.50 29.90 16.10 169.5 360.40 16.9 V 2.90 15.01 34.81 11.19 169.5 540.60 13.7 V 3.62 18.12 35.44 10.56 169.5 540.60 14.6 H 3.62 18.71 36.93 9.07 170.2 180.92 16.8 V 1.97 14.67 33.44 10.06 170.2 180.92 17.7 H 1.97 14.11 33.78 9.72 170.2 361.84 12.4 H 2.91 15.48 30.79 15.21 170.2 361.84 15.7 V 2.91 15.04 33.65 12.35 170.2 542.76 11.3 V 3.63 18.18 33.11 12.89 170.2 542.76 11.5 H 3.63 18.76 33.89 12.11 171.9 182.60 19.2 V 1.98 14.44 35.62 7.88 171.9 182.60 20.7 H 1.98 13.94 36.62 6.88 171.9 365.20 13.5 H 2.93 15.45 31.88 14.12 171.9 365.20 14.5 V 2.93 15.10 32.53 13.47 171.9 547.80 14.0 V 3.64 18.33 35.97 10.03 171.9 547.80 17.3 H 3.64 18.86 39.80 6.20 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-2001 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Preselector, a Hewlett Packard…
