AUDIO TECHNICA SpectraPulse tm UWB WIRELESS MICROPHONE SYSTEM USER INFORMATION. INTRODUCTION Thank you for purchasing the Audio-Technica SpectraPulse wireless microphone system. It is our hope that the system will bring you years of trouble free pleasure and performance. Please follow the information contained in this manual closely as it will assist you in using your equipment effectively. PART 1. REGULATORY REQUIREMENTS. “This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties.” “This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference” “This device complies with INDUSTRY CANADA R.S.S. 210, en confomite avec IC: RSS- 210/CNR210. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference which may cause undesired operation.” “Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at own expense.” Please note that your SpectraPulse system operates in a frequency band in a way which may make its use subject to certain FCC and other regulatory agency restrictions and licensing requirements. No changes or modifications may be made to this equipment except by the expressly approved responsible party for compliance. Changes or modifications could void the user’s authority to operate the equipment, and will also void Audio-Technica warranty coverage. For further information, Please contact your local office of the FCC as applicable. CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing to qualified service personnel. No user-serviceable parts inside. Do not expose to rain or moisture. The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical-device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. . CAUTION! The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. PART 2. USING THE ACI707 AUDIO CONTROL INTERFACE The ACI707 Audio Control Interface operates via the safety-approved IEC power cord supplied for connection to 110-120V/50-60Hz AC power. You must change to an approved power cord for operation in non-U.S. locations. In this case, the ACI707 will operate properly from 100V-240V, 50/60Hz for worldwide use. Plug the ACI707 into the AC power source, but do not turn the power on yet. Connect a shielded CAT5 cable to the “Link In” RJ45 input connector on the rear of the ACI707. CAUTION – do not plug an Ethernet cable into this connector. Locate the section labeled “Audio Outputs” located at the bottom left portion on the rear of the ACI707. For each audio channel (corresponding to the number of boundary microphone transmitters used), connect a cable to the corresponding output on the rear of the ACI707. Up to 7 channels of audio output may be connected to your mixer or PA system from each ACI707. Depending upon the audio electronics input for your system , you may select the output level of the ACI707 to be either “Line” or “Mic” level. Locate the switch on the rear of the ACI707 (near the Audio Outputs) and set up or down as shown in the picture/label for correct output level. A light will illuminate on the front panel of the ACI707 to indicate whether the unit is operating with Line or Mic level output. Two ACI707 Audio Control Interfaces may be linked together in order to accomplish a full 14 channels of audio output from the system. When linking two systems, change the switch on the rear of the ACI707 to indicate whether it should be outputting channels 1-7 or channels 8-14. Locate the “Link Out” RJ45 connector and connect a shielded CAT5 cable from the channels 1-7 ACI707 to the “Link In” RJ45 connector on the ACI707 intended for channels 8-14. Again, remember this is not for Ethernet connection. The ACI707 Audio Control Interface is supplied with switches on the rear which can be changed in order to select the function of the soft-touch button on the MTU101 wireless boundary microphone. The switches are located in the upper left corner on the rear of the ACI707. You may set the switches so that the soft-touch butt…

Text truncated - open the document above for the full version.

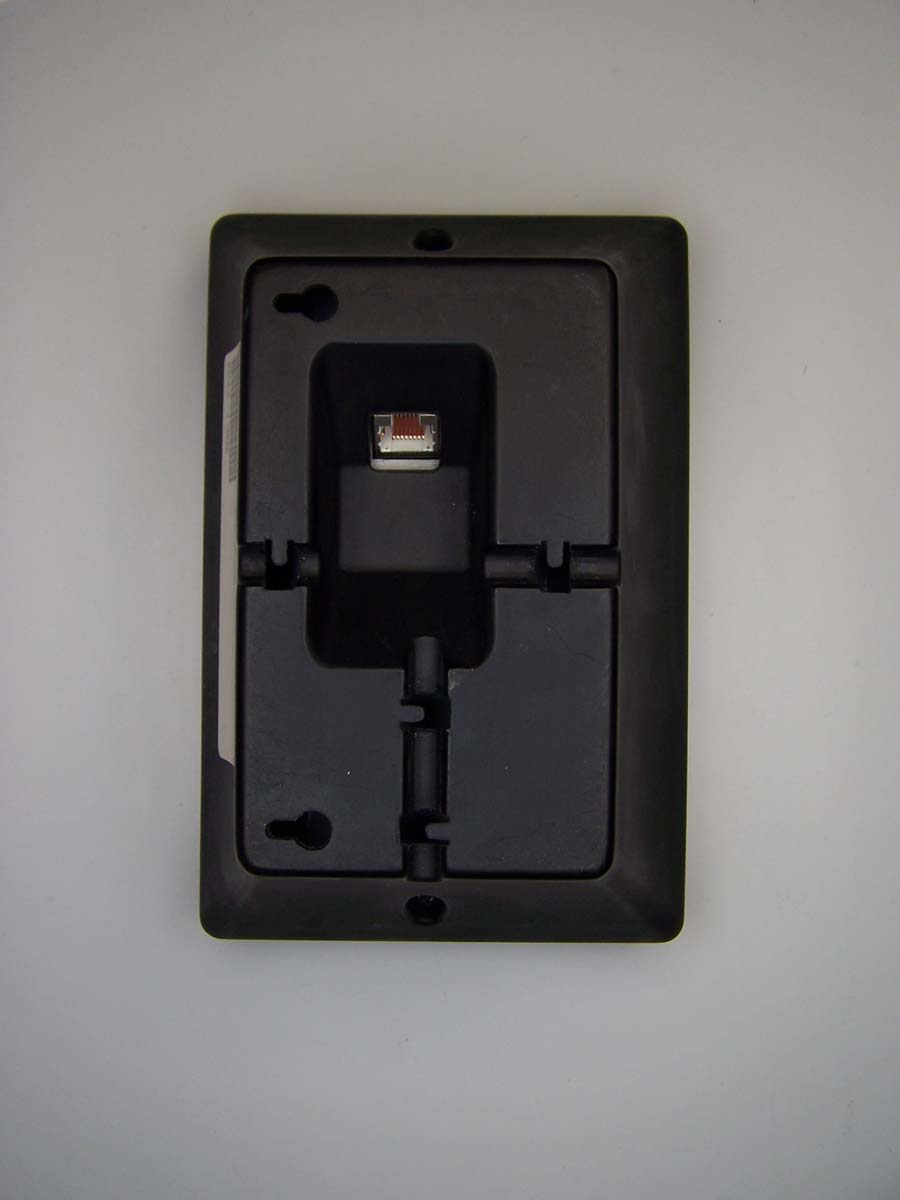

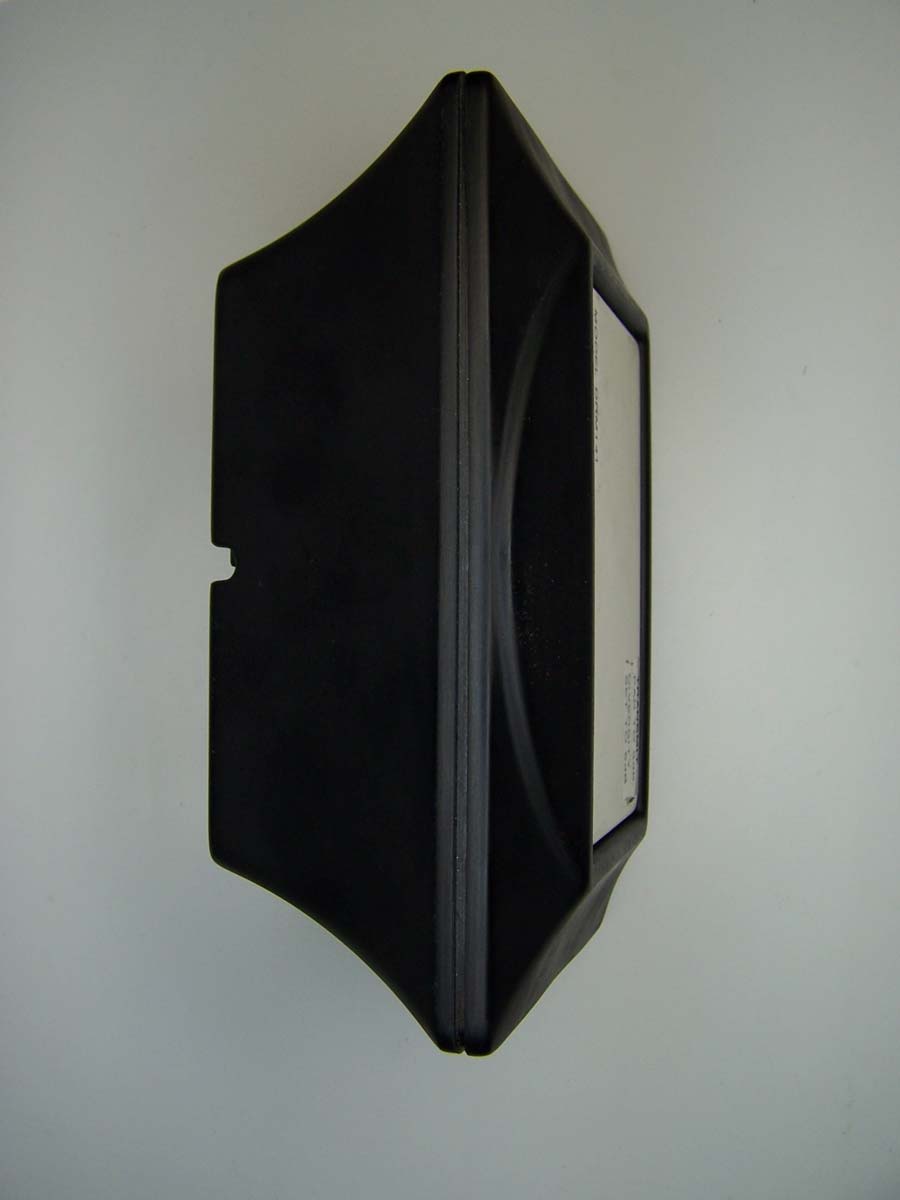

External Photographs

MODEL: DRM141 FCC ID: JFZDRM141 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CANADA: Audio-Technica U.S., Inc. MADE IN U.S.A. S/No. DRM141 Bottom Label

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 The Nation’s First Licensed Nationally Recognized Testing Laboratory Audio-Technica October 16, 2006 20300 Century Boulevard, Suite 250 Germantown, MD 20874-1132 Dear Jacquelynn Green, Enclosed is the EMC test report for compliance testing of the Audio-Technica, SpectraPulse Wireless Microphone System – Digital Receiver Module (DRM141), tested to the requirements of Title 47 of the Code of Federal Regulations (CFR), Part 15.517, Subpart F for Ultra-Wideband Operation. Based on these results, MET Laboratories, Inc. certifies that the SpectraPulse Wireless Microphone System – Digital Receiver Module (DRM141), tested as configured, meets the requirements and interference limitations for Digital Devices under Title 47 of the CFR, Part 15.517, Subpart F for Ultra-Wideband Operation. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Sarah Kitlowski Documentation Department Reference: (\Audio-Technica\EMC19886B-FCC517) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Criteria Test Report For the Audio-Technica SpectraPulse Wireless Microphone System – Digital Receiver Module (DRM141) FCC ID: JFZDRM141 Title 47 of the CFR, Part 15.517, Subpart F for Ultra-Wideband Operation MET Report: EMC19886B-FCC517 October 16, 2006 Prepared For: Audio-Technica 20300 Century Boulevard, Suite 250 Germantown, MD 20874-1132 Prepared By: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Audio-Technica Electromagnetic Compatibility SpectraPulse Wireless Microphone System – Digital Receiver Module DRM141 CFR Title 47, Part 15, Subpart F MET Report: EMC19886B-FCC517 © 2006, MET Laboratories, Inc. Page ii of v Electromagnetic Compatibility Criteria Test Report for the Audio-Technica SpectraPulse Wireless Microphone System – Digital Receiver Module (DRM141) FCC ID: JFZDRM141 Title 47 of the CFR, Part 15.517, Subpart F for Ultra-Wideband Operation Dusmantha Tennakoon Sarah Kitlowski Project Engineer, Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15, Section 15.517 of the FCC Rules under normal use and maintenance. Kevin Mehaffey, Manager, Electromagnetic Compatibility Lab Audio-Technica Electromagnetic Compatibility SpectraPulse Wireless Microphone System – Digital Receiver Module DRM141 CFR Title 47, Part 15, Subpart F MET Report: EMC19886B-FCC517 © 2006, MET Laboratories, Inc. Page iii of v Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................5 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................8 H. Mode of Operation....................................................................…

Text truncated - open the document above for the full version.

Multispectral Solutions, Inc. Electromagnetic Compatibility Criteria SpectraPulse Wireless Microphone System – Digital Receiver Module DRM141 CFR Title 47, Part 15, Subpart F MET Report: EMC19886B-FCC 517 © 2006, MET Laboratories, Inc. Page 17 of 47 Conducted Emissions Limits Photograph 1. Conducted Emissions Limits, Test Setup Multispectral Solutions, Inc. Electromagnetic Compatibility Criteria SpectraPulse Wireless Microphone System – Digital Receiver Module DRM141 CFR Title 47, Part 15, Subpart F MET Report: EMC19886B-FCC 517 © 2006, MET Laboratories, Inc. Page 23 of 47 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.209(a) Radiated Emission Photograph 2. Radiated Emission Test Setup
