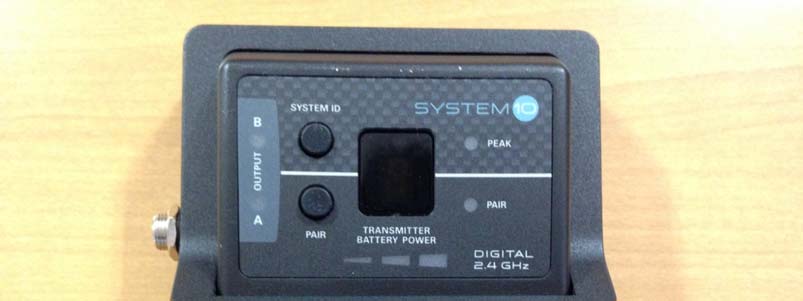

System 10 Stompbox Digital Wireless System Installation and Operation ATW-1501 Stompbox Wireless System System 10 Stompbox Installation and Operation 2 circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical-device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Unplug this apparatus during lightning storms or when unused for long periods of time. 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Thank you for choosing an Audio-Technica professional wireless system. You have joined thousands of other satisfied customers who have chosen our products because of their quality, performance and reliability. This wireless microphone system is the successful result of years of design and manufacturing experience. Audio-Technica’s System 10 Stompbox is a digital wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 Stompbox offers a small, portable receiver with foot switch, two switched TRS balanced ¼" outputs and an output mode selector. The receiver can be paired with up to eight UniPak ® body-pack transmitters, allowing musicians to easily switch instruments. System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity. Each System 10 Stompbox professional digital wireless system includes an ATW-R1500 Stompbox receiver, an ATW-T1001 UniPak body-pack transmitter with an AT-GcW guitar cable, and Velcro ® strips for adding receiver to an effects pedal board. All A-T Wireless Essentials ® microphones and cables, available separately, are pre- terminated for use with any ATW-T1001 transmitters. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE. CERTIFICATION: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. THIS DEVICE COMPLIES WITH INDUSTRY CANADA LICENSE- EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Cet appareil est conforme à la/aux norme(s) RSS exempte(s) de licence d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement non souhaité. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. CAUTION! Electrical shock can result from removal of…
Text truncated - open the document above for the full version.

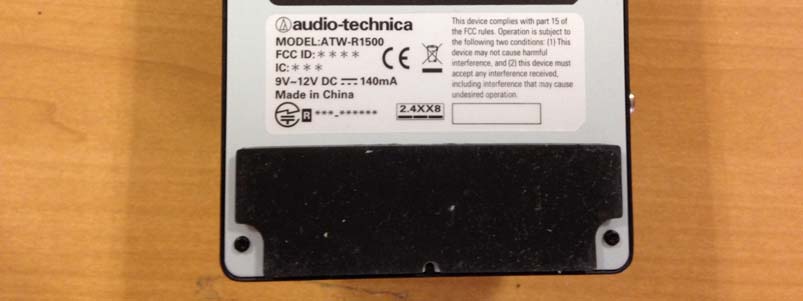

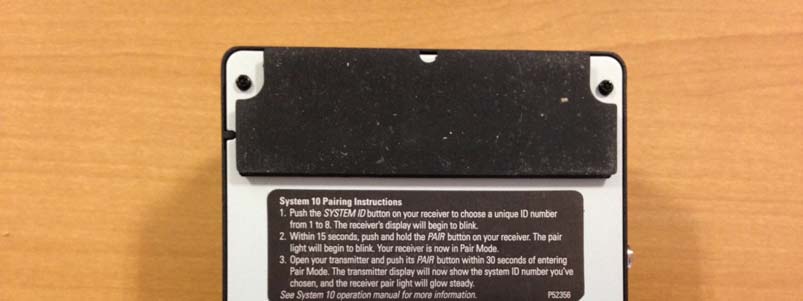

LABEL
Test report No. : 10146657H-A-R1 Page : 2 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10146657H-A Revision Test report No. Date Page revised Contents - (Original) 10146657H-A January 9, 2014 - - 1 10146657H-A-R1 January 10, 2014 P.9 Addition of explanatory note for Configuration and peripherals 1 10146657H-A-R1 January 10, 2014 P.18,20 Correction of test data Test report No. : 10146657H-A-R1 Page : 3 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 16 Average Output Power ...................................................................................................................... 17 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 23 Power Density ................................................................................................................................... 25 99%Occupied Bandwidth ................................................................................................................. 27 APPENDIX 2: Test instruments ............................................................................................................. 28 APPENDIX 3: Photographs of test setup ............................................................................................... 30 Conducted Emission ......................................................................................................................... 30 Radiated Spurious Emission ............................................................................................................. 31 Worst Case Position .......................................................................................................................... 32 Test report No. : 10146657H-A-R1 Page : 4 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Technica Fukui Co.,Ltd.* Address : 87-1, Totani, Echizen-shi, Fukui, 915-0003Japan Telephone Number : +81-778-25-6715 Facsimile Number : +81-778-25-6705 Contact Person : HIROKI TAKEICHI * Technica Fukui Co.,Ltd. is on behalf of the applicant: Audio Technica Corp. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : WIRELESS MICROPHONE RECEIVER Model No. : ATW-R1500 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC12V Receipt Date of Sample : December 9, 2013 Country of Mass-production: China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: ATW-R1500, (referred to as the EUT in this report), is the WIRELESS MICROPHONE RECEIVER. General Specification Clock frequency(ies) in the system : 24MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2403-2481MHz Modulation : GFSK Power Supply (inner) : DC 1.8V Antenna type : PIFA Antenna Antenna Gain : Peak: -3.74dBi (Antenna 1), -0.46dBi (Antenna 2) Test report No. : 10146657H-A-R1 Page : 5 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The EUT complies with FCC Part 15 Subpart B: 2013, final revised on September 30, 2013 and effecti…
Text truncated - open the document above for the full version.
Test report No. : 10146657H-A-R1 Page : 30 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10146657H-A-R1 Page : 31 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10146657H-A-R1 Page : 32 of 32 Issued date : January 9, 2014 Revised date : January 10, 2014 FCC ID : JFZR1500 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
