System 10 Portable Camera-Mount Wireless Digital Wireless System Installation and Operation ATW-1701 UniPak ® Transmitter System ATW-1702 Handheld Microphone System RX TX RF PEAK PAIR SYSTEM ID PAIR MONITOR CHARGE System 10 Portable Camera-Mount Wireless Installation and Operation 2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Unplug this apparatus during lightning storms or when unused for long periods of time. 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. CAUTION on handling receiver battery • Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C) or incinerate. • Battery must be replaced and recycled by qualified service personnel. Do not attempt to replace battery on your own. • If the battery leaks and the liquid contacts your skin or clothing, immediately flush with clean water. • If the battery leaks and the liquid contacts your eyes, immediately wash thoroughly with clean water and seek medical assistance. • Do no short circuit; may cause burns or catch fire. • Charge battery only with the supplied AC adapter and USB cable. Thank you for choosing an Audio-Technica professional wireless system. You have joined thousands of other satisfied customers who have chosen our products because of their quality, performance and reliability. This wireless microphone system is the successful result of years of design and manufacturing experience. Audio-Technica’s System 10 Portable Camera-Mount is a digital wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring a compact design, System 10 Portable Camera-Mount is available in handheld, lavalier and body-pack configurations. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 Portable Camera-Mount offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity. Each System 10 professional digital wireless system includes a receiver and camera shoe mount, and either a body-pack transmitter or a handheld microphone/transmitter. Because System 10 packaging is designed to hold all versions of the system, some compartments in the carton may be intentionally left empty. The ATW-R1700 receiver includes a switching power supply that automatically adapts to changes in mains voltage. The versatile ATW-T1001 UniPak ® body-pack transmitter has both a high- impedance input for instruments, and a low-impedance input with bias connection for use with dynamic and electret condenser microphones. The ATW-T1002 handheld transmitter features a unidirectional dynamic microphone element. Both the body-pack and handheld transmitters use internal AA batteries and have Power/Mute switches and input Trim (level) adjustments. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE. CERTIFICATION: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. THIS DEVICE COMPLIES WITH INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Cet appareil est conforme à la/aux norme(s) CNR exempte(s) de licence d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement non souhaité. WARNING: Changes or modifications not expressly approved in writing by Audio -Technica may void the user’s authority to operate this equipment. RF Exposure Statement: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation. (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie…

Text truncated - open the document above for the full version.

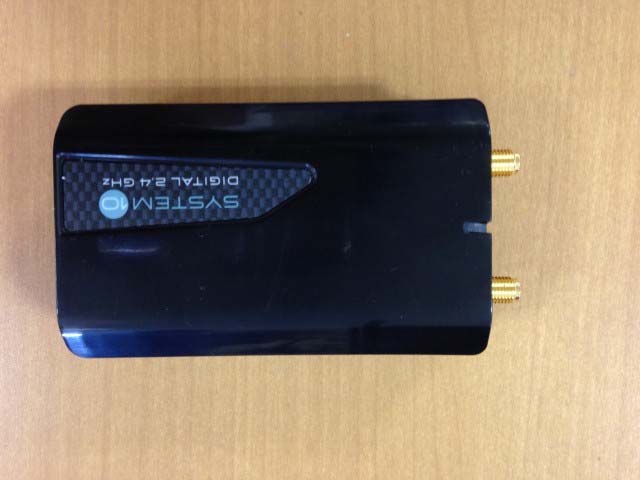

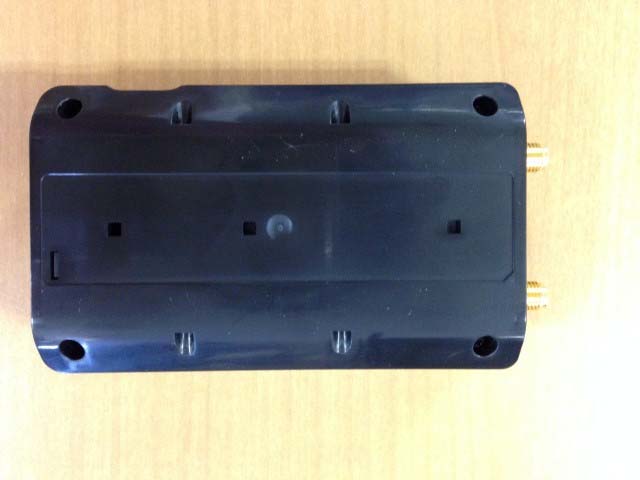

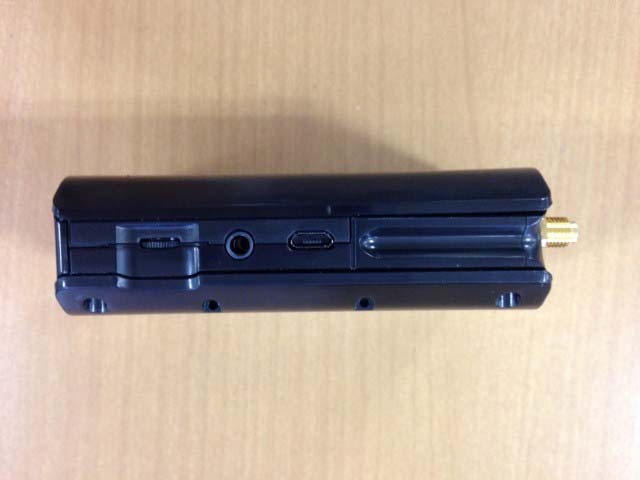

Photo ATW-R1700 56 mm 99.8 mm Photo ATW-R1700 27.8 mm Photo ATW-R1700 Photo ATW-R1700

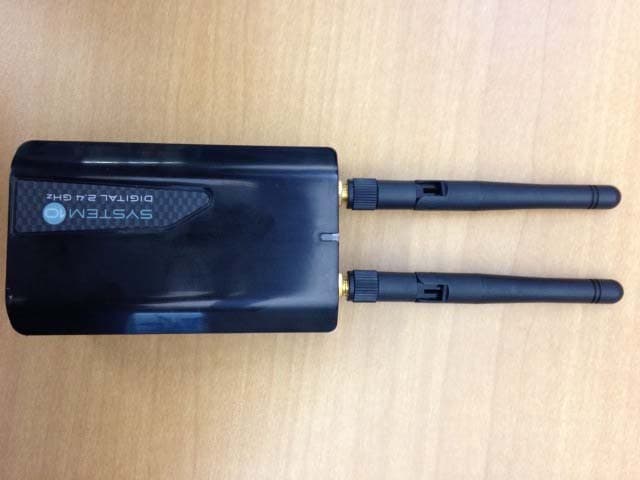

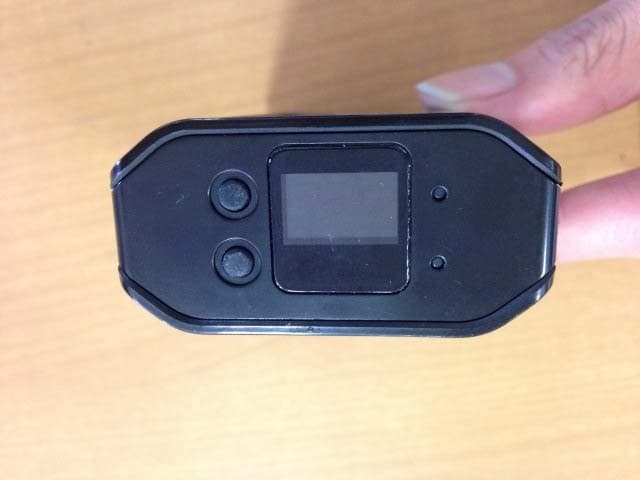

Photo ATW-R1700 Photo ATW-R1700 Photo ATW-R1700 Photo ATW-R1700

UL Japan, Inc. Ise HQ EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp May 28, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: JFZR1700 To whom it may concern, We, UL Japan, Inc, hereby declare that WIRELESS MICROPHONE RECEIVER, model: ATW-R1700 (FCC ID: JFZR1700) of Audio-Technica Corp. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5mm (minimum separation distance: 5mm was used in the calculation) and the maximum tune-up tolerance limit was 0 mW.(0.06mW) So for this device: 0 mW[maximum tune-up tolerance limit]/5 mm[minimum separation distance]*√2.48 = 0 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Takahiro Hatakeda Leader of Ise HQ EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 10291834H-A-R1 Page : 2 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10291834H-A Revision Test report No. Date Page revised Contents - (Original) 10291834H-A May 15, 2014 - - 1 10291834H-A-R1 May 30, 2014 P8 Correction of Power setting: 8dBm → 10dBm (Peak) Test report No. : 10291834H-A-R1 Page : 3 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 16 Average Output Power ...................................................................................................................... 17 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 22 Power Density ................................................................................................................................... 24 99%Occupied Bandwidth ................................................................................................................. 26 APPENDIX 2: Test instruments ............................................................................................................. 27 APPENDIX 3: Photographs of test setup ............................................................................................... 28 Conducted Emission ......................................................................................................................... 28 Radiated Spurious Emission ............................................................................................................. 29 Worst Case Position .......................................................................................................................... 30 Test report No. : 10291834H-A-R1 Page : 4 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Technica Fukui Co.,Ltd.* Address : 87-1, Totani, Echizen-shi, Fukui, 915-0003 Japan Telephone Number : +81-778-25-6715 Facsimile Number : +81-778-25-6705 Contact Person : HIROKI TAKEICHI * Technica Fukui Co.,Ltd. is on behalf of the applicant: Audio-Technica Corp. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : WIRELESS MICROPHONE RECEIVER Model No. : ATW-R1700 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.7V Receipt Date of Sample : April 22, 2014 Country of Mass-production: China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: ATW-R1700, referred to as the EUT in this report, is the WIRELESS MICROPHONE RECEIVER. General Specification Clock frequency(ies) in the system : 24MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2403-2481MHz Modulation : GFSK Power Supply (inner) : DC 1.8V Antenna type : Sleeve Antenna Antenna Gain : 1.1dBi Test report No. : 10291834H-A-R1 Page : 5 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on March 6, 2014 and effective April 7, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The EUT complies with FCC Part 15 Subpart B: 2014, final revised on March 6, 2014 and effective April 7, 2014. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measure…

Text truncated - open the document above for the full version.

Test report No. : 10291834H-A-R1 Page : 28 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10291834H-A-R1 Page : 29 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10291834H-A-R1 Page : 30 of 30 Issued date : May 15, 2014 Revised date : May 30, 2014 FCC ID : JFZR1700 UL Japan, Inc. Ise HQ EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Antenna (Horizontal: Z-axis/ Vertical: Y-axis) Chassis (Horizontal: X-axis/ Vertical: X-axis) X-axis X-axis Y-axis Y-axis Z-axis Z-axis End of Report
