JFZR3100BDWIRELESS MICROPHONE RECEIVER

3000 Series Frequency-agile True Diversity UHF Wireless System Installation and Operation 3000 Series Frequency-agile True Diversity UHF Wireless System French French French Spanish Spanish Spanish Portuguese Portuguese Portuguese German German German Italian Italian Italian Dutch Dutch Dutch Traditional Chinese Traditional Chinese Traditional Chinese Simplified Chinese Simplified Chinese Simplified Chinese Korean Korean Korean POWER MODE/SET UHF SYNTHESIZED DIVERSITY RECEIVER ATW-R3100b ALERT -TUNER- A B ON OFF 3000 Series Installation and Operation (english) 2 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing to qualified service personnel. No user- serviceable parts inside. • Do not expose batteries to excessive heat such as fire, near heating units or in direct sunlight. • To prevent fire or shock hazard, do not expose this product to rain or moisture. • To prevent fire, do not place any naked flame sources (such as lighted candles) on the apparatus. • To prevent fire, do not cover the ventilation of the apparatus with newspaper, tablecloths, curtains etc. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on the apparatus. • Do not install this apparatus in a confined space such as a bookcase or similar unit. • The apparatus should be located close enough to the AC outlet so that you can easily grasp the AC adapter at any time. In case of emergency, disconnect the AC adapter quickly. • Always consider environmental issues and follow your local regulations when disposing of batteries. Do not expose batteries to excessive heat. The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical-device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. RF Interference Please note that wireless frequencies are shared with other radio services. According to Federal Communications Commission regulations, “Wireless microphone operations are unprotected from interference from other licensed operations in the band. If any interference is received by any Government or non Government operation, the wireless microphone must cease operation...” If you need assistance with operation or frequency selection, please contact your dealer or Audio-Technica. Thank you for choosing this Audio-Technica 3000 Series Frequency-agile True Diversity UHF Wireless System. The 3000 Series wireless system is available in six UHF frequency bands to provide flexible performance in a wide variety of regions worldwide: Frequency Range Number of frequencies Band C 541.500 – 566.375 MHz 996 Band D 655.500 – 680.375 MHz 996 Band E 795.500 – 820.000 MHz 981 Band F 840.125 – 864.900 MHz 953 Band G 721.500 – 746.375 MHz 996 Band I 482.000 – 507.000 MHz 1001 The band letter reference at the end of 3000 Series Stock Numbers indicates what band the system/component operates in. For simplicity, model numbers used throughout this manual will reference only the basic model number without the band indications. Each wireless system includes a receiver and either a body-pack or handheld transmitter. UniPak ® body-pack transmitter systems may include an accessory microphone for a particular application. All A-T Wireless Essentials ® microphones and cables, available separately, are pre-terminated for use with any Audio-Technica 3000 Series wireless system. All 3000 Series components feature soft-touch controls for quick, easy access to a formidable range of functions; an LCD information display in each unit provides convenient visual indication of unit settings and operation. The ATW-R3100b receiver is equipped with automatic frequency scanning for easy setup. It also features true diversity reception. Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts. Soft-touch controls provide convenient access to a variety of functions, while a backlit LCD information display provides constant monitoring of system operation, including indication of the transmitter’s battery status. The receiver is half-width for a standard 1U 19" rack mount; rack-mount adapters are included. Two receivers can be mounted side by side, using an optional AT8630 joining-plate kit. The versatile ATW-T310b UniPak ® body-pack transmitter has both low- and high-impedance inputs plus a bias connection, for use with dynamic and electret condenser microphones, as well as Hi-Z ins…

Text truncated - open the document above for the full version.

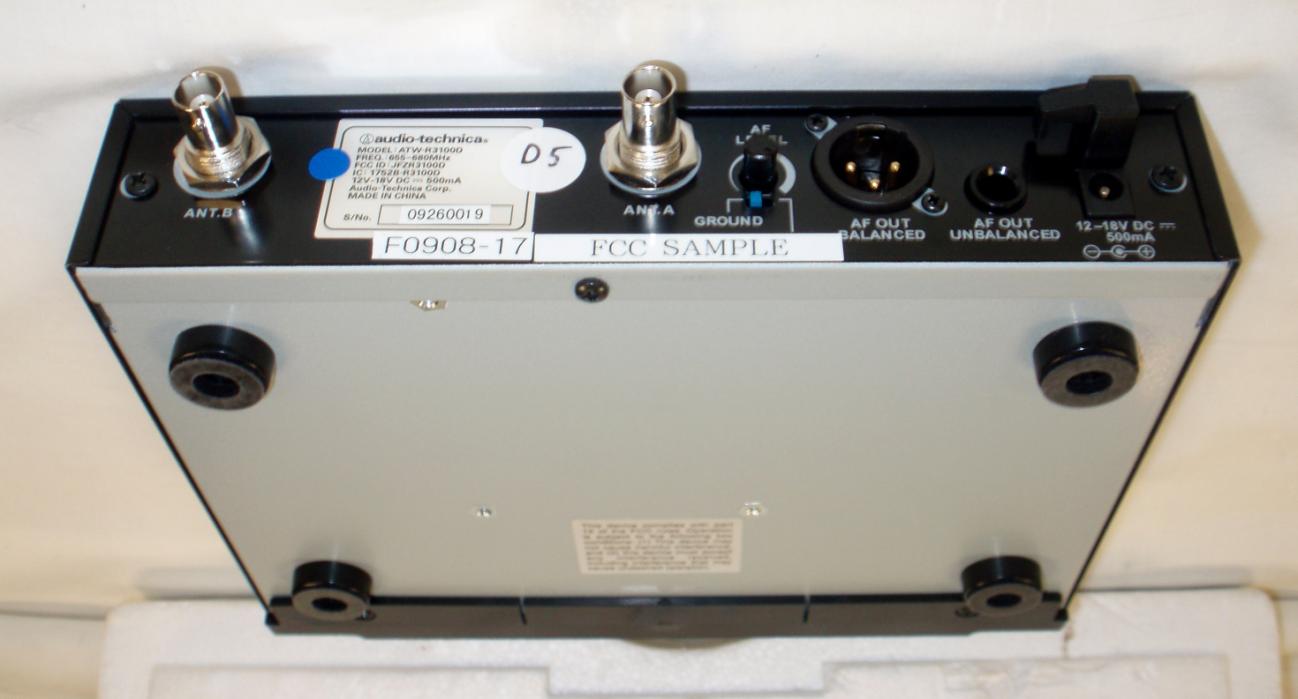

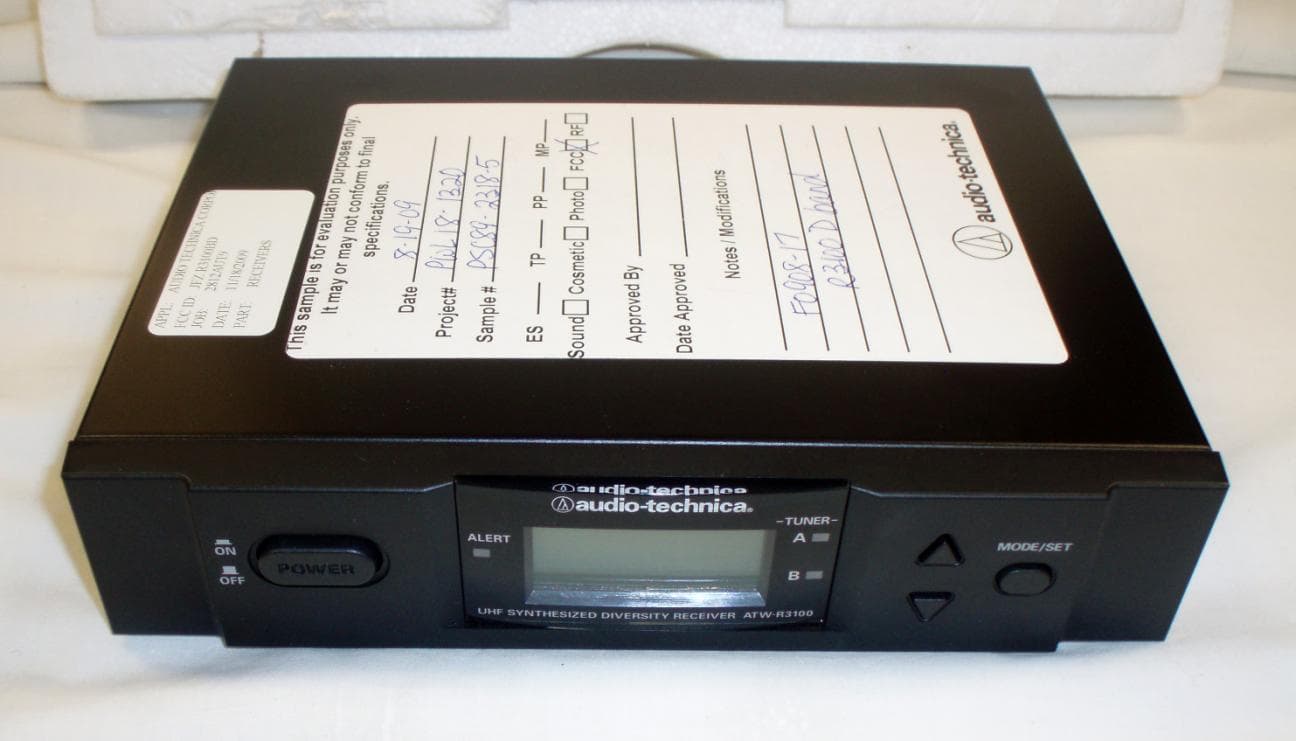

APPLICANT: AUDIO TECHNICA CORP. FCC ID: JFZR3100BD EXTERNAL PHOTOS

APPLICANT: AUDIO TECHNICA CORP. FCC ID: JFZR3100BD INTERNAL PHOTOS

FCC PART 15 B SUBPART B RECEIVER TEST REPORT Applicant AUDIO TECHNICA CORPORATION Address 2206 NARUSE, MACHIDA TOKYO 194 JAPAN FCC ID JFZR3100BD Product Description WIRELESS MICROPHONE RECEIVER Date Sample Received 11/18/2009 Date Tested 12/15/2009 Tested By Joe Scoglio Approved By Mario de Aranzeta Report Number 2812AUT9TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR3100BD REPORT: A\AudioTechnica_JFZ\2812AUT9\2812AUT9TestReport.doc Page 2 of 14 rev 2 mdea 09.20.2008 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................... 3 REPORT SUMMARY ............................................................................................................. 4 TEST ENVIRONMENT .......................................................................................................... 4 TEST SETUP SUMMARY ...................................................................................................... 4 DUT SPECIFICATION ........................................................................................................... 5 TEST EQUIPMENT LIST ....................................................................................................... 6 TEST PROCEDURES ............................................................................................................ 7 RADIATED SPURIOUS EMISSIONS ...................................................................................... 8 POWER LINE CONDUCTED INTERFERENCE .................................................................... 10 RADIATED EMISSIONS TEST SETUP PHOTO .................................................................... 13 CONDUCTED EMISSIONS TEST SETUP PHOTO ................................................................ 14 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR3100BD REPORT: A\AudioTechnica_JFZ\2812AUT9\2812AUT9TestReport.doc Page 3 of 14 rev 2 mdea 09.20.2008 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 12/15/2009 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR3100BD REPORT: A\AudioTechnica_JFZ\2812AUT9\2812AUT9TestReport.doc Page 4 of 14 rev 2 mdea 09.20.2008 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) Pt 15.109, Pt 15.107, ANSI C63.4: 2003 Related Report None TEST ENVIRONMENT Test Facility Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition in the laboratory Temperature: 26ºC Relative humidity: 50% TEST SETUP SUMMARY Test Setup Diagram/ Description The DUT was placed on the turntable per setup per ANSI C63.4: 2003. A test set up photo is provided for clarification. Deviation from the standard/procedure No deviation Modification of DUT No modification APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR3100BD REPORT: A\AudioTechnica_JFZ\2812AUT9\2812AUT9TestReport.doc Page 5 of 14 rev 2 mdea 09.20.2008 DUT SPECIFICATION DUT Description WIRELESS MICROPHONE RECEIVER FCC ID JFZR3100BD DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Laboratory Test Conditions Temperature: 26ºC Humidity: 55% Modifications to DUT: No Yes (explanation below) APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR3100BD REPORT: A\AudioTechnica_JFZ\2812AUT9\2812AUT9TestReport.doc Page 6 of 14 rev 2 mdea 09.20.2008 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/11/07 5/10/10 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 System One Audio Precision System One SYS1-45868 CHAR 2/27/08 2/27/10 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/08 4/25/10 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR3100BD REPORT: A\AudioTechnica_JFZ\2812AUT9\2812AUT9TestReport.doc Page 7 of 14 rev 2 mdea 09.20.2008 TEST PROCEDURES Power line conducted Emission: The test procedure used was ANSI C63.4-2003. The spectrum was scanned fro…
