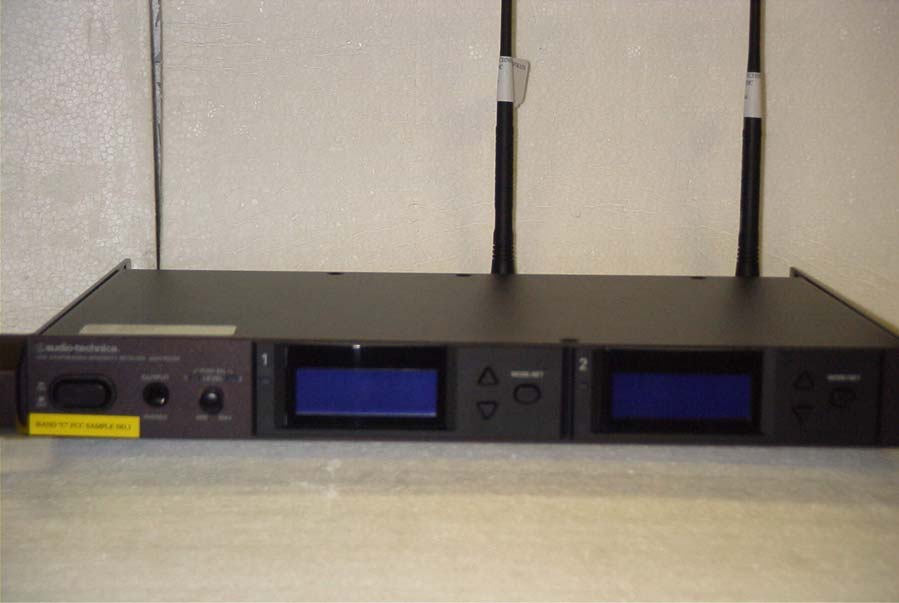

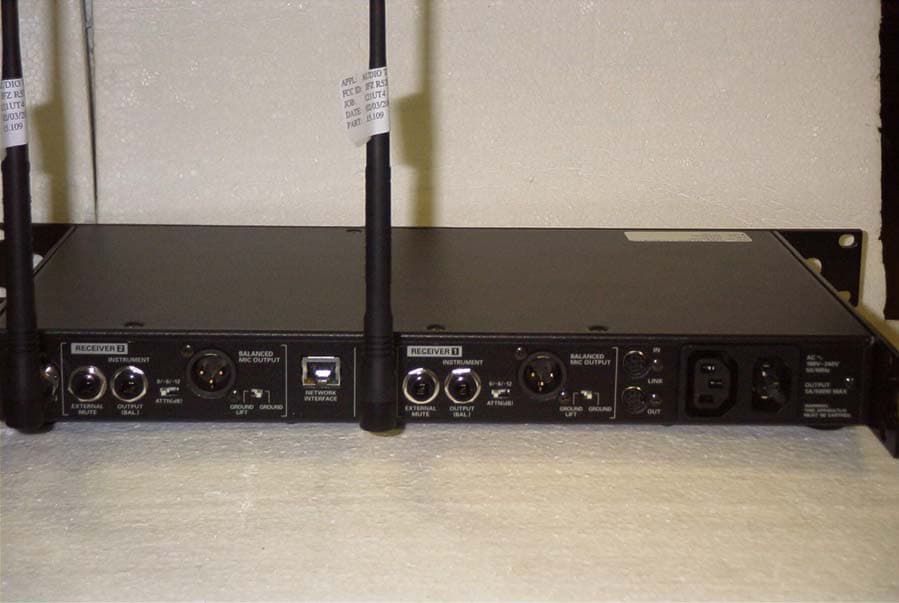

JFZR5200CCOMMUNICATION RECEIVER

AUDIO TECHNICA MODEL AEW-5200, AEW-4100 SERIES UHF WIRELESS SYSTEM USER INFORMATION. INTRODUCTION Thank you for purchasing the AEW-5200, AEW-4100 series wireless system. It is our hope that the system will bring you years of trouble free pleasure and performance. Please follow the information contained in this manual closely as it will assist you in using your equipment effectively. PART1. REGULATORY REQUIREMENTS. FCC PART 15 COMPLIANCE STATEMENT CANADA RSS-210 COMPLIANCE STATEMENT “This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference” “This device complies with INDUSTRY CANADA R.S.S. 210, en confomite avec IC: RSS-210/CNR210. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference which may cause undesired operation.” Please note that your AEW-5200, AEW-4100 systems operates in a frequency band in a way which may make its use subject to certain FCC and other regulatory agency restrictions and licensing requirements. For further information, Please contact your local office of the FCC as applicable. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. PART 2. USING THE AEW-T1000 BELTPACK TRANSMITTER The beltpack transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Open the battery door by slide door lock towards arrow direction and lift door. Insert two batteries into the battery compartment and close the battery door Slides the LCD set up buttons cover down to bottom Push and hold the power switch and turn the AEW-T1000 on Push the set button once Using up or down arrow buttons and scrolls the menu until frequency menu appeared. If current frequency setup appeared on the LCD is not the same as corresponding receiver frequency, push set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until input menu (MIC or INSTRUMENT) appeared. If current input setup appeared on LCD screen is not correct, push set button once Using up or down arrow button to select input. Push and hold set button until word “Stored” displayed in a while. Connect your microphone or guitar cable to the connector on the top of the transmitter. Confirm that the receiver is receiving RF and the audio is passing through the receiver. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared. Push the set button once to return default menu. You are now ready to use the system. PART 3. USING THE AEW-T5000SERIES HANDHELD TRANSMITTER AEW-T5000 transmitter family is as follows: AEW-T5400 AEW-T3300 AEW-T6100 AEW-T4100 The handheld transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Hold the bottom grip and turn the top grip counter clockwise until bottom grip free to slide. Slide the bottom grip, insert two batteries into the battery compartment and slide the battery compartment back into place. To change the frequency of operation, push and hold the power /mute button located on bottom of the transmitter to turn it on. Unscrew the battery cover and pull the cover back. Push the set button once Using up or down arrow button and scrolls the menu until frequency menu appeared. Push the set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared Push the set button once to return default menu You are now set to use the system. PART4. USING THE AEW-R5200, AEW-R4100 RECEIVERS Plug the IEC plug on the AC cable to the AC inlet on back of the receiver. Plug the 3-pin AC plug on AC cable to an 110V AC outlet. Connect two antennas to the antenna input on back of the receiver. Push the Power switch. Confirm that the backlight on LCD screen comes on. Check the frequency setting to confirm that they correspond to the settings of the transmitter If not, push set button once to display “FREQ” on top line of the LCD. Push set button once and check that “EDIT” displayed on bottom line of LCD brink. Push up or down arrow button to set receiver frequency to corresponding transmitter frequency. Push and hold set button until “STORED” displayed in a while. Push up or down arrow button to display “QUIT” Push Set button once to back in to Default menu. Connect the balanced or unbalanced audio output to your mixer or PA system. Adjust the Volume setting to the desired level. Speak into the microphone and listen to the audio out at the speaker. If satisfied with the audio quality, you ca uses the system.

Audio-Technica U.S., Inc. 1221 Commerce Drive Phone: 330-686-2600 [email protected] Stow, OH 44224-1760 Fax: 330-688-3752 January 26, 2004 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZR5200C Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio Technica, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for AEW-R5200C wireless receiver Block diagram for AEW-R5200C wireless receiver Circuit description for AEW-R5200C wireless receiver This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C REPORT #: A\AudioTechnica_JFZ\121UT4\121UT4TestReport.doc COVER PAGE Test Report Product Name: MODEL: COMMUNICATION RECEIVER FCC ID: JFZR5200C Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN Date Receipt: FEBRUARY 3, 2004 Date Tested: FEBRUARY 19, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C REPORT #: A\AudioTechnica_JFZ\121UT4\121UT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3-4.............RADIATION INTERFERENCE TEST DATA PAGE 5...............POWER LINE CONDUCTED INTERFERENCE PAGE 6...............POWER LINE CONDUCTED PLOTS EXHIBITS CONTAINING: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C REPORT #: A\AudioTechnica_JFZ\121UT4\121UT4TestReport.doc Page 1 of 6 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 4/15/03 4/15/05 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C REPORT #: A\AudioTechnica_JFZ\121UT4\121UT4TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2001 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 63ºF with a humidity of 80%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2001 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C REPORT #: A\AudioTechnica_JFZ\121UT4\121UT4TestReport.doc Page 3 of 6 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR5200C NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 541.5 607.25 18.3 V 3.42 19.15 40.87 5.13 541.5 607.25 20.3 H 3.42 19.63 43.35 2.65 541.5 1,214.50 17.4 H 1.31 25.93 44.64 9.36 541.5 1,214.50 22.2 V 1.31 25.93 49.44 4.56 541.5 1,821.75 11.4 H 1.61 27.99 41.00 13.00 541.5 1,821.75 15.0 V 1.61 28.06 44.67 9.33 541.5 2,429.00 13.8 H 1.87 29.29 44.96 9.04 541.5 2,429.00 14.1 V 1.87 29.30 45.27 8.73 541.5 3,036.25 13.0 H 2.11 30.58 45.69 8.31 541.5 3,036.25 16.2 V 2.11 30.57 48.88 5.12 541.5 3,643.50 12.1 V 2.29 31.90 46.29 7.71 541.5 4,858.00 10.0 V 2.66 34.15 46.81 7.19 553.9 619.24 19.5 V 3.46 19.29 42.25 3.75 553.9 619.24 20.1 H 3.46 19.51 43.07 2.93 553.9 1,239.24 20.0 H 1.32 26.01 47.33 6.67 553.9 1,239.24 25.9 V 1.32 26.01 53.23 0.77 553.9 1,858.86 13.2 H 1.63 28.12 42.95 11.05 553.9 1,858.86 18.3 V 1.63 28.19 48.12 5.88 553.9 2,478.48 14.7 V 1.89 29.37 45.96 8.04 553.9 2,478.48 15.0 H 1.89 29.37 46.26 7.74 553.9 3,098.10 13.6 H 2.13 30.72 46.…
