700 Series Owners Manual V. 1 5-25-06 Page 1 of 12 [Cover] 700 Series Professional UHF Wireless Systems ATW-701 UniPak™ Transmitter System ATW-701G Guitar System ATW-701H Headworn Microphone System ATW-701L Lavalier Microphone System ATW-702 Handheld Dynamic Microphone System Installation and Operation [inside] Professional UHF Wireless Systems Installation and Operation This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. Changes or modifications not expressly approved by Audio-Technica could void your authority to operate this equipment. CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing to qualified service personnel. No user-serviceable parts inside. Do not expose to rain or moisture. The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical- device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. 700 Series Owners Manual V. 1 5-25-06 Page 2 of 12 Introduction Thank you for choosing an Audio-Technica professional wireless system. You have joined thousands of other satisfied customers who have chosen our products because of their quality, performance and reliability. This Audio- Technica wireless microphone system is the successful result of years of design and manufacturing experience. Each 700 Series wireless system provides a choice of eight PLL synthesized UHF frequencies in the 542-561 MHz band (TV channels 26-29). All 700 Series wireless systems offer both manual and automatic frequency scanning. Each wireless system includes a receiver and either a body-pack or handheld transmitter. Individual components are also available separately. The ATW-R700 receiver features Diversity Reception. Logic circuitry monitors reception, selecting the superior signal from two antennas, providing better sound quality and reducing the possibility of interference and dropouts. Soft- touch controls provide convenient access to selection of operating frequency and automatic scanning, while an LED display indicates selected channel and scanning operation. The versatile ATW-T701 UniPak™ body-pack transmitter has both low- and high- impedance inputs plus a bias connection, for use with dynamic and electret condenser microphones, as well as Hi-Z instrument pickups. The UniPak transmitter also offers separate trim controls for guitar and microphone, plus switchable high/low RF power. The ATW-T702 handheld dynamic microphone/transmitter features a rugged dynamic cardioid element designed for professional live-sound venues. Transmitters in the 700 Series use two 1.5V AA batteries for economical operation and wide availability. Both transmitters also feature a multicolor Battery/Power indicator with low-battery indication. 700 Series receivers features a sophisticated Tone Lock™ tone squelch system that opens the receiver’s audio output only when a 700 Series transmitter is detected, reducing the possibility of interference. As a result, 700 Series transmitters and receivers must be used together and should not be used with components from other Audio-Technica wireless systems, or with those of other manufacturers. 700 Series Owners Manual V. 1 5-25-06 Page 3 of 12 Please note that in multiple-system applications there must be a transmitter- receiver combination set to a separate channel (frequency) for each input desired (only one transmitter for each receiver). Because the wireless frequencies are within UHF TV frequency bands, only certain channels (operating frequencies) may be useable in a particular geographic area. The eight channels (operating frequencies) that are used in the 700 Series have been selected for multi-channel compatibility. Subject to frequency availability in a particular geographic area, any of these eight channels may be used together. The operating frequencies that correspond to each of the eight channels are listed on page __ Receiver Installation Location For best operation the receiver should be at least 3 ft. (1 m) above the ground and at least 3 ft. away from a wall or metal surface to minimize reflections. The transmitter should be at least 3 ft. from the receiver, as shown in Fig. A. Keep antennas away from noise sources such as digital equipment, motors, automobiles and neon lights, as well as away from large metal objects. Output Connections There are two audio outputs on the back panel: balanced (12.5 mV) and unbalanced (25 mV). Use shielded audio cable for the connection between the receiver and the mixer. If the input of the mixer is a 1/4" jack, connect a cable from the 1/4" unbalanced audio output on the back of the receiver housing to the mixer. If the input of the mixer is an XLR-…

Text truncated - open the document above for the full version.

Audio-Technica U.S., Inc. 1221 Commerce Drive Phone: 330-686-2600 [email protected] Stow, OH 44224-1760 Fax: 330-688-3752 May 11, 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZR700 Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio-Technica, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for ATW-R700 wireless receiver Block diagram for ATW-R700 wireless receiver This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

ATW-R700 Description of circuits to suppress spurious emissions ・The 1st Oscillator output filter comprised of L107, L108, L109,C150, C151 and C169 suppresses the output harmonics and output. ・The 2nd Oscillator output filter comprised of L102, L103,C120 and C121 suppresses the output harmonics and output. Description of circuits to stabilize frequency ・The frequency of VCO is controlled by PLL IC which used the crystal oscillator with high accuracy, and frequency is stabilized.

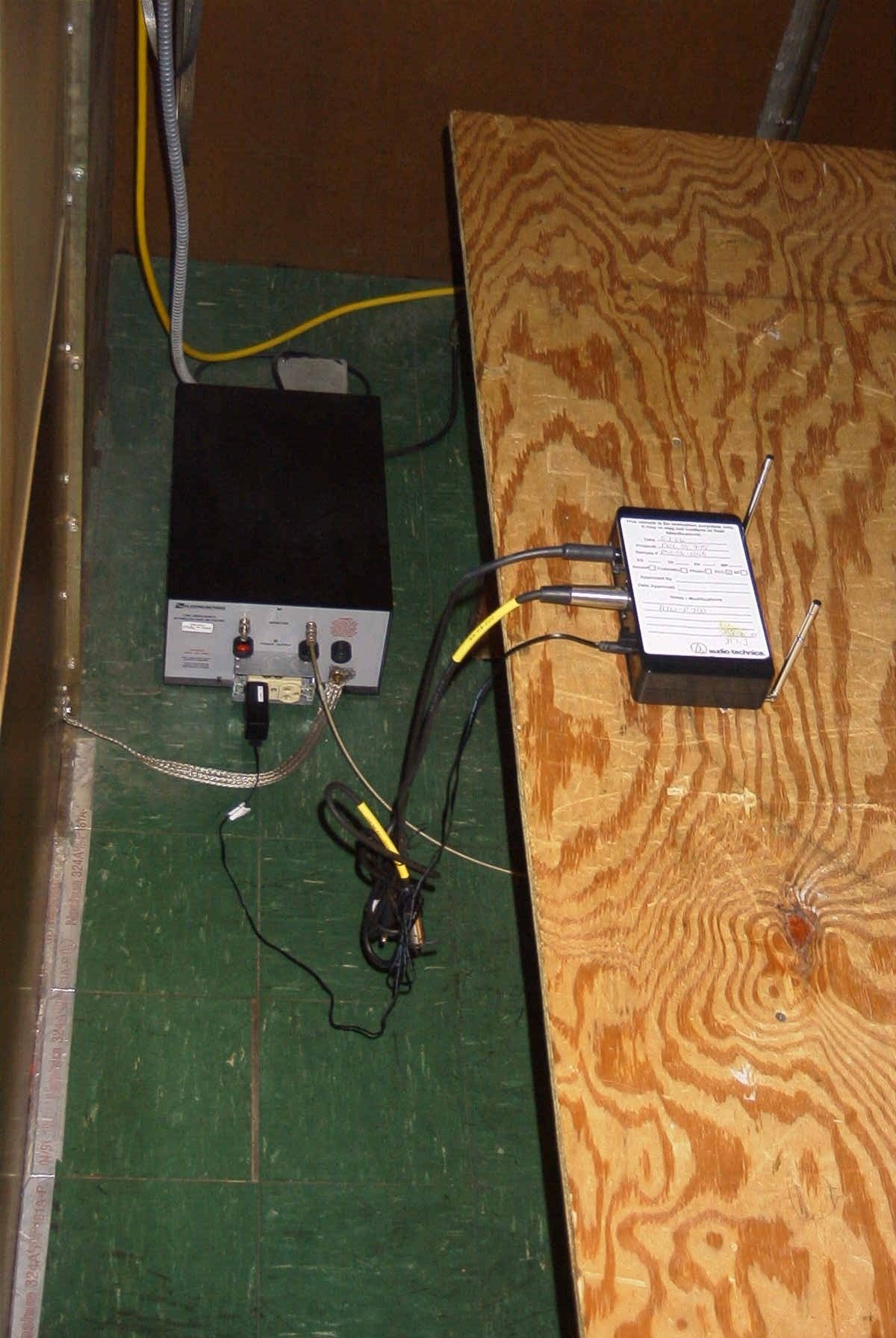

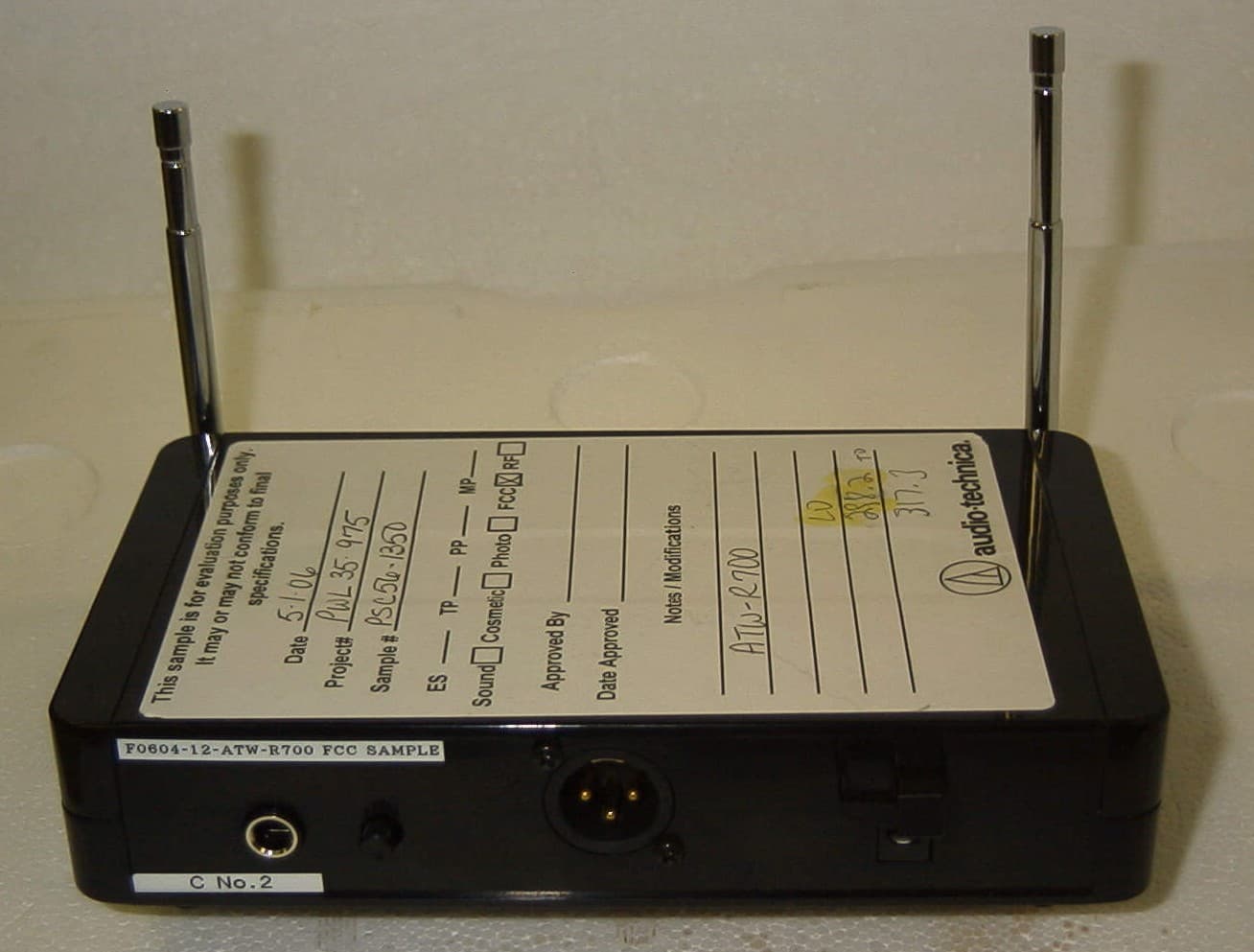

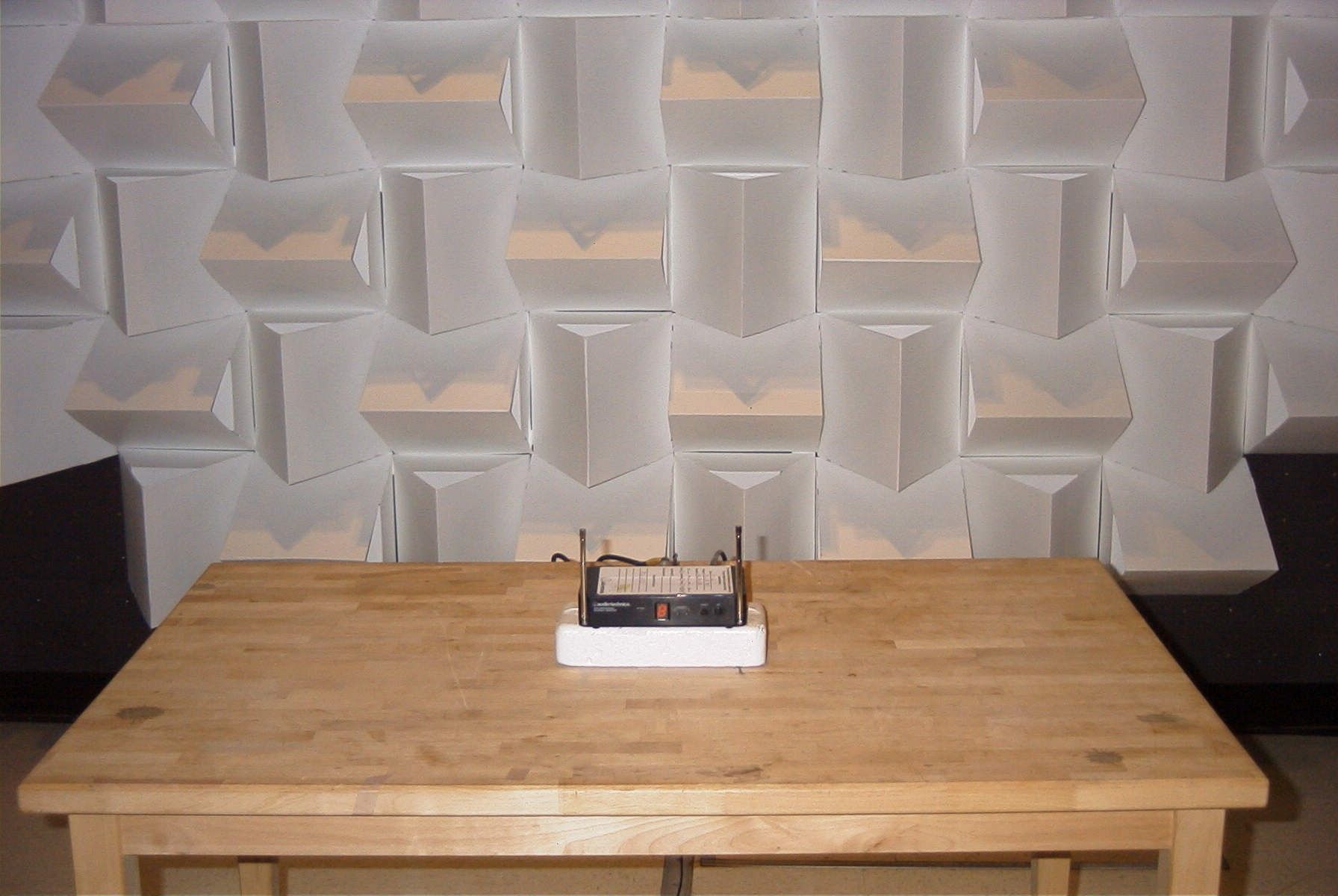

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 REPORT # V:\A\AudioTechnica_JFZ\1078AUT6\1078AUT6TestReport.doc PAGE # 1 Test Report Product Name: RECEIVER FCC ID: JFZR700 Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN Date Receipt: 5/23/2006 Date Tested: 7/6/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 REPORT # V:\A\AudioTechnica_JFZ\1078AUT6\1078AUT6TestReport.doc PAGE # 2 TABLE OF CONTENTS LIST APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 TEST REPORT CONTAINING: PAGE 3 TEST EQUIPMENT LIST PAGE 4 RADIATION INTERFERENCE TEST PROCEDURE PAGE 5,6 RADIATION INTERFERENCE TEST DATA PAGE 7 POWER INE CONDUCTED TEST PROCEDURE PAGE 8 POWER LINE CONDUCTED PLOT – LINE 1 PAGE 9 POWER LINE CONDUCTED PLOT – LINE 2 EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 REPORT # V:\A\AudioTechnica_JFZ\1078AUT6\1078AUT6TestReport.doc PAGE # 3 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 REPORT # V:\A\AudioTechnica_JFZ\1078AUT6\1078AUT6TestReport.doc PAGE # 4 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºF with a humidity of 50%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-2003 with the EUT 40 cm from the vertical ground wall. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 REPORT # V:\A\AudioTechnica_JFZ\1078AUT6\1078AUT6TestReport.doc PAGE # 5 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZR700 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity V/H Coax Loss dB Correction Factor dB/m Field Strength dBuV/m Margin dB 542.1 298.24 8.5 V 1.10 14.31 23.91 22.09 542.1 298.24 9.7 H 1.10 14.33 25.13 20.87 542.1 596.48 4.5 H 1.59 19.10 25.19 20.81 542.1 596.48 5.2 V 1.59 18.60 25.39 20.61 542.1 894.72 5.1 V 1.95 22.65 29.70 16.30 542.1 894.72 5.4 H 1.95 23.30 30.65 15.35 542.1 1,192.96 14.2 V 2.25 27.65 44.10 9.90 542.1 1,192.96 14.5 H 2.25 27.65 44.40 9.60 542.1 1,491.20 15.1 V 2.49 28.18 45.77 8.23 542.1 1,491.20 15.4 H 2.49 28.18 46.07 7.93 542.1 1,789.44 15.7 H 2.73 29.94 48.37 5.63 542.1 1,789.44 16.1 V 2.73 29.94 48.77 5.23 552.0 308.10 9.2 V 1.11 14.97 25.28 20.72 552.0 308.10 12.1 H 1.11 15.05 28.26 17.74 552.0 616.20 5.6 H 1.62 19.56 26.78 19.22 552.0 616.20 6.5 V 1.62 19.12 27.24 18.76 552.0 924.30 4.7 H 1.99 23.39 30.08 15.92 552.0 924.30 5.5 V 1.99 22.64 30.13 15.87 552.0 1,232.40 14.8 H 2.29 27.72 44.81 9.19 552.0 1,232.40 15.1 V 2.29 27.72 45.11 8.89 552.0 1,540.50 15.3 V 2.53 28.44 46.27 7.73 552.0 1,540.50 15.4 H 2.53 28.44 46.37 7.63 TIMCO EN…
