JFZS700BTBluetooth Wireless Stereo Headset

Manuel d'utilisateur Instruction booklet Libretto di istruzioni ATH-S700BT ATH-S700BT Casque stéréo sans l ATH-S700BT Wireless stereo headphones ATH-S700BT Cufe estéreo inalámbrico CAUTIONS English Please read these cautions before using your headphones. To ensure safety, observe all cautions while using this equipment. Thank you for purchasing these wireless stereo headphones. Please keep this manual handy, along with the warranty, so they are always available for reference. 2 For customers in the USA FCC Notice Warning This device complies with Part 15 of theFCC Rules. Operation is subject to thefollowing two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/ TV technician for help. For customers in Canada IC statement This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and2) this device must accept any interference received, including interference which may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. If battery uid gets into eyes, do not rub them. Rinse thoroughly with clean water such as tap water and consult a doctor immediately. If battery uid leaks, do not touch uid with bare hands. - If uid remains inside this product, it may cause malfunction. If battery uid leaks, please contact our service center. - If uid gets in your mouth, gargle thoroughly with clean water such as tap water and consult a doctor immediately. - If your skin or clothing comes in contact with uid, immediately wash the affected skin or clothing with water. If you experience skin irritation, consult a doctor. Never heat, disassemble or modify the battery, nor dispose of it in a re. Failure to observe this caution could cause leakage, generation of heat or explosion. Do not attempt to pierce with a nail, hit with a hammer or step on the battery. Failure to observe this caution could cause generation of heat, damage or ignition. Do not drop the battery or subject it to strong impact. Failure to observe this caution could cause leakage, generation of heat or explosion. Do not use, leave or store the battery in the following places: Area exposed to direct sunlight or high temperatures and humidity Inside of a car under the blazing sun Near heat sources such as heat registers Failure to observe this caution could cause leakage, generation of heat, explosion or performance degradation. Do not get the battery wet. Failure to observe this caution could cause generation of heat, explosion or ignition. Charge only with the included (specied) USB cable. Failure to observe this caution could cause malfunction or re. After using the device, be sure to switch it off. Leakage often occurs due to battery drain that results from a failure to switch off device. CAUTIONS English Thank you for purchasing these wireless stereo headphones. Please keep this manual handy, along with the warranty, so they are always available for reference. Caution for rechargeable battery Do not use the headphones within 22 cm of where a cardiac pacemaker is installed. Pacemakers may be affected by radio waves of the headphones. Do not use the headphones near medical equipment. Radio waves may affect cardiac pacemakers and medical electronic equipment. Do not use the product inside medical facilities. Do not use the headphones in aircrafts. Radio waves may affect electronic equipment and cause accidents due to malfunction. Do not use the headphones near automatic control devices such as automatic doors and re alarms. Radio waves may affect electronic equipment and cause accidents due to malfunction. Do not disassemble, modify or attempt to repair the headphones. Do not subject the headphones to strong impact. Do not expose this apparatus to drips or splashes, and do not handle with wet hands to avoid electric shock or malfunction. Disconnect this product from the computer if you encounter any malfunction like noise, smoke, smell, heat or damage with the product. In such case, contact your local Audio-Technica dealer or service center. This apparatus should be located close enough to the AC outlet so that you can easily grasp the power cable plug at any time. Do not expose this apparatu…

Text truncated - open the document above for the full version.

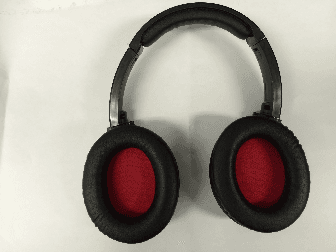

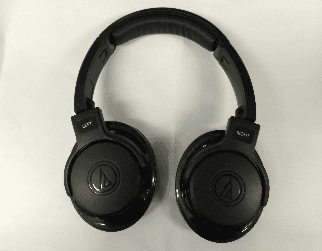

ATH-S700BT External Photo fig1 : Front fig2 : Back Place of label fig3 : Side(Right) fig4 : Side(Left) Multi Function Switch Micro USB in(for Charge) 3.5mm Mini - Jack in indicator(LED) Volume Up Switch Volume Down Switch Reset Switch fig5 : I/O , Switch fig6 : I/O , Switch

Place of label fig3 : Side(Right) fig4 : Side(Left)

APPLICANT: AUDIO TECHNICAL CORP. FCC ID: JFZS700BT IC: 1752B-S700BT INTERNAL PHOTOS

FCC PART 15.249 & IC RSS-210 (i8) ANNEX A2.9 UNLICENSED INTENTIONAL RADIATOR COMBINED TEST REPORT Applicant AUDIO TECHNICA CORPORATION Address 2-46-1 NISHI-NARUSE MACHIDA TOKYO 194-8666 JAPAN FCC ID JFZS700BT IC Certification Number 1752B-S700BT Model Number ATH-S700BT Product Description BLUETOOTH WIRELESS STEREO HEADSET FCC Standard Applied 47 CFR §15.249 Industry Canada Standard Applied RSS-210 Issue 8 Annex A2.9 Date Sample Received 3/12/2015 Date Tested 3/27/2015 & 4/21/2015 Tested By Cory Leverett Approved By Sid Sanders Test Results PASS FAIL Report Number Version Number Description Issue Date 487AUT15TestReport.docx Rev.1 Initial Issue 4/21/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-S700BT FCC ID: JFZS700BT REPORT: A\AUDIO TECHNICA_JFZ\487AUT15\487AUT15TestReport.docx Page 6 of 21 Table of Contents GENERAL REMARKS ................................................................................................................. 7 GENERAL INFORMATION .......................................................................................................... 8 TEST RESULTS SUMMARY ........................................................................................................ 8 TEST PROCEDURES .................................................................................................................. 9 RADIATION INTERFERENCE ................................................................................................... 10 20 dB BANDWIDTH AND BANDEDGE ...................................................................................... 12 20 dB BANDWIDTH AND BANDEDGE ...................................................................................... 13 99% BANDWIDTH AND BANDEDGE ........................................................................................ 14 99% BANDWIDTH AND BANDEDGE ........................................................................................ 15 ADJACENT RESTRICTED BAND .............................................................................................. 16 DUTY CYCLE ........................................................................................................................... 17 POWER LINE CONDUCTED INTERFERENCE ........................................................................... 18 EMC EQUIPMENT LIST ............................................................................................................ 21 APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-S700BT FCC ID: JFZS700BT REPORT: A\AUDIO TECHNICA_JFZ\487AUT15\487AUT15TestReport.docx Page 7 of 21 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Project Manager Date: 4/20/2015 Table of Contents APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-S700BT FCC ID: JFZS700BT REPORT: A\AUDIO TECHNICA_JFZ\487AUT15\487AUT15TestReport.docx Page 8 of 21 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. Applicable Standards FCC Part 15.249 & IC RSS-210 (i8), RSS-GEN (i4) EUT Description BLUETOOTH WIRELESS STEREO HEADSET FCC ID JFZS700BT IC Certification Number 1752B-S700BT Model Number ATH-S700BT Operating Frequency TX: 2402 - 2480 MHz RX: Same No. of Channels 40 Modulations GFSK EUT Power Source 110–120Vac/50– 60Hz when Charging DC Power Battery Operated Exclusively Test Item Prototype Pre- Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules part 15.203 requires that the antenna connector be unique. There is no antenna connector, it has an integrated PCB antenna Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Conditions in the Test laboratory Temperature: 24-26ºC Relative humidity: 50-65% Test Exercise Configured with Blue tooth test software. Revision History of EUT None TEST RESULTS SUMMARY FCC Rules Part No. Industry Canada Rules RESULTS – Pass/Fail/NA 15.249 Fundamental Emission RSS-210 (i8) ANNEX A2.9, RSS-GEN (i4) Pass 15.249 & 15.209 Harmonics & Spurious RSS-210 (i8) ANNEX A2.9, RSS-GEN (i4) Pass 15.205 & 2.202 Occupied Bandwidth RSS-GEN (i4), 6.6 Pass 15.249 & 15.205 Bandedge Compliance RSS-GEN (i4), 6.6 Pass 15.207 Power Line Emissions RSS-GEN (i4), 8.8 Pass Table of Contents APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-S700BT FCC ID: JFZS700BT REPORT: A\AUDIO TECHNICA_JFZ\487AUT15\487AUT15TestReport.docx Page 9 of 21 TEST PROCEDURES Radiation Interference: ANSI C63.4-2009 using a spectrum analyzer, a preselector, a quasi-peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The anten…

Text truncated - open the document above for the full version.

APPLICANT: AUDIO TECHNICAL CORP. FCC ID: JFZS700BT IC: 1752B-S700BT TEST SET UP PHOTOS
