JFZSPORT4Bluetooth Wireless Stereo Headset

Manuel d'utilisateur Instruction booklet Libretto di istruzioni ATH-SPORT4 ATH-SPORT4 ATH-SPORT4 Wireless stereo headphones ATH-SPORT4 Cufe estéreo inalámbrico Casque stéréo sans l CAUTIONS English Please read these cautions before using your headphones. To ensure safety, observe all cautions while using this equipment. Thank you for purchasing this wireless stereo headset. Please keep this manual handy, along with the warranty, so they are always available for reference. 2 For customers in the USA FCC Notice Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. Caution You are cautioned that any changes or modications not expressly approved in this manual could void your authority to operate this equipment. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/TV technician for help. For customers in Canada IC statement This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: (1) This device may not cause harmful interference and(2) this device must accept any interference received, including interference which may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. CAUTIONS English Do not use the headphones near medical equipment. Radio waves may affect cardiac pacemakers and medical electronic equipment. Do not use the product inside medical facilities. Do not use the headphones in aircrafts. Radio waves may affect electronic equipment and cause accidents due to malfunction. Radio waves may affect electronic equipment and cause accidents due to malfunction. Do not disassemble, modify or attempt to repair the headphones. Do not subject the headphones to strong impact. To prevent re or shock hazard, do not expose this apparatus to rain or moisture. Do not cover with a cloth. F ollow applicable laws regarding mobile phone and headphone use if using headphones while driving. Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites). Store the earpieces out of the reach of small children. If you begin to feel unwell while using this product, please discontinue use immediately. To prevent damage to your hearing, do not raise the volume too high. Listening to loud sound for an extended period may cause temporary or permanent hearing loss. Discontinue use if skin irritation results from direct contact with the product. When removing the headphones from your ears, check to make sure the earpieces are still at tached to the main unit. If the earpieces become lodged in your ears and you are unable to remove them, consult a physician at once. The earphones are designed to plug your ear cavities. If you feel any discomfort, temporarily discontinue use. 3 Do not use the headphones near automatic control devices such as automatic doors and re alarms. Disconnect this product from the computer if you nd any malfunction like noise, smoke, smell, heat or damage on the product. In this case, contact your local Audio-Tec hnica dealer or service center. CAUTIONS PRECAUTIONS English B e sure to read the operation manual f or t he Bluetooth d evice before use. Audio-Technica will not be l iable i n any way for any l oss of data i n the unlikely event t hat such losses should occur whil e using this product. O n public transport systems or i n other public places, k eep the volume l ow so as not t o disturb other people. P lease minimize the volume on your audio device before connecting the headphones i n order t o avoid hearing damage from sudden exposure to excessive volume. When using this product i n a dry environment, y ou may f eel a tingling sensation i n your ears. This is caused by static electricity accumulated on your body, not by a headphone malfunction. D o not store the headphones under direct sunlight, near heating devices or i n a hot, humid or dusty place. Do not allow the headphones to get wet. Caution for rechargeable battery Rinse thoroughly with clean water such as tap water and consult a doctor immediately. our service center. immediately. water. If you feel uncomfortable with your skin, consult a doctor. Failure to observe this caution could cause leakage, generation of heat or explosion. Do not attempt to pierce with a nail, hit with a hammer or step on the battery. Failure to observe…

Text truncated - open the document above for the full version.

FCC ID:JFZSPORT4 MODEL:ATH-SPORT4 IC:1752B-SPORT4

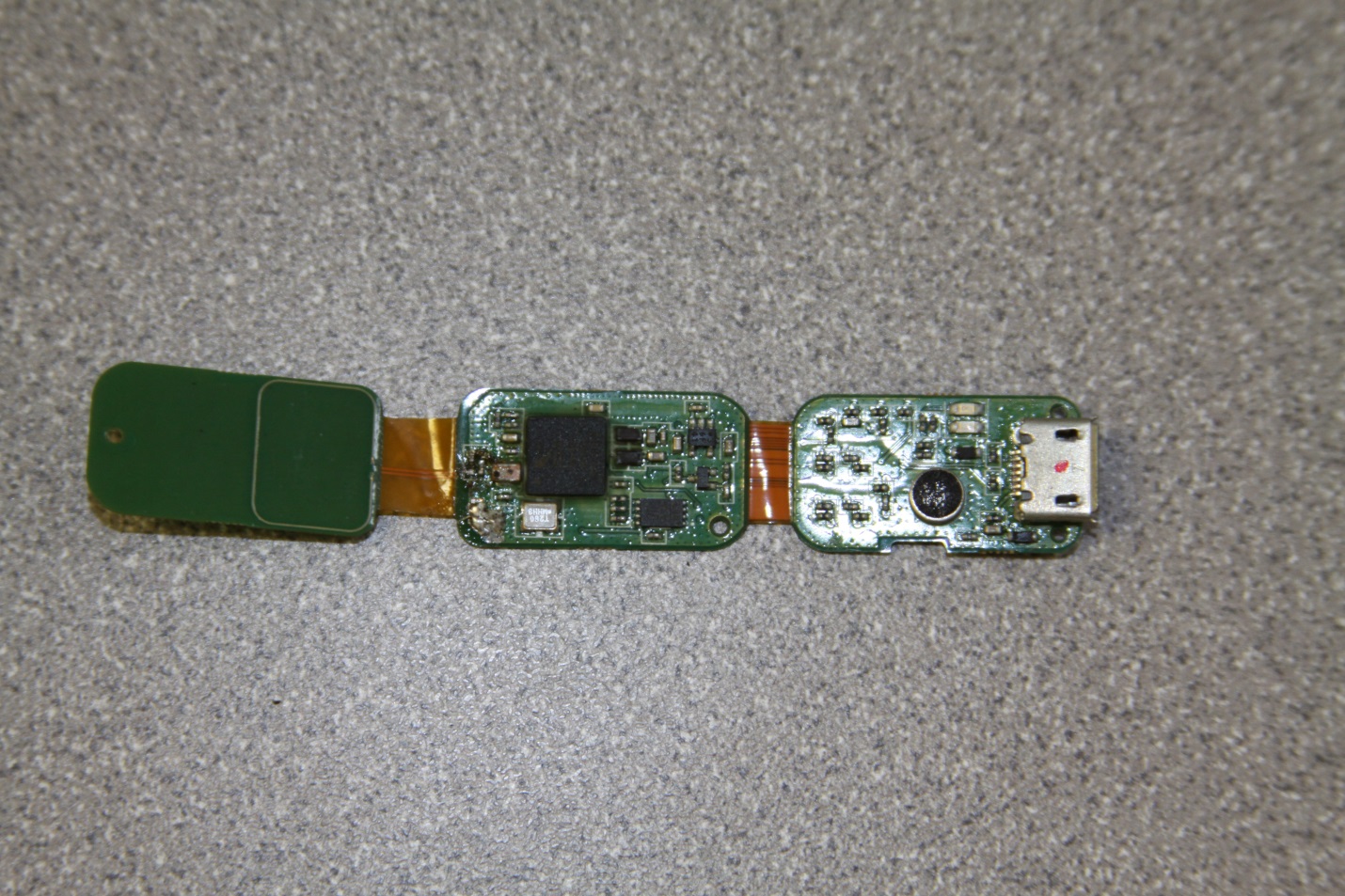

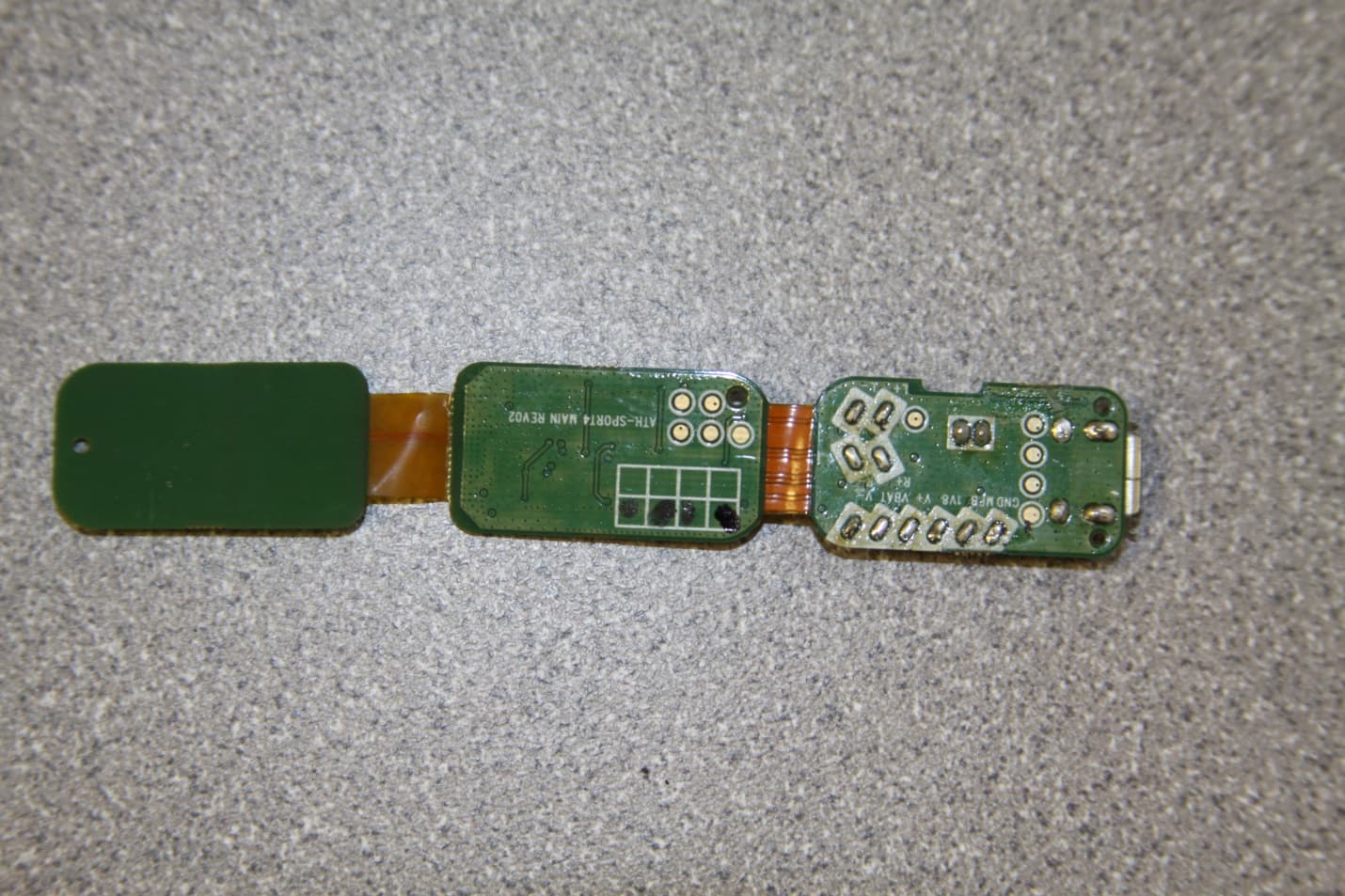

APPLICANT: AUDIO TECHNICA CORP. FCC ID: JFZSPORT4 IC: 1752B-SPORT4 INTERNAL PHOTOS

FCC PART 15.249 & IC RSS-210 (i8) ANNEX A2.9 UNLICENSED INTENTIONAL RADIATOR COMBINED TEST REPORT Applicant AUDIO TECHNICA CORPORATION Address 2-46-1 NISHI-NARUSE MACHIDA TOKYO 194-8666 JAPAN FCC ID JFZSPORT4 IC Certification Number 1752B-SPORT4 Model Number ATH-SPORT4 Product Description BLUETOOTH WIRELESS STEREO HEADSET FCC Standard Applied 47 CFR §15.249 Industry Canada Standard Applied RSS-210 Issue 8 Annex A2.9 Date Sample Received 3/12/2015 Date Tested 3/27/2015 & 4/20/2015 Tested By Cory Leverett Approved By Sid Sanders Test Results PASS FAIL Report Number Version Number Description Issue Date 488AUT15TestReport.docx Rev.1 Initial Issue 4/20/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-SPORT4 FCC ID: JFZSPORT4 REPORT: A\AUDIO TECHNICA_JFZ\488AUT15\488AUT15TestReport.docx Page 6 of 21 Table of Contents GENERAL REMARKS ...................................................................................................... 7 GENERAL INFORMATION ................................................................................................ 8 TEST RESULTS SUMMARY .............................................................................................. 8 TEST PROCEDURES ............................................................Error! Bookmark not defined. RADIATION INTERFERENCE ............................................................................................ 9 20 dB BANDWIDTH AND BANDEDGE .............................................................................. 12 99% BANDWIDTH AND BANDEDGE ................................................................................ 14 ADJACENT RESTRICTED BAND ....................................................................................... 16 DUTY CYCLE ................................................................................................................ 17 POWER LINE CONDUCTED INTERFERENCE ...................................................................... 18 EMC EQUIPMENT LIST .................................................................................................. 21 APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-SPORT4 FCC ID: JFZSPORT4 REPORT: A\AUDIO TECHNICA_JFZ\488AUT15\488AUT15TestReport.docx Page 7 of 21 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Project Manager Date: 4/20/2015 Table of Contents APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-SPORT4 FCC ID: JFZSPORT4 REPORT: A\AUDIO TECHNICA_JFZ\488AUT15\488AUT15TestReport.docx Page 8 of 21 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. Applicable Standards FCC Part 15.249 & IC RSS-210 (i8), RSS-GEN (i4) EUT Description BLUETOOTH WIRELESS STEREO HEADSET FCC ID JFZSPORT4 IC Certification Number 1752B-SPORT4 Model Number ATH_SPORT4 Operating Frequency TX: 2402-2480 MHz RX: Same No. of Channels 40 Modulations GFSK EUT Power Source 110–120Vac/50– 60Hz when Charging DC Power Battery Operated Exclusively Test Item Prototype Pre- Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. There is no antenna connector, it has an integrated PCB antenna Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Conditions in the Test laboratory Temperature: 24-26ºC Relative humidity: 50-65% Test Exercise Configured with Blue tooth test software. Revision History of EUT None TEST RESULTS SUMMARY FCC Rules Part No. Industry Canada Rules RESULTS – Pass/Fail/NA 15.249 Fundamental Emission RSS-210 (i8) ANNEX A2.9, RSS-GEN (i4) Pass 15.249 & 15.209 Harmonics & Spurious RSS-210 (i8) ANNEX A2.9, RSS-GEN (i4) Pass 15.205 & 2.202 Occupied Bandwidth RSS-GEN (i4), 6.6 Pass 15.249 & 15.205 Bandedge Compliance RSS-GEN (i4), 6.6 Pass 15.207 Power Line Emissions RSS-GEN (i4), 8.8 Pass Table of Contents APPLICANT: AUDIO TECHNICA CORPORATION IC: 1752B-SPORT4 FCC ID: JFZSPORT4 REPORT: A\AUDIO TECHNICA_JFZ\488AUT15\488AUT15TestReport.docx Page 9 of 21 TEST PROCEDURES Radiation Interference: ANSI C63.4-2009 using a spectrum analyzer, a preselector, a quasi-peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worst case emissions were reported. The spectrum was searched to at least the tenth (10) harmonic of the fundamental. Emissions were scanned from 30MHz to the tenth harmonic of the fundamental frequency at three places in the band. All emissions greater than 20 dB from the limit are not reported. Formul…
