JFZT1000ADBODY PACK WIRELESS MIC

1 | P a g e Artist Elite 4000 & 5000 “a” Series Owner’s Manual copy v2 2-19-10 Cover: Artist Elite 4000 & 5000 Series Professional UHF Wireless Systems Installation and Operation Inside: Professional UHF Wireless Systems Installation and Operation This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. CAUTION! The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN To prevent electric shock, do not remove the cover. There are no user-serviceable parts inside. Internal adjustments are for qualified professionals only. Refer all servicing to qualified service personnel. AVIS RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR Pour prévenir un choc électrique, ne pas ouvrir le couvercle. Il n’y aucune pièces de rechanges à l’intérieur. Tout ajustement interne doit être fait par une personne qualifié seulement. Référez tout réparation au personnel qualifié. WARNING: This apparatus must be grounded. This product is a safety class 1 product. There must be an uninterruptible safety earth ground from the main power source to the product’s AC input. Whenever it is likely that the protection has been impaired, disconnect the power cord until the ground has been restored. ATTENTION: Cet appareil doit être mise à la terre. Cet appareil est de classe de sûreté 1. Il doit y avoir un ininterrompable de mise à la terre de sécurité provenant de la source principale de courant de l’appareil de l’entrée du courant alternatif. Quand la protection a été affaiblie, débrancher le fil de courant jusqu’à la mise à terre a bien été réétablie. 2 | P a g e The detachable IEC type power cords supplied are intended for use in regions with mains voltage in the range of 100–125VAC only. Use only the furnished power cord that includes the appropriate NEMA 5- 15P/ANSI C73.11 type attachment plug. For use in geographical areas with mains voltage outside of the range 100–125VAC, it is necessary for the user to utilize a power cord rated and configured for operation in their region. Replace the supplied power cord with a cord rated for correct voltage operation. Warning: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. Attention: Pour prévenir feu ou choc électrique, ne pas exposé l’appareil à la pluie ou à l’humidité. CAUTION: For continued protection against fire hazard, replace only with same type/rating of fuse. AVIS: Pour poursuivre la protection contre le feu, replacez la fusible de même type/cote. WARNING: There are some sharp edges inside. To reduce the risk of injury, do not remove cover. ATTENTION: Bord tranchant à l’intérieur. Pour réduire le risqué de blessure, ne pas ouvir le couvercle. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical- device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical-device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. Contents Contents Introduction ................................................................................................................................... System Configurations ............................................................................................................ Operating Frequencies ............................................................................................................ Receivers ................................................................................................................................. Multi-channel Systems ............................................................................................................ Transmitters .............................................................................................................................. Receiver Installation....................................................................................................................... Location ................................................................................................................................... Output Connections.................................................................................................................. Antennas ................................................................................................................................. Antenna Power ........................................................................................................................ Front-mount Antennas.............................................................................................................. Headphone Jack ...................................................................................................................... Power Connections ......................................................................................…

Text truncated - open the document above for the full version.

February 10, 2010 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZT1000AD Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio-Technica, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for AEW-T1000aD wireless body pack transmitter Block diagram for AEW-T1000aD wireless body pack transmitter Operational description for AEW-T1000aD wireless body pack transmitter Tuning / Adjustment procedure for AEW-T1000aD wireless body pack transmitter Parts list for AEW-T1000aD wireless body pack transmitter This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

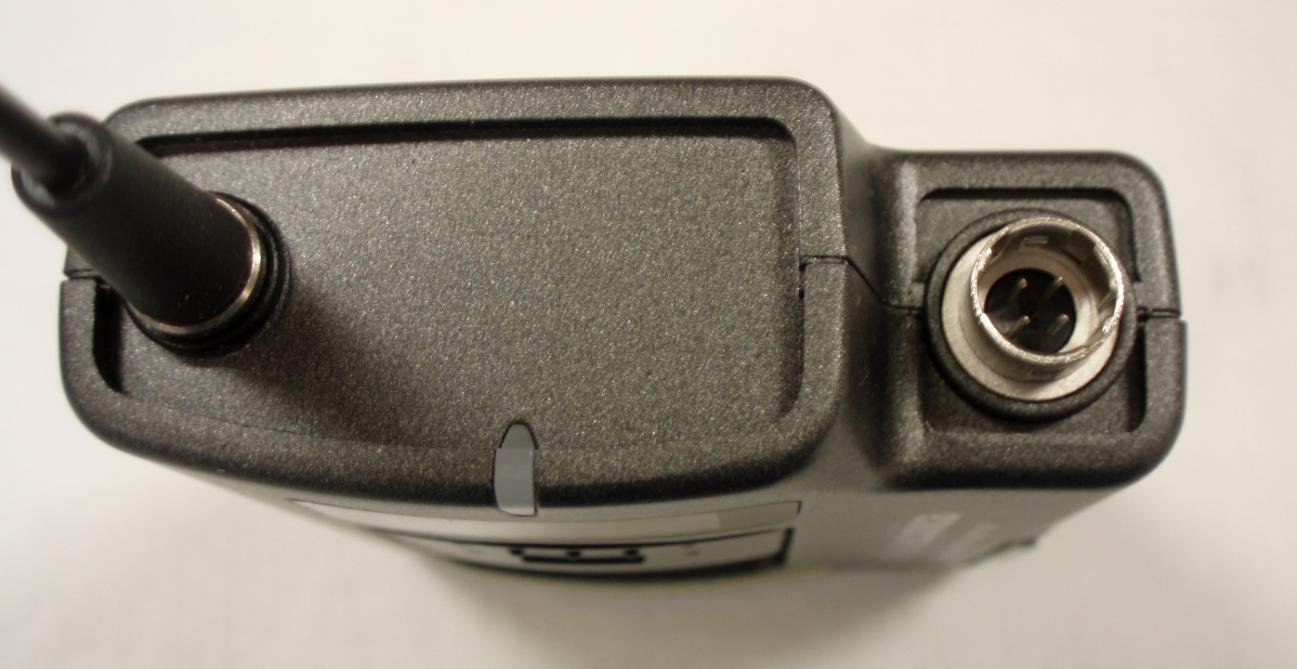

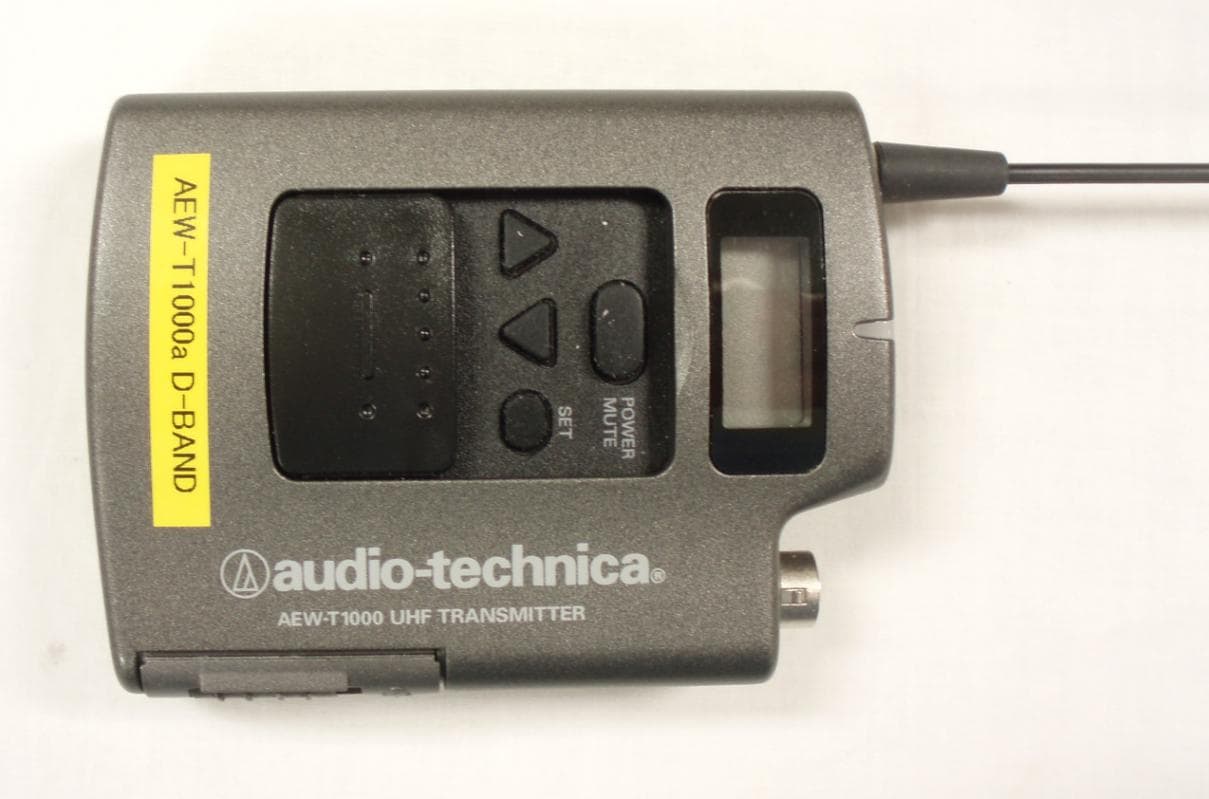

APPLICANT: AUDO TECHNICA CORPORATION FCC ID: JFZT1000AD EXTERNAL PHOTOS

APPLICANT: AUDO TECHNICA CORPORATION FCC ID: JFZT1000AD INTERNAL PHOTOS

FCC PART 74 AND INDUSTRY CANADA RSS-123 LOW POWER LICENSED TRANSMITTER TEST REPORT APPLICANT AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN FCC ID JFZT1000AD IC CERT 1752B-AEW1000AD MODEL NUMBER AEW-T1000aD PRODUCT DESCRIPTION BODY PACK WIRELESS MIC DATE SAMPLE RECEIVED 1/20/2010 DATE TESTED 2/8/2010 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 144AUT10TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT1000AD IC #: 1752B-T1000AD MODEL #: AEW-T1000aD REPORT: A\AudioTechnica_JFZ\144AUT10\144AUT10TestReport.doc Page 2 of 17 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................3 GENERAL INFORMATION .................................................................................................4 TEST PROCEDURES ........................................................................................................6 RF POWER OUTPUT .........................................................................................................7 MODULATION CHARACTERISTICS ...................................................................................8 VOICE MODULATED COMMUNICATION EQUIPMENT .......................................................9 AUDIO INPUT VERSUS MODULATION ............................................................................ 10 OCCUPIED BANDWIDTH ................................................................................................ 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ................................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................ 14 FREQUENCY STABILITY ................................................................................................. 16 EMC EQUIPMENT LIST .................................................................................................. 17 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT1000AD IC #: 1752B-T1000AD MODEL #: AEW-T1000aD REPORT: A\AudioTechnica_JFZ\144AUT10\144AUT10TestReport.doc Page 3 of 17 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025:2005 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 2/11/2010 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT1000AD IC #: 1752B-T1000AD MODEL #: AEW-T1000aD REPORT: A\AudioTechnica_JFZ\144AUT10\144AUT10TestReport.doc Page 4 of 17 GENERAL INFORMATION RULES PART 2.1033 DUT TECHNICAL DESCRIPTION DUT Description BODY PACK WIRELESS MIC FCC ID JFZT1000AD IC Certification 1752B-T1000AD Model Number AEW-T1000aD Modulation FM Type of Emission 110KOF3E Bn = 2M+2DK M = 15000 D = 40 kHz (Peak Deviation) K = 1 Bn = 2(15k) + 2(40k)(1) = 110k Frequency Range (655.50 – 380.375) MHz Test Frequencies 655.50 – 667.95 – 680.38 Maximum Output Power 0.035 Watts DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT1000AD IC #: 1752B-T1000AD MODEL #: AEW-T1000aD REPORT: A\AudioTechnica_JFZ\144AUT10\144AUT10TestReport.doc Page 5 of 17 GENERAL INFORMATION Test Facility Timco Engineering, Inc. 849 NW State Road 45, Newberry, FL 32669 Test Condition The temperature was 26ºC with a relative humidity of 50% . Modifications None Test Exercise (e.g software description, test signal, etc.) The DUT was placed in continuous transmit mode of operation. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Parts 2 and 74, RSS- 123 Issue 1, Rev. 2 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT1000AD IC #: 1752B-T1000AD MODEL #: AEW-T1000aD REPORT: A\AudioTechnica_JFZ\144AUT10\144AUT10TestReport.doc Page 6 of 17 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: For a device with a fixed antenna, RF power is measured as ERP as the antenna is permanently attached. The substitution method was used as described in ANSI/TIA-603-C:2004. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C:2004 using an Agilent spectrum receiver with preselector. The ban…
