JFZT1401Body-Pack Transmitter

System20 Pro Quick Start Guide English ■Important information Warning: To prevent fire or shock hazard, do not expose this apparatus to rain or moisture. Caution: • Do not expose this apparatus to drips or splashes. • To avoid electric shock, do not open the cabinet. • Refer servicing to qualified personnel only. • Do not expose this apparatus to excessive heat such as sunshine, fire or the like. • Do not subject this apparatus to strong impact. • This apparatus should be located close enough to the AC outlet so that you can easily grasp the AC adapter at any time. • In case of emergency, disconnect the AC adapter quickly. • Do not place any objects filled with liquids, such as vases, on this apparatus. • To prevent fire, do not place any naked flame sources (such as lighted candles) on this apparatus. • Do not install this apparatus in a confined space such as a bookcase or similar unit. • Install this apparatus only in the place where ventilation is good. • Keep the product out of the reach of small children. The product is not intended for use around children. • Do not place the product near fire to avoid an accident or the product catching fire. • The rating label is put on the bottom of this apparatus. Battery caution: Specified batteries/ Rechargeable batteries ATW-T1401/ATW-T1402: Two (2) AA alkaline or nickel–metal hydride batteries ATW-T1406/ATW-T1407: Dedicated lithium-ion battery • Keep batteries out of the reach of children. • Observe correct polarity as marked. • Do not expose the battery to excessive heat such as sunshine, fire or the like. • Always consider the environmental issues and follow local regulations when disposing of batteries. • Remove depleted battery immediately. • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • Do not use a leaking battery. If battery leakage occurs, avoid contact with skin. If contact occurs, immediately wash thoroughly with soap and water. • If battery leakage comes into contact with your eyes, immediately flush with water and seek medical attention. • To protect the built-in rechargeable battery, charge it at least once every 6 months. If too much time passes between charges, the life of the rechargeable battery may be reduced, or the rechargeable battery may no longer be able to be charged. Battery caution (ATW-T1401/ATW-T1402): • Use only disposable LR06(AA) alkaline or Ni-MH batteries. • Do not use new and old batteries at the same time. • Do not use different battery types or models. For customers in the USA FCC Notice Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter used in other systems. RF Exposure Statement (ATW-T1401/ATW-T1402) This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). (ATW-R1440/ATW-T1406/ATW-T1407) This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Contact: Responsible Company: Audio-Technica U.S., Inc. Address: 1221 Commerce Drive, Stow, Ohio 44224, USA Tel: 330-686-2600 For customers in Canada ISED statement CAN ICES-003(B)/NMB-003(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. (ATW-R1440/ATW-T1406/ATW-T1407) This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. (ATW-T1401/ATW-T1402) The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some …

Text truncated - open the document above for the full version.

Date: December 28, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation FCC ID: JFZT1401 Grantee FRN: 0028730448 To whom it may concern: FCC US Agent Contact Person: Kurt Van Scoy Company Name: Audio-Technica U.S., Inc. FRN: 0004315917 Company Address: 1221 Commerce Drive, Stow, Ohio 44224, U.S.A Email: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Audio-Technica Corporation (“the applicant”) for the above referenced FCC ID. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section §2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely yours, Signature: Kurt Van Scoy Audio-Technica U.S., Inc.

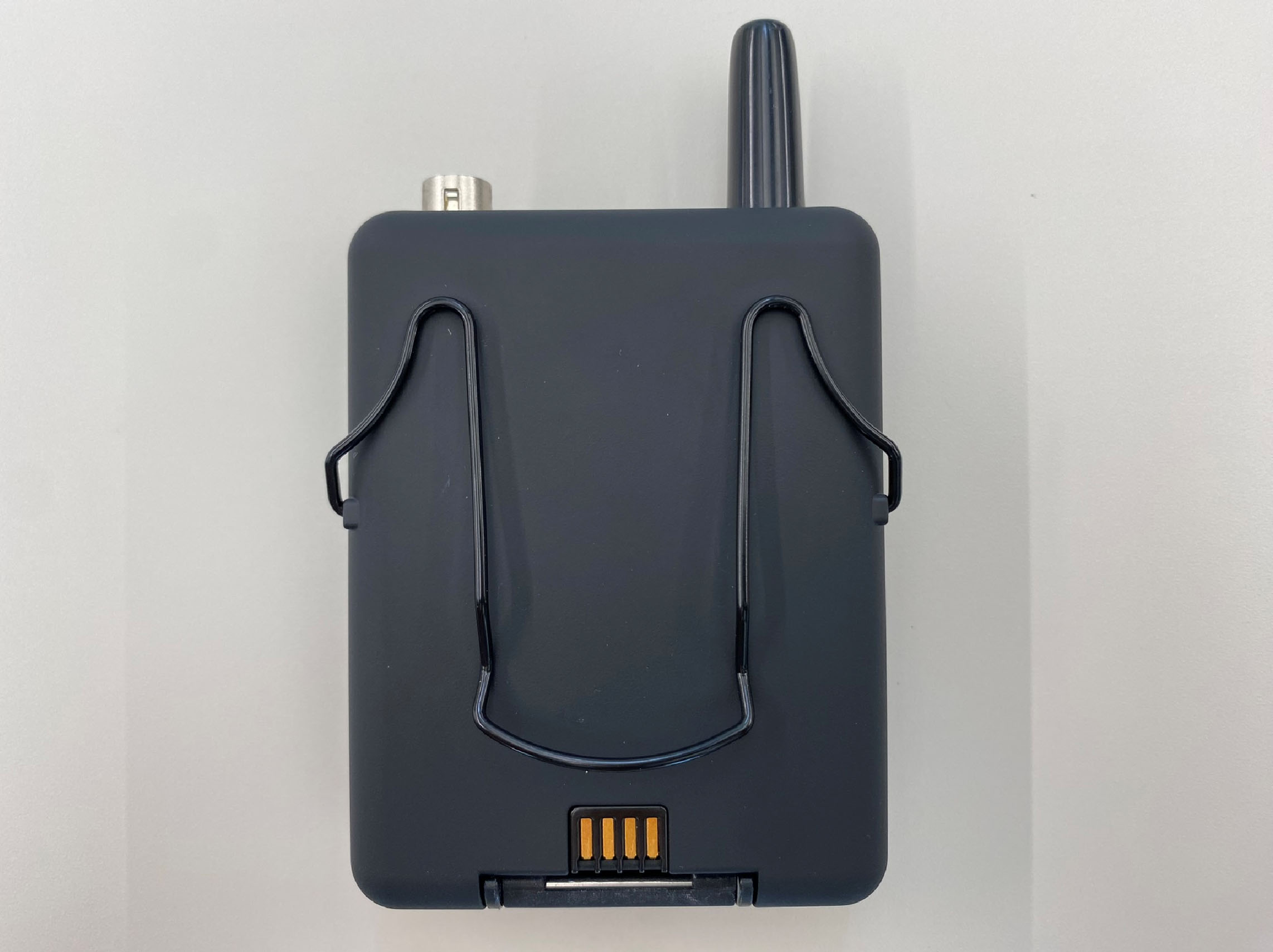

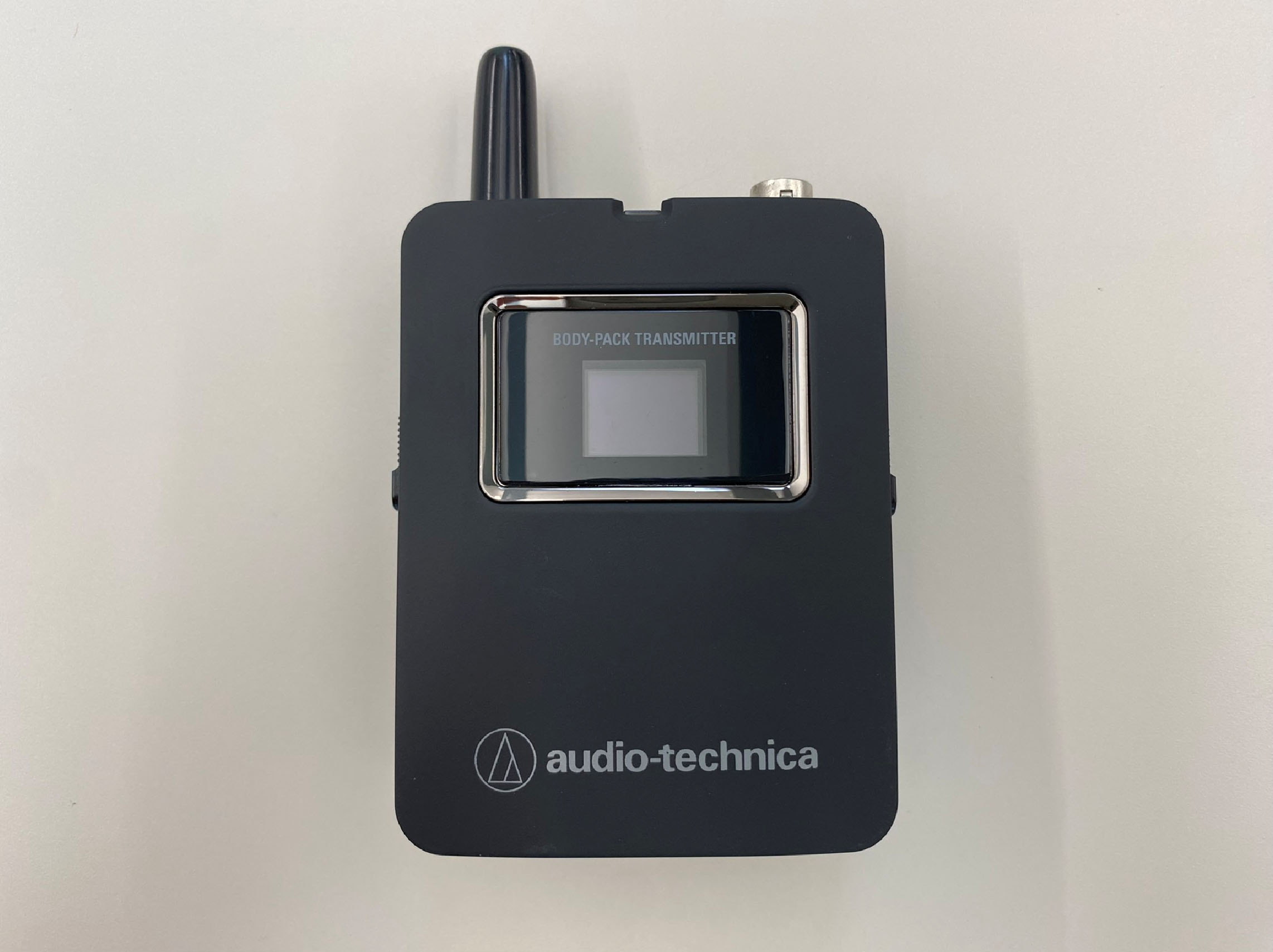

External Photo Audio-Technica Corporation [Model: ATW-T1401] Front Rear External Photo Audio-Technica Corporation [Model: ATW-T1401] Top Bottom External Photo Audio-Technica Corporation [Model: ATW-T1401] Right Left

MADE IN MALAYSIA Audio-Technica Corporation BODY-PACK TRANSMITTER MODEL: ATW-T1401 BATT.: LR6, AA x2, 3V Resistance to label peeling No peeling in temperature environment test Adhesive: Permanent adhesive type Label Character Durability Laminated (PET film 25μm) FCC ID: JFZT1401 IC: 1752B-T1401 ANATEL: *****-**-**** CCA********* 007-AM0178 FCC ID character height: 1.455mm Resistance to label peeling No peeling in temperature environment test Adhesive: Permanent adhesive type Label Character Durability Laminated (PET film 25μm) MADE IN MALAYSIA Audio-Technica Corporation BODY-P ACK TRANSMITTER MODEL: ATW-T1401 BATT .: LR6, AA x2, 3V FCC ID: JFZT1401 IC: 1752B-T1401 ANATE L: *****-**-**** CC A********* 007-AM0178

Internal Photo Audio-Technica Corporation [Model: ATW-T1401] Internal Photo Audio-Technica Corporation [Model: ATW-T1401] Internal Photo Audio-Technica Corporation [Model: ATW-T1401]

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com January 18, 2024 FCC ID: JFZT1401 To whom it may concern, We, UL Japan, Inc, hereby declare that Body-Pack Transmitter, model: ATW-T1401 (FCC ID: JFZT1401) of Audio-Technica Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power was 7 mW So for this device: 7 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 2.2 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Satofumi Matsuyama Engineer

$$7:7$QWHQQD5HSRUW 6SHFLILFDWLRQ 0RGHO$7:7 $QWHQQD7\SH$QWHQQDЗ0RQRSROH3&%$QWHQQD $QWHQQDЗ0RQRSROH:LUH$QWHQQD ,PSHGDQFHЌ )UHTXHQF\5DQJHt0+] *DLQ$QWHQQDG%L 3HDN  $QWHQQDG%L 3HDN  0DQXIDFWXUHU$XGLR7HFKQLFD $QWHQQD 3&%$QWHQQD  $QW HQQD :LUH$QWHQQD  Reference to Test Setup Photo Reference to Test Setup Photo $QWHQQD5DGLDWLRQ3DWWHUQ $QWHQQD5DGLDWLRQ3DWWHUQ )LOH 7LWOH 3HDN +LJKW )UHTX HQF\ 3RO DUL]DWLRQ $YHUDJH $YHUDJH 3HDN 3RODUL]DWLR Q)UHTXHQF\ +LJKW7LWOH )LOH 77HVW&RQILJXUDWLRQ  7HVW)DFLOLW\ 7HVW6LWH$XGLR7HFKQLFD)XNXL,QF 7HVW6RIWZDUH7<$0 72<2&RUSRUDWLRQ  'DWH 0HDVXUHU+LURNL7DNHLFKL  7HVW(TXLSPHQW (TXLSPHQW0DQXIDFWXUHU0RGHO&DO'DWH&DO'XH 6LJQDO*HQHUDWRU52+'( 6&+:$5=60%$ 7HVW5HFHLYHU52+'( 6&+:$5=(68 $QWHQQD6&+:$5=%(&.%%+$(1$1$ 5HIHUHQFH$QWHQQD6&+:$5=%(&.%%+$%    7HVW3URFHGXUH   7KHUHIHUHQFHDQWHQQDZLWKNQRZQDQWHQQDJDLQZDVSODFHGRQWKHWRSRIWKHWXUQWDEOH PHWHUDERYHJURXQGDQGFRQQHFWHGWRWKH6LJQDO*HQHUDWRU  7KHUHFHLYLQJDQWHQQDZDVSODFHGPHWHUVIDUDZD\IURPWKHFHQWHURIWKHWXUQWDEOHDQG FRQQHFWHGWRWKH6SHFWUXPDQDO\]HU  7XUQRQWKH6LJQDODQDO\]HURXWSXW7KHWXUQWDEOHZDVURWDWHGE\GHJUHHVDQGWKH VSHFWUXPDQDO\]HUUHFRUGWKHLQSXWOHYHOIRUHDFKGHJUHH  7KHPD[LPXPUHDGLQJLVWKHDQWHQQDJDLQRIWKHUHIHUHQFHDQWHQQD  5HSODFHWKHUHIHUHQFHDQWHQQDZLWK(87  7XUQRQWKH6LJQDODQDO\]HURXWSXW7KHWXUQWDEOHZDVURWDWHGE\GHJUHHVDQGWKH VSHFWUXPDQDO\]HUUHFRUGWKHLQSXWOHYHOIRUHDFKGHJUHH  6XEWUDFWWKHPD[LPXPUHDGLQJRIWKHUHIHUHQFHDQWHQQDDQGWKHPHDVXUHGUHDGLQJRIWKH (87WRREWDLQWKHUDGLDWLRQSDWWHUQRIWKHDQWHQQD  7KHSHDNUHDGLQJLVWKHDQWHQQDJDLQRI(87     77HVWW6HWXSS %ORFNN'LDJUDPPRII$QWHQQDD5DGLDWLRQQ7HVW 7HV WW6HWXSS3KRWRR Reference to Test Setup PhotoReference to Test Setup Photo

Test Report No. 14983817H-A-R1 Page 1 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 14983817H-A-R1 Customer Audio-Technica Corporation Description of EUT Body-Pack Transmitter Model Number of EUT ATW-T1401 FCC ID JFZT1401 Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date January 18, 2024 Remarks - Representative Test Engineer Approved By Tomoya Sone Engineer Satofumi Matsuyama Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 23.0 Test Report No. 14983817H-A-R1 Page 2 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14983817H-A This report is a revised version of 14983817H-A. 14983817H-A is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 14983817H-A October 31, 2023 - 1 14983817H-A-R1 January 18, 2024 Cover page, Section 2.1: Identification of EUT, Section 4.2: Configuration and Peripherals -Correction of Description of EUT. Belt-pack type transmitter → Bod y-Pack Transmitter 1 14983817H-A-R1 January 18, 2024 Section 2.2: Product Description -Correction of Antenna Type. Antenna 1: Pattern Antenna Antenna 2: Wire Antenna → Antenna 1: λ/4 Monopole PCB Antenna Antenna 2: λ/4 Monopole Wire Antenna  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the customer for this report is identified in Section 1.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14983817H-A-R1 Page 3 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. 14983817H-A-R1 Page 4 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information ......................................................................................... 5 SECTION 2: Equipment Under Test (EUT) .............................................................................. 5 SECTION 3: Test Specification, Procedures & Results .......................................…

Text truncated - open the document above for the full version.

Test Report No. 14983817H-A-R1 Page 37 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of Test Setup Radiated Spurious Emission Photo 1 Photo 2 Test Report No. 14983817H-A-R1 Page 38 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position X-axis Y-axis Z-axis Test Range Antenna 1 Antenna 2 Horizontal Vertical Horizontal Vertical Below 1 GHz X-axis X-axis X-axis X-axis Above 1 GHz X-axis Y-axis X-axis Y-axis Test Report No. 14983817H-A-R1 Page 39 of 39 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report

Antenna 1 (PCB Antenna) Antenna 2 (Wire Antenna) Test Set-up Photo
