JFZT220DHandheld Wireless Microphone

Audio-Technica Corporation
Handheld Wireless Microphone - FCC ID JFZT220D - Audio-Technica Corporation
Click to zoom

Application Details

Equipment Class
TBF - Licensed Broadcast Transmitter Held to Face
Date of Grant
Nov 14, 2004
Application Purpose
Original Equipment
Date of Application
Nov 14, 2004
Equipment Note
Handheld Wireless Microphone
Frequency Range
655.00000000 - 680.00000000
Company
Audio-Technica Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—

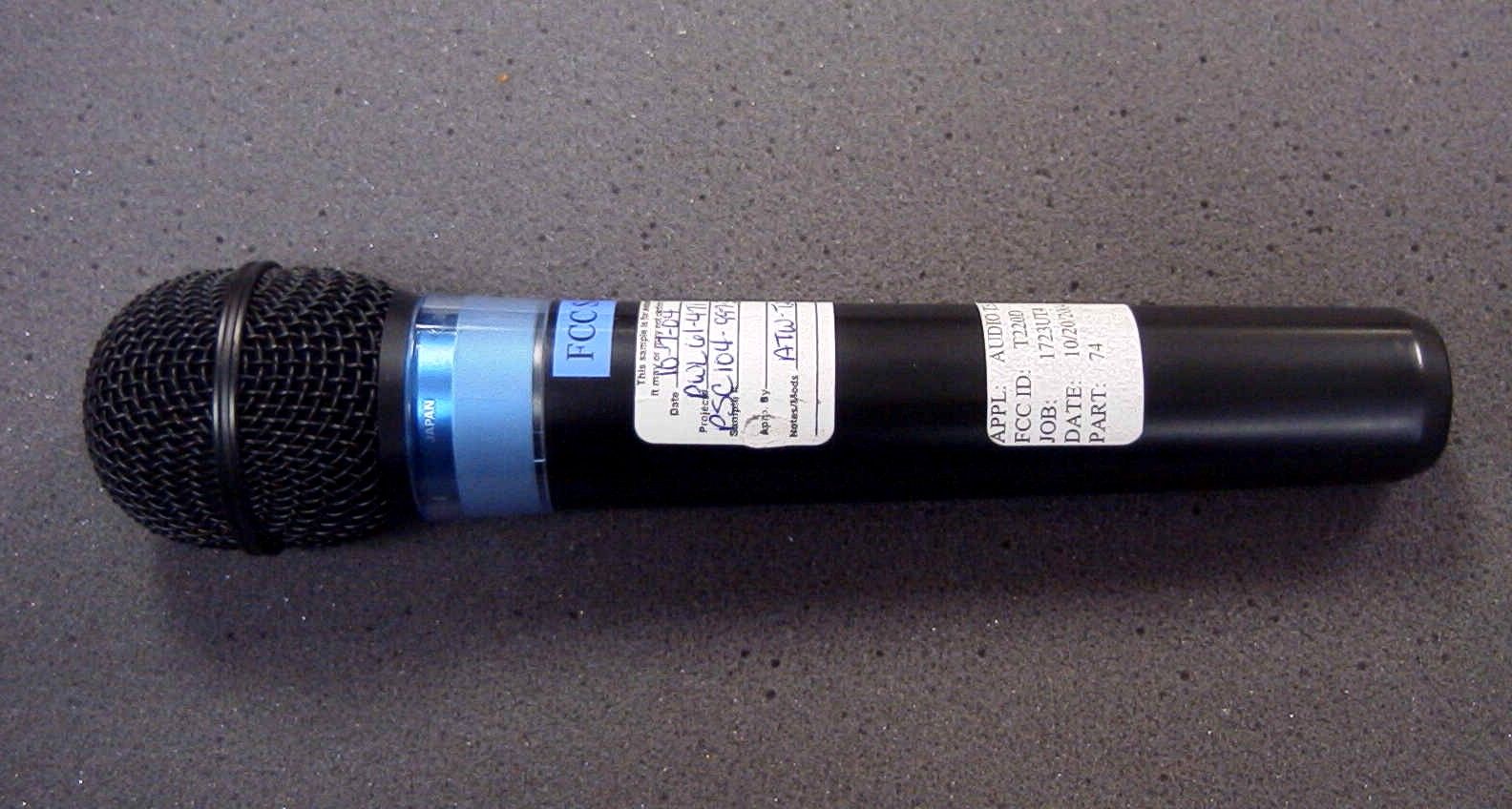

External Photos

β†—

ID Label/Location Info

β†—
β†—

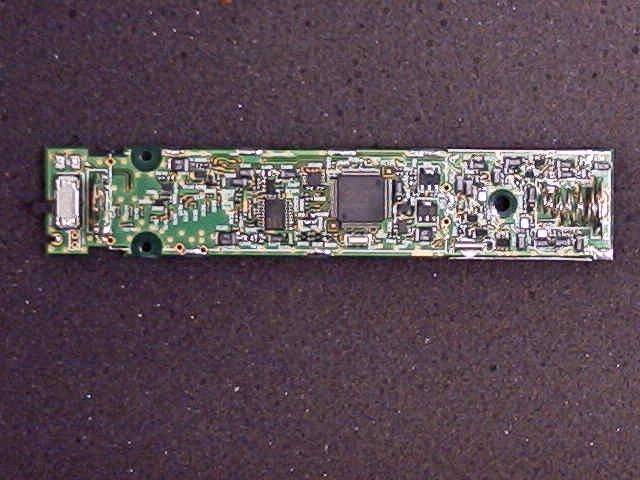

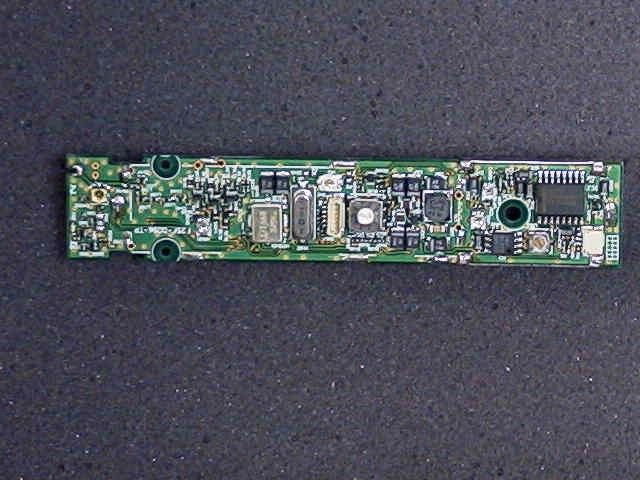

Internal Photos

β†—
β†—

Operational Description

β†—

Parts List/Tune Up Info

β†—

Test Report

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

ATW-T220 FREQ: 655 – 680 MHz FCC ID: JFZT220D CANADA: 1752B-ATW20000D MADE IN JAPAN

Test Report

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: Test Report Product Name: HANDHELD WIRELESS MICROPHONE FCC ID: JFZT220D Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO, 194 JAPAN Date Receipt: OCTOBER 20, 2004 Date Tested: OCTOBER 27, 2004 JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT220D TABLE OF CONTENTS LIST for Part 74 TEST REPORT CONTAINING: PAGE 1........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONT. RF POWER OUTPUT PAGE 3........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE PAGE 4........MODULATION LIMITING PAGE 5-6......OCCUPIED BANDWIDTH PAGE 7........RADIATED EMISSIONS TEST DATA PAGE 8........METHOD OF MEASURING RADIATED EMISSIONS PAGE 9........FREQUENCY STABILITY TEST DATA PAGE 10-11....EQUIPMENT LIST EXHIBITS INCLUDING: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS PARTS LIST LABEL SAMPLE LABEL LOCATION USERS MANUAL EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1) AUDIO TECHNICA CORPORATION will manufacture the T220D 2.1033(c)(2) in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO, 194 JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(1) Maximum Output Power Rating: 1 Watt into 50 ohms resistive load. (c)(3) Instruction book. The instruction manual is included in the exhibits. (c)(4) Type of Emission: 126K0F3E Bn = 2M + 2DK M = 3 kHz D = 60 kHz K = 1 Bn = 2(3k) + 2(60k)(1) = 126k 74.861 (e)(5) ALLOWED AUTHORIZED BANDWIDTH = 200 kHz. (c)(6) Frequency Range: 655-680 MHz (c)(7) Power Range and Controls: UNIT has no controls. (c)(9) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY High Vce = 3.0 VDC Ice = 0.317 A Pin = 0.951 Watts (c)(10) Tune-up procedure. The tune-up procedure is included in the exhibits. (c)(11) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc Page 1 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: 2.1033(c)(12) Photo or Drawing of Label and sketch of location: Please see the exhibits. 2.1033(c)(13) Photos of Equipment: Please see the exhibits. (c)(14) Description of all circuitry and devices provided for determining and stabilizing frequency. Description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting power. This circuitry is included in the exhibits. Limiting Modulation: The transmitter audio circuitry is contained in IC101, IC102 and IC103. Limiting Power: There is no provision for limiting power. (15) Digital modulation. This unit does not use digital modulation. 2.1033(c)(16) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF power output RF power measured is: OUTPUT POWER: 0.008 WATTS ERP R.F. POWER OUTPUT TEST PROCEDURE JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc Page 2 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: 2.1047(a)(b) Modulation characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. 1723UT4 Audio Frequency Response -15 +0 -10 -5 d B 100 10k 200 500 1k 2k 5k Hz AUDIO_LOW_PASS_FILTER The audio low pass filter is not required in this unit. JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc Page 3 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: 2.1047(b) Audio input versus modulation A plot of the audio input versus deviation is shown in the following plots. 1723UT4 Modulation Limiting 60 k H z -40 -5-35 -30 -25-20-15-10 dBu JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc Page 4 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: 2.1049 Occupied bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorized bandwidth they are attenuated by at least 35 dB and beyond 250% 43 + log(Po) dB. The plot show the transmitter modulated with 15000 Hz(the highest modulation frequency), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the un-modulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plots follow. Microphone transmitter Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT REQUIREMENT: 200kHz EMISSION BANDWIDTH JFZT220D REPORT #: A\AudioTechnica_JFZ\1723UT4\1723UT4TestReport.doc Page 5 of 11 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florid…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Fumio Kamimura(General Manager, Engineering Planning Division)
[email protected]81-42-739-9128Fax: 81-42-739-9129

Test Firm

Timco Engineering, Inc.S Sanders
[email protected]888-472-2424Fax: 352-472-2030

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
174.861655 MHz - 680 MHz8.00 mW126KF3E50.0000000000 ppm
Confidentiality
Long Term
Grant Notes
Power listed is ERP.
