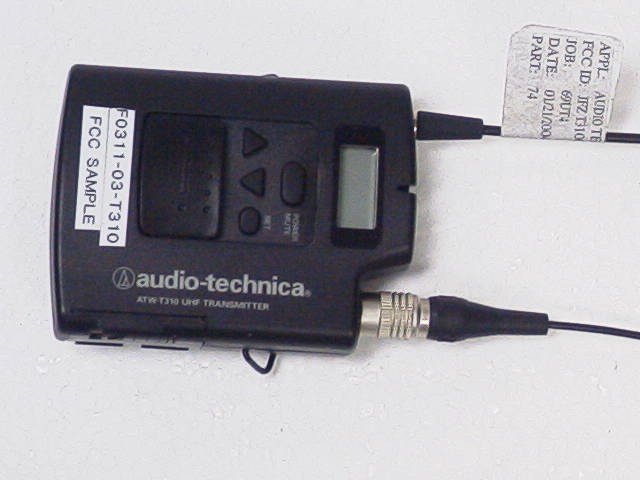

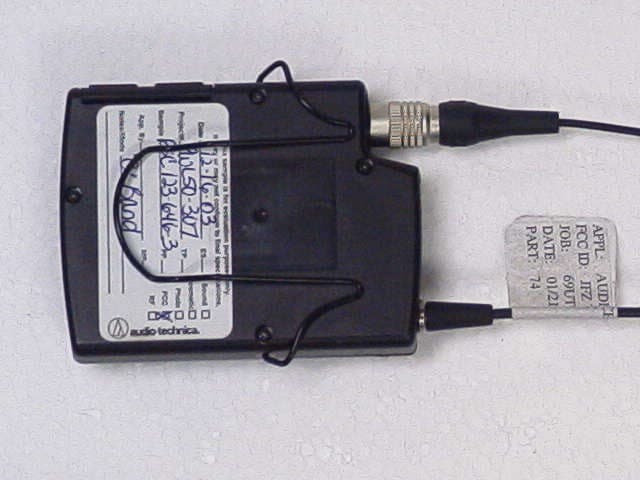

JFZT310CWIRELESS MICROPHONE TRANSMITTER

AUDIO TECHNICA MODEL ATW-3000 UHF WIRELESS MICROPHONE SYSTEM USER INFORMATION. INTRODUCTION Thank you for purchasing the ATW-3000 series wireless microphone system. It is our hope that the system will bring you years of trouble free pleasure and performance. Please follow the information contained in this manual closely as it will assist you in using your equipment effectively. PART1. REGULATORY REQUIREMENTS. FCC PART 15 COMPLIANCE STATEMENT CANADA RSS-210 COMPLIANCE STATEMENT “This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference” “This device complies with INDUSTRY CANADA R.S.S. 210, en confomite avec IC: RSS-210/CNR210. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference which may cause undesired operation.” Please note that your ATW-30000 system operates in a frequency band in a way which may make its use subject to certain FCC and other regulatory agency restrictions and licensing requirements. For further information, Please contact your local office of the FCC as applicable. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. PART 2. USING THE ATW-T310 BELTPACK TRANSMITTER The beltpack transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Open the battery door by slide door lock towards arrow direction and lift door. Insert the batteries into the battery compartment and close the battery door Slides the LCD set up buttons cover down to bottom Push and hold the power switch and turn the ATW-T310 on Push the set button once Using up or down arrow buttons and scrolls the menu until frequency menu appeared. If current frequency setup appeared on the LCD is not the same as corresponding receiver frequency, push set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until input menu (MIC or INSTRUMENT) appeared. If current input setup appeared on LCD screen is not correct, push set button once Using up or down arrow button to select input. Push and hold set button until word “Stored” displayed in a while. Connect your microphone or guitar cable to the connector on the top side of the transmitter. \ Confirm that the receiver is receiving RF and the audio is passing through the receiver. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared Push the set button once to return default menu You are now set to use the system. PART 3. USING THE ATW-T341 HANDHELD TRANSMITTER The handheld transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Hold the bottom grip and turn the top grip counter clockwise until bottom grip free to slide. Slide the bottom grip, insert the batteries into the battery compartment and slide the battery compartment back into place. To change the frequency of operation, push and hold power /mute button located on bottom of transmitter to turn it on. Unscrew the battery cover and pull the cover back. Push the set button once Using up or down arrow button and scrolls the menu until frequency menu appeared. Push the set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared Push the set button once to return default menu You are now set to use the system. PART4. USING THE ATW-R310 RECEIVER Connect the AC adapter DC output connector to The ATW-R310 DC input jack Plug the 2 blades AC plug on AC adaptor AC cable to an 110V AC outlet. Push the on off switch. Confirm that the backlight on LCD screen comes on. Check the frequency setting to confirm that they correspond to the settings of the transmitter If not, push and hold set button until frequency only displayed on LCD Push set button once and check that frequency displayed on LCD brink. Push up or down arrow button to set receiver frequency to corresponding transmitter frequency. Pus set button once to set frequency. Push up or down arrow buttons to scrolls menu until VR and percent figures appeared If it not set to the VR 100%, push set button once and check that item displayed on LCD brink Push up arrow button to set it to maximum. Push set button once to set Push and hold Set button until LCD displayed “DEF” in a while Connect the balanced or unbalanced audio output to your mixer or PA system. Adjust the Volume setting to the desired level. Speak into the microphone and listen to the audio out at the speaker. If satisfied with the audio quality, you ca use the system.

Audio-Technica U.S., Inc. 1221 Commerce Drive Phone: 330-686-2600 [email protected] Stow, OH 44224-1760 Fax: 330-688-3752 January 15, 2004 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZT310C Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio Technica., is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for ATW-T310C wireless transmitter Block diagram for ATW-T310C wireless transmitter Circuit description for ATW-T310C wireless transmitter This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

Subsection 2.983(d)(9): Factory Tune-up Procedure Test Equipment 1. BNC-P to MM121454 Coaxial RF cable Audio Technica custom RF cable 2. DC Power Supply Leader LPS-160-2 3. Audio Signal Generator Leader LAG-126S 4. Modulation Meter (FM liner detector) Anritsu MS61A 5. Spectrum Analyzer Advantest R3361D 6. RF Power Meter Anritsu MS 4803A 7. RF Power Sensor Anritsu MA4701A 8. Oscilloscope Tektronix 475A 9. DC Volt Meter Fluke 79 10. AC milli Volt Meter Leader LMV-1817 Adjustment of T310 Main circuit board  RF Oscillation frequency adjustment 1-1,Measuremet equipments and the T310 set up a Spectrum analyzer setup  Center frequency554.000MHz  SPAN200kHz  Frequency counterON b T310 LCD Setup  Frequency554.000MHz  RF-POWERHI  GAIN-6dB 1-2,TT310 adjustment Turn the VC300 on the T310 circuit board and set the oscillation frequency to 554.000MHz  RF output peak adjustment 2-1, Measurement equipments and theT310 setup a Spectrum analyzer setup  Center frequency554.000MHz  SPAN200kHz b T310 setup  Same as 1-1-b 2-2, T310 adjustment a. Connect CNP100 output to the Spectrum Analyzer input b. Adjust the VC100 and set RF output power to maximum  RF Power adjustment 3-1, Measurement equipments and the T310 setup a RF Power meter setup  Measurement range: Auto b T310 setup  Same as 1-1-b 3-2, T310 adjustment a Connect CNP100 output to the RF Power meter input b Set the LCD power indicator to Low c Adjust the VR100 and set RF output power to 10mW  Tone signal modulation level adjustment 4-1, Measurement equipments and the T310 setup a Spectrum analyzer setup  Center frequency554.000MHz  SPAN200kHz  Marker: On b T310 setup  Same as 1-1-b 4-2 , T310 adjustment Adjust VR200 and set level difference between Main carrier and tone carrier to 30dBc  Audio modulation level adjustment 5-1, Measurement equipments and the T310 setup a Deviation Meter setup  SensitivityP-P/2  Range100kHz  HPF50Hz  LPF20kHz  Frequency554.000MHz b Audio signal applied to CN2  Frequency1kHz  Level+4dBV (at CN2 terminal c T310 setup  Same as 1-1-b 5-2 T310 adjustment Adjust VR201 and set deviation to +/- 30KIHz

ATW-T310 Parts List (US-C) Reference Number Part Number Part Name 236908320 PCBASSY-T310US-C 236908330 PCBASSY-T310US-CA CNP103 971000850 BP)53022-1510(PCB) CNP101 971001980 BP)B2P-BC-2 235404390 RF1 CNP201 971002000 BP)DF13-4P-1.25H(21) 236908350 PCBASY-T310US-CASUB 236907210 PCB)T310 IC200 935602330 C/IC)DREAMT1-T IC201 935602390 C/IC)XC61CN4002NR-T IC141 935601820 C/IC)MB1511PFV-T IC250 935602500 C/IC)NJM2068MD-T IC251 935600031 C/IC)NE572D VCO100 939600570 C/VCO)SA-USM554MHz 235405010 VCO CASE TX D250,251 932600201 C/SD)1SS302-T(TE85L) D140,207,280 932601590 C/SD)HSC119-T Q280 930601690 C/TR)HN1C01F-Y-T Q101 930601210 C/TR)2SC4226-24-T Q102,103 930601410 C/TR)2SC5226-4-T Q140 930601221 C/TR)2SC4738Y-T Q106 930601560 C/TR)DTA114YKA-T Q104 930600770 C/TR)2SB1295-6 CNP100 951600020 C/CN)MM7329-2700-T L200,201,202,203 922603640 C/L)2520-100K-T L101,105,106 922607320 C/L)1608-FS18NJ-T L102,103,104,107 922607300 C/L)1608-FS15NJ-T L108 922607160 C/L)1608-FS3N9S-T R125,153,157,158,159,236,240,115,119 905611330 C/RK)1005-000J-T R113,140,263,264,265,268,259,262 905611340 C/RK)1005-100J-T R100 905611420 C/RK)1005-220J-T R230 905611550 C/RK)1005-101J-T R102,104,161 905611590 C/RK)1005-151J-T R156,239 905611620 C/RK)1005-201J-T R110 905611670 C/RK)1005-331J-T R211 905612580 C/RK)1005-681J-T R114,118,146,162,210,250 905611770 C/RK)1005-102J-T R261 905611840 C/RK)1005-202J-T R101,103,142,143,144,154,218 905611850 C/RK)1005-222J-T R206 905611880 C/RK)1005-302J-T R220,112 905611910 C/RK)1005-392J-T R160,216 905611930 C/RK)1005-472J-T R148,149,120,116 905611940 C/RK)1005-512J-T R260 905611960 C/RK)1005-622J-T R111,219 905611990 C/RK)1005-822J-T R123,147,217,253,122,124 905612010 C/RK)1005-103J-T R254,255,121 905612600 C/RK)1005-153J-T R117,209 905612070 C/RK)1005-203J-T R252 905612100 C/RK)1005-303J-T R126,150,212,214,231,232 905612150 C/RK)1005-473J-T R280 905612210 C/RK)1005-823J-T R145,281,282 905612230 C/RK)1005-104J-T R285 905612320 C/RK)1005-274J-T R284 905612390 C/RK)1005-564J-T R283 905608410 C/RK)1608-205J-T VR100 908602221 C/SR)RH02B1C-223-T VR200 908602210 C/SR)RH02B1C-104-T VR201 908602250 C/SR)RH02B1C-103-T VR101 908602260 C/SR)RH02B1C-101-T C230 915609100 C/CC)1608CH-1H821J-T C136 915609350 C/CC)1005CK-1H010C-T C115,121 915609970 C/CC)1005CK-1H020C-T C135 915609980 C/CC)1005CK-1H030C-T C132,134,130,133 915610000 C/CC)1005CH-1H050C-T C145 915610010 C/CC)1005CH-1H060D-T C132,134 915610030 C/CC)1005CH-1H080D-T C133 915610050 C/CC)1005CH-1H100D-T C254 915610110 C/CC)1005CH-1H330J-T C228 915610140 C/CC)1005CH-1H560J-T C110,214 915610130 C/CC)1005CH-1H470J-T C101,114,118,120,123,131 915609370 C/CC)1005CH-1H101J-T C229,232,221 915610220 C/CK)1005B-1H471K-TT C220,111,148 915610240 C/CK)1005B-1H102K-T C222 915610260 C/CK)1005B-1H222K-T C102,113,125,126,128,129,146,147,271,265,267 915610300 C/CK)1005B-1C103K-T C105,141,143,144,204,218,225,234,256 915609311 C/CK)1005F-1C104Z-T C233,251 912600330 C/CQ)2125-1C103J-T C259 917600440 C/CF)3225-1H473J-T C270,258 916609320 C/CS)2012-1C334M-T C142,281,269 916606720 C/CS)2012-1C105M-T C212,213 916609280 C/CS)2012-1A155M-T C100,223,227,231,240,280,250,252,257 916609290 C/CS)2012-1A225M-T C104,140,211,249 916609310 C/CS)2012-1A475M-T C224 916606710 C/CS)2012-0J106M-T C255 916609250 C/CS)2012-0G226M-T C215 916602480 C/CS)3216-1V104M-T C119,124,127,216,278 916604940 C/CS)3216-1A106M-T C266,268 916609210 C/CS)3528-1C106M-T C103 916609440 C/CS)3528-0J476M-T GOOD 236908340 PCBASSY-T310US-CD D300 934001590 LED)MVL-314URH CNP200 971003170 BP)52024-1510 XTAL300 937006870 XTL)LP-3.5 9.000MHz LCD300 235404550 LCDASSY LCD300 236403100 H4.3 LCD300 235404170 LCD FRAME310 LCD300 235404370 LCDT310 LCD300 934001620 LCD)T5000 SMT ASSY 236908360 PCBASY-T310US-CDSUB 34,FR4(UL94V0) 236907220 PCB)T310 IC300 936602500 C/IC)MB89P165-W1 936602490 C/IC)MB89P165-101PFV IC302 935602340 C/IC)NJU6366DF1-T IC345 935602430 C/IC)XC6204B502MR-T IC301 936602480 C/IC)S-93C46AMFN-T IC343 935602390 C/IC)XC61CN4002NR-T IC344 935602350 C/IC)LTC3401EMS D342,343 932600740 C/SD)DCG010-T D341 932600010 C/SD)1SS294-T D346,345,344 932601420 C/SD)RB521S-30 D347 932601590 C/SD)HSC119-T Q342 930601221 C/TR)2SC4738Y-T Q341 930601640 C/TR)CPH3106-T SW300,301,302,340 948600070 C/SW)SMTE3-04E-T L341 922607060 C/L)CDRH3D16-4R7 L344 922607900 C/L)1608-LK1R0M-T L343,342 922608610 C/L)2520-100K-T L345 922608200 C/L)1608-LK330M-T R316,353 905611330 C/RK)1005-000J-T R302 905611550 C/RK)1005-101J-T R343 905611720 C/RK)1005-511J-T R318 905611820 C/RK)1005-162J-T R346,342 905611940 C/RK)1005-512J-T R344 905612010 C/RK)1005-103J-T R347 905612080 C/RK)1005-223J-T R303,305,307,309,311,313,324,325 905612150 C/RK)1005-473J-T R326,327,328,329,330,331,332,333,349 R300,317,345,348 905612230 C/RK)1005-104J-T R352 905612130 C/RK)1005-393J-T R354 905611540 C/RK)1005-820J-T R350 905624920 C/RN)1005-1004F-T R351 905626220 C/RK)1005-3003F-T VR300 908602200 C/SR)RH02B1C-473-T VC300 918600240 C/SC)TZC03R100A110 C365 915609350 C/CC)1005CK-1H010C-T C301,303,305,312,313,341,350 915610300 C/CK)1005B-1C103K-T C352,353 915609311 C/CK)1005F-1C104Z-T C360 915610090 C/CC)1005CH-1H220J-T C359 915610220 C/CK)1005B-1H471K-TT C356 915609370 C/CC)1005CH-1H101J-T C307 915610060 C/CC)1005CH-1H120J-T C300,302,304 916604940 C/CS)3216-1A106M-T C354,355 916609210 C/CS)3528-1C106M-T C358 916603032 C/CS)3528-1A336M-T C308 916609310 C/CS)2012-1A475M-T C340 916609200 C/CS)3216-0J106M-T C342,357,361,363 916609380 C/CS)3528-0J101M-T

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION Test Report Product Name: LICENSED BROADCAST TRANSMITTER FCC ID: JFZT310C Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE MACHIDA TOKYO 194 JAPAN Date Receipt: JANUARY 21, 2004 Date Tested: FEBRUARY 16, 2004 FCC ID: JFZT310C REPORT #: A\AudioTechnica_JFZ\69UT4\69UT4TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION & RF OUTPUT POWER PAGE 3............MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH AUDIO LOW PASS FILTER PAGE 4............AUDIO INPUT VERSUS MODULATION GRAPH PAGE 5............OCCUPIED BANDWIDTH PAGE 6............OCCUPIED BANDWIDTH PLOT PAGE 7-9..........RADIATED EMISSIONS TEST DATA PAGE 10...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 11...........FREQUENCY STABILITY TEST DATA PAGE 12-13........EQUIPMENT LIST EXHIBITS CONTAINING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS USER'S MANUAL PARTS LIST LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH FCC ID: JFZT310C REPORT #: A\AudioTechnica_JFZ\69UT4\69UT4TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1)(2) AUDIO TECHNICA CORPORATION will manufacture the T310C in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO, 194 JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(3) Instruction book. The instruction manual is included in the exhibits. (c)(4) Type of Emission: 130K0F3E Bn = 2M + 2DK M = 20000 D = 45 kHz(Peak Deviation) K = 1 Bn = 2(20k) + 2(45k)(1) = 130k 74.861 (e)(5) ALLOWED AUTHORIZED BANDWIDTH = 200kHz. (c)(6) Frequency Range: Part 74: 541.5 – 566.375 MHz (c)(7) Power Range and Controls: UNIT has no controls. (c)(8) Maximum Output Power Rating: .020 Watts into 50 ohms resistive load. (c)(9) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY - 9.0V BATTERY Vce = 3.0 Volts Ice = 0.2 mA. (c)(10) Tune-up procedure. The tune-up procedure is included in the exhibits. (c)(11) Complete Circuit Diagrams: The circuit diagram and block diagram are in the exhibits. FCC ID: JFZT310C REPORT #: A\AudioTechnica_JFZ\69UT4\69UT4TestReport.doc Page 1 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 2.1033(c)(12) Photo or Drawing of Label and sketch of location: Included in the exhibits. 2.1033(c)(13) Photos of Equipment: Included in the exhibits. (c)(14) Description of all circuitry and devices provided for determining and stabilizing frequency. Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. This circuitry is in the exhibits. Limiting Modulation: The transmitter audio circuitry is contained in IC101, IC102 and IC103. Limiting Power: There is no provision for limiting power. (15) Digital modulation. This unit does not use digital modulation. 2.1033(c)(16) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF power output RF power measured is: OUTPUT POWER: .008 WATTS R.F. POWER OUTPUT TEST PROCEDURE Transmitter 50 ohm under test Watt Meter Audio Oscillator FCC ID: JFZT310C REPORT #: A\AudioTechnica_JFZ\69UT4\69UT4TestReport.doc Page 2 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. Audio Frequency Response -0 +12 +2 +4 +6 +8 +10 d B 100 30k 200 500 1k 2k 5k 10k Hz AUDIO LOW PASS FILTER The audio low pass filter is not required in this unit. FCC ID: JFZT310C REPORT #: A\AudioTechnica_JFZ\69UT4\69UT4TestReport.doc Page 3 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 0 2.1047(b) Audio_input_versus_modulation 80.213 (d) A plot of the audio input versus deviation is shown in the following plot. Modulation Limiting Plots: 15KHz (Cyan), 2.5KHz (Green), 1.0KHz (Blue), and 300Hz (Yll) 35 k H z -15 +15-10-5+0+5+10 dBu FCC ID: JFZT310C REPORT #: A\AudioTechnica_JFZ\69UT4\69UT4TestReport.doc Page 4 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 2.1049(c) Occupied Bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorized bandwidth they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequency), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the un-modulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plots follow. Wireless Microphone transmitter: Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Tran…
