JFZT341BCHANDHELD WIRELESS MICROPHONE

3000 Series Frequency-agile True Diversity UHF Wireless System Installation and Operation 3000 Series Frequency-agile True Diversity UHF Wireless System French French French Spanish Spanish Spanish Portuguese Portuguese Portuguese German German German Italian Italian Italian Dutch Dutch Dutch Traditional Chinese Traditional Chinese Traditional Chinese Simplified Chinese Simplified Chinese Simplified Chinese Korean Korean Korean POWER MODE/SET UHF SYNTHESIZED DIVERSITY RECEIVER ATW-R3100b ALERT -TUNER- A B ON OFF 3000 Series Installation and Operation (english) 2 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing to qualified service personnel. No user- serviceable parts inside. • Do not expose batteries to excessive heat such as fire, near heating units or in direct sunlight. • To prevent fire or shock hazard, do not expose this product to rain or moisture. • To prevent fire, do not place any naked flame sources (such as lighted candles) on the apparatus. • To prevent fire, do not cover the ventilation of the apparatus with newspaper, tablecloths, curtains etc. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on the apparatus. • Do not install this apparatus in a confined space such as a bookcase or similar unit. • The apparatus should be located close enough to the AC outlet so that you can easily grasp the AC adapter at any time. In case of emergency, disconnect the AC adapter quickly. • Always consider environmental issues and follow your local regulations when disposing of batteries. Do not expose batteries to excessive heat. The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical-device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. RF Interference Please note that wireless frequencies are shared with other radio services. According to Federal Communications Commission regulations, “Wireless microphone operations are unprotected from interference from other licensed operations in the band. If any interference is received by any Government or non Government operation, the wireless microphone must cease operation...” If you need assistance with operation or frequency selection, please contact your dealer or Audio-Technica. Thank you for choosing this Audio-Technica 3000 Series Frequency-agile True Diversity UHF Wireless System. The 3000 Series wireless system is available in six UHF frequency bands to provide flexible performance in a wide variety of regions worldwide: Frequency Range Number of frequencies Band C 541.500 – 566.375 MHz 996 Band D 655.500 – 680.375 MHz 996 Band E 795.500 – 820.000 MHz 981 Band F 840.125 – 864.900 MHz 953 Band G 721.500 – 746.375 MHz 996 Band I 482.000 – 507.000 MHz 1001 The band letter reference at the end of 3000 Series Stock Numbers indicates what band the system/component operates in. For simplicity, model numbers used throughout this manual will reference only the basic model number without the band indications. Each wireless system includes a receiver and either a body-pack or handheld transmitter. UniPak ® body-pack transmitter systems may include an accessory microphone for a particular application. All A-T Wireless Essentials ® microphones and cables, available separately, are pre-terminated for use with any Audio-Technica 3000 Series wireless system. All 3000 Series components feature soft-touch controls for quick, easy access to a formidable range of functions; an LCD information display in each unit provides convenient visual indication of unit settings and operation. The ATW-R3100b receiver is equipped with automatic frequency scanning for easy setup. It also features true diversity reception. Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts. Soft-touch controls provide convenient access to a variety of functions, while a backlit LCD information display provides constant monitoring of system operation, including indication of the transmitter’s battery status. The receiver is half-width for a standard 1U 19" rack mount; rack-mount adapters are included. Two receivers can be mounted side by side, using an optional AT8630 joining-plate kit. The versatile ATW-T310b UniPak ® body-pack transmitter has both low- and high-impedance inputs plus a bias connection, for use with dynamic and electret condenser microphones, as well as Hi-Z ins…

Text truncated - open the document above for the full version.

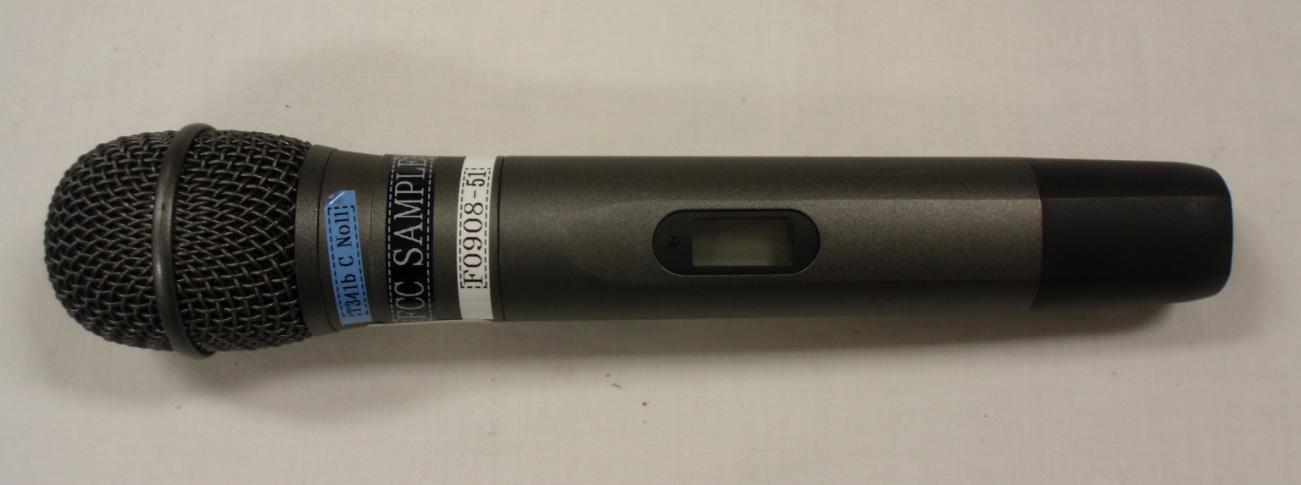

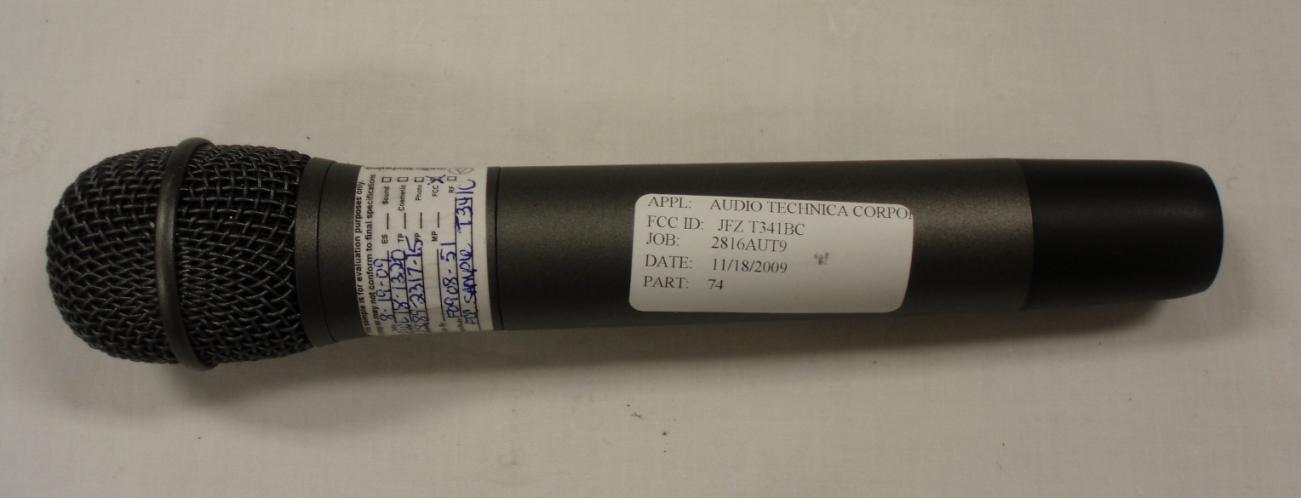

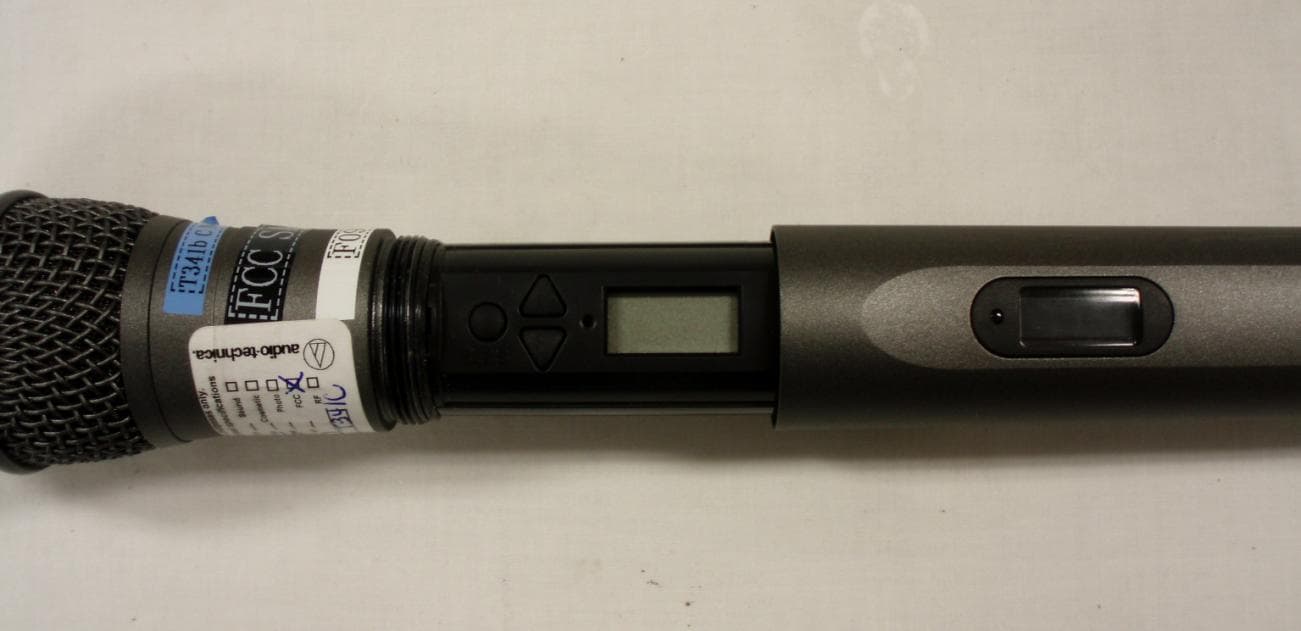

APPLICANT: AUDIO TECHNICA CORP. FCC ID: JFZT341BC EXTERNAL PHOTOS

APPLICANT: AUDIO TECHNICA CORP. FCC ID: JFZT341BC INTERNAL PHOTOS

FCC PART 74 AND INDUSTRY CANADA RSS-123 LOW POWER LICENSED TRANSMITTER TEST REPORT APPLICANT AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN FCC ID JFZT341BC IC CERT 1752B-T341BC MODEL NUMBER ATW-T341bC PRODUCT DESCRIPTION HANDHELD WIRELESS MICROPHONE DATE SAMPLE RECEIVED 11/18/2009 DATE TESTED 12/3/2009 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 2816AUT9TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT341BC IC #: 1752B-T341BC MODEL #: ATW-T341bC REPORT: Y:\A\AudioTechnica_JFZ\2816AUT9\2816AUT9TestReport.doc Page 2 of 18 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................... 3 GENERAL INFORMATION .................................................................................................... 4 TEST PROCEDURES ............................................................................................................ 6 RF POWER OUTPUT ............................................................................................................ 7 MODULATION CHARACTERISTICS ...................................................................................... 8 VOICE MODULATED COMMUNICATION EQUIPMENT......................................................... 9 AUDIO INPUT VERSUS MODULATION ............................................................................... 10 OCCUPIED BANDWIDTH ................................................................................................... 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) .................................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS .................................................................. 14 FREQUENCY STABILITY .................................................................................................... 17 EMC EQUIPMENT LIST ...................................................................................................... 18 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT341BC IC #: 1752B-T341BC MODEL #: ATW-T341bC REPORT: Y:\A\AudioTechnica_JFZ\2816AUT9\2816AUT9TestReport.doc Page 3 of 18 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 12/4/2009 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT341BC IC #: 1752B-T341BC MODEL #: ATW-T341bC REPORT: Y:\A\AudioTechnica_JFZ\2816AUT9\2816AUT9TestReport.doc Page 4 of 18 GENERAL INFORMATION RULES PART 2.1033 DUT TECHNICAL DESCRIPTION DUT Description HANDHELD WIRELESS MICROPHONE FCC ID JFZT341BC IC Certification 1752B-T341BC Model Number ATW-T341bC Modulation FM Type of Emission 110KOF3E Bn = 2M+2DK M = 15000 D = 40 kHz (Peak Deviation) K = 1 Bn = 2(15k) + 2(40k)(1) = 110k Frequency Range (541.50 – 566.38) MHz Test Frequencies (541.50, 553.95, and 566.375) MHz Maximum Output Power 0.030 Watts DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT341BC IC #: 1752B-T341BC MODEL #: ATW-T341bC REPORT: Y:\A\AudioTechnica_JFZ\2816AUT9\2816AUT9TestReport.doc Page 5 of 18 GENERAL INFORMATION Test Facility Timco Engineering, Inc. 849 NW State Road 45, Newberry, FL 32669 Test Condition The temperature was 26ºC with a relative humidity of 50%. Modifications None Test Exercise (e.g software description, test signal, etc.) The DUT was placed in continuous transmit mode of operation. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Parts 2 and 74, RSS- 123 Issue 1, Rev. 2 Applicant: AUDIO TECHNICA CORPORATION FCC ID: JFZT341BC IC #: 1752B-T341BC MODEL #: ATW-T341bC REPORT: Y:\A\AudioTechnica_JFZ\2816AUT9\2816AUT9TestReport.doc Page 6 of 18 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: For a device with a fixed antenna, RF power is measured as ERP as the antenna is permanently attached. The substitution method was used as described in ANSI/TIA-603-C:2004. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI/TIA 603-C:2004 using an Agil…
