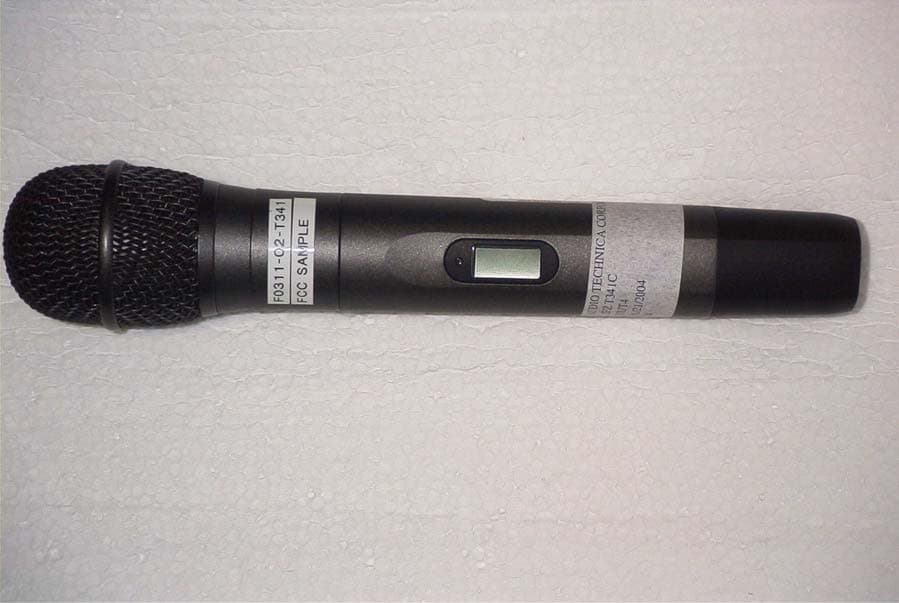

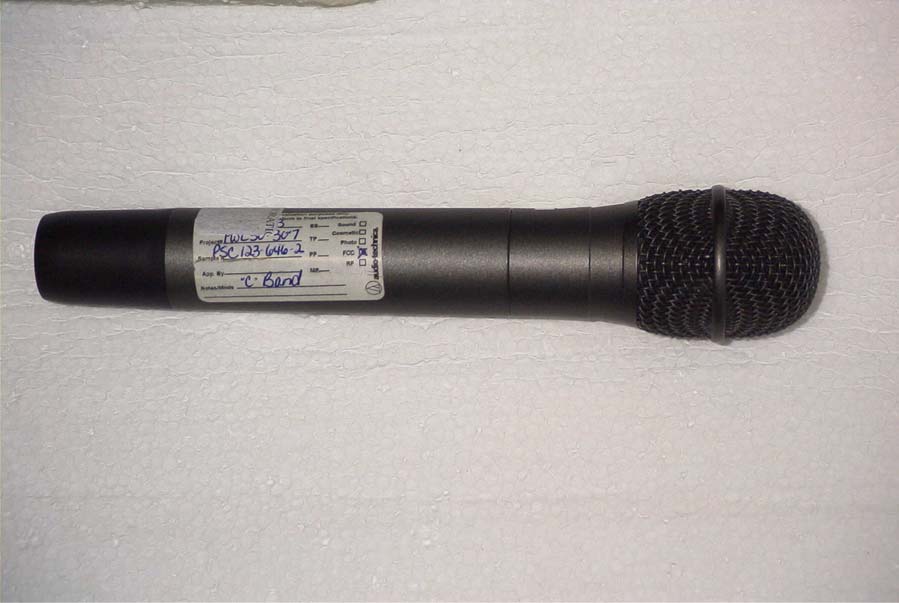

JFZT341CLICENESED BROADCAST TRANSMITTER

AUDIO TECHNICA MODEL ATW-3000 UHF WIRELESS MICROPHONE SYSTEM USER INFORMATION. INTRODUCTION Thank you for purchasing the ATW-3000 series wireless microphone system. It is our hope that the system will bring you years of trouble free pleasure and performance. Please follow the information contained in this manual closely as it will assist you in using your equipment effectively. PART1. REGULATORY REQUIREMENTS. FCC PART 15 COMPLIANCE STATEMENT CANADA RSS-210 COMPLIANCE STATEMENT “This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference” “This device complies with INDUSTRY CANADA R.S.S. 210, en confomite avec IC: RSS-210/CNR210. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference which may cause undesired operation.” Please note that your ATW-30000 system operates in a frequency band in a way which may make its use subject to certain FCC and other regulatory agency restrictions and licensing requirements. For further information, Please contact your local office of the FCC as applicable. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. PART 2. USING THE ATW-T310 BELTPACK TRANSMITTER The beltpack transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Open the battery door by slide door lock towards arrow direction and lift door. Insert the batteries into the battery compartment and close the battery door Slides the LCD set up buttons cover down to bottom Push and hold the power switch and turn the ATW-T310 on Push the set button once Using up or down arrow buttons and scrolls the menu until frequency menu appeared. If current frequency setup appeared on the LCD is not the same as corresponding receiver frequency, push set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until input menu (MIC or INSTRUMENT) appeared. If current input setup appeared on LCD screen is not correct, push set button once Using up or down arrow button to select input. Push and hold set button until word “Stored” displayed in a while. Connect your microphone or guitar cable to the connector on the top side of the transmitter. \ Confirm that the receiver is receiving RF and the audio is passing through the receiver. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared Push the set button once to return default menu You are now set to use the system. PART 3. USING THE ATW-T341 HANDHELD TRANSMITTER The handheld transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Hold the bottom grip and turn the top grip counter clockwise until bottom grip free to slide. Slide the bottom grip, insert the batteries into the battery compartment and slide the battery compartment back into place. To change the frequency of operation, push and hold power /mute button located on bottom of transmitter to turn it on. Unscrew the battery cover and pull the cover back. Push the set button once Using up or down arrow button and scrolls the menu until frequency menu appeared. Push the set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared Push the set button once to return default menu You are now set to use the system. PART4. USING THE ATW-R310 RECEIVER Connect the AC adapter DC output connector to The ATW-R310 DC input jack Plug the 2 blades AC plug on AC adaptor AC cable to an 110V AC outlet. Push the on off switch. Confirm that the backlight on LCD screen comes on. Check the frequency setting to confirm that they correspond to the settings of the transmitter If not, push and hold set button until frequency only displayed on LCD Push set button once and check that frequency displayed on LCD brink. Push up or down arrow button to set receiver frequency to corresponding transmitter frequency. Pus set button once to set frequency. Push up or down arrow buttons to scrolls menu until VR and percent figures appeared If it not set to the VR 100%, push set button once and check that item displayed on LCD brink Push up arrow button to set it to maximum. Push set button once to set Push and hold Set button until LCD displayed “DEF” in a while Connect the balanced or unbalanced audio output to your mixer or PA system. Adjust the Volume setting to the desired level. Speak into the microphone and listen to the audio out at the speaker. If satisfied with the audio quality, you ca use the system.

Audio-Technica U.S., Inc. 1221 Commerce Drive Phone: 330-686-2600 [email protected] Stow, OH 44224-1760 Fax: 330-688-3752 January 15, 2004 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZT341C Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio Technica., is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for ATW-T341C wireless transmitter Block diagram for ATW-T341C wireless transmitter Circuit description for ATW-T341C wireless transmitter This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

ATW-T341 Parts List (US-C) Reference Number Part Number Part Name 236908370 PCBASSY-T341US-C 235404610 LCDASSY-T341 235404090 LCD FRAME 235404100 LCD SPACER 934001620 LCD)T5000 951001660 CN) P01 H33 SW501 948000480 SW)SKHLLA X301 937006870 XTL)LP-3.5 9.000MHz CN2 970001190 BCN)52330-0417 235404010  20*18 236908380 PCBASSY-T341US-CSUB 236304360 PCB)T5000 PCB SHEET 236304361 PCB)T5000 PCB IC2 935602330 C/IC)DREAM-T1 IC4 936602500 C/IC)MB89P165-W1 936602490 C/IC)MB89P165-101PFV IC5 935601820 C/IC)MB1511PFV-T IC6 935602390 C/IC)XC61CN4002NR-T IC7 936602480 C/IC)S-93C46AMFN-T IC8 935602340 C/IC)NJU6366DF1-T IC501 935602400 C/IC)LT1317BCMS8-T IC1 935602500 C/IC)NJM2068MD-T IC3 935600031 C/IC)NE572D IC502 935602410 C/IC)LM2766M6-T Q300,308,309,501 930601221 C/TR)2SC4738Y-T Q303 930601210 C/TR)2SC4226-4-T Q304,305,306,307 930601410 C/TR)2SC5226-4-T Q310 930601630 C/TR)2SA1745-T Q311 930601650 C/TR)DTA114YE-T Q502 930601640 C/TR)CPH3106-T Q301 930601690 C/TR)HN1C01F-Y-T D1,2,3,4,7,13,201,202,203,204,206,302,303,304,501 932601800 C/SD)HZC6.2-T D503,504,507 D101,102 932600201 C/SD)1SS302-T(TE85L) D14,205,301 932601590 C/SD)HSC119-T D502,505 932600740 C/SD)DCG010-T D506 932601430 C/SBD)SL12-T D508 932601600 C/SBD)SB01-05Q-T D15 934600280 C/LED)CL-190HR-CD-T L1,2,3,4,308,310 922607900 C/L)1608-1R0K-T L5,8,9,10,101,102 922608520 C/L)1005-2R2K-T L307 922607260 C/L)1608-FS10NJ-T L303,306 926600209 C/COL)LQW2BHN15NJ01L L304,305 926600211 C/COL)LQW2BHN18NJ01L L302 926600213 C/COL)LQW2BHN22NJ01L L301 922607340 C/L)1608-FS22NJ-T L501 922607080 C/L)CDRH6D38-220NC-T L502,503 922608610 C/L)2520-100K-T SW207,208,209 948600080 C/SW)SKQMBA-T TC301 918600170 C/SC)TC13C100C-T VCO1 939600570 C/VCO)SA-USM554MHz 235405010 VCO CASE TX CN301 951600020 C/CN)MM7329-2700-T VR3 908602310 C/SR)RH02B1C-472-T VR300,301 908602221 C/SR)RH02B1C-223-T VR4 908602210 C/SR)RH02B1C-104-T VR201 908602200 C/SR)RH02B1C-473-T C120 916609320 C/CS)2012-1C334M-T C307 916609330 C/CS)2012-1C474M-T C3,4,52,121 916606720 C/CS)2012-1C105M-T C35,39,44,51,100,101,109,119 916609290 C/CS)2012-1A225M-T C206 916609310 C/CS)2012-1A475M-T C2,11,42,49,202,208,301,308,358 916606710 C/CS)2012-0J106M-T C106 916609250 C/CS)2012-0G226M-T C312,317,336,354,504 916609440 C/CS)3528-0J476M-T C511,512,526,107 916609210 C/CS)3528-1C106M-T C110 916602510 C/CS)3216-1V334M-T C503,507,508,509,524 916609380 C/CS)3528-0J101M-T C33 912600330 C/CQ)2125-1C103J-T C330,334 915608660 C/CC)1005CG-1H030C-T C318,329,360 915608670 C/CC)1005CG-1H040C-T C316,322,331,333 915608690 C/CC)1005CG-1H060C-T C305 915608730 C/CC)1005CG-1H100J-T C38,105 915608820 C/CC)1005CG-1H560J-T C311,313 915608850 C/CC)1005CG-1H101J-T C103 915608920 C/CC)1005B-1H221K-T C34,46,37 915608940 C/CK)1005B-1H471K-T C315,319,320,321,324,325,326,355,356,357,359,361, 527,528,601 915608960 C/CK)1005B-1H102K-T C602,603,604,605 C45 915608980 C/CK)1005B-1H222K-T C505 915608990 C/CK)1005B-1H332K-T C1,10,43,50,108,122,123,201,203,207,300,303,309,3 10,335,337 915609020 C/CK)1005B-1C103K-T C351,353,501 C306,314,323,521,522,525,608,104 915609070 C/CK)1005B-1A104K-T C36 915607030 C/CK)1608B-1H821K-T C102 915600710 C/CK)2012B-1E103K-T C114 915600790 C/CK)2012B-1E473K-T C510 915611380 C/CK)3225B-1C106M-T C332 915610030 C/CC)1005CH-1H080D-T C338,327 915609350 C/CC)1005CK-1H010C-T R209,214 905611330 C/RK)1005-000-T R317,325 905611340 C/RK)1005-100J-T R1,228,311,318,321,511 905611550 C/RK)1005-101J-T R310 905611590 C/RK)1005-151J-T R35 905611620 C/RK)1005-201J-T R103 905611630 C/RK)1005-221J-T R506 905611670 C/RK)1005-331J-T R324,329 905611710 C/RK)1005-471J-T R308,320,323,335,101 905611770 C/RK)1005-102J-T R109 905611840 C/RK)1005-202J-T R17,302,303,304,309,312,322,352,353 905611850 C/RK)1005-222J-T R15,27 905611910 C/RK)1005-392J-T R28 905611930 C/RK)1005-472J-T R201,305,307,502 905611940 C/RK)1005-512J-T R108 905611960 C/RK)1005-622J-T R16 905611990 C/RK)1005-822J-T R18,102,306,326,327,328,330,333,504,505 905612010 C/RK)1005-103J-T R104,105 905612600 C/RK)1005-153J-T R507 905612080 C/RK)1005-223J-T R100 905612100 C/RK)1005-303J-T R508 905612110 C/RK)1005-333J-T R13,20,22,202,203,204,205,206,207,208,216,217,218 ,220,221,222,223 905612150 C/RK)1005-473J-T R225,226,227,300,331 R319 905612190 C/RK)1005-683J-T R24 905612210 C/RK)1005-823J-T R2,23,25,301,501,503 905612230 C/RK)1005-104J-T R26 905612520 C/RK)1005-225J-T R510 905624910 C/RN)1005-3323-T R509 905624920 C/RN)1005-1004-T   19*18

Subsection 2.983(d)(9): Factory Tune-up Procedure Test Equipment 1. BNC-P to MM121454 Coaxial RF cable Audio Technica custom RF cable 2. DC Power Supply Leader LPS-160-2 3. Audio Signal Generator Leader LAG-126S 4. Modulation Meter (FM liner detector) Anritsu MS61A 5. Spectrum Analyzer Advantest R3361D 6. RF Power Meter Anritsu MS 4803A 7. RF Power Sensor Anritsu MA4701A 8. Oscilloscope Tektronix 475A 9. DC Volt Meter Fluke 79 10. AC milli Volt Meter Leader LMV-1817 Adjustment of T341 Main circuit board  RF Oscillation frequency adjustment 1-1,Measuremet equipments and the T341 set up a Spectrum analyzer setup  Center frequency554.000MHz  SPAN200kHz  Frequency counterON b T341 LCD Setup  Frequency554.000MHz  RF-POWERHI  GAIN-6dB 1-2, T341 adjustment Turn the TC301 on the T341circuit board and set the oscillation frequency to 554.000MHz  RF output peak adjustment 2-1, Measurement equipments and theT341 setup a Spectrum analyzer setup  Center frequency554.000MHz  SPAN200kHz b T341 setup  Same as 1-1-b 2-2, T341 adjustment a. Connect CN301 output to the Spectrum Analyzer input b. Adjust TC302 and set RF output power to maximum  RF Power adjustment 3-1, Measurement equipments and the T341 setup a RF Power meter setup  Measurement range: Auto b T341 setup  Same as 1-1-b 3-2, T341 adjustment a Connect CN301 output to the RF Power meter input b Adjust the VR301 and set RF output power to 35mW c Set the LCD power indicator to Low d Adjust the VR300 and set RF output power to 10mW  Tone signal modulation level adjustment 4-1, Measurement equipments and the T341 setup a Spectrum analyzer setup  Center frequency554.000MHz  SPAN200kHz  Marker: On b T341 setup  Same as 1-1-b 4-2, T341 adjustment Adjust VR 4 and set level difference between Main carrier and tone carrier to 30dBc  Audio modulation level adjustment 5-1, Measurement equipments and the T341 setup a Deviation Meter setup  SensitivityP-P/2  Range100kHz  HPF50Hz  LPF20kHz  Frequency554.000MHz b Audio signal applied to CN2  Frequeycn1kHz  Level+4dBV (at CN2 terminal c T341 setup  Same as 1-1-b 5-2 T341 adjustment Adjust VR 3 and set deviation to +/- 30KIHz

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION Test Report Product Name: LICENSED BROADCAST TRANSMITTER FCC ID: JFZT341C Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN Date Receipt: JANUARY 21, 2004 Date Tested: FEBRUARY 12, 2004 FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1..........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2..........TECHNICAL DESCRIPTION & RF OUTPUT POWER PAGE 3..........AUDIO FREQUENCY RESPONSE GRAPH AUDIO LOW PASS FILTER PAGE 4..........MODULATION LIMITING GRAPH PAGE 5..........OCCUPIED BANDWIDTH PAGE 6..........OCCUPIED BANDWIDTH PLOT PAGE 7-9........RADIATED EMISSIONS TEST DATA PAGE 10.........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 11.........FREQUENCY STABILITY TEST DATA PAGE 12-13......EQUIPMENT LIST EXHIBITS INCLUDING: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS PARTS LIST USERS MANUAL LABEL SAMPLE & LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1)(2) AUDIO TECHNICA CORPORATION will manufacture the T341C in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO, 194 JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(3) Instruction book. The instruction manual is included in the exhibits. (c)(4) Type of Emission: 130K0F3E Bn = 2M + 2DK M = 20000 D = 45kHz(Peak Deviation) K = 1 Bn = 2(20k) + 2(45k)(1) = 130k ALLOWED AUTHORIZED BANDWIDTH = 200kHz. 74.861(e)(5) (c)(5) Frequency Range: Part 74: 541.5 – 566.375 MHz (c)(6) Power Range and Controls: UNIT has no controls. (c)(7) Maximum Output Power Rating: .020 Watts into 50 ohms resistive load. (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 9.0V BATTERY Vce = 9.0 Volts Ice = 28 mA. (c)(9) Tune-up procedure. The tune-up procedure is given in the exhibits. FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc Page 1 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION (c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. 2.1033(c)(11) Photo or Drawing of Label and sketch of location: See the exhibits. 2.1033(c)(12) Photos of Equipment: See the exhibits. (c)(13) Description of all circuitry and devices provided for determining and stabilizing frequency. Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power is included in the exhibits. Limiting Power: There is no provision for limiting power. (13) Digital modulation. This unit does not use digital modulation. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF power output. RF power measured is: OUTPUT POWER: .10 WATTS R.F. POWER OUTPUT TEST PROCEDURE Transmitter 50 ohm under test Watt Meter Audio Oscillator FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc Page 2 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. AUDIO FREQUENCY RESPONSE GRAPH AUDIO LOW PASS FILTER The audio low pass filter is not required in this unit. FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc Page 3 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 2.1047(b) Audio_input_versus_modulation 74.861 (e) A plot of the audio input versus deviation is shown in the following plots. MODULATION LIMITING FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc Page 4 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION 2.1049(c) Occupied Bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorize3d bandwidth they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequency), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the un-modulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plots follow. Wireless Microphone transmitter: Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Transmitter Coupler 50 ohm under test Resistive Load Audio Spectrum Oscillator Analyzer REQUIREMENT: PART 74: 200kHz EMISSION BANDWIDTH. FCC ID: JFZT341C REPORT #: A\AudioTechnica_JFZ\70UT4\70UT4TestReport.doc Page 5 of 13 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 …
