AUDIO TECHNICA MODEL AEW-5200, AEW-4100 SERIES UHF WIRELESS SYSTEM USER INFORMATION. INTRODUCTION Thank you for purchasing the AEW-5200, AEW-4100 series wireless system. It is our hope that the system will bring you years of trouble free pleasure and performance. Please follow the information contained in this manual closely as it will assist you in using your equipment effectively. PART1. REGULATORY REQUIREMENTS. FCC PART 15 COMPLIANCE STATEMENT CANADA RSS-210 COMPLIANCE STATEMENT “This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference” “This device complies with INDUSTRY CANADA R.S.S. 210, en confomite avec IC: RSS-210/CNR210. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference which may cause undesired operation.” Please note that your AEW-5200, AEW-4100 systems operates in a frequency band in a way which may make its use subject to certain FCC and other regulatory agency restrictions and licensing requirements. For further information, Please contact your local office of the FCC as applicable. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. PART 2. USING THE AEW-T1000 BELTPACK TRANSMITTER The beltpack transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Open the battery door by slide door lock towards arrow direction and lift door. Insert two batteries into the battery compartment and close the battery door Slides the LCD set up buttons cover down to bottom Push and hold the power switch and turn the AEW-T1000 on Push the set button once Using up or down arrow buttons and scrolls the menu until frequency menu appeared. If current frequency setup appeared on the LCD is not the same as corresponding receiver frequency, push set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until input menu (MIC or INSTRUMENT) appeared. If current input setup appeared on LCD screen is not correct, push set button once Using up or down arrow button to select input. Push and hold set button until word “Stored” displayed in a while. Connect your microphone or guitar cable to the connector on the top of the transmitter. Confirm that the receiver is receiving RF and the audio is passing through the receiver. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared. Push the set button once to return default menu. You are now ready to use the system. PART 3. USING THE AEW-T5000SERIES HANDHELD TRANSMITTER AEW-T5000 transmitter family is as follows: AEW-T5400 AEW-T3300 AEW-T6100 AEW-T4100 The handheld transmitter operates on 2 “AA” batteries. Please make sure that your batteries are fresh. We recommend that you use Alkaline batteries and that you avoid using NiCad if possible. Hold the bottom grip and turn the top grip counter clockwise until bottom grip free to slide. Slide the bottom grip, insert two batteries into the battery compartment and slide the battery compartment back into place. To change the frequency of operation, push and hold the power /mute button located on bottom of the transmitter to turn it on. Unscrew the battery cover and pull the cover back. Push the set button once Using up or down arrow button and scrolls the menu until frequency menu appeared. Push the set button once. Push down or up arrow button and set frequency to the corresponding frequency as set on receiver. Push and hold set button until word “Stored” displayed in a while. Push up or down arrow button and scrolls the menu until “ESCAPE” appeared Push the set button once to return default menu You are now set to use the system. PART4. USING THE AEW-R5200, AEW-R4100 RECEIVERS Plug the IEC plug on the AC cable to the AC inlet on back of the receiver. Plug the 3-pin AC plug on AC cable to an 110V AC outlet. Connect two antennas to the antenna input on back of the receiver. Push the Power switch. Confirm that the backlight on LCD screen comes on. Check the frequency setting to confirm that they correspond to the settings of the transmitter If not, push set button once to display “FREQ” on top line of the LCD. Push set button once and check that “EDIT” displayed on bottom line of LCD brink. Push up or down arrow button to set receiver frequency to corresponding transmitter frequency. Push and hold set button until “STORED” displayed in a while. Push up or down arrow button to display “QUIT” Push Set button once to back in to Default menu. Connect the balanced or unbalanced audio output to your mixer or PA system. Adjust the Volume setting to the desired level. Speak into the microphone and listen to the audio out at the speaker. If satisfied with the audio quality, you ca uses the system.

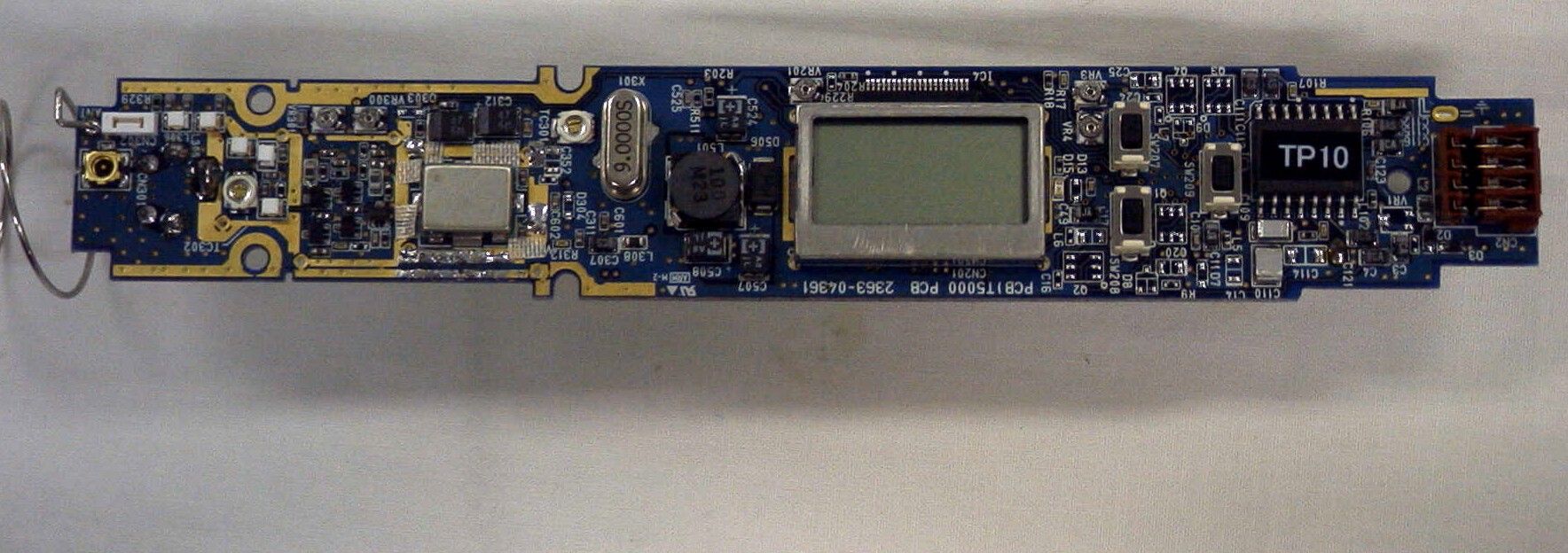

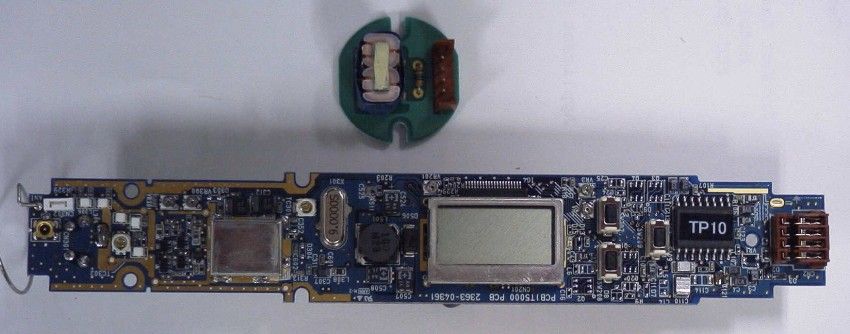

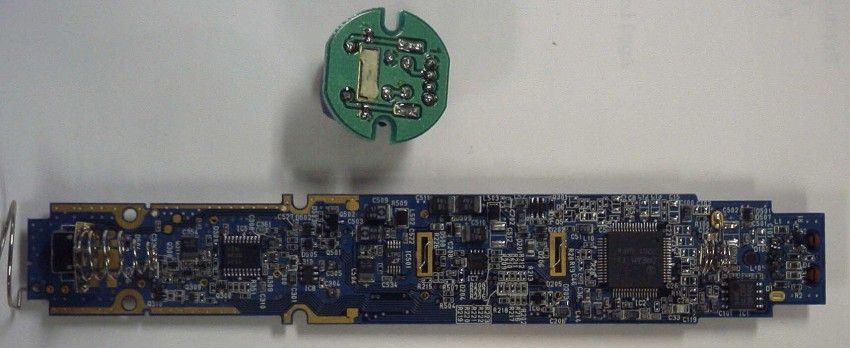

APPENDIX CIRCUIT TO SUPPRESS SPURIOUS RADIATION AND CONTROL MODULATION AUDIO CIRCUIT AF signal produced by the microphone element is feed in to the IC2 and amplified by AF- AMP. Amplified AF signal is then feed in to Compander circuit that consists with the IC1 and the IC3, compressed to 2 to 1 ratio. Compressed signal is then Pre-Emphasized by the IC2 internal AF-AMP. The 32.15KHz pilot tone signal produced by the Tone-Generator circuit in the IC2 is superposed by control signal produced by the IC4 micro controller. Above two signals are adjusted appropriately by the VR4 (32.15KHz) and the VR8 (AF signal), then mixed and send to the VCO1. The Q301 detect peak signal that applied to the microphone element and turn the LED D15 off MODULATOR CIRCUIT The modulator circuit is a direct FM type built around the VCO, VCO1. The modulated output from the VCO is sent to the RF final amplifier, which boosts the output to a nominal level of 10mW (Low) or 35mW(High). RF PRE-AMPLIFIER & FINAL AMPLIFIER RF signal out from the VCO1 is through the buffer amp consisted by the Q303, 2SC4226 then feed in to RF amplifier consisted by four 2SC5226 transistors, Q304, Q305, Q306 and Q307. The output filter comprised of L302, TC302, C329, C330 L303-L306C331-C334 suppresses the output harmonics and output to the antenna. Q310 is switch for above four transistor’s RF amplifier and it control RF output level to 10mW(Low) or 35mW(Hi) RF output power level is set by the VR301 (Low) and the VR300 (Hi). CIRCUIT TO SUPPRESS SPURIOUS RADIATION & CONTROL MODULATION FCC ID: JFZT500D APPENDIX

Subsection 2.983(d)(9): Factory Tune-up Procedure Test Equipment 1. BNC-P to MM121454 Coaxial RF cable Audio Technica custom RF cable 2. DC Power Supply Leader LPS-160-2 3. Audio Signal Generator Leader LAG-126S 4. Modulation Meter (FM liner detector) Anritsu MS61A 5. Spectrum Analyzer Advantest R3361D 6. RF Power Meter Anritsu MS 4803A 7. RF Power Sensor Anritsu MA4701A 8. Oscilloscope Tektronix 475A 9. DC Volt Meter Fluke 79 10. AC milli Volt Meter Leader LMV-1817 Adjustment of T5000 Main circuit board 1. Adjusting the frequency: 1-1. Setting of the measurement equipment and T5000D a. Setting of Spectrum Analyzer - Center frequency: 668.00 MHz - Frequency span: 200kHz - Counter mode: ON b. Setting of LCD for T5000D - Frequency: 668.000MHz - RF-POWER: HI - GAIN: -6dB 1-2. Frequency set up: a. Adjust the T5000D carrier frequency by rotating the TC301 on the PCB of T5000D b. Set the main carrier peak of to the spectrum analyzer’s center frequency. 2. Adjusting Carrier Peak: 2-1. Setting of measurement equipment and T5000D hba. Setting of Spectrum Analyzer - Center Frequency: 668.000MHz - Frequency Span: 200kHz - Counter Mode: OFF b. Setting of T5000D - Same as 1-1-b 2-2. Adjustment of T5000D a. Adjusts the TC302 on PCB of T5000D and set the main carrier to have peak. 3. Adjustment of RF Power: 3-1. Setting of measurement equipment and T5000D a. Setting of RF Power meter - Measurement range: Auto-mode b. Setting of T5000D - Frequency: 668.000MHz - RF-POWERHI & LOW - GAIN-6dB 3-2. Adjustment of T5000D a. Adjust the RF output power by rotating the VR301 on PCB of T5000D and set VR301 to have RF power meter at 35mW b. Adjust the LCD POWER of T5000D to LOW. c. Adjust and set the VR300 to have RF power meter at 10mW. 4. Adjustment of deviation 4-1. Setting of measurement equipment and T5000D a. Setting of Deviation Meter - Sensitivity: P-P/2 - Measurement Range: 100kHz - HPF: 50Hz - LPF: 20kHz - Measurement Frequency: 668.000MHz b. Input Audio Signal (Apply to CN2) - Frequency: 1kHz - Signal level: +4dBV (CN2 terminal voltage) c. Setting of T5000D - Same as 1-1-b 4-2. Adjusting T5000D a. Adjust and set the VR3 on PCB of T5000D to have deviation meter to set +/-40kHz. 5. Adjustment of Tone Deviation 5-1. Setting of measurement equipment and T5000D a. Setting of Deviation Meter - Sense: P-P/2 - Measurement range: 3kHz - HPF: 4kHz - LPF: 120kHz - Measurement frequency: 668.000MHz b. Setting of T5000D - Same as 1-1-b 5-2. Adjustment of T5000D a. Adjust the tone signal modulation level by rotating the VR4 on PCB of T5000D and set the VR4 to have the deviation meter to set +/-2kHz.

APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc TABLE OF CONTENTS LIST APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1..........GENERAL INFORMATION PAGE 2..........DESCRIPTIONS PAGE 3..........RF POWER PAGE 4..........MODULATION CHARACTERISTICS PAGE 4..........AUDIO FREQUENCY RESPONSE GRAPH PAGE 5..........MODULATION LIMITING PLOT – 300 Hz PAGE 6..........MODULATION LIMITING PLOT – 1000 Hz PAGE 7..........MODULATION LIMITING PLOT – 15000 Hz PAGE 8..........OCCUPIED BANDWIDTH PAGE 9..........OCCUPIED BANDWIDTH PLOT PAGE 10.........OCCUPIED BANDWIDTH PLOT - CW PAGE 11.........RADIATED EMISSIONS TEST DATA PAGE 12.........METHOD OF MEASURING RADIATED EMISSIONS PAGE 13.........FREQUENCY STABILITY TEST DATA PAGE 14-17......EQUIPMENT LIST EXHIBITS CONTAINING: EXHIBIT 1........FCC ID LABEL SAMPLE EXHIBIT 2........ID LABEL LOCATION EXHIBIT 3........BLOCK DIAGRAM EXHIBIT 4........SCHEMATICS EXHIBIT 5........TUNING PROCEDURE EXHIBIT 6........CIRCUIT DESCRIPTION EXHIBIT 7........USER'S MANUAL EXHIBIT 8........TEST SET UP PHOTOGRAPH EXHIBIT 9........EXTERNAL PHOTOGRAPH EXHIBIT 10.......INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 11.......INTERNAL COPPER SIDE PHOTOGRAPH EXHIBIT 12.......CONFIDENTIALITY REQUEST LETTER APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 1 of 17 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1) AUDIO TECHNICA CORPORATION will manufacture the JFZT5000D in 2.1033(c)(2) quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO, 194 JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(3) Instruction book. The instruction manual is in- cluded as Exhibit 7A-7C. (c)(4) Type of Emission: 80K0F3E Bn = 2M + 2DK M = 20000 D = 20 kHz K = 1 Bn = 2(20k) + 2(20k)(1) = 80k ALLOWED AUTHORIZED BANDWIDTH = 200kHz. 74.861(e)(5) (c)(5) Frequency Range: Part 74: 655-680 MHz TEST FREQ = 668.00 MHz. (c)(6) Power Range and Controls:UNIT has no controls. (c)(7) Maximum Output Power Rating: HIGH POWER = .004W ERP LOW POWER = .001W ERP (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 3.0V BATTERY Vce = 3.0 Volts Ice = HIGH - .170 AMPS LOW - .140 AMPS (c)(9) Tune-up procedure. The tune-up procedure is given in Exhibit 5. (c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT # 6. The block diagram is included as EXHIBIT #3. APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 2 of 17 2.1033(c)11) Photo or Drawing of Label and sketch of location: See EXHIBIT # 1 & EXHIBIT #2. 2.1033(c)12) Photos of Equipment: See EXHIBIT #'S 9-11. (c)(13) Description of all circuitry and devices provided for determining and stabilizing frequency. Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. This circuitry is described in Exhibit 6. Limiting Modulation: The transmitter audio circuitry is contained in IC101, IC102 and IC103. Limiting Power: There is no provision for limiting power. (13) Digital modulation. This unit does not use digital modulation. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is sub- mitted below. APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 3 of 17 2.1046 RF power output. RF power measured is: OUTPUT POWER: High Power = .004 W ERP Low Power = .001 W ERP 2.1046 RF power output. HP Spectrum Analyzer TRANSMITTER UNDER TEST WITH INTERNAL ANTENNA 3.0 meters SIGNAL DIPOLE Tuned, Calibrated GENERATOR ANTENNA Antenna which may be raised from 1 to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 4 of 17 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. AUDIO LOW PASS FILTER The audio low pass filter is not required in this unit. AUDIO FREQUENCY RESPONSE GRAPH Audio Technica US Inc. JFZT5000D -43 -38 -33 -28 -23 -18 100100010000100000 Frequency dBmV audio response APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 5 of 17 AUDIO INPUT VERSUS MODULATION GRAPH : 300 Hz Modulation Limiting Audio Technica US Inc. JFZT5000D 0 5000 10000 15000 20000 25000 -70-60-50-40-30-20 dBmV Deviation 300 Hz APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 6 of 17 AUDIO INPUT VERSUS MODULATION GRAPH : 1000 Hz Modulation Limiting Audio Technica US Inc. JFZT5000D 0 5000 10000 15000 20000 25000 -70-60-50-40-30-20 dBmV Deviation 1000 Hz APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 7 of 17 AUDIO INPUT VERSUS MODULATION GRAPH : 15000 Hz Modulation Limiting Audio Technica US Inc. JFZT5000D 0 5000 10000 15000 20000 25000 -67-57-47 dBmV Deviation 15000 Hz APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT5000D REPORT #: T:\A\AudioTechnica_JFZ\660UT22\660UT22TestReport.doc Page 8 of 17 2.1049(c) Occupied Bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorize3d band- width they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequen- cy), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was …
