JFZT6002SUHF SYNTHESIZED WIRELESS TRANSMITTER

UHF SYNTHESIZED WIRELESS TRANSMITTER ATW-T6002 S Thank you for purchasing the product. Before using the product, take time to read this user manual thoroughly and use the product correctly. Keep this user manual handy together with the warranty so that it is always available for reference. User Manual 2 Simultaneous 31-band transmission IR Link feature for easy transmitter configuration UHF band transmitter for wireless systems resistant to the effects of extraneous noise Great for stage use in live concerts, events, and the like Employs PLL synthesizer method Greater dynamic range and lower noise thanks to a double compandor (voice compression/ expansion) system (PAT.) Organic EL display for enhanced visibility Specially designed high efficiency antenna Features 2 Important information 3 Notes on use 4 When using multiple wireless systems 4 About microphone units 4 Part names and functions 5 How to replace microphone 6 How to insert batteries 7 About display 8 About settings 9 Menu screen 9 Transmission frequency setting 10 NAME setting 10 To correct characters 11 Transmission power setting 11 Gain setting 11 Key lock setting 11 Lock code setting 12 Battery setting 12 Using the key lock function 13 Setting up the key lock function 13 Cancelling the key lock function 13 About IR link 13 Troubleshooting 14 Specifications 14 Contents Features 3 Warning: To prevent fire or shock hazard, do not expose this apparatus to rain or moisture. Caution: Do not expose this apparatus to drips or splashes. To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not expose this apparatus to excessive heat such as sunshine, fire or the like. Do not subject this apparatus to strong impact. FCC Notice Warning: Changes or modifications not expressly approved in writing by Audio- Technica may void the user’s authority to operate this equipment. RF Exposure Statement: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter used in other systems. No userserviceable parts inside. The circuits inside the chassis, transmitters have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the chassis, transmitters. To do so will void the warranty, and may cause improper operation. Batteries caution Keep batteries out of the reach of children. Observe correct polarity as marked. Do not expose the battery to excessive heat such as sunshine, fire or the like. Always consider the environment issues and follow local regulations when disposing of batteries. Remove depleted battery immediately. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not use new batteries and old one at the same time. Do not use different batteries type or model. Do not use a leaking battery. If battery leakage occurs, avoid contact with skin. If contact occurs, immediately wash thoroughly with soap and water. If battery leakage comes into contact with your eyes, immediately flush with water and seek medical. Important information 4 Be sure to read the operation manual for the connected device before use. If you use the product close to an electronic device or communications device (such as mobile phone), noise may be caused in the product. If this happens, keep it away from such devices. When setting up the product, make sure there are no obstacles between the product and receiver that will block the signal. If you use the product near a TV or radio antenna, noise may be caused in the television or radio. If this happens, keep it away from the television or radio. To prevent the batteries from wearing out, turn off the receiver power after use or when the product is not in use. If the product is used for a long period of time, discoloration may occur due to ultraviolet rays (especially direct sunlight) and friction. Any alteration or modification of this product is prohibited by law. Also, disassembly of this precision product may result in electrical shock, equipment damage or fire. Never disassemble this product. If using multiple units in the same location, keep 80 cm or more between individual transmitters and 3 m or more between transmitters and receivers. When using multiple units, turn on the transmitters one by one, making sure there is no noise. ATW-C6100/HD (Dynamic microphone unit) ATW-C4100/HD (Dynamic microphone unit) ATW-C98/HD (Dynamic microphone unit) ATW-C5400/HD (Back electret condenser microphone unit) ATW-C3300/HD (Back electret condenser microphone unit) ATW-C4200/HD (Dynamic microphone unit with mute switch) When using multiple wireless systems About microphone units The product can be attached to the following microphone units. The microphone units must be purchased separately. They are not included with the product. Notes on use 5 Overall Diagram Controls ON SYNC BACK OFF ON SYNC BACK OFF Grip case Battery cover Push switch Used for selecting various settings. UP ( ) Press to change a selection. DOWN ( ) Press to change a selection. SET ( ) Press to confirm a selection. * For details on how to operate, see "About settings". BACK Returns to the previous operation. Part names and functions Display Shows the current status. * If no buttons are pressed for a period of 20 seconds, the display will turn off. IR receiving part This is the receiving part for IR link. Power switch Turns the power on/off. SYNC button Use for IR link with a receiver. Rear Bottom Power indicator Lights in green when the power is on. Lights in red when battery power is low. Recall button Turns the screen back on if the screen is off. 6 Protective cap Main unit BACK OFF ON SYNC Grip case Turn approximately a full turn and a half, and push towards the direction indicated by the arrow. Installation portion Align the red circles. Rotate. click Groove B Push the slide lock in the direction of the arrow and rotate microphone. Remove by aligning the red circ…

Text truncated - open the document above for the full version.

Photo Audio Technica ATW-T6002 S Photo Audio Technica ATW-T6002 S

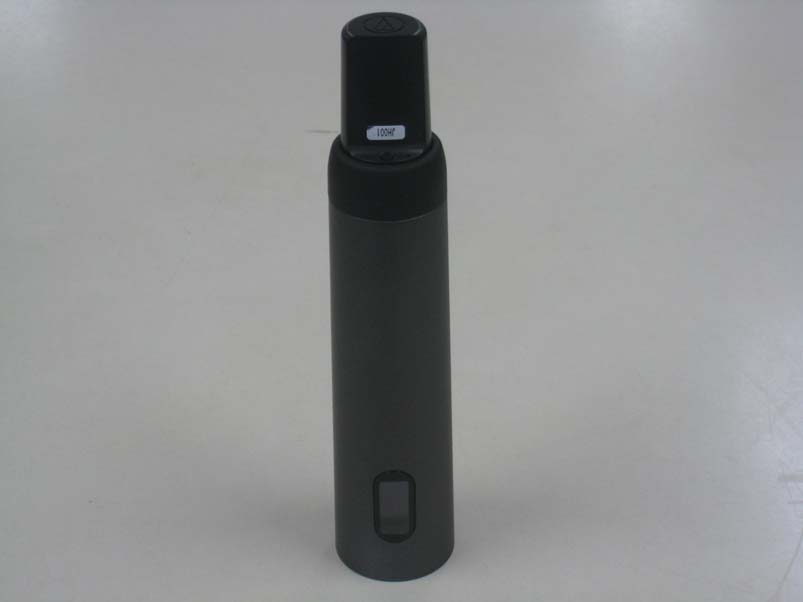

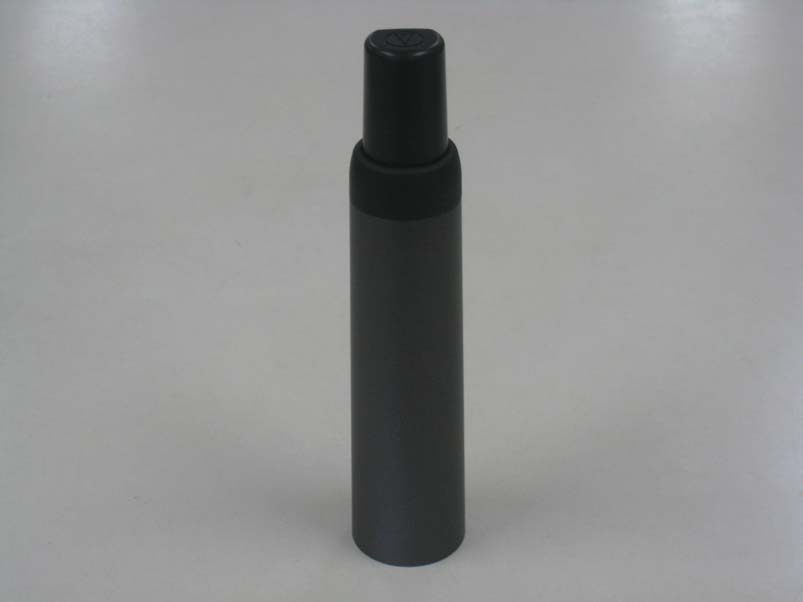

S *Battery Cover is not removable. Front ViewSide View Rear View

S

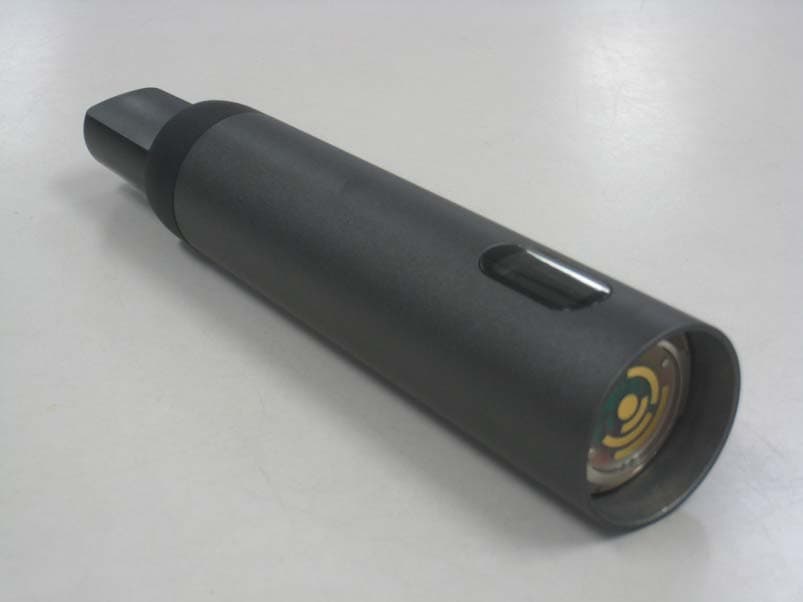

Photo Audio Technica ATW-T6002 S Photo Audio Technica ATW-T6002 S Photo Audio Technica ATW-T6002 S Photo Audio Technica ATW-T6002 S With Antenna

Test Report No. : 10762853S-A Page : 1 of 52 Issued date : May 20, 2015 FCC ID : JFZT6002S UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No. : 10762853S-A Applicant : Audio-Technica Corporation Type of Equipment : UHF SYNTHESIZED WIRELESS TRANSMITTER Model No. : ATW-T6002 S Test regulation : FCC part 74 Subpart H: 2014 FCC ID : JFZT6002S Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: April 29 to May 20, 2015 Representative test engineer: Kenichi Adachi Engineer Consumer Technology Division Approved by : Toyokaku Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Revised date : November 11, 2015 Test Report No. : 10762853S-A Page : 2 of 52 Issued date : May 20, 2015 FCC ID : JFZT6002S UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10762853S-A Revision Test report No. Date Page revised Contents - (Original) 10762853S-A May 20, 2015 - - 1 10762853S-A November 6, 2015 p.1, p.2 Revised page. p.4, p.5 Change RF part voltage 3.0 V to 3.3 V. 2 10762853S-A November 11, 2015 p.1, p.2 Revised page. p.1, p.4, p.8, p.16 - p.28, p.33 - p.43, p.45, p.47, p.48 Changed "type of equipment". p.7 Corrected the remarks of table of section 4.1. Revised date : November 11, 2015 Test Report No. : 10762853S-A Page : 3 of 52 Issued date : May 20, 2015 FCC ID : JFZT6002S UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .................................................................. 4 SECTION 3: Test specification, procedures and results ................................................ 5 SECTION 4: Operation of E.U.T. during testing ........................................................... 7 SECTION 5: RF Output power ........................................................................................ 9 SECTION 6: Modulation Characteristics ....................................................................... 9 SECTION 7: Emission Bandwidth and Field strength of spurious radiation (emission masks) ............................................................................................................................................. 11 SECTION 8: Spurious emission at Antenna Terminals ............................................... 11 SECTION 9: Field Strength of Spurious Emission (except emission masks) ............. 12 SECTION 10: Frequency Stability ................................................................................. 14 Contents of APPENDIXES .............................................................................................. 15 Test Report No. : 10762853S-A Page : 4 of 52 Issued date : May 20, 2015 FCC ID : JFZT6002S UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Audio-Technica Corporation Address : 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan Telephone Number : +81-42-739-9148 Facsimile Number : +81-42-739-9160 Contact Person : Takashi Iwasa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : UHF SYNTHESIZED WIRELESS TRANSMITTER Model Number : ATW-T6002 S Serial Number : Refer to Section 4.2 Rating : DC 3 V (battery) Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : April 20, 2015 Modification of EUT : The test lab did not make the modification to the EUT supplied from the customer to have it pass the tests. 2.2 Product Description Model: ATW-T6002 S (referred to as the EUT in this report) is a UHF SYNTHESIZED WIRELESS TRANSMITTER. General Specification Clock frequency(ies) in the system : 26 MHz (VCTCXO), 24 MHz (MPU clock) Radio Specification Radio Type : Transmitter Frequency of Operation : 946.125 MHz to 949.875 MHz Modulation : Frequency modulation Emission designator : 62K5F3E Neccessary Bandwidth : 62.5 kHz = 2M + 2D where M: Maximum modulation frequency = 15 kHz D: Peak deviation = 16.25 kHz Channel spacing : 125 kHz Power Supply (RF part input) : DC 3.3 V Antenna name : HH WL0709PL Antenna Gain : 1.5 dBi max Antenna Connector Type : SMA *1) Operating Temperature : +5 deg.C to +45 deg.C *1) The antenna connector is in the inside of EUT and end user cannot access the antenna connector. Revised date : November 11, 2015 Test Report No. : 10762853S-A Page : 5 of 52 Issued date : May 20, 2015 FCC ID : JFZT6002S UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures and results 3.1 Test Specification Test Specifica…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission (Front, below 30 MHz) (Rear, below 30 MHz) (Front, below 1 GHz) (Rear, below 1 GHz) (Front, above 1GHz) (Rear, above 1GHz) Test Report No. : 10762853S-A 51 of 52 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test Report No. : 10762853S-A 52 of 52
