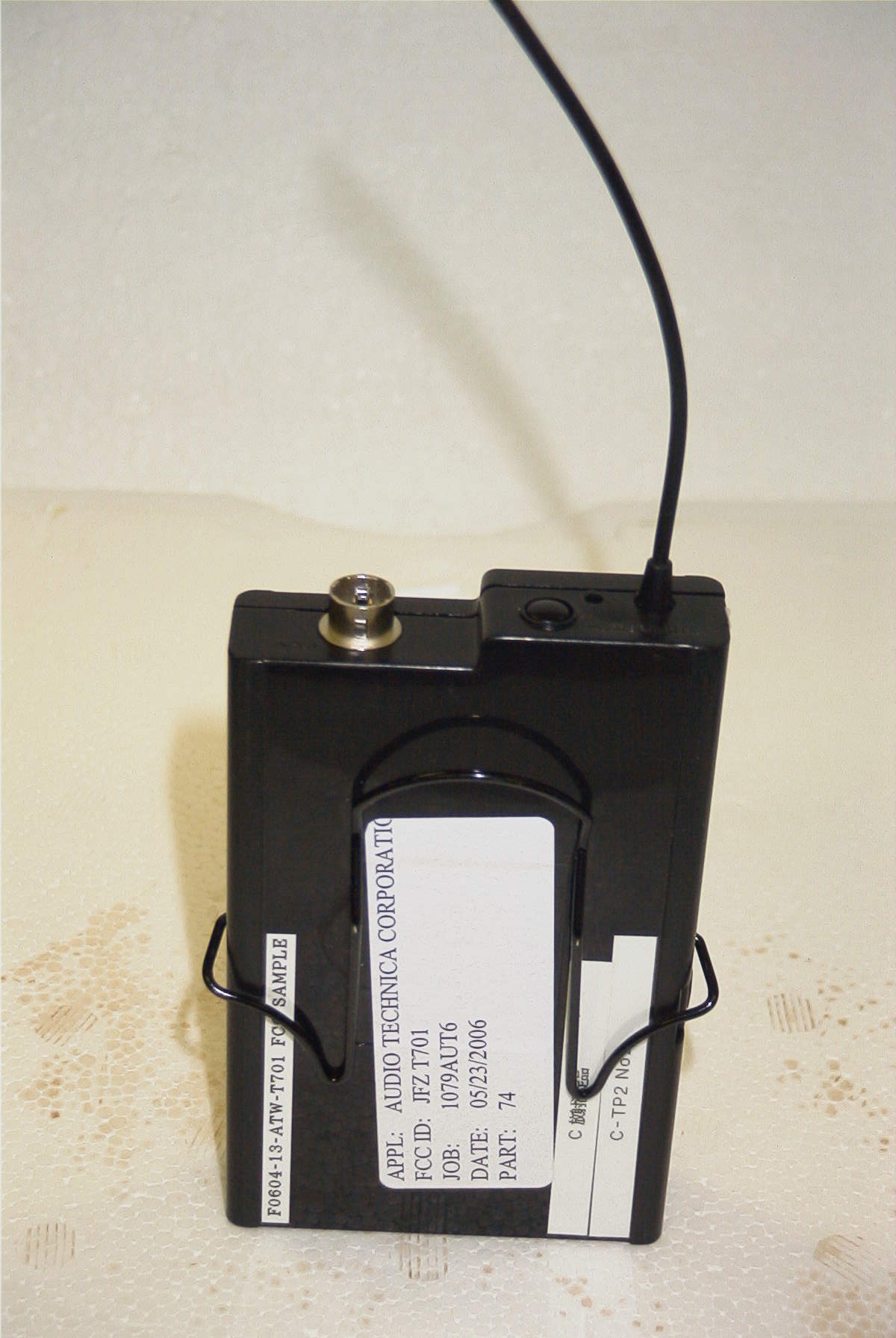

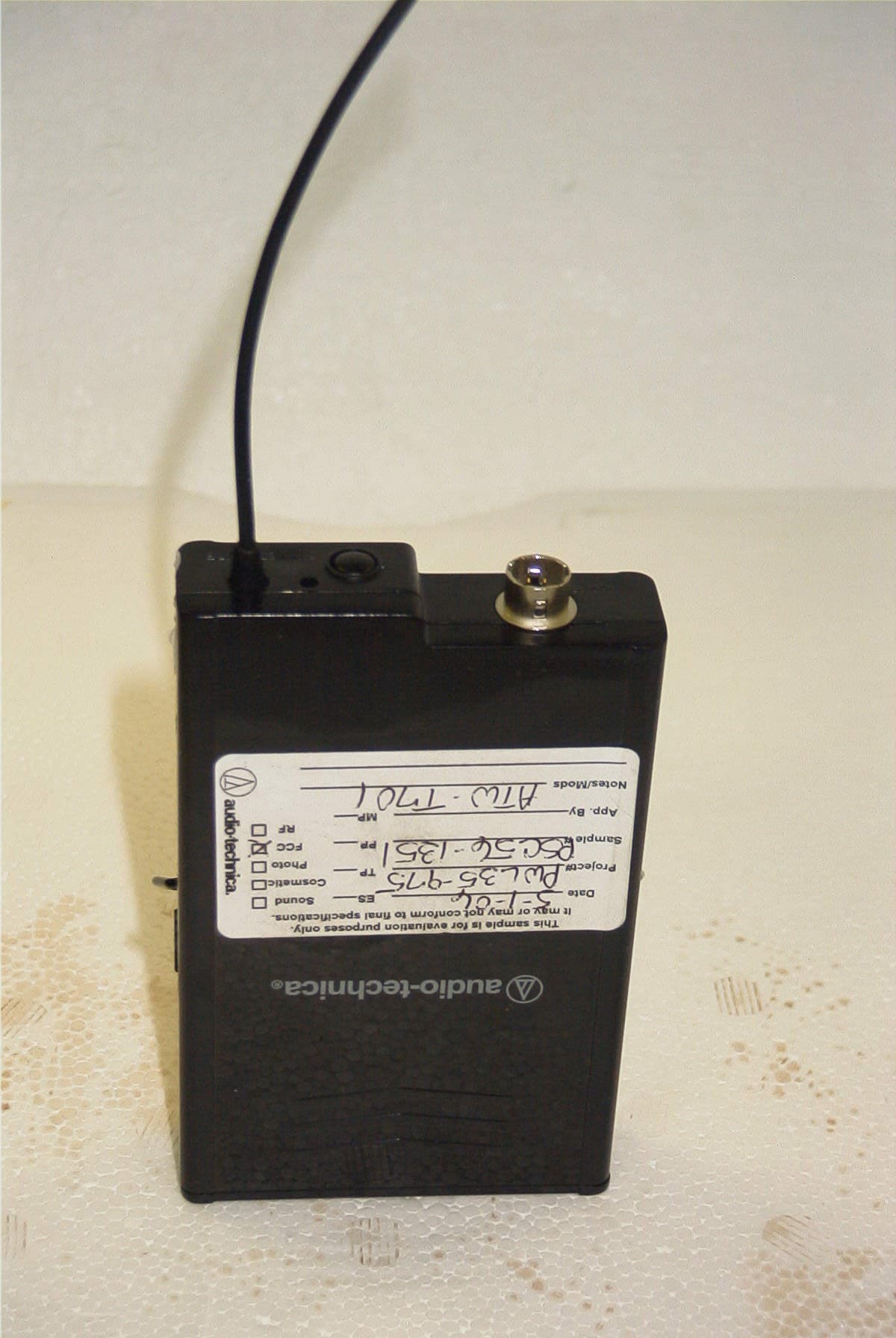

JFZT701BELTPACK TRANSMITTER

700 Series Owners Manual V. 1 5-25-06 Page 1 of 12 [Cover] 700 Series Professional UHF Wireless Systems ATW-701 UniPak™ Transmitter System ATW-701G Guitar System ATW-701H Headworn Microphone System ATW-701L Lavalier Microphone System ATW-702 Handheld Dynamic Microphone System Installation and Operation [inside] Professional UHF Wireless Systems Installation and Operation This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with INDUSTRY CANADA R.S.S. 210, en conformité avec IC: RSS-210/CNR210. Operation is subject to the following conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference which may cause undesired operation. CAUTION! Electrical shock can result from removal of the receiver cover. Refer servicing to qualified service personnel. No user-serviceable parts inside. Do not expose to rain or moisture. The circuits inside the receiver and transmitter have been precisely adjusted for optimum performance and compliance with federal regulations. Do not attempt to open the receiver or transmitter. To do so will void the warranty, and may cause improper operation. Notice to individuals with implanted cardiac pacemakers or AICD devices: Any source of RF (radio frequency) energy may interfere with normal functioning of the implanted device. All wireless microphones have low-power transmitters (less than 0.05 watts output) which are unlikely to cause difficulty, especially if they are at least a few inches away. However, since a “body-pack” mic transmitter typically is placed against the body, we suggest attaching it at the belt, rather than in a shirt pocket where it may be immediately adjacent to the medical device. Note also that any medical-device disruption will cease when the RF transmitting source is turned off. Please contact your physician or medical- device provider if you have any questions, or experience any problems with the use of this or any other RF equipment. 700 Series Owners Manual V. 1 5-25-06 Page 2 of 12 Introduction Thank you for choosing an Audio-Technica professional wireless system. You have joined thousands of other satisfied customers who have chosen our products because of their quality, performance and reliability. This Audio- Technica wireless microphone system is the successful result of years of design and manufacturing experience. Each 700 Series wireless system provides a choice of eight PLL synthesized UHF frequencies in the 542-561 MHz band (TV channels 26-29). All 700 Series wireless systems offer both manual and automatic frequency scanning. Each wireless system includes a receiver and either a body-pack or handheld transmitter. Individual components are also available separately. The ATW-R700 receiver features Diversity Reception. Logic circuitry monitors reception, selecting the superior signal from two antennas, providing better sound quality and reducing the possibility of interference and dropouts. Soft- touch controls provide convenient access to selection of operating frequency and automatic scanning, while an LED display indicates selected channel and scanning operation. The versatile ATW-T701 UniPak™ body-pack transmitter has both low- and high- impedance inputs plus a bias connection, for use with dynamic and electret condenser microphones, as well as Hi-Z instrument pickups. The UniPak transmitter also offers separate trim controls for guitar and microphone, plus switchable high/low RF power. The ATW-T702 handheld dynamic microphone/transmitter features a rugged dynamic cardioid element designed for professional live-sound venues. Transmitters in the 700 Series use two 1.5V AA batteries for economical operation and wide availability. Both transmitters also feature a multicolor Battery/Power indicator with low-battery indication. 700 Series receivers features a sophisticated Tone Lock™ tone squelch system that opens the receiver’s audio output only when a 700 Series transmitter is detected, reducing the possibility of interference. As a result, 700 Series transmitters and receivers must be used together and should not be used with components from other Audio-Technica wireless systems, or with those of other manufacturers. 700 Series Owners Manual V. 1 5-25-06 Page 3 of 12 Please note that in multiple-system applications there must be a transmitter- receiver combination set to a separate channel (frequency) for each input desired (only one transmitter for each receiver). Because the wireless frequencies are within UHF TV frequency bands, only certain channels (operating frequencies) may be useable in a particular geographic area. The eight channels (operating frequencies) that are used in the 700 Series have been selected for multi-channel compatibility. Subject to frequency availability in a particular geographic area, any of these eight channels may be used together. The operating frequencies that correspond to each of the eight channels are listed on page __ Receiver Installation Location For best operation the receiver should be at least 3 ft. (1 m) above the ground and at least 3 ft. away from a wall or metal surface to minimize reflections. The transmitter should be at least 3 ft. from the receiver, as shown in Fig. A. Keep antennas away from noise sources such as digital equipment, motors, automobiles and neon lights, as well as away from large metal objects. Output Connections There are two audio outputs on the back panel: balanced (12.5 mV) and unbalanced (25 mV). Use shielded audio cable for the connection between the receiver and the mixer. If the input of the mixer is a 1/4" jack, connect a cable from the 1/4" unbalanced audio output on the back of the receiver housing to the mixer. If the input of the mixer is an XLR-type input, connect a cable from the balanced XLR-type audio output on the back panel to the mixer. The two isolated au…

Text truncated - open the document above for the full version.

Audio-Technica U.S., Inc. 1221 Commerce Drive Phone: 330-686-2600 [email protected] Stow, OH 44224-1760 Fax: 330-688-3752 May 11, 2006 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: JFZT701 Request for Confidentiality Dear Sirs: With regard to the referenced application, Audio-Technica, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Audio Technica is requesting confidentiality are: Schematic for ATW-T701 wireless transmitter Block diagram for ATW-T701 wireless transmitter This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jacquelynn Green Vice President R&D Audio-Technica U.S., Inc.

ATW-Ｔ701/Ｔ702 Description of circuits to suppress spurious emissions ・The output filter comprised of L204, L205, L206, L207, C224, C225, C226 & C227 suppresses the output harmonics and output to the antenna. Description of circuits to stabilize frequency ・The frequency of VCO is controlled by PLL IC which used the crystal oscillator with high accuracy, and frequency is stabilized.

Model Name ATW-T701 Operational Description of ATW-T701 Transmitter CIRCUIT TO SUPPRESS SPURIOUS RADIATION AND CONTROL MODULATION AUDIO CIRCUIT ・ The signal output from a microphone capsule is input to MIC IN, AF GND. TP1 is connected when the microphone capsule which needs power supply. ・ Users are able to adjust input signal level with VR2. ・ The signal from guitar cable is input to INST IN, AF GND. Q1 is for backup. Users are able to adjust input level with VR1. ・ The input AF signal is compressed with IC1(2/2) OPAMP and IC2 compander after amplified with I C1(1/2) AF-AMP. ・ The circuit consisted with D6, Q2 D６,Q２is modulation limiter. ・ 32.768kHz signal is generated by crystal oscillation circuit which consisted with X５１,Ｑ５１. IC51 is LPF to control spurious which is collaterally generated with TONE oscillation circuit. ・ The AF signal is adjusted with VR2, and TONE signal is adjusted with VR51, then mixed to VCO input. MODULATOR CIRCUIT ・ The signal output from AF circuit is input to VCO after level adjustment. ・ The input signal will be modulated inside VCO to RF signal. ・ The modulated RF signal is processed by amplifier circuit after output from VCO. RF PRE-AMPLIFIER & FINAL AMPLIFIER ・ Users are able to set the desired frequency with SW151. ・ The RF signal output from VCO, goes through Q201: 2SC4226 Buffer-AMP, then amplified with Q202, Q203: 2SC5226 transistor. ・ RF level can be set to HI or LO by SW201 positions. ・ The amplified RF signal is adjusted to 20mW and 10mW at VR202 and VR201. ・ The adjusted RF signal is controlled high harmonic signal level by passing through L204-207, C224-C226 Low-Pass Filters. ・ The signal passed through Low-Pass Filters is radiated as RF signal which connected to build in antenna of wireless microphone.

ATW-T701 PART LIST No Constant Reference Number Maker Part num b er 1 0 Ω L210 YAGEO RMC1/ JP TH 2 0 Ω L151 YAGEO RMC1/ JP TH 3 0 Ω R4 YAGEO RMC1/16S JP TH 4 0 Ω R111 YAGEO RMC1/16S JP TH 5 0 Ω R154 YAGEO RMC1/16S JP TH 6 0 Ω R173 YAGEO RMC1/16S JP TH 7 0 Ω R174 YAGEO RMC1/16S JP TH 8 0 Ω R217 YAGEO RMC1/16S JP TH 9 10 Ω R15 YAGEO RMC1/16S 100 J TH 10 10 Ω R24 YAGEO RMC1/16S 100 J TH 11 10 Ω R36 YAGEO RMC1/16S 100 J TH 12 10 Ω R182 YAGEO RMC1/16S 100 J TH 13 10 Ω R206 YAGEO RMC1/16S 100 J TH 14 10 Ω R210 YAGEO RMC1/16S 100 J TH 15 10 Ω R223 YAGEO RMC1/16S 100 J TH 16 10 Ω R224 YAGEO RMC1/16S 100 J TH 17 10 Ω R225 YAGEO RMC1/16S 100 J TH 18 100 Ω R35 YAGEO RMC1/16S 101 J TH 19 100 Ω R109 YAGEO RMC1/16S 101 J TH 20 100 Ω R157 YAGEO RMC1/16S 101 J TH 21 100 Ω R167 YAGEO RMC1/16S 101 J TH 22 100 Ω R204 YAGEO RMC1/16S 101 J TH 23 100 Ω R219 YAGEO RMC1/16S 101 J TH 24 150 Ω R179 YAGEO RMC1/16S 151 J TH 25 150 Ω R195 YAGEO RMC1/16S 151 J TH 26 330 Ω R104 YAGEO RMC1/16S 331 J TH 27 330 Ω R201 YAGEO RMC1/16S 331 J TH 28 470 Ω R11 YAGEO RMC1/16S 471 J TH 29 470 Ω R34 YAGEO RMC1/16S 471 J TH 30 1k R3 YAGEO RMC1/16S 102 J TH 31 1k R6 YAGEO RMC1/16S 102 J TH 32 1k R13 YAGEO RMC1/16S 102 J TH 33 1k R17 YAGEO RMC1/16S 102 J TH 34 1k R20 YAGEO RMC1/16S 102 J TH 35 1k R26 YAGEO RMC1/16S 102 J TH 36 1k R163 YAGEO RMC1/16S 102 J TH 37 1k R185 YAGEO RMC1/16S 102 J TH 38 1k R205 YAGEO RMC1/16S 102 J TH 39 1k R209 YAGEO RMC1/16S 102 J TH 40 1.5k R33 YAGEO RMC1/16S 152 J TH 41 2k R1 YAGEO RMC1/16S 202 J TH 42 2.2k R14 YAGEO RMC1/16S 222 J TH 43 2.2k R19 YAGEO RMC1/16S 222 J TH 44 2.2k R168 YAGEO RMC1/16S 222 J TH 45 2.2k R169 YAGEO RMC1/16S 222 J TH 46 2.2k R170 YAGEO RMC1/16S 222 J TH 47 2.2k R177 YAGEO RMC1/16S 222 J TH 48 2.2k R178 YAGEO RMC1/16S 222 J TH 49 2.2k R180 YAGEO RMC1/16S 222 J TH 50 2.7k R52 YAGEO RMC1/16S 272 J TH 51 3.3k R25 YAGEO RMC1/16S 332 J TH 52 3.9k R31 YAGEO RMC1/16S 392 J TH 53 3.9k R51 YAGEO RMC1/16S 392 J TH 54 3.9k R64 YAGEO RMC1/16S 392 J TH 55 3.9k R202 YAGEO RMC1/16S 392 J TH 56 4.7k R10 YAGEO RMC1/16S 472 J TH 57 4.7k R60 YAGEO RMC1/16S 472 J TH 58 5.1k R58 YAGEO RMC1/16S 512 J TH 59 5.1k R102 YAGEO RMC1/16S 512 J TH 60 5.1k R164 YAGEO RMC1/16S 512 J TH 61 5.1k R165 YAGEO RMC1/16S 512 J TH 62 5.1k R207 YAGEO RMC1/16S 512 J TH 63 5.1k R211 YAGEO RMC1/16S 512 J TH 64 5.6k R9 YAGEO RMC1/16S 562 J TH 65 5.6k R59 YAGEO RMC1/16S 562 J TH 66 8.2k R2 YAGEO RMC1/16S 822 J TH 67 10k R28 YAGEO RMC1/16S 103 J TH 68 10k R32 YAGEO RMC1/16S 103 J TH 69 10k R56 YAGEO RMC1/16S 103 J TH 70 10k R57 YAGEO RMC1/16S 103 J TH 71 10k R61 YAGEO RMC1/16S 103 J TH 72 10k R65 YAGEO RMC1/16S 103 J TH 73 10k R103 YAGEO RMC1/16S 103 J TH 74 10k R151 YAGEO RMC1/16S 103 J TH 75 10k R162 YAGEO RMC1/16S 103 J TH 76 10k R175 YAGEO RMC1/16S 103 J TH 77 10k R176 YAGEO RMC1/16S 103 J TH 78 10k R194 YAGEO RMC1/16S 103 J TH 79 10k R203 YAGEO RMC1/16S 103 J TH 80 10k R213 YAGEO RMC1/16S 103 J TH 81 10k R214 YAGEO RMC1/16S 103 J TH 82 10k R215 YAGEO RMC1/16S 103 J TH 83 10k R221 YAGEO RMC1/16S 103 J TH 84 12k R23 YAGEO RMC1/16S 123 J TH 85 15k R212 YAGEO RMC1/16S 153 J TH 86 15k R220 YAGEO RMC1/16S 153 J TH 87 20k R208 YAGEO RMC1/16S 203 J TH 88 22k R22 YAGEO RMC1/16S 223 J TH 89 22k R62 YAGEO RMC1/16S 223 J TH 90 22k R63 YAGEO RMC1/16S 223 J TH 91 22k R152 YAGEO RMC1/16S 223 J TH 92 33k R18 YAGEO RMC1/16S 333 J TH 93 33k R21 YAGEO RMC1/16S 333 J TH 94 47k R12 YAGEO RMC1/16S 473 J TH 95 47k R110 YAGEO RMC1/16S 473 J TH 96 47k R153 YAGEO RMC1/16S 473 J TH 97 47k R156 YAGEO RMC1/16S 473 J TH 98 47k R161 YAGEO RMC1/16S 473 J TH 99 47k R216 YAGEO RMC1/16S 473 J TH 100 100k R16 YAGEO RMC1/16S 104 J TH 101 100k R27 YAGEO RMC1/16S 104 J TH 102 100k R54 YAGEO RMC1/16S 104 J TH 103 100k R55 YAGEO RMC1/16S 104 J TH 104 100k R101 YAGEO RMC1/16S 104 J TH 105 100k R105 YAGEO RMC1/16S 104 J TH 106 100k R171 YAGEO RMC1/16S 104 J TH 107 750k R53 YAGEO RMC1/16S 754 J TH 108 2M R7 YAGEO RMC1/16S 205 J TH 109 2M R8 YAGEO RMC1/16S 205 J TH 110 604k (1%) R107 KAMAYA RGC1/16 111 1.82M (1%) R106 KAMAYA RGC1/16 112 100 Ω VR202 ALPS RH02B1C12X 100 Ω 113 10k VR3 ALPS RH02B1C14X 10k 114 22k VR201 ALPS RH02B1C-223 22k 115 100k VR51 ALPS RH02B1C15X 100k 116 100k VR1 ALPS RH0412C 100K 117 10k VR2 ALPS RH0412C 10K 118 2 p C207 TDK C1005CH020C 119 2 p C212 TDK C1005CH020C 120 3 p C223 TDK C1005CH030 121 6 p C174 TDK C1005CH1H060D 122 10 p C25 TDK C1005CH100D 123 12 p C53 TDK C1005CH120J 124 15 p C55 TDK C1005CH1H150J 125 15 p C164 TDK C1005CH1H150J 126 33 p C30 TDK C1005CH1H330J 127 33 p C163 TDK C1005CH1H330J 128 47 p C5 TDK C1005CH470J 129 47 p C201 TDK C1005CH470J 130 56 p C61 TDK C1005CH1H560J 131 100 p C12 TDK C1005CH1H101J 132 100 p C180 TDK C1005CH1H101J 133 100 p C205 TDK C1005CH1H101J 134 100 p C208 TDK C1005CH1H101J 135 100 p C211 TDK C1005CH1H101J 136 100 p C214 TDK C1005CH1H101J 137 100 p C222 TDK C1005CH1H101J 138 120 p C15 TDK C1005CH121J 139 150 p C110 TDK C1005CH1H151J 140 220 p C58 TDK C1005CH221J 141 330 p C13 TDK C1005CH331J 142 330 p C26 TDK C1005CH331J 143 330 p C57 TDK C1005CH331J 144 680 p C2 TDK C1005JB1H681K 145 1000 p C7 TDK C1005JB1H102K 146 1000 p C103 TDK C1005JB1H102K 147 1000 p C104 TDK C1005JB1H102K 148 1000 p C105 TDK C1005JB1H102K 149 1000 p C158 TDK C1005JB1H102K 150 1000 p C171 TDK C1005JB1H102K 151 1000 p C172 TDK C1005JB1H102K 152 1000 p C176 TDK C1005JB1H102K 153 1000 p C202 TDK C1005JB1H102K 154 1000 p C203 TDK C1005JB1H102K 155 1500p C66 TDK C1608CH1H152J 156 1800 p C60 TDK C1608CH1H182J 157 4700 p C24 TDK C1005JB1H472K 158 0.01u C20 TDK C1005JB1E103K 159 0.01u C23 TDK C1005JB1E103K 160 0.01u C29 TDK C1005JB1E103K 161 0.01u C35 TDK C1005JB1E103K 162 0.01u C38 TDK C1005JB1E103K 163 0.01u C51 TDK C1005JB1E103K 164 0.01u C52 TDK C1005JB1E103K 165 0.01u C54 TDK C1005JB1E103K 166 0.01u C62 TDK C1005JB1E103K 167 0.01u C64 TDK C1005JB1E103K 168 0.01u C101 TDK C1005JB1E103K 169 0.01u C166 TDK C1005JB1E103K 170 0.01u C167 TDK C1005JB1E103K 171 0.01u C169 TDK C1005JB1E103K 172 0.01u C210 TDK C1005JB1E103K 173 0.01u C216 …

Text truncated - open the document above for the full version.

No. Model Name ATW-T701 ATW-T701 Adjustment Procedure 1. Required Equipment a. Audio Signal Generator : Leader LAG-126 b. Oscilloscope : Kenwood CS-4035 c. Spectrum Analyzer : Advantest R3361A d. Modulation Analyzer : Anritsu MS616B e. Noise Meter : National VP-9680A f. DC Power Supply : Kenwood PA18-1.2A g. Multi Meter : Agilent 34401A h. Distortion Meter Leader LDM-177 i. RF Custom cable, BNC to MM121454 : Audio-Technica custom made RF cable 2. Default Setting 2-1 VR2 Min position. 2-2 VR1 Max position. 2-3 CNP203 OPEN 2-4 SW201 HI position. 3. Adjustment 3-1 LED Lighting Confirmation 3-1-1 Long push on SW101 to turn on, then LED turns GREEN for ON status. 3-1-2 Short push on SW101 to MUTE, then LED turns RED for MUTE, short push again to cancel MUTE. 3-2 Frequency response 3-2-1 Spectrum Analyzer set up: Center Frequency 552.000MHz ATT 30dB Frequency Span 100KHz Counter Mode ON 3-2-2 T701 set up Frequency 552.000MHz SW 201 position HI Select ch 4ch Mute ON 3-2-3 Adjustment a. Adjust the VC151 to put main carrier signal to center of the screen on spectrum analyzer. b. Adjust the VR202 to set main carrier peak leading to 10dBm. c. SW201 select Low position. d. Adjust the VR201 to set main carrier peak leading to 7dBm. 3-3 Audio deviation level 3-3-1 Modulation Analyzer set up Deviation Sens. p-p /2 Range 40KHz HPF 300Hz LPF 3KHz 3-3-2 Audio Signal Generator set up Signal Level -50dBV Into 600Ω Load Frequency 1KHz 3-3-3 T701 set up Frequency 552.000MHz SW 201 position HI Select ch 4ch Mute OFF 3-3-4 Adjustment a. Apply audio signal from the Audio Signal Generator to the TP3 Mic input , TP4 AF GND. b. Adjust the VR3 to set deviation to +/- 7kHz. 3-4 Tone deviation level 3-4-1 Modulation Analyzer set up Deviation Sens. p-p /2 Range 40KHz HPF 4kHz LPF >20kHz 3-4-2 T701 set up Frequency 552000MHz SW 201 position HI Select ch 4ch Mute OFF 3-4-3 Adjustment a. Adjust the VR51 to set deviation to +/-6kHz. 4. Performance check 4-1 Microphone input frequency response 4-1-1 Modulation Analyzer set up Deviation Sens. p-p /2 Range 40KHz HPF 50Hz LPF 20KHz Frequency 552.000MHz 4-1-2 Noise Meter set up Response AVE Weighting WIDE 4-1-3 Audio Signal Generator set up Level -50dBV Frequency 1KHz 4-1-4 T701 set up Frequency 552.000MHz SW 201 position HI Select ch 4ch Mute OFF 4-1-5 Measurement procedure a. Record the Noise Meter reading and set it as reference (0dB). b. Turn the Audio Signal Generator frequency to 100Hz. c. Read the Noise meter and confirm that level difference from 1KHz reference not exceeding –2 +/- 1dB of range. d. Turn the Audio Signal Generator frequency to 10KHz. e. Read the Noise meter and confirm that level difference from 1KHz reference not exceeding +3 +/- 1dB of range. 4-2 Current consumption 4-2-1 Signal Generator set up Signal Level -50dBV Into 600Ω Load Frequency 1KHz 4-2-2 T701 set up Frequency 552.000MHz SW 201 position HI Select ch 4ch Mute OFF a. Measure the current consumption by the Multi Meter and confirm that it not exceeded 150mA. b. SW201 select Low position. c. Measure the current consumption by Multi Meter and confirm that it not exceeded 130mA.

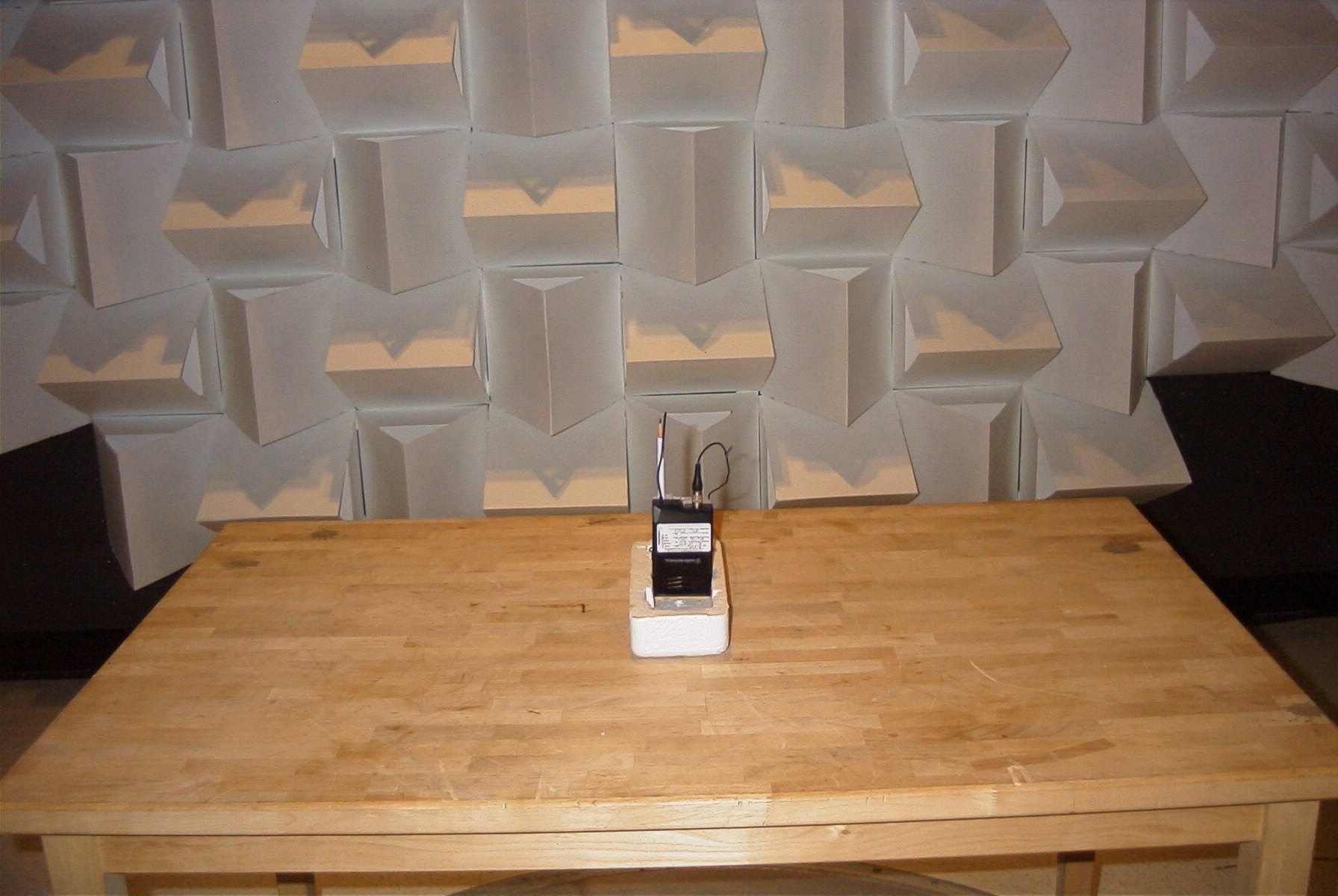

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc COVER SHEET Test Report Product Name: BELTPACK TRANSMITTER FCC ID: JFZT701 Applicant: AUDIO TECHNICA CORPORATION 2206 NARUSE, MACHIDA TOKYO 194 JAPAN Date Receipt: 5/23/2006 Date Tested: 7/6/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 2 of 17 TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 3 GENERAL INFORMATION PAGE 4 GENERAL INFO. CONT'D. AND RF POWER OUTPUT PAGE 5 RF POWER TEST PROCEDURE & MODULATION CHARAC. PAGE 6 AUDIO FREQUENCY RESPONSE GRAPH PAGE 7 MODULATION LIMITING PLOT PAGE 8 OCCUPIED BANDWIDTH TEST PROCEDURE PAGE 9 OCCUPIED BANDWIDTH PLOT PAGE 10-12 RADIATED EMISSIONS TEST DATA & TEST PROCEDURE PAGE 13 METHOD OF MEASURING RADIATED EMISSIONS PAGE 14 FREQUENCY STABILITY TEST DATA PAGE 15 EQUIPMENT LIST EXHIBITS CONTAINING: EXHIBIT 1 FCC ID LABEL SAMPLE EXHIBIT 2 SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3 BLOCK DIAGRAM EXHIBIT 4 SCHEMATIC EXHIBIT 5 TUNING PROCEDURE EXHIBIT 6 CIRCUIT DESCRIPTION EXHIBIT 7 USER'S MANUAL EXHIBIT 8 TEST SET UP PHOTOGRAPH EXHIBIT 9 EXTERNAL PHOTOGRAPHS EXHIBIT 10 INTERNAL PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 3 of 17 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 AUDIO TECHNICA CORPORATION will manufacture the 2.1034 FCC ID: JFZT701 in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. 2.1033 (C4) TECHNICAL DESCRIPTION (1) Type of Emission: 96KF3E Bn = 2M + 2DK M = 10000 D = 28 kHz (Peak Deviation) K = 1 Bn = 2(10K) + 2(28K)(1) = 76K ALLOWED AUTHORIZED BANDWIDTH = 200 kHz. 74.861(e)(5) (2) Frequency Range: Part 74: 542 – 561 MHz TEST FREQ = 542, 552, 561. (3) Power Range and Controls: Unit has no controls. (4) Maximum Output Power Rating: PWR: ERP High Power .006W ERP Low Power .002W ERP (5) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 3.0V BATTERY Vce = 2.9 Volts Ice = 28 mA. 2.1033 (C.10)(7) Complete Circuit Diagrams: The circuit diagram is included as Exhibit 4. The block diagram is included as an exhibit. (8) Instruction book. The instruction manual is in- cluded as an exhibit. (9) Tune-up procedure. The tune-up procedure is given in an exhibit. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 4 of 17 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT701 (10) Description of all circuitry and devices provided for determining and stabilizing frequency. The transmitter frequency is controlled by a crystal, see the exhibits for specifications. (11) Description of any circuits or devices employed For suppression of spurious radiation, for limit- ing modulation, and for limiting power. This circuitry is described in the exhibits. Limiting Modulation: The transmitter audio circuitry is contained in circuit description exhibit. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does not use digital modulation. 2.983(e) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF Power Output. RF power is measured as effective radiated power. OUTPUT POWER: High Power .006W ERP Low Power .002W ERP TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 5 of 17 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: JFZT701 R.F. POWER OUTPUT TEST PROCEDURE See EIA/TIA 603 substitution method. 2.1047(a)(b) Modulation characteristics: AUDIO_LOW_PASS_FILTER The audio low pass filter is not required in this unit. AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 6 of 17 Audio Frequency Response MaxFreq.at1 ColorLine StyleThickDataAxis CyanSolid1Anlr.Level A!Norm alizeLeft -0.6 +1.4 -0.4 -0.2 +0 +0.2 +0.4 +0.6 +0.8 +1 +1.2 d B 10010k2005001k2k5k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 7 of 17 Modulation Limiting Plots: 15 KHz (Green), 2.5 KHz (Blue), and 1 KHz (Yellow). Max deviation: 28 K modulation limiting.at1 Color Line Style Thick Data Axis Green Solid 3 Anlr.Level ALeft Blue Solid 3 Anlr.Level ALeft Yellow Solid 3 Anlr.Level ALeft 28 k H z -35 +15-30 -25 -20-15-10-5+0+5 +10 dBu TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: AUDIO TECHNICA CORPORATION FCCID: JFZT701 REPORT #: A\AudioTechnica_JFZ\1079AUT6\1079AUT6TestReport.doc PAGE #: 8 of 17 APPLICANT: AUDIO TECHNICA CORPORATION FCC ID: J…

Text truncated - open the document above for the full version.
