JI9-F22-6DIndustrial Radio Remote Control Transmitter

TELECRANE F22 Radio Remote Controls Product Manuals for Handheld and Joystick Models August 1, 2004 Revision 3.0.1 Intercontinental Technologies, Ltd. 558-2 Plate Drive East Dundee, IL 60118 Phone: (847) 426-9597 Fax: (847) 426-9724 www.telecrane.com FCC and Industry Canada Approval Information The following information applies to transmitters: This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intercontinental Technologies, Ltd. could void the user’s authority to operate equipment. Ce dispositif est conforme aux normes CNR-210 d’Industrie Canada et la partie 15 des règles de la FCC. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: 1) il ne doit pas produire de brouillage et 2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioelectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif . This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The following information applies to receivers: Models F22-2D, F22-2D1, F22-2S, F22-2S1, F22-4D, F22-4D1, F22-4S, F22-4S1, F22-6D, F22-6D1, F22-6S, F22-6S1, F22-12D, F22-10D1, F22-12S, F22-10S1, F22-J: Intercontinental Technologies, Ltd. F22 Series Industrial Radio Remote Controllers: Product Manuals i Table of Contents Part 1: Operator’s Manual Chapter 1 Warranty ............................................................................................................. 1 1.1 Warranty ............................................................................................................................... 1 1.2 Warranty Period .................................................................................................................... 1 1.3 Warranty Service .................................................................................................................. 1 1.4 Disclaimers ........................................................................................................................... 1 1.5 Warranty Contact Information .............................................................................................. 2 Chapter 2 Safe Operation.................................................................................................... 3 2.1 Emergency Procedures.......................................................................................................... 3 2.2 General Safety Information................................................................................................... 3 2.3 Installation Safety ................................................................................................................. 3 2.4 Operational Safety ................................................................................................................ 3 2.5 Safety When Performing User Maintenance ........................................................................ 4 Chapter 3 Overview of Parts and Features ......................................................................... 5 3.1 Large Chassis Mini-Style Transmitter .................................................................................. 5 3.2 Small Chassis Mini-Style Transmitter .................................................................................. 6 3.3 N1-Style Transmitter ............................................................................................................ 6 3.4 Typical Receiver for Handheld Models ................................................................................ 7 3.5 Transmitter for the Model F22-J Joystick Controller ........................................................... 8 3.6 Receiver for the Model F22-J Joystick Controller................................................................ 9 Chapter 4 Operation of the F22 Series Industrial Radio Remote Controller ..................... 11 4.1 Normal Operation of the Handheld and Joystick Models................................................... 11 4.2 Special Functions of Handheld Models .............................................................................. 14 4.3 Special Functions of Joystick Models................................................................................. 15 Chapter 5 User Maintenance............................................................................................. 17 5.1 Safety Aspects of User Maintenance .................................................................................. 17 5.2 Unusual Alarms .................................................................................................................. 17 5.3 Battery Changing Procedure (Handheld Models)............................................................... 17 5.4 Battery Changing Procedure (Joystick Models) ................................................................. 17 Chapter 6 Basic Troubleshooting ...................................................................................... 19 6.1 Reliability..............................................................................................…

Text truncated - open the document above for the full version.

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Intentional Radiator Test Report For the Intercontinental Technologies, Ltd. TELECRANE F22-6D-TX Industrial Radio Remote Control Transmitter Tested under The FCC Rules contained in Title 47 of the CFR, Part 15.231 for Periodic Operation Prepared for: Intercontinental Technologies, Ltd. 558-2 Plate Drive East Dundee, IL 60118 Prepared By: H.B. Compliance Solutions 254 W. Baseline Road, Suite # 103 Tempe, Arizona 85283 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E Engineering Statement: The measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is capable of operation in accordance with the requirements of Part 15 of the FCC Rules under normal use and maintenance. HBCS Report # EMC_12016 Page 2 of 24 Report Status Sheet Revision # Report Date Reason for Revision Ø May 18, 2012 Initial Issue HBCS Report # EMC_12016 Page 3 of 24 Table of Contents EXECUTIVE SUMMARY ............................................................................................. 4 1. Testing Summary ......................................................................................... 4 EQUIPMENT CONFIGURATION................................................................................. 5 1. Overview ..................................................................................................... 5 2. Test Facility .................................................................................................. 6 3. Description of Test Sample .......................................................................... 6 4. Equipment Configuration ............................................................................ 6 5. Support Equipment ..................................................................................... 6 6. Ports and Cabling Information .................................................................... 6 7. Method of Monitoring EUT Operation ........................................................ 7 8. Mode of Operation ...................................................................................... 7 9. Modifications ............................................................................................... 7 10. Disposition of EUT ....................................................................................... 7 Criteria for Un-Intentional Radiators ....................................................................... 8 1. Radiated Emissions ...................................................................................... 8 Emissions Tests Calculations ......................................................................... 9 Criteria for Intentional Radiators ........................................................................... 12 2. Conducted Emissions ................................................................................. 12 2. Occupied Bandwidth ................................................................................. 13 3. Deactivation Time ..................................................................................... 17 5. Duty Cycle .................................................................................................. 19 6. Radiated and Spurious Emissions .............................................................. 21 HBCS Report # EMC_12016 Page 4 of 24 EXECUTIVE SUMMARY 1. Testing Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15.231. All tests were conducted using measurement procedure from ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9kHz to 40GHz as appropriate. Test Name Test Method/Standard Result Comments Unintentional Radiated Emissions 15.109 Pass A/C Power Line Conducted Emissions 15.207(a) N/A Battery Powered Device. Uses 4 AA Batteries Occupied Bandwidth 15.231(c) Pass Deactivation Time 15.231(a)(1) Pass Duty Cycle 15.231 Pass Radiated & Spurious Emissions 15.231(b), 15.209(a), 15.205, 15.35(C) Pass HBCS Report # EMC_12016 Page 5 of 24 EQUIPMENT CONFIGURATION 1. Overview H.B Compliance Solutions was contracted by Intercontinental Technologies, Ltd. to perform testing on the Industrial Radio Remote Control Transmitter Model # TELECRANE F22-6D-TX under the quotation number 12051001. This document describes the test setups, test methods, required test equipment, and the test limit criteria used to perform compliance testing of the Intercontinental Technologies, Industrial radio remote control transmitter. The tests were based on FCC Part 15 Rules. The tests described in this document were formal tests as described with the objective of the testing was to evaluate compliance of the Equipment Under Test (EUT) to the requirements of the aforementioned specifications. Intercontinental Technologies Ltd. should retain a copy of this document and it should be kept on file for at least five years after the manufacturing of the EUT has been permanently discontinued. The results obtained relate only to the item(s) tested. Product Name: TELECRANE Model(s) Tested: F22-6D-TX FCC ID: JI9-F22-6D IC ID: 10279A-F226D Supply Voltage Input: Primary Power : 6 Vdc Frequency Range: 425.24 MHz – 435.00 MHz No. of Channels: NA Type(s) of Modulation: FSK Range of Operation Power: 0.0000001 Watts (Radiated) Emission Designator: N/A Channel Spacing(s) None Test Item: Pre-Production Type of Equipment : Portable Antenna Requirement (§15.203) : Type of Ante…

Text truncated - open the document above for the full version.

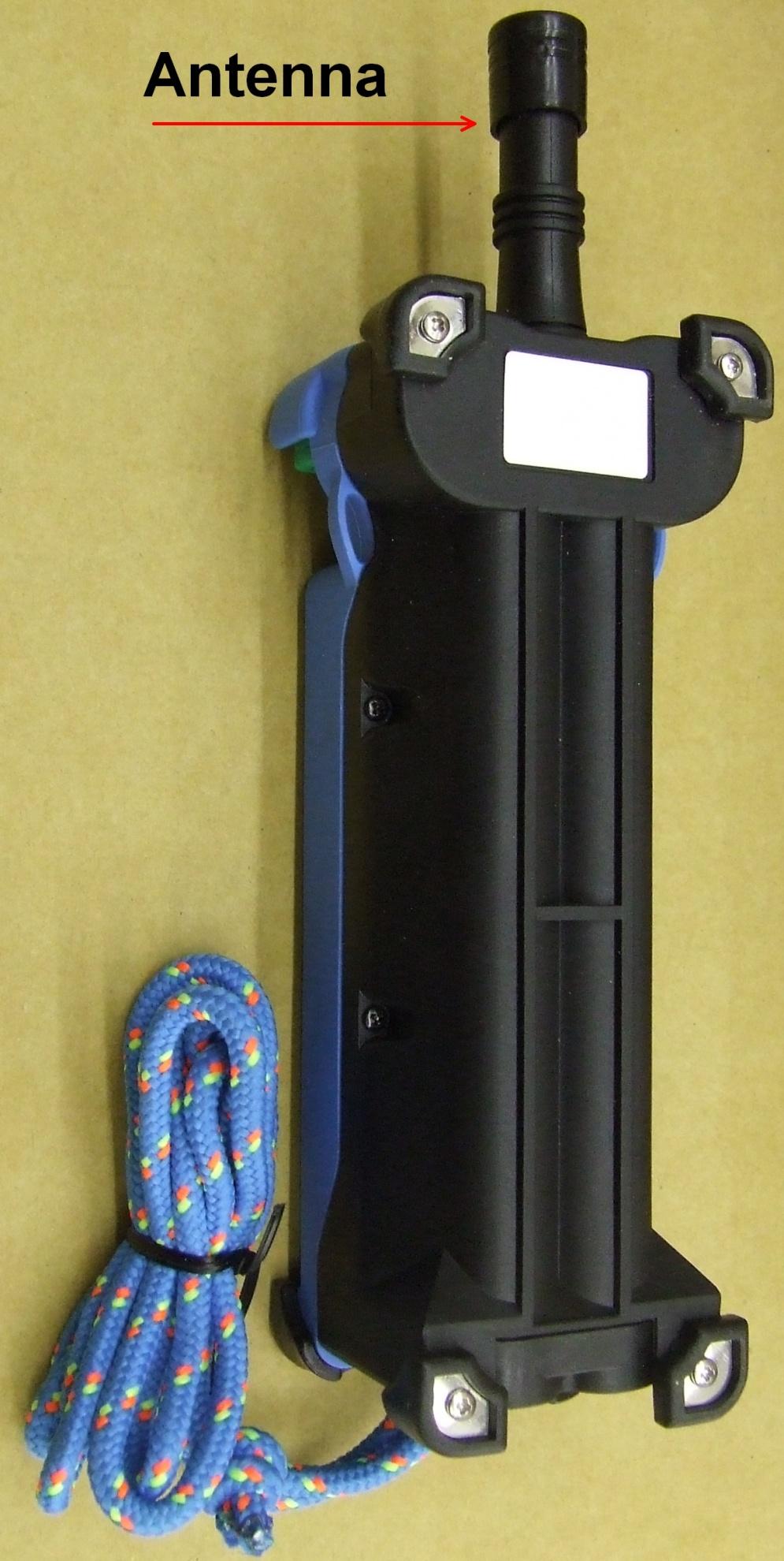

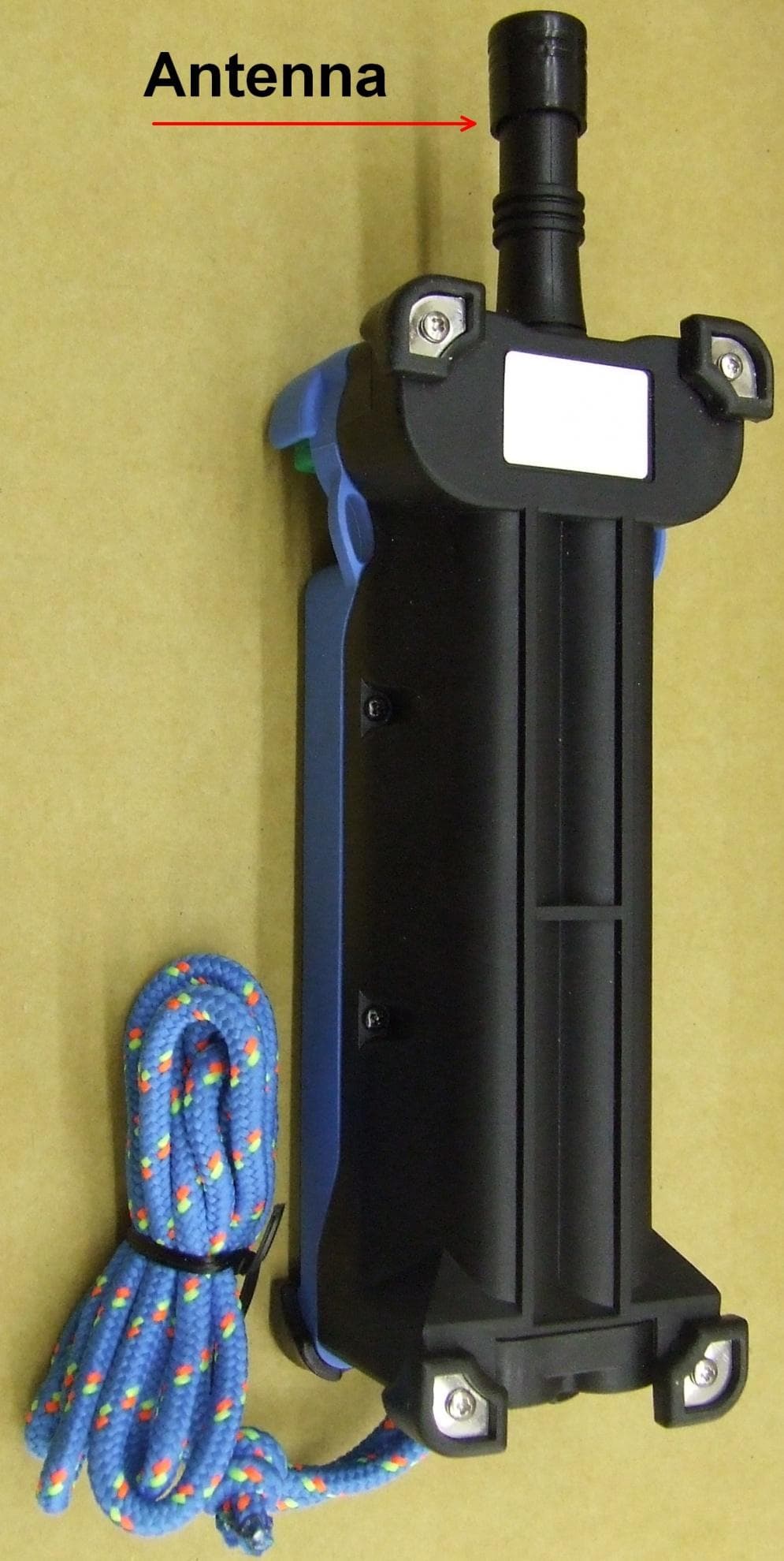

Test Setup Photo # 1 Test Setup Photo # 2 Test Setup Photo # 3 Test Setup Photo # 4 Test Setup Photo # 5
