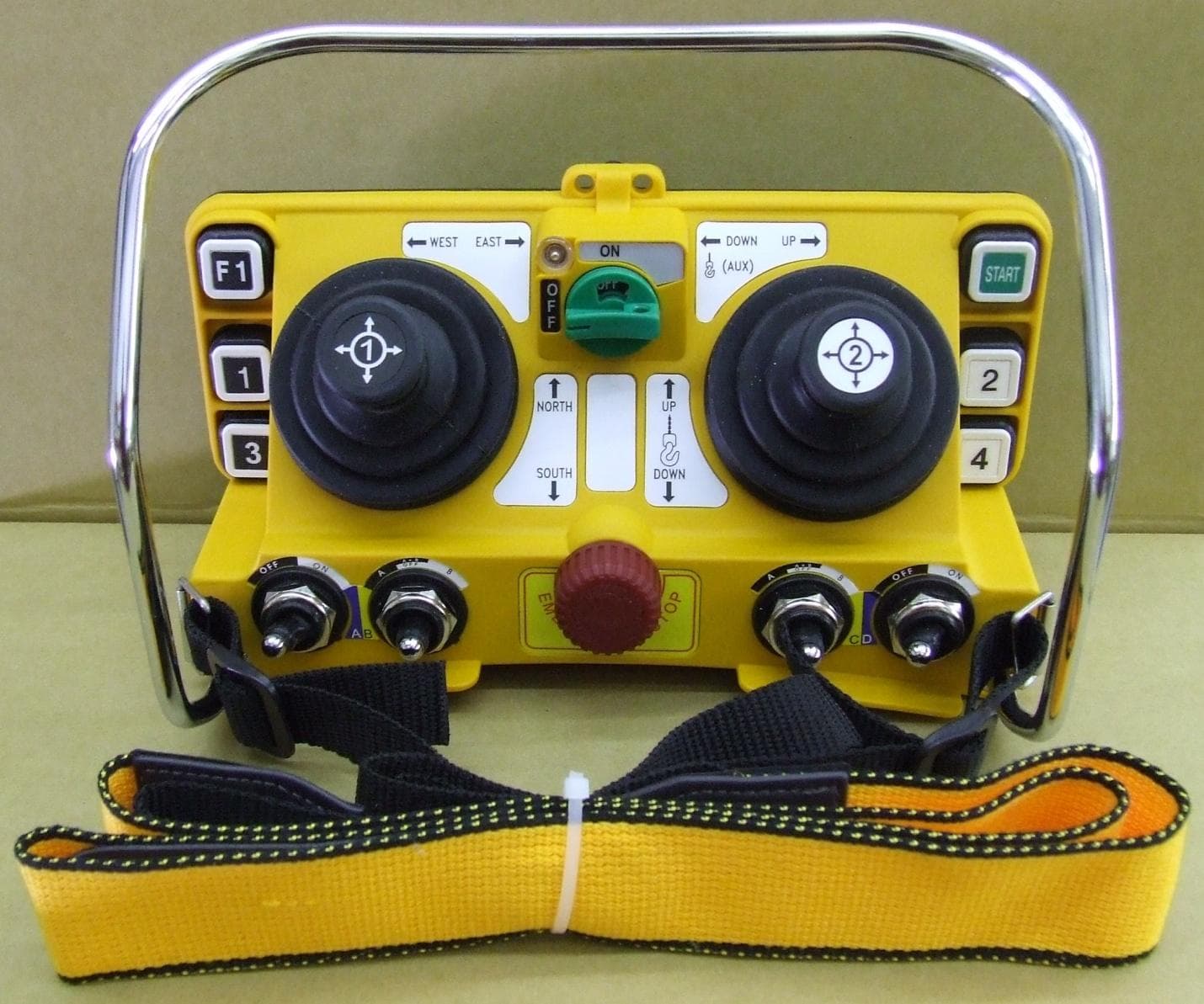

JI9-F24-J-018Industrial Radio Remote Control Transmitter

Intercontinental Technologies Ltd. 558 Plate Drive Bldg. #2, East Dundee, IL 60118 Ph: 847-426-9597, Fax: 847-426-9724, TELECRANE.COM Telecrane Radio Remote Control F24 Joystick Manual Rev. 1c October 10, 2007 Telecrane F24-J Manual Section Page General Specifications 3 1.0 Warranty/FCC Approval Information 4 2.0 Installation Instructions 5 3.0 Operation Instructions 6 4.0 Safety 7 5.0 Preventive Maintenance Checklist 9 6.0 Troubleshooting 10 7.0 Transmitter Function Settings.. 11 8.0 Receiver Function Settings 12 9.0 Programming Options 13 10.0 Product Options 14 11.0 Receiver Wiring Diagram 15 12.0 Program and Button Labeling 17 This manual Copyright© 2006 Intercontinental Technologies, Ltd. 1 This Page Intentionally Left Blank 2 Technical specifications for: F24-J Receiver input voltage: 110 volts AC. Other Input voltages available 220 VAC, 12V AC/DC, 24 VAC/DC Temperature: -35 deg C to 75 deg C (-31 deg F to 167 deg F) Receiver relay ratings: The receiver relays are rated at 10 amps at 250 volts AC. All COM wires are fused at 10A. The total current drawn through the receiver relays (through the COM wire) must not exceed 10A. Receiver dimensions: W 14.25” x D 4.5” x L 11.0” Frequency generation: Crystal (plug-in) Transmitter and receiver housing material: 30% glass fiber-reinforced nylon-6 Transmitter joysticks: 2 joysticks operating a total of 4 axis motions. Full 360-degree range of motion. Rated for 10 million cycles. Transmitter dials: 2 On/Off dials and 2 A, B dials. Transmitter button life: Tested to 2,000,000 operations Transmitter weight and dimensions: 2.3lbs with batteries. W 4.25” x D 4.25” x L 8.5” Control range: 500+ feet Transmitter batteries: 4 AA alkaline batteries. Channel Frequency Channel FrequencyChannelFrequencyChannel Frequency 1 310.0325 11 312.7075 21 315.3825 31 318.0575 2 310.3000 12 312.9750 22 315.6500 32 318.3250 3 310.5675 13 313.2425 23 315.9175 33 318.5925 4 310.8350 14 313.5100 24 316.1850 34 318.8600 5 311.1025 15 313.7775 25 316.4525 35 319.1275 6 311.3700 16 314.0450 26 316.7200 36 319.3950 7 311.6375 17 314.3125 27 316.9875 37 319.6625 8 311.9050 18 314.5800 28 317.2550 38 319.9300 9 312.1725 19 314.8475 29 317.5225 10 312.4400 20 315.1150 30 317.7900 Channel Frequency Channel FrequencyChannelFrequencyChannel Frequency 112 428.5350 123 431.4775 134 434.4200 145 437.3625 113 428.8025 124 431.7450 135 434.6875 146 437.6300 114 429.0700 125 432.0125 136 434.9550 147 437.8975 115 429.3375 126 432.2800 137 435.2225 148 438.1650 116 429.6050 127 432.5475 138 435.4900 149 438.4325 117 429.8725 128 432.8150 139 435.7575 118 430.1400 129 433.0825 140 436.0250 119 430.4075 130 433.3500 141 436.2925 120 430.6750 131 433.6175 142 436.5600 121 430.9425 132 433.8850 143 436.8275 122 431.2100 133 434.1525 144 437.0950 3 1.0 Warranty: Intercontinental Technologies, Ltd. (ITL) guarantees that this product meets its published specifications at the time of shipment. This equipment is warranted against defects in material and manufacturing for a period of one year from the date of shipment. During the warranty period, ITL will repair or replace defective components at no charge, if the failure of the product was due to defective material or manufacturing. For warranty service, the product must ultimately be returned to ITL. The buyer must pay shipping charges to the ITL service facility, and ITL will pay return ground shipping charges. Warranty service on F21 and F24 units shall be provided by ITL only and ITL will not be responsible for service or repair costs charged by third parties. ITL will not be liable for any damage to the warranted product, and no other warranty is expressed or implied, except as explicitly described. ITL does not warranty any consumable parts, including batteries, fuses, buttons, relays, or housings. This warranty does not include damage caused by improper installation (including ignoring environmental specifications), improper or insufficient maintenance, any modifications, improper operation, or improper software interfacing. The remedies provided herein are the buyer’s sole and exclusive remedies. ITL shall not be liable for any direct, indirect, special, incidental, or consequential damages. FCC and Industry Canada Approval Information The following information applies to transmitters: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intercontinental Technologies, Ltd. could void the user’s authority to operate equipment. This device complies with RSS-210 of Industry Canada. Ce dispositif est conforme aux normes CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: 1) il ne doit pas produire de brouillage et 2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioelectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif . This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The following information applies to receivers: Model F24-J 4 2.0 Installation Instructions: 1. The receiver should be mounted in a location that is convenient to the control bo…

Text truncated - open the document above for the full version.

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Intentional Radiator Intercontinental Technologies, Ltd. TELECRANE F24-J- The FCC Rules contained in Title 47 of the CFR, Part Intercontinental Technologies, Ltd. Prepared By: H.B. Compliance Solutions 254 W. Baseline Road, Suite # 103 Tempe, Arizona 85283 Engineering Statement: The measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurement persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is capable of operation in accordance with the requirements of Part maintenance. reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Intentional Radiator Test Report For the Intercontinental Technologies, Ltd. -TX Industrial Radio Remote Control Transmitter Tested under Rules contained in Title 47 of the CFR, Part 15.231 for Periodic Operation Prepared for: Intercontinental Technologies, Ltd. 558-2 Plate Drive East Dundee, IL 60118 254 W. Baseline Road, Suite # 103 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is capable of operation in accordance with the requirements of Part 15 of the FCC Rules under normal use and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Radio Remote Control Transmitter for Hoosamuddin Bandukwala measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full s, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is of the FCC Rules under normal use and HBCS Report # EMC_12014-18 Page 2 of 22 Report Status Sheet Revision # Report Date Reason for Revision Ø May 30, 2012 Initial Issue HBCS Report # EMC_12014-18 Page 3 of 22 Table of Contents EXECUTIVE SUMMARY ............................................................................................ 4 1. Testing Summary ........................................................................................ 4 EQUIPMENT CONFIGURATION ................................................................................ 5 1. Overview .................................................................................................... 5 2. Test Facility ................................................................................................. 6 3. Description of Test Sample ......................................................................... 6 4. Equipment Configuration ........................................................................... 6 5. Support Equipment .................................................................................... 6 6. Ports and Cabling Information .................................................................... 6 7. Method of Monitoring EUT Operation ........................................................ 7 8. Mode of Operation ..................................................................................... 7 9. Modifications ............................................................................................. 7 10. Disposition of EUT ...................................................................................... 7 Criteria for Un-Intentional Radiators ...................................................................... 8 1. Radiated Emissions ..................................................................................... 8 Emissions Tests Calculations ........................................................................ 9 Criteria for Intentional Radiators .......................................................................... 12 2. Conducted Emissions ................................................................................ 12 2. Occupied Bandwidth ................................................................................ 13 3. Deactivation Time..................................................................................... 15 5. Duty Cycle ................................................................................................ 17 6. Radiated and Spurious Emissions ............................................................. 20 HBCS Report # EMC_12014-18 Page 4 of 22 EXECUTIVE SUMMARY 1. Testing Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15.231. All tests were conducted using measurement procedure from ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9kHz to 40GHz as appropriate. Test Name Test Method/Standard Result Comments Unintentional Radiated Emissions 15.109 Pass A/C Power Line Conducted Emissions 15.207(a) N/A Battery Powered Device. Uses 2 AA Batteries Occupied Bandwidth 15.231(c) Pass Deactivation Time 15.231(a)(1) Pass Duty Cycle 15.231 Pass Radiated & Spurious Emissions 15.231(b), 15.209(a), 15.205, 15.35(C) Pass HBCS Report # EMC_12014-18 Page 5 of 22 EQUIPMENT CONFIGURATION 1. Overview H.B Compliance Solutions was contracted by Intercontinental Technologies, Ltd. to perform testing on the Industrial Radio Re…

Text truncated - open the document above for the full version.

Test Setup Photo # 1 Test Setup Photo # 2 Test Setup Photo # 3 Test Setup Photo # 4
