JJ4-AS04126Wireless Keyboard

User’s Guide AS04126 2.4GHz Wireless Keyboard 1 Federal Communications Commission Radio(FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: *Risk of explosion if battery is replaced by an incorrect type. *Dispose of used batteries according to the instructions. *Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Canada Statement This Device complies with RSS-210 of the IC Rules, Operation is subject to the following two conditions: (1). This device may not cause interference and (2). This device must accept any interference received,, including interference that may cause undesired operation. 2 1 Feature
Transmission mode: RF
Frequency: 2400~2483MHz
RFchannel quantity: 78
Bandwidth of Channel: 1MHz
Data Send timing: <500us
Power: 2 × AAA batteries
Modulate mode: GFSK
Effective distance: 10m
Number of keys: 86 keys
Low battery indicating voltage:2.2V@5%
Operational Temperature: +5 ~ +40°C 2 System Requirements  Microsoft Windows 98/ME/2000/XP/Vista/7 or later version  An available USB port 3 Installation & Use  Plug the USB receiver into a computer’s USB port: □ □□ □ Windows 98 SE/ME 3 The system finds new device and prompts you to insert the operating system CD-ROM. Follow the instructions on the screen to install the required drivers. □ □□ □ Windows 2000/XP/Vista/7 The operating system identifies the receiver as a “USB Human Interface Device” and begins installation automatically. When completed, the system will prompt that “You new hardware is installed and ready to use.”  Remove the keyboard battery compartment cover.  Install batteries with the positive (+) & negative (-) in the correct direction indicated by the AAA battery compartment label. 4  Replace the battery compartment cover.  Switch on the Keyboard.  Before first time of use, you need to bind the keyboard to the receiver as below: With the keyboard close to the receiver within 50cm and press the bind button.  In normal use, the led on the receiver blinks according to the wireless keyboard’s operation, if the keyboard and mouse are not in operation, the led is off.  Keyboard LED function 5  Fn--Function Key Characters in orange are accessed through the Fn key which works like a shift key, to activate these function, please hold-down “Fn” key before press these keys. Low Battery----This LED will be lit if the battery power is low, you should replace the battery right now. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). RF Statement This equipment complies with Part 15 of FCC RF Rules. Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. Canada Statement This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions: (1). This device may not cause interference and (2). This device must accept any interference received,, including interference that may cause undesired operation.

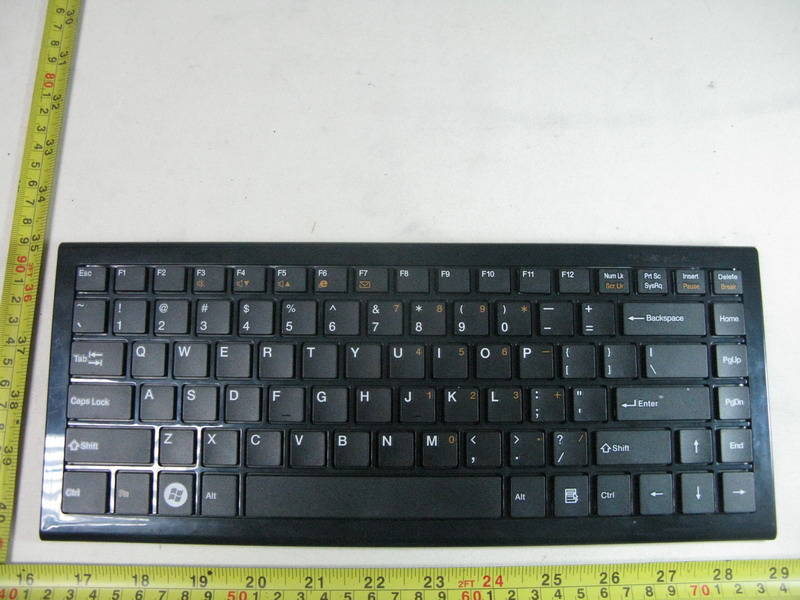

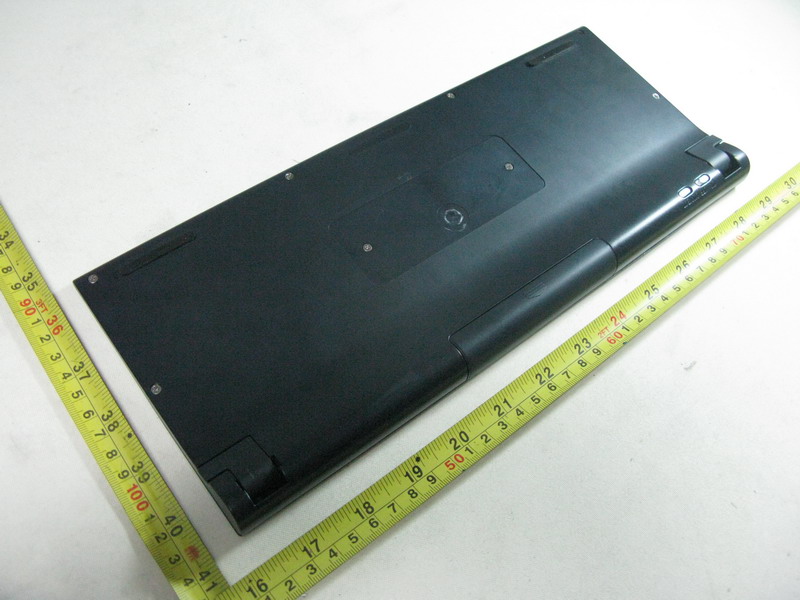

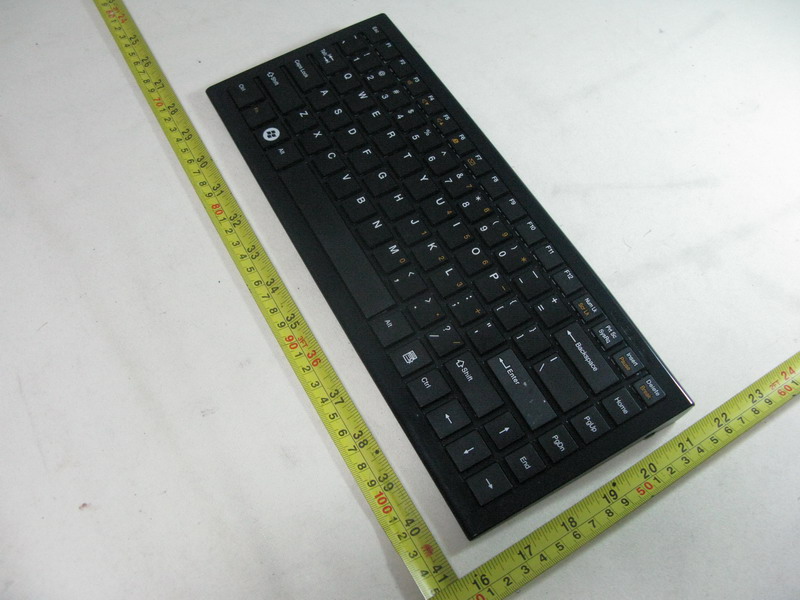

Neutron Engineering Inc. Project No.: 1001C147 Page 2 of 6 1001C147 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 2 of 6 1001C147 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 3 of 6 1001C147 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 3 of 6 1001C147 1001C147

Location

Neutron Engineering Inc. Project No.: 1001C147 Page 4 of 6 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 5 of 6 1001C147 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 5 of 6 1001C147 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 6 of 6 1001C147 1001C147 Neutron Engineering Inc. Project No.: 1001C147 Page 6 of 6 1001C147 1001C147

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 2 of 46 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 3 of 46 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 MEASUREMENT INSTRUMENTS LIST 17 4.2.3 TEST PROCEDURE 18 4.2.4 DEVIATION FROM TEST STANDARD 18 4.2.5 TEST SETUP 19 4.2.6 EUT OPERATING CONDITIONS 19 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHz) 20 4.2.8 TEST RESULTS (ABOVE 1000 MHz) 22 4.2.9 TEST RESULTS (2400 – 2483.5 MHz) 34 4.2.10 TEST RESULTS (Restricted Bands Requirements) 35 5 . BANDWIDTH TEST 39 5.1 MEASUREMENT INSTRUMENTS LIST 39 5.2 TEST PROCEDURE 39 5.3 DEVIATION FROM STANDARD 39 5.4 TEST SETUP 39 5.5 EUT OPERATION CONDITIONS 39 5.6 TEST RESULTS 40 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 4 of 46 Table of Contents Page 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 MEASUREMENT INSTRUMENTS LIST 42 6.1.2 TEST PROCEDURE 42 6.1.3 DEVIATION FROM STANDARD 42 6.1.4 TEST SETUP 42 6.1.5 EUT OPERATION CONDITIONS 43 6.1.6 TEST RESULTS 44 7 . EUT TEST PHOTO 46 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 5 of 46 1. CERTIFICATION E q u i p m e n t : Wireless Keyboard Brand Name : Gyration Model Name : AS04126 Applicant : Movea, Inc F a c t o r y : Jing Mold Electronics Technology (Shen Zhen)CO.,LTD. A d d r e s s : Xinqiao,3rd Industrial Estate,Shajing Baoan,Shenzhen,China Date of Test : Feb. 04, 2010 ~ Feb. 10, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249)/ ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1001C147) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 6 of 46 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission - Note(1) 15.249 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 7 of 46 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE C01 ANSI150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE OS-01 ANSI30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 200MHz ~ 1,000MHz H 3.94 OS-02 ANSI30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 8 of 46 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Keyboard Brand Name Gyration Model Name. AS04126 OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a Wireless Keyboard. Product Type Low Power Communication Device Operation Frequency: 2402~2479 MHz Modulation Type: GFSK Number Of Channel 78CH Antenna Designation: Printed antenna Antenna Gain(Peak) 1.8 dBi Output Power: 77.19 dBuV/m (AV Max.) Based on the application, features, or specification …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 46 of 46 7. EUT TEST PHOTO Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1001C147 Page 46 of 46 7. EUT TEST PHOTO Radiated Measurement Photos
