JNK-HR-700twist speaker

Leopard Wireless Speaker Listen In High Definition The Leopard portable wireless speaker takes your calls！ What's Included: Leopard wireless speaker Aux line USB Charging Cable User’s guide General Specifications: Product Weight: 0.32kg Dimensions (HxWxD): 25 x 5.6 x 5.6cm Advanced Audio Distribution Profile (A2DP) for wireless music streaming Hands-Free Audio (HFP) and Headset Profiles (HSP) for hands-free calling Capability Range up to 33 FT(10M) LED Indicator The button with LED light in the middle of the button panel. Below are what the LED's various displays indicate Button LED Off- Power off Flashing in BLUE/RED- In Paring Mode Solid blue- power on with Bluetooth mode Solid green- power on with aux in mode There is an LED light at the bottom right of the Leopard wireless speaker. LED red : Battery is recharging LED flashing Red: Battery almost drained LED off: with enough power GO ANYWHERE, GO WIRELESS Model No.:HR-700 Leopard Wireless Speaker -POWER button: A: Long press to active the unit, default to Bluetooth paring mode. B :short press the button to change the mode between bluetooth and AUX-IN. -Vol+-Vol-: the volume button would activate when the power is on. -Bluetooth button Press the button to reconnect the Bluetooth in event of Bluetooth disconnection. -play/pause/answering the call Push the button to pause playback. Repeat to resume music. Answering the calling -To Accept a call: You can accept a call as you usually do, using your iPhone controls or press the button -To end a call: Use your iPhone controls or press the button Paring button Vol controls + Vol controls- Play&pause Hands-free Calling Answer/End button Power/Mode button Recharging battery : Plug the mini USB end of the included USB cable into the USB mini port, marked “USB CHARGING” on the back of the leopard Bluetooth speaker. Plug the other end into a USB port on your computer or other devices made for USB charging. The LED light will be red. Leopard Wireless Speaker Warning 1.Do not become distracted by this product while driving. 2.Do not leave the product exposed to a heat source or high temperatures. 3.Do not remove or attempt to remove the non-user-replaceable battery. When disposing of the product, take it to a waste electronics service. 4.Please remember that a loose object in a moving vehicle could become a deadly projectile in the event of a collision. Trouble Shooting Sound is low or no sound Sound not in stereo when playing the music Make sure the sound output is set on Bluetooth mode or audio input and output Please check Leopard Bluetooth speaker or Bluetooth device volume level If using 3.5mm port ,be sure the mini jack cable is securely inserted in Leopard Bluetooth speaker and your device changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: JNK-HR-700 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

VOXCOOPER TECHNOLOGY COMPANY LIMITED SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 VOXCOOPER TECHNOLOGY COMPANY LIMITED SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (April 17, 2012) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, VOXCOOPER TECHNOLOGY COMPANY LIMITED hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: JNK-HR-700 Product name: twist speaker Model: HR-700, ISOUND-1690 Twist black, ISOUND-1691 Twist white, ISOUND-1692 Twist graphite, ISOUND-1693 Twist red We affirm that between SIEMIC and VOXCOOPER TECHNOLOGY COMPANY LIMITED, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature BAKER Wang / Director Title: Director Telephone: +86-755-28342016 Email: [email protected] Date: April 17, 2012

VOXCOOPER TECHNOLOGY COMPANY LIMITED SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 VOXCOOPER TECHNOLOGY COMPANY LIMITED SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 (April 19, 2012) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: JNK-HR-700 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram Long-term confidential - Operation description Long-term confidential - Schematic Long-term confidential The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Title: Director Telephone: +86-755-28342016 Email: [email protected] Date: April 19, 2012 Company Name: VOXCOOPER TECHNOLOGY COMPANY LIMITED Address: 4F, Bldg 18, Paibang Ind., park, 228 Ind., Zone, Henggang Town, Shenzhen, China

VOXCOOPER TECHNOLOGY COMPANY LIMITED Date: April 17, 2012 To: Federal Communications Commission 7435 Oakland Mills Road Columbia,MD FCC ID: JNK-HR-700 To Whom It May Concern: This letter is to ascertain that VOXCOOPER TECHNOLOGY COMPANY LIMITED Product: twist speaker has been the units used for conducting FCC compliance testing, the DoC Part will be tested by FCC recognized test lab. If you have any question or concerns, pls, contact us. Sincerely, Signature Name: BAKER Wang/ Director Title: Director Telephone: +86-755-28342016 Email: [email protected] Date: April 17, 2012

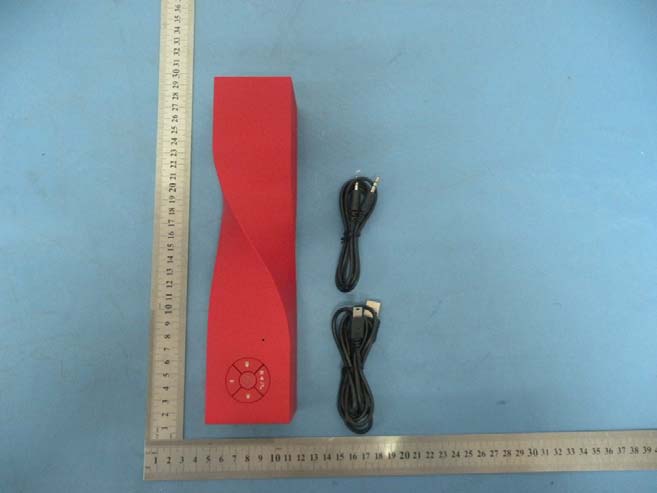

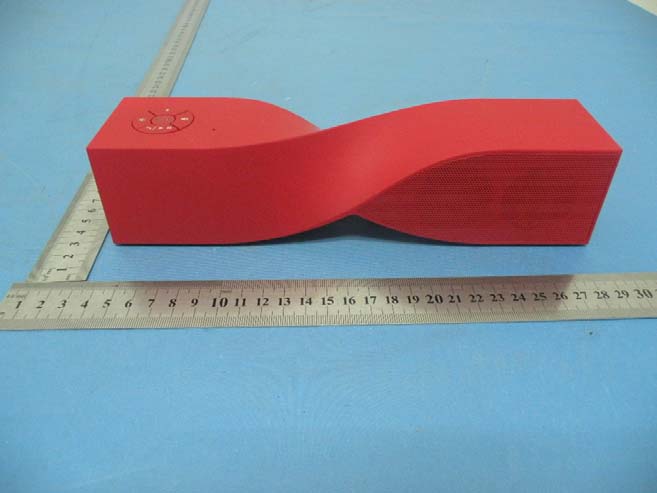

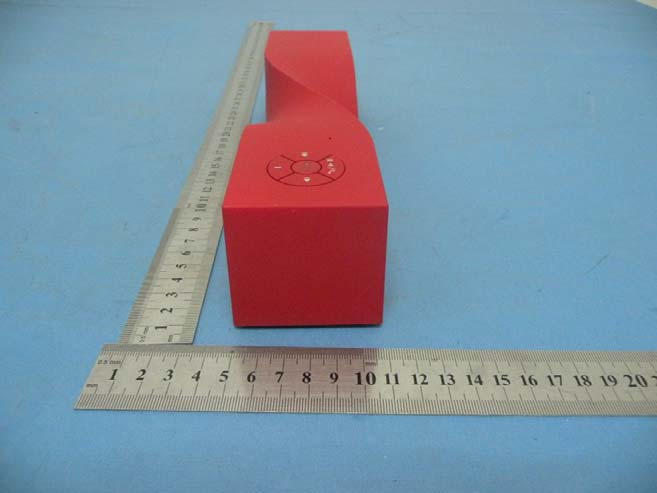

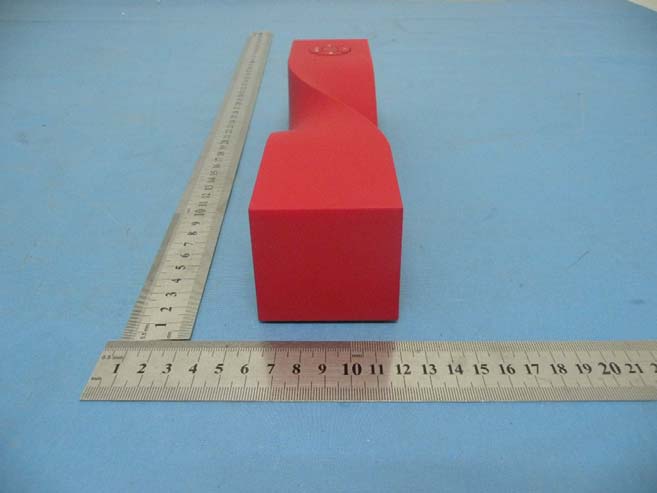

Full View To p Vi e w Bottom View Front View Left View Rear View Right View

FCC ID: JNK-HR-700 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

Top View Top View ANTENNA Bottom View Top View Bottom View

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: JNK-HR-700 Page 1 of 35 TEST REPORT FCC ID: JNK-HR-700 Applicant : VOXCOOPER TECHNOLOGY COMPANY LIMITED Address : 4F, Bldg 18, Paibang lnd., park, 228 lnd., zone, Henggang Town, Shenzhen, China Equipment under Test (EUT): Name : twist speaker Model : HR-700, ISOUND-1690 Twist black, ISOUND-1691 Twist white, ISOUND-1692 Twist graphite, ISOUND-1693 Twist red Standards : FCC PART 15, SUBPART C : 2011 (Section 15.249) Report No. : STE120321287 Date of Test : April 2-4, 2012 Date of Issue : April 5, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE120321287 FCC ID: JNK-HR-700 Page 2 of 35 TABLE OF CONTENT Description Page 1 General Information------------------------------------------------------------------------------------- 3 1.1 Description of Device (EUT)---------------------------------------------------------------------3 1.2 Description of Test Facility -----------------------------------------------------------------------4 2 EMC Equipment List --------------------------------------------------------------------------------- 4 3 Test Procedure ------------------------------------------------------------------------------------------- 5 4 Summary of Measurement ------------------------------------------------------------------------- 6 Occupied bandwidth -------------------------------------------------------------------------------------- 6 5 POWER LINE CONDUCTED EMISSION -------------------------------------------------------- 7 5.1 Conducted Emission Limits(15.209&249)-------------------------------------------------7 5.2 Test Setup-----------------------------------------------------------------------------------------7 5.3 Test Procedure-----------------------------------------------------------------------------------8 5.4 Test Results---------------------------------------------------------------------------------------8 6 Radiation Emission---------------------------------------------------------------------------------- 11 6.1 Radiation Emission Limits(15.209&249 (a))--------------------------------------------- 11 6.2 Test Setup--------------------------------------------------------------------------------------- 12 6.3 Test Procedure--------------------------------------------------------------------------------- 13 6.4 Test Equipment Setting For emission test.---------------------------------------------- 14 6.5 Test Condition---------------------------------------------------------------------------------- 14 6.6 Test Result-------------------------------------------------------------------------------------- 14 7 Occupied bandwidth -------------------------------------------------------------------------------- 20 7.1 Test limit------------------------------------------------------------------------------------------ 20 7.2 Method of measurement--------------------------------------------------------------------- 20 7.3 Test Setup--------------------------------------------------------------------------------------- 20 7.4 Test Results------------------------------------------------------------------------------------- 20 8 Band Edge Check------------------------------------------------------------------------------------ 21 8.1 Test limit------------------------------------------------------------------------------------------ 21 8.2 Test Procedure--------------------------------------------------------------------------------- 21 8.3 Test Setup--------------------------------------------------------------------------------------- 21 8.4 Test Result-------------------------------------------------------------------------------------- 21 9 Antenna Requirement ------------------------------------------------------------------------------ 26 9.1 Standard Requirement----------------------------------------------------------------------- 26 9.2 Antenna Connected Construction---------------------------------------------------------- 26 9.3 Result--------------------------------------------------------------------------------------------- 26 10 Photographs of Test Setup ----------------------------------------------------------------------- 27 11 Photographs of EUT--------------------------------------------------------------------------------- 30 Report No.: STE120321287 FCC ID: JNK-HR-700 Page 3 of 35 1 General Information 1.1 Description of Device (EUT) Trade Name : Brunton EUT : twist speaker Model No. : HR-700, ISOUND-1690 Twist black, ISOUND-1691 Twist white, ISOUND-1692 Twist graphite, ISOUND-1693 Twist red DIFF : Just look and model names are not the same, the other is exactly the same. Type of Antenna : Integral Antenna Antenna Specification : 0 dBi Operation Frequency : 2402-2480MHz Channel number : 79 Modulation type : GFSK Power Supply : DC 4.2V form battery or DC 5V from PC Applicant : VOXCOOPER TECHNOLOGY COMPANY LIMITED Address : 4F, Bldg 18, Paibang lnd., park, 228 lnd., zone, Henggang Town, Shenzhen, China Manufacturer : VOXCOOPER TECHNOLOGY COMPANY LIMITED Address : 4F, Bldg 18, Paibang lnd., park, 228 lnd., zone, Henggang Town, Sh…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup Below 1G Above 1G Conducted Emission Test Setup
