Installation Premium Desktop Optical Logitech ® ii 623251-0914.A FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. Canadian DOC Statement. This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus specified in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications. This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. iii Contents English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Nederlands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Svenska . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Dansk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Norsk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Suomi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Ελληνικά . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 По-русски . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Magyar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Česká verze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Po polsku . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 English 1 Important Ergonomic Information Long periods of repetitive motions using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling burning, cramping, or stiffness in these areas, see a qualified health professional. For more information, please read the Comfort Guidelines found in the help system located on the Logitech ® software CD and on the Logitech web site at http://www.logitech.com/comfort . Connect the Palm Rest to the Keyboard Line up the tabs on the palm rest with the slots on the keyboard, which are located in front and underneath. Then snap both units together. Adjust the Keyboard Legs The keyboard legs are located underneath and at the back of the keyboard. They are designed to accommodate personal preferences regarding wrist position when typing. Pull out or push in the keyboard legs to the most comfortable position for you. 11 22 33 2 English Connect the Keyboard 1. Turn off your computer, and then remove the existing keyboard and mouse. 2. Plug the green PS/2 connector into the PS/2 mouse port on the computer. Plug the purple PS/2 connector into the PS/2 keyboard port on your computer. 3. Restart your computer. Set Up and Activate the Mouse 1. Open the battery compartment on the bottom of the mouse. 2. Insert the batteries inside the battery compartment. Refer to the battery diagram …

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless Keybaord MODEL NO: Y-RK49 TRADE NAME: Logitech IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920618H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: LOGITECH FAR EAST LTD. To Be Determined. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Contact Person: T.C.Chang Title: QA Technical Manager Tel/Fax: Tel: Fax:

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: JNZ201587 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

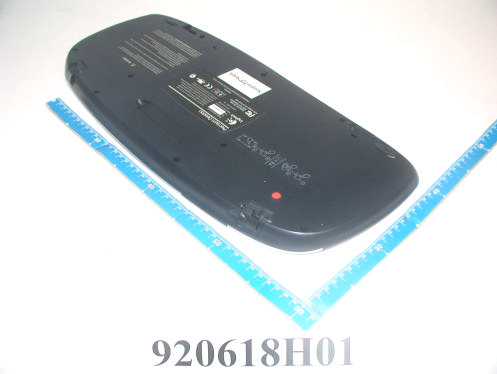

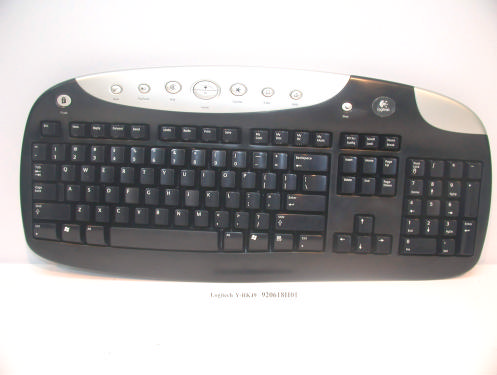

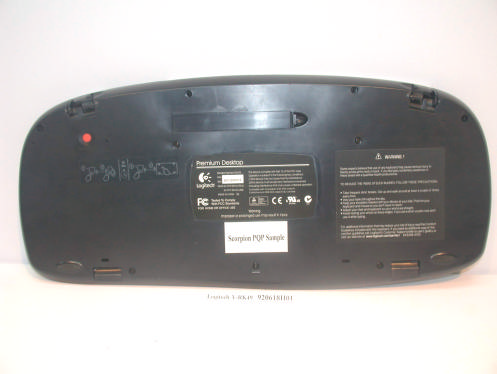

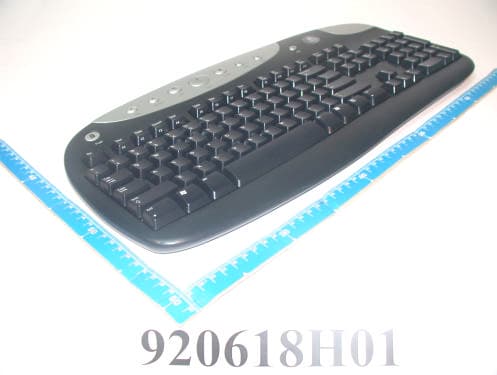

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: JNZ201587 ADT No. 920618H01 Operational Description The transmitter of the EUT (Wireless Keybaord) is powered by 3V Battery. The antenna is Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: JNZ201587 Report No.: RF920618H011Issued: Jul. 16, 2003 ADT No.: 920618H01 FCC TEST REPORT REPORT NO.: RF920618H01 MODEL NO.: Y-RK49 RECEIVED: Jun. 18, 2003 TESTED: Jun. 18 to 27, 2003 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: JNZ201587 Report No.: RF920618H012Issued: Jul. 16, 2003 ADT No.: 920618H01 Table of Contents 1CERTIFICATION..........................................................................................................3 2SUMMARY OF TEST RESULTS.................................................................................4 3GENERAL INFORMATION.........................................................................................5 3.1GENERAL DESCRIPTION OF EUT...........................................................................5 3.2DESCRIPTION OF TEST MODES..............................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................6 3.4DESCRIPTION OF SUPPORT UNITS.........................................................................7 4TEST PROCEDURE AND RESULT............................................................................8 4.1CONDUCTED EMISSION MEASUREMENT............................................................8 4.2RADIATED EMISSION MEASUREMENT.................................................................8 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................8 4.2.2TEST INSTRUMENT.................................................................................................9 4.2.3TEST PROCEDURE................................................................................................10 4.2.4DEVIATION FROM TEST STANDARD.................................................................10 4.2.5TEST SETUP............................................................................................................11 4.2.6EUT OPERATING CONDITION.............................................................................11 4.2.7TEST RESULT..........................................................................................................12 5PHOTOGRAPHS OF THE TEST CONFIGURATION..............................................14 6INFORMATION ON THE TESTING LABORATORIES..........................................15 FCC ID: JNZ201587 Report No.: RF920618H013Issued: Jul. 16, 2003 ADT No.: 920618H01 1 CERTIFICATION PRODUCT : Wireless Keybaord BRAND NAME : Logitech MODEL NO : Y-RK49 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Jun. 18 to 27, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. PREPARED BY:, DATE:Jul. 16, 2003 ( Amanda Chu ) APPROVED BY:, DATE:Jul. 16, 2003 ( Eric Lin, Manager ) FCC ID: JNZ201587 Report No.: RF920618H014Issued: Jul. 16, 2003 ADT No.: 920618H01 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –8.7 dBuV at 54.19 MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: JNZ201587 Report No.: RF920618H015Issued: Jul. 16, 2003 ADT No.: 920618H01 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Keybaord MODEL NO. Y-RK49 POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.095MHz & 27.145MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Wireless Keybaord. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: JNZ201587 Report No.: RF920618H016Issued: Jul. 16, 2003 ADT No.: 920618H01 3.2 DESCRIPTION OF TEST MODES Two channels were provided to this EUT. ChannelFrequency 127.095MHz 227.145MHz NOTE: Channel 1, the worst case, was chosen for final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Keybaord. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. FCC ID: JNZ201587 Report No.: RF920618H017Issued: Jul. 16, 2003 ADT No.: 920618H01 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. No.ProductBrandModel No.Serial No.FCC ID 1 PERSONAL COMPUTER HEWLETT PACKARD HP Vectra XE310SG14201716DoC 2 COLOR MONITOR ADICM100026058T10200636 ADOC 3Matrix PrinterEPSONLQ-300+DCGY017097DOC 4MODEMACEEX14140206026772IFAXDM1414 5RECEIVERLogit…

Text truncated - open the document above for the full version.

FCC ID: JNZ201587 Report No.: RF920618H0114Issued: Jul. 16, 2003 ADT No.: 920618H01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
