[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless Mouse MODEL NO: PCVA-MS2 TRADE NAME: Sony IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920703H05 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: LOGITECH FAR EAST LTD. To Be Determined. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Contact Person: T.C.Chang Title: QA Technical Manager Tel/Fax: Tel: Fax:

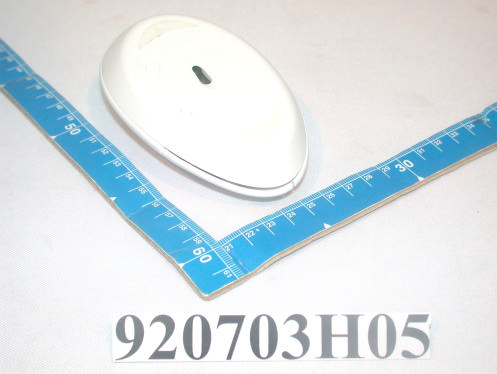

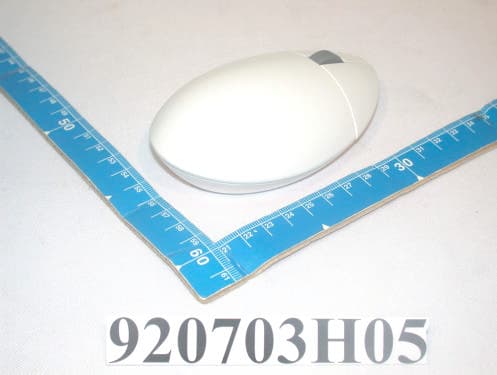

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: JNZ201721 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: JNZ201721 ADT No. 920703H05 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The antenna is Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: JNZ201721 Report No.: RF920703H051Issued: Jul. 16, 2003 ADT No.: 920703H05 FCC TEST REPORT REPORT NO.: RF920703H05 MODEL NO.: PCVA-MS2 RECEIVED: Jul. 4, 2003 TESTED: Jul. 7, 2003 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 16 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: JNZ201721 Report No.: RF920703H052Issued: Jul. 16, 2003 ADT No.: 920703H05 Table of Contents 1CERTIFICATION.........................................................................................................3 2SUMMARY OF TEST RESULTS.............................................................................4 3GENERAL INFORMATION.......................................................................................5 3.1GENERAL DESCRIPTION OF EUT........................................................................5 3.2DESCRIPTION OF TEST MODES..........................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................6 3.4DESCRIPTION OF SUPPORT UNITS...................................................................6 4TEST PROCEDURE AND RESULT........................................................................7 4.1CONDUCTED EMISSION MEASUREMENT........................................................7 4.2RADIATED EMISSION MEASUREMENT..............................................................7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................7 4.2.2TEST INSTRUMENT.................................................................................................8 4.2.3TEST PROCEDURE..................................................................................................9 4.2.4DEVIATION FROM TEST STANDARD...................................................................9 4.2.5TEST SETUP............................................................................................................10 4.2.6EUT OPERATING CONDITION.............................................................................10 4.2.7TEST RESULT..........................................................................................................11 5PHOTOGRAPHS OF THE TEST CONFIGURATION.........................................15 6INFORMATION ON THE TESTING LABORATORIES.......................................16 FCC ID: JNZ201721 Report No.: RF920703H053Issued: Jul. 16, 2003 ADT No.: 920703H05 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : Sony MODEL NO : PCVA-MS2 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Jul. 7, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. PREPARED BY:, DATE:Jul. 16, 2003 ( Amanda Chu ) APPROVED BY:, DATE:Jul. 16, 2003 ( Eric Lin, Manager ) FCC ID: JNZ201721 Report No.: RF920703H054Issued: Jul. 16, 2003 ADT No.: 920703H05 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –15.5 dBuV at 54.01 MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: JNZ201721 Report No.: RF920703H055Issued: Jul. 16, 2003 ADT No.: 920703H05 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. PCVA-MS2 POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: JNZ201721 Report No.: RF920703H056Issued: Jul. 16, 2003 ADT No.: 920703H05 3.2 DESCRIPTION OF TEST MODES One channel and two types of antenna power were provided to this EUT. ModeOutput PowerFrequency 170nW 220nW 27.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: JNZ201721 Report No.: RF920703H057Issued: Jul. 16, 2003 ADT No.: 920703H05 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvol…

Text truncated - open the document above for the full version.

FCC ID: JNZ201721 Report No.: RF920703H0515Issued: Jul. 16, 2003 ADT No.: 920703H05 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
