JNZ201760Wireless Mouse

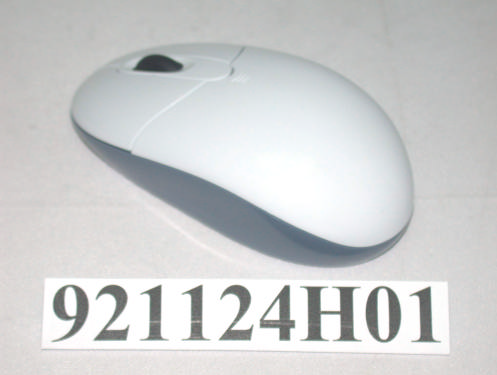

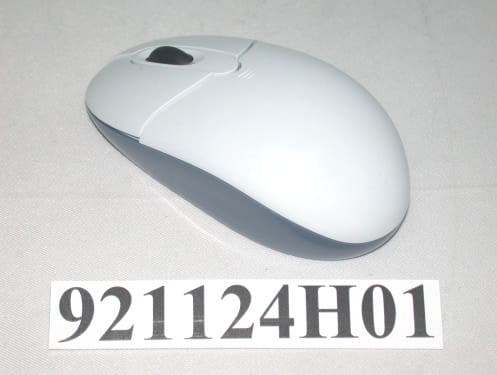

Page 1 CONSTRUCTION PHOTOS OF EUT For 1 channel Sample Page 2 For 2 channels Sample

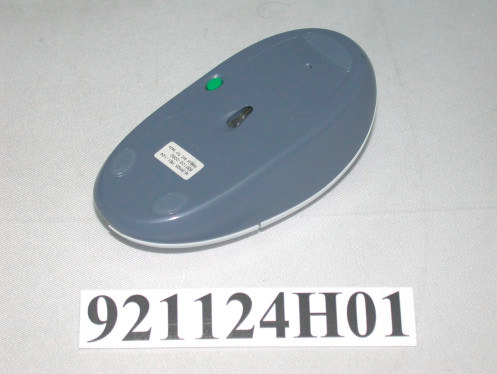

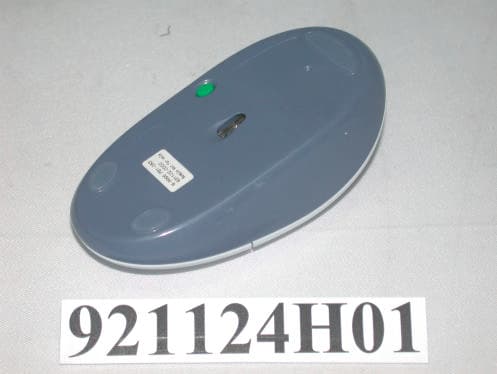

(Fig. 1) FCC ID: JNZ201760 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Model Name Label FCC ID Label

Page 1 CONSTRUCTION PHOTOS OF EUT For 1 channel Sample Page 2 Page 3 Page 4 Page 5 For 2 channels Sample Page 6 Page 7 Page 8

FCC ID: JNZ201760 ADT No. 921124H01 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The antenna is Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: JNZ201760 Report No.: RF921124H011Issued: Dec. 05, 2003 FCC TEST REPORT REPORT NO.: RF921124H01 MODEL NO.: M-RR95 RECEIVED: Nov. 25, 2003 TESTED: Nov. 26, 2003 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: JNZ201760 Report No.: RF921124H012Issued: Dec. 05, 2003 Table of Contents 1CERTIFICATION.........................................................................................................3 2SUMMARY OF TEST RESULTS.............................................................................4 3GENERAL INFORMATION.......................................................................................5 3.1GENERAL DESCRIPTION OF EUT........................................................................5 3.2DESCRIPTION OF TEST MODES..........................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................6 3.4DESCRIPTION OF SUPPORT UNITS...................................................................7 4TEST PROCEDURE AND RESULT........................................................................8 4.1CONDUCTED EMISSION MEASUREMENT........................................................8 4.2RADIATED EMISSION MEASUREMENT..............................................................8 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................8 4.2.2TEST INSTRUMENT.................................................................................................9 4.2.3TEST PROCEDURE................................................................................................10 4.2.4DEVIATION FROM TEST STANDARD................................................................10 4.2.5TEST SETUP............................................................................................................11 4.2.6EUT OPERATING CONDITION.............................................................................11 4.2.7TEST RESULT..........................................................................................................12 5PHOTOGRAPHS OF THE TEST CONFIGURATION.........................................14 6INFORMATION ON THE TESTING LABORATORIES.......................................15 FCC ID: JNZ201760 Report No.: RF921124H013Issued: Dec. 05, 2003 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : Logitech MODEL NO : M-RR95 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that two samples of the designation has been tested in our facility on Nov. 26, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. PREPARED BY:, DATE:Dec. 05, 2003 ( Carol Liao ) APPROVED BY:, DATE:Dec. 05, 2003 ( Eric Lin, Manager ) FCC ID: JNZ201760 Report No.: RF921124H014Issued: Dec. 05, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –11.7 dBuV at 243.39 MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: JNZ201760 Report No.: RF921124H015Issued: Dec. 05, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. M-RR95 POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLENA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: JNZ201760 Report No.: RF921124H016Issued: Dec. 05, 2003 3.2 DESCRIPTION OF TEST MODES There are two samples have been pretested in our facility which are identical to each other in all aspects except for the following: BrandModel Name Difference LogitechM-RR95have 2 channels (27.045MHz & 27.195MHz) LogitechM-RR95have 1 channel (27.045MHz ) NOTE: 1 channel sample, the worst case, was chosen for final test and it’s data was recorded in this report. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. FCC ID: JNZ201760 Report No.: RF921124H017Issued: Dec. 05, 2003 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. No.ProductBrandModel No.Serial No.FCC ID 1 Personal Computer HPBrio BA410SG12106043DoC 2 COLOR MONITOR ADICM100026058T10200628 ADoC 3PRINTERHPC2642AMY7961C1FQB94C2642X 4MODEMACEEX14140…

Text truncated - open the document above for the full version.

FCC ID: JNZ201760 Report No.: RF921124H0114Issued: Dec. 05, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
