JNZ201798Cordless Mouse

LOGITECH INC. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Cordless Mouse MODEL NO: M-RAJ88A TRADE NAME: Logitech IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : D930429H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION Manufacturer USA Local Representative Company name: LOGITECH FAR EAST LTD. To Be Determined. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Contact Person: T.C.Chang Title: Compliance technical manager Tel/Fax: Tel: Fax:

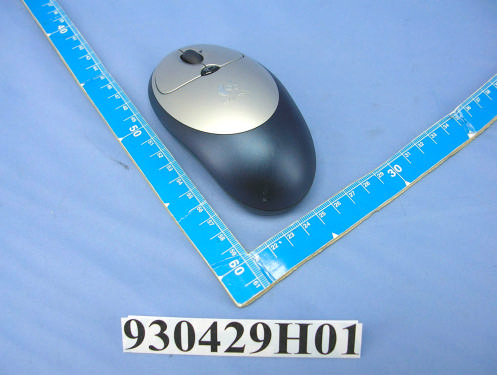

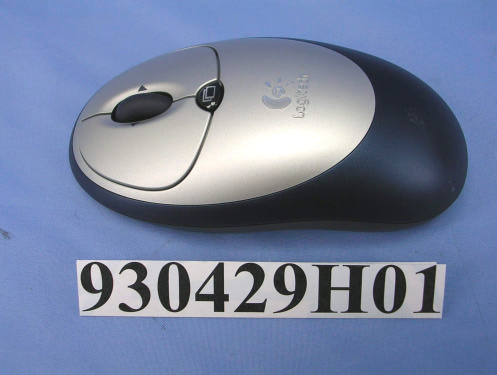

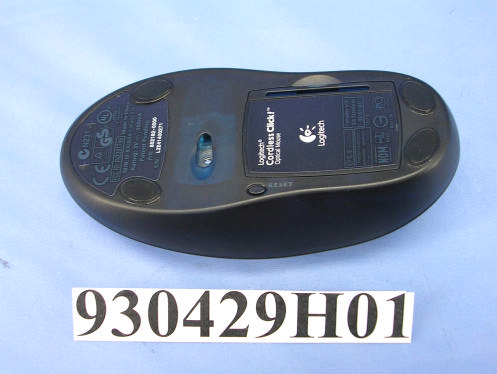

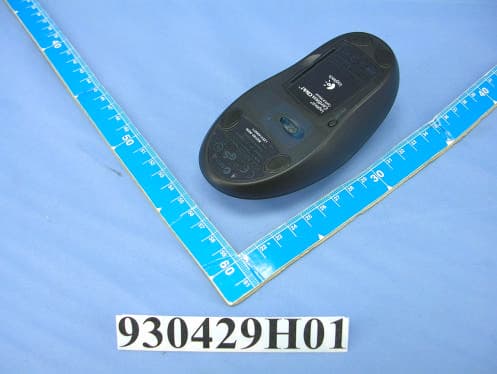

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: JNZ201798 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID: JNZ201798 Report No. RF930429H01 Operational Description The transmitter of the EUT (Cordless Mouse) is powered by 3V Battery. The antenna is Loop Antenna. The output power of this device is very low. This equipment is a 2-channel equipment with frequency 27.045 MHz and 27.195 MHz that operating frequency is 2nd harmonic of the generating Xtal frequency. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: JNZ201798 Report No.: RF930429H011 Issued: May 7, 2004 FCC TEST REPORT REPORT NO.: RF930429H01 MODEL NO.: M-RAJ88A RECEIVED: Apr. 29, 2004 TESTED: Apr. 30, 2004 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: JNZ201798 Report No.: RF930429H012Issued: May 7, 2004 Table of Contents 1CERTIFICATION.........................................................................................................3 2SUMMARY OF TEST RESULTS.............................................................................4 3GENERAL INFORMATION.......................................................................................5 3.1GENERAL DESCRIPTION OF EUT........................................................................5 3.2DESCRIPTION OF TEST MODES..........................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................6 3.4DESCRIPTION OF SUPPORT UNITS...................................................................7 4TEST PROCEDURE AND RESULT........................................................................8 4.1CONDUCTED EMISSION MEASUREMENT........................................................8 4.2RADIATED EMISSION MEASUREMENT..............................................................8 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................8 4.2.2TEST INSTRUMENT.................................................................................................9 4.2.3TEST PROCEDURE................................................................................................10 4.2.4DEVIATION FROM TEST STANDARD.................................................................10 4.2.5TEST SETUP............................................................................................................11 4.2.6EUT OPERATING CONDITION.............................................................................11 4.2.7TEST RESULT..........................................................................................................12 5PHOTOGRAPHS OF THE TEST CONFIGURATION.........................................14 6INFORMATION ON THE TESTING LABORATORIES.......................................15 FCC ID: JNZ201798 Report No.: RF930429H013Issued: May 7, 2004 1 CERTIFICATION PRODUCT : Cordless Mouse BRAND NAME : Logitech MODEL NO : M-RAJ88A TESTED: Apr. 30, 2004 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 The above equipment (Model: M-RAJ88A) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 7, 2004 ( Carol Liao ) APPROVED BY:, DATE:May 7, 2004 ( Eric Lin, Manager ) FCC ID: JNZ201798 Report No.: RF930429H014Issued: May 7, 2004 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –21.30 dBuV at 54.34 MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: JNZ201798 Report No.: RF930429H015Issued: May 7, 2004 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Cordless Mouse MODEL NO. M-RAJ88A POWER SUPPLY 3VDC from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045 MHz, 27.195MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLENA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Cordless Mouse. 2. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: JNZ201798 Report No.: RF930429H016Issued: May 7, 2004 3.2 DESCRIPTION OF TEST MODES There are two channels have been pretested in our facility which are identical to each other in all aspects except for the following: ModeFrequency 127.045MHz 227.195MHz NOTE: 27.195MHz, the worst case, was chosen for final test and it’s data was recorded in this report. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Cordless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. FCC ID: JNZ201798 Report No.: RF930429H017Issued: May 7, 2004 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. No.ProductBrandModel No.Serial No.FCC ID 1PCDELL460000043-517-542-482FCC DoC 2MONITORADIG1000240058T00100092NA 3PRINTERHPC2642AMY79F1C3MZB94C2642X 4MODEMACEEX14140206026776IFAXDM1414 5RECEIVERLogitechC-B…

Text truncated - open the document above for the full version.

FCC ID: JNZ201798 Report No.: RF930429H0114Issued: May 7, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
