JNZ201998Cordless Mouse

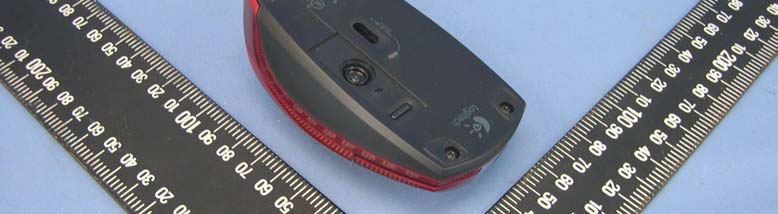

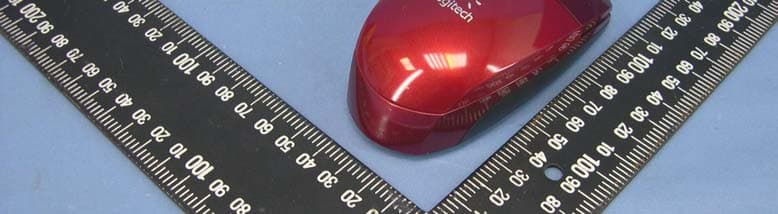

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: JNZ201998 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

M/N:M-RBK93B Rating:5V , 100mA S/N: PID: IC:4418A- 201998 CMII ID: 2005DJ0000 MADE IN CHINA ADT094LPD0000 FCC ID: JNZ201998 Graphics: Pantone 7545C Background: Midnight Black R-LPD1-05-0000 S/N & PID in house printed,white

Page 2 Page 3 Page 4 Page 5

FCC ID: JNZ201998 Report No.: RF940412H04 Operational Description The transmitter of the EUT (Cordless Mouse) is powered by 1.5VDC battery, and employing GFSK modulation with 18 channels in 2.4 GHz Band. The antenna is Loop Antenna. The other instruction, please have a look at the users manual.

FCC ID: JNZ201998 Report No.: RF940412H041 Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.: RF940412H04 MODEL NO.: M-RBK93B RECEIVED: Apr. 12, 2005 TESTED: Apr. 14 to 15, 2005 ISSUED: Apr. 20, 2005 APPLICANT:LOGITECH FAR EAST LTD. ADDRESS:#2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0536 No. 2177-01 ILAC MRA FCC ID: JNZ201998 Report No.: RF940412H04 2Report Format Version 2.0.1 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................7 3.5CONFIGURATION OF SYSTEM UNDER TEST .............................................7 4TEST PROCEDURES AND RESULTS............................................................8 4.1CONDUCTED EMISSION MEASUREMENT...................................................8 4.2RADIATED EMISSION MEASUREMENT........................................................8 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................8 4.2.2 TEST INSTRUMENTS.....................................................................................9 4.2.3 TEST PROCEDURES ...................................................................................10 4.2.4 DEVIATION FROM TEST STANDARD..........................................................10 4.2.5 TEST SETUP................................................................................................. 11 4.2.6 EUT OPERATING CONDITIONS .................................................................. 11 4.2.7 TEST RESULTS ............................................................................................12 4.3BAND EDGES MEASUREMENT ..................................................................16 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ................................................16 4.3.2 TEST INSTRUMENTS...................................................................................16 4.3.3 TEST PROCEDURE......................................................................................16 4.3.4 DEVIATION FROM TEST STANDARD..........................................................16 4.3.5 EUT OPERATING CONDITION.....................................................................16 4.3.6 TEST RESULTS ............................................................................................17 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................19 6INFORMATION ON THE TESTING LABORATORIES...................................20 FCC ID: JNZ201998 Report No.: RF940412H04 3Report Format Version 2.0.1 1 CERTIFICATION PRODUCT : Cordless Mouse BRAND NAME : Logitech MODEL NO : M-RBK93B TESTED:Apr. 14 to 15, 2005 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: M-RBK93B) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Apr. 20, 2005 ( Carol Liao ) TECHNICAL ACCEPTANCE :, DATE:Apr. 20, 2005 Responsible for RF ( Hank Chung ) APPROVED BY :, DATE:Apr. 20, 2005 ( Eric Lin, Manager ) FCC ID: JNZ201998 Report No.: RF940412H04 4Report Format Version 2.0.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test TypeResultRemark 15.207Conducted Emission TestNA Power supply is 1.5VDC from battery 15.249Radiated Emission TestPASS Minimum passing margin is –0.7dB at 4804.00MHz 15.249Band Edge MeasurementPASS Meet the requirement of limit FCC ID: JNZ201998 Report No.: RF940412H04 5Report Format Version 2.0.1 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTCordless Mouse MODEL NO.M-RBK93B POWER SUPPLY1.5VDC from battery MODULATION TYPEGFSK CARRIER FREQUENCY OF EACH CHANNEL 2402MHz,2420MHz,2421MHz,2422MHz,2423MHz, 2424MHz,2425MHz,2426MHz,2448MHz,2449MHz, 2450MHz,2451MHz,2452MHz,2463MHz,2464MHz, 2471MHz,2472MHz 2473MHz, NUMBER OF CHANNEL18 ANTENNA TYPELoop Antenna DATA CABLE NA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of Cordless Mouse. 2. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: JNZ201998 Report No.: RF940412H04 6Report Format Version 2.0.1 3.2 DESCRIPTION OF TEST MODES Eighteen channels are provided in this EUT. ChannelFrequencyChannelFrequency 02402 MHz92449 MHz 12420 MHz102450 MHz 22421 MHz112451 MHz 32422 MHz122452 MHz 42423 MHz132463 MHz 52424 MHz142464 MHz 62425 MHz152471 MHz 72426 MHz162472 MHz 82448 MHz172473 MHz NOTE: 1. …

Text truncated - open the document above for the full version.

FCC ID: JNZ201998 Report No.: RF940412H04 19Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
