JNZ202484Cordless Mouse

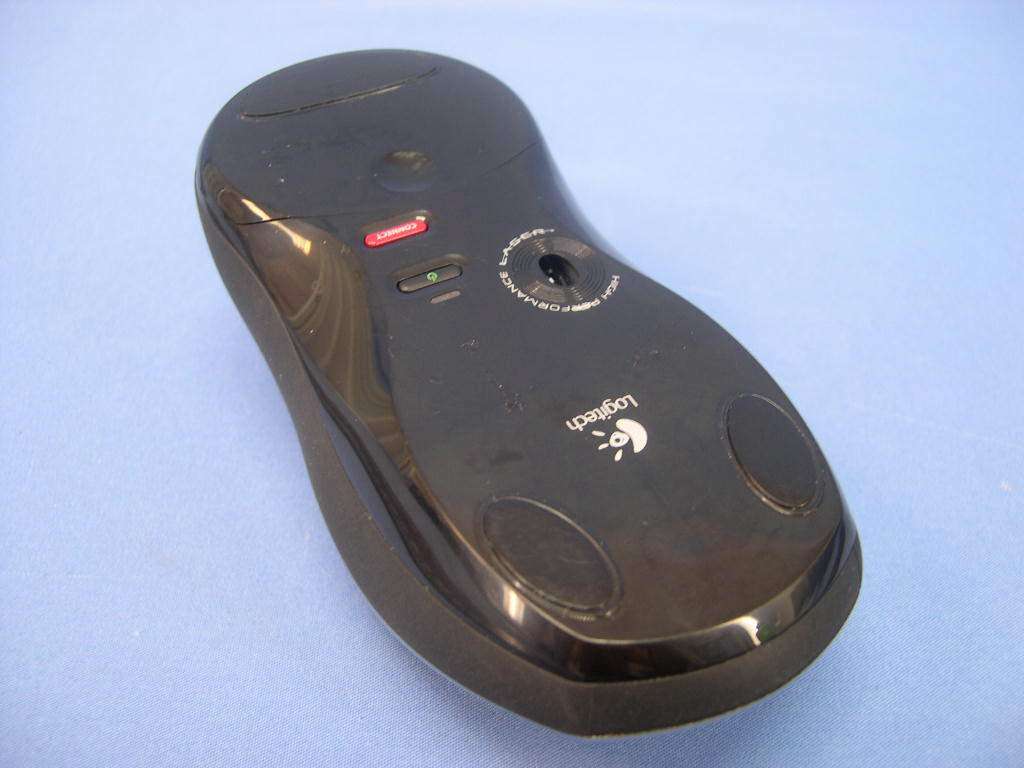

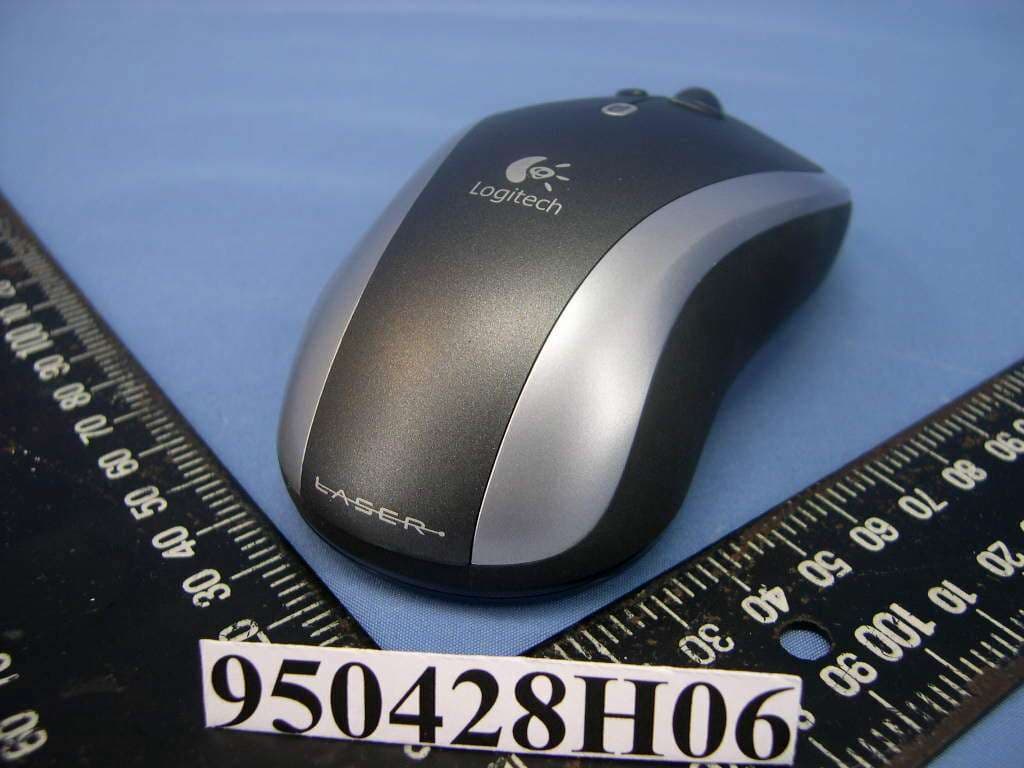

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: JNZ202484 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC Label 2.2 cm 1.8cm

Page 2 Page 3 Page 4 Page 5

Report No.: RF950428H06 1Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950428H06 MODEL NO.: M-RBW112 RECEIVED: April 28, 2006 TESTED: April 28 to May 02, 2006 ISSUED: May 08, 2006 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 17 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950428H06 2Report Format Version 2.0.4 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.2DESCRIPTION OF TEST MODES..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS............................................................6 4EMISSION TEST.............................................................................................7 4.1RADIATED EMISSION & OCCUPIED BANDWIDTH MEASUREMENT..........7 4.1.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................7 4.1.2TEST INSTRUMENT.......................................................................................8 4.1.3TEST PROCEDURE........................................................................................9 4.1.4DEVIATION FROM TEST STANDARD..........................................................10 4.1.5TEST SETUP (RADIATED EMISSION).........................................................11 4.1.6EUT OPERATING CONDITION.....................................................................11 4.1.7TEST RESULT (RADIATED EMISSION).......................................................12 4.1.8TEST RESULT (RADIATED EMISSION).......................................................13 4.1.9TEST RESULTS (BAND EDGES MEASUREMENT).....................................14 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................15 6INFORMATION ON THE TESTING LABORATORIES...................................16 APPENDIX-A....................................................................................................A-1 Report No.: RF950428H06 3Report Format Version 2.0.4 1 CERTIFICATION PRODUCT : Cordless Mouse BRAND NAME : Logitech MODEL NO : M-RBW112 TESTED: April 28 to May 02, 2006 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C(Section 15.227) ANSI C63.4: 2003 The above equipment (Model: M-RBW112) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY: , DATE:May 08, 2006 ( Midoli Peng ) TECHNICAL ACCEPTANCE:, DATE:May 08, 2006 Responsible for RF ( Hank Chung ) APPROVED BY:, DATE:May 08, 2006 ( May Chen, Deputy Manager ) Report No.: RF950428H06 4Report Format Version 2.0.4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply are 1.5 VDC from batteries 15.227 / 15.209Radiated Emission TestPASS Minimum passing margin is –16.3 dB at 81.13 MHz 15.227Band Edges TestPASS Meet the requirement of limit NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. Report No.: RF950428H06 5Report Format Version 2.0.4 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Cordless Mouse MODEL NO. M-RBW112 FCC ID JNZ202484 POWER SUPPLY 1.5 VDC from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045 MHz, 27.195MHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Cordless Mouse. 2. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950428H06 6Report Format Version 2.0.4 3.2 DESCRIPTION OF TEST MODES There are two channels have been pre-tested in our facility as following: Pre-test ModeFrequency 127.045MHz 227.195MHz NOTE: 27.045MHz, the worst case was chosen for final test and its data was recorded in this report. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Cordless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C (Section 15.227) ANSI C63.4-2003 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit. Report No.: RF950428H06 7Report Format Version 2.0.4 4 EMISSION TEST 4.1 RADIATED EMISSION & OCCUPIED BANDWIDTH MEASUREMENT 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not…

Text truncated - open the document above for the full version.

Report No.: RF950428H06 15Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
