JNZ212313Gorilla24 2.4GHz Keyboard

(Fig. 1) FCC ID: JNZ212313 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC Label 5 cm 22cm

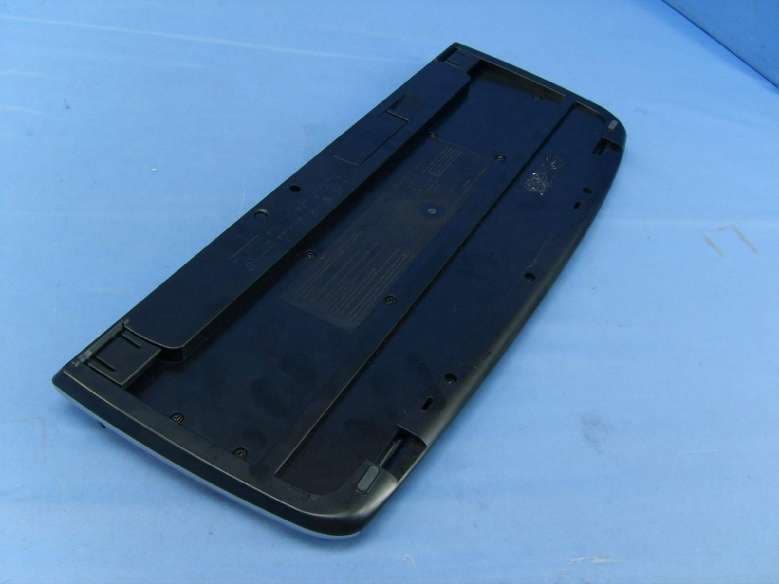

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6

Report No.: RF950727H03 1Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950727H03 MODEL NO.: Y- R AT 7 9 A RECEIVED: July 27, 2006 TESTED: Aug. 03 to 07, 2006 ISSUED: Aug. 10, 2006 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950727H03 2Report Format Version 2.0.4 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................7 3.5CONFIGURATION OF SYSTEM UNDER TEST..............................................7 4TEST PROCEDURES AND RESULTS............................................................8 4.1CONDUCTED EMISSION MEASUREMENT...................................................8 4.2RADIATED EMISSION MEASUREMENT........................................................8 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................8 4.2.2 TEST INSTRUMENTS...................................................................................10 4.2.3 TEST PROCEDURES ................................................................................... 11 4.2.4 DEVIATION FROM TEST STANDARD.......................................................... 11 4.2.5 TEST SETUP.................................................................................................12 4.2.6 EUT OPERATING CONDITIONS ..................................................................12 4.2.7 TEST RESULTS ............................................................................................13 4.3BAND EDGES MEASUREMENT ..................................................................17 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ................................................17 4.3.2 TEST INSTRUMENTS...................................................................................17 4.3.3 TEST PROCEDURE......................................................................................17 4.3.4 DEVIATION FROM TEST STANDARD..........................................................17 4.3.5 EUT OPERATING CONDITION.....................................................................17 4.3.6 TEST RESULTS ............................................................................................18 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................20 6INFORMATION ON THE TESTING LABORATORIES...................................21 APPENDIX-A.................................................................................................... A-1 Report No.: RF950727H03 3Report Format Version 2.0.4 1 CERTIFICATION PRODUCT : Gorilla24 2.4GHz Keyboard BRAND NAME : Logitech MODEL NO : Y- R AT 7 9 A TESTED: Aug. 03 to 07, 2006 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: Y-RAT79A) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Aug. 10, 2006 ( Midoli Peng ) TECHNICAL ACCEPTANCE : , DATE:Aug. 10, 2006 Responsible for RF ( Hank Chung ) APPROVED BY :, DATE:Aug. 10, 2006 ( May Chen, Deputy Manager ) Report No.: RF950727H03 4Report Format Version 2.0.4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test TypeResultRemark 15.207Conducted Emission TestNA Power supply is 3VDC from battery 15.249Radiated Emission TestPASS Minimum passing margin is –0.9dB at 7443.00MHz 15.249Band Edge MeasurementPASS Meet the requirement of limit Report No.: RF950727H03 5Report Format Version 2.0.4 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Gorilla24 2.4GHz Keyboard MODEL NO. Y- R AT 7 9 A FCC ID JNZ212313 POWER SUPPLY 3VDC from battery MODULATION TYPE GFSK CARRIER FREQUENCY OF EACH CHANNEL 2402MHz ~ 2481MHz NUMBER OF CHANNEL 80 ANTENNA TYPE PCB printed meander line antenna with 0dBi antenna gain DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950727H03 6Report Format Version 2.0.4 3.2 DESCRIPTION OF TEST MODES Eighty channels are provided to this EUT. Channel Freq. (MHz) Channel Freq. (MHz) Channel Freq. (MHz) Channel Freq. (MHz) 02402202422402442602462 12403212423412443612463 22404222424422444622464 32405232425432445632465 42406242426442446642466 52407252427452447652467 62408262428462448662468 72409272429472449672469 82410282430482450682470 9241…

Text truncated - open the document above for the full version.

Report No.: RF950727H03 20Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
