JNZ2123152.4GHz Transceiver

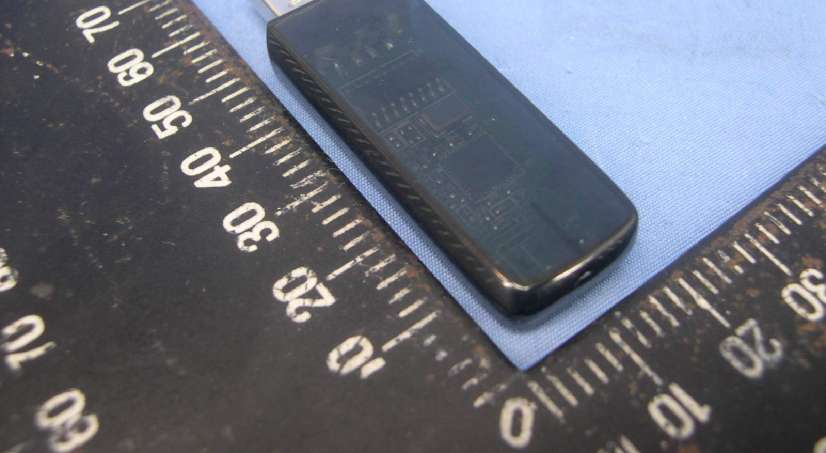

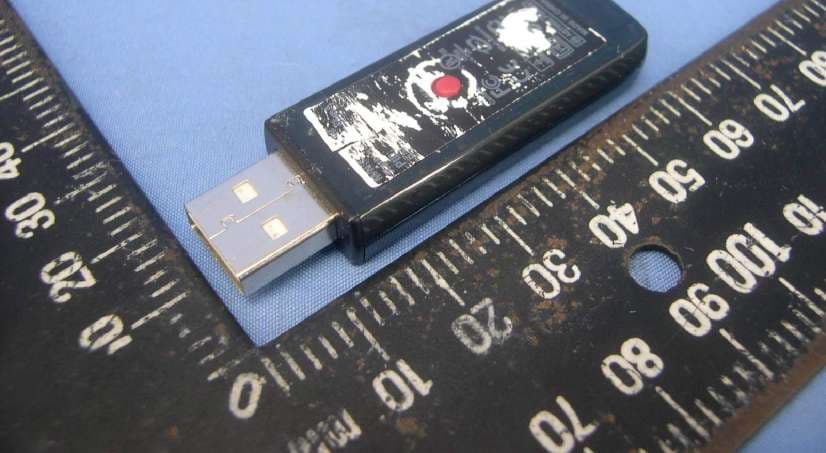

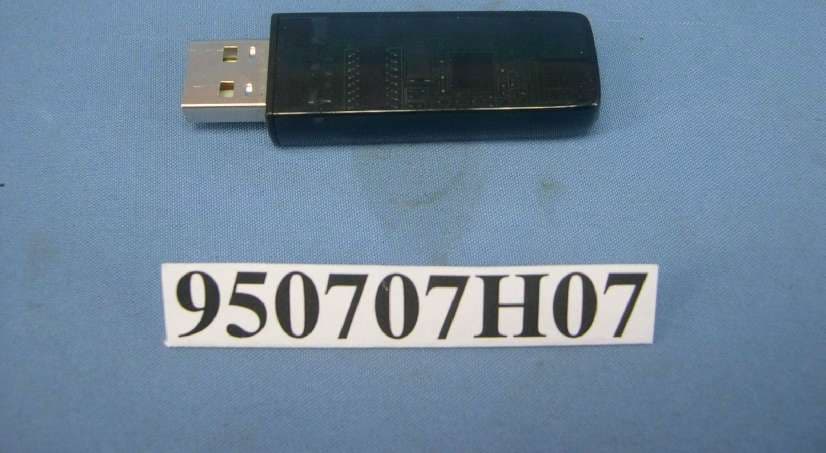

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: JNZ212315 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC Label 1.4 cm 3.5cm

R C O N N E C T FCC ID:JNZ212315 IC:4418A-212315 M/N:C-UAM35 P/N: Rating:5V ,100mA PID: BOPPITY Background: CCP 711272-3000 (Midnight Black) Graphics: PMS 7543C PDM: 645368-2000

Page 3 Page 4

Report No.: RF950707H07 1Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950707H07 MODEL NO.: C-UAM35 RECEIVED: July 10, 2006 TESTED: July 13 to 17, 2006 ISSUED: July 31, 2006 APPLICANT:LOGITECH FAR EAST LTD. ADDRESS:#2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 28 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950707H07 2Report Format Version 2.0.5 Table of Contents 1CERTIFICATION .............................................................................................. 3 2SUMMARY OF TEST RESULTS...................................................................... 4 3GENERAL INFORMATION .............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ................................................................ 5 3.2DESCRIPTION OF TEST MODES .................................................................. 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................. 6 3.4DESCRIPTION OF SUPPORT UNITS............................................................. 7 3.5CONFIGURATION OF SYSTEM UNDER TEST.............................................. 7 4TEST PROCEDURES AND RESULTS ............................................................ 8 4.1CONDUCTED EMISSION MEASUREMENT................................................... 8 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................ 8 4.1.2 TEST INSTRUMENTS ..................................................................................... 8 4.1.3 TEST PROCEDURES...................................................................................... 9 4.1.4 TEST SETUP ................................................................................................... 9 4.1.5 EUT OPERATING CONDITIONS................................................................... 10 4.1.6 TEST RESULTS............................................................................................. 11 4.2RADIATED EMISSION MEASUREMENT...................................................... 13 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 13 4.2.2 TEST INSTRUMENTS ................................................................................... 15 4.2.3 TEST PROCEDURES.................................................................................... 16 4.2.4 DEVIATION FROM TEST STANDARD .......................................................... 16 4.2.5 TEST SETUP ................................................................................................. 17 4.2.6 EUT OPERATING CONDITIONS................................................................... 17 4.2.7 TEST RESULTS............................................................................................. 18 4.3BAND EDGES MEASUREMENT................................................................... 22 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ................................................ 22 4.3.2 TEST INSTRUMENTS ................................................................................... 22 4.3.3 TEST PROCEDURE ...................................................................................... 22 4.3.4 DEVIATION FROM TEST STANDARD .......................................................... 22 4.3.5 EUT OPERATING CONDITION ..................................................................... 22 4.3.6 TEST RESULTS............................................................................................. 23 5PHOTOGRAPHS OF THE TEST CONFIGURATION .................................... 25 6INFORMATION ON THE TESTING LABORATORIES................................... 27 APPENDIX-A.................................................................................................... A-1 Report No.: RF950707H07 3Report Format Version 2.0.5 1 CERTIFICATION PRODUCT : 2.4GHz Transceiver BRAND NAME : Logitech MODEL NO : C-UAM35 TESTED:July 13 to 17, 2006 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: C-UAM35) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:July 31, 2006 ( Midoli Peng ) TECHNICAL ACCEPTANCE :, DATE:July 31, 2006 Responsible for RF ( Hank Chung ) APPROVED BY :, DATE:July 31, 2006 ( May Chen, Deputy Manager ) Report No.: RF950707H07 4Report Format Version 2.0.5 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test TypeResultRemark 15.207Conducted Emission TestPASS Minimum passing margin is –17.26dB at 0.173MHz 15.249Radiated Emission TestPASS Minimum passing margin is –10.0dB at 874.99MHz 15.249Band Edge MeasurementPASS Meet the requirement of limit Report No.: RF950707H07 5Report Format Version 2.0.5 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT2.4GHz Transceiver MODEL NO.C-UAM35 FCC IDJNZ212315 POWER SUPPLYDC 5.0V from host equipment MODULATION TYPEGFSK CARRIER FREQUENCY OF EACH CHANNEL 2402MHz ~ 2481MHz NUMBER OF CHANNEL80 ANTENNA TYPE PCB printed meander line antenna with 0dBi antenna gain DATA…

Text truncated - open the document above for the full version.

Report No.: RF950707H07 25Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950707H07 26Report Format Version 2.0.5 RADIATED EMISSION TEST
