JNZ212316Gorilla24 2.4GHz Mouse

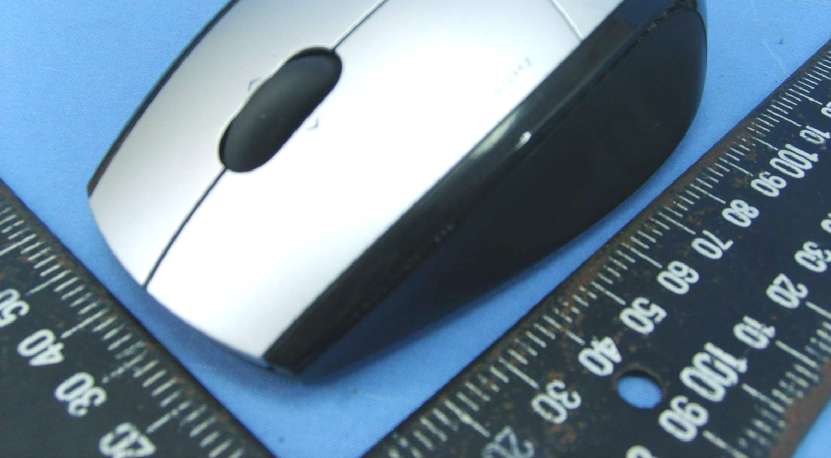

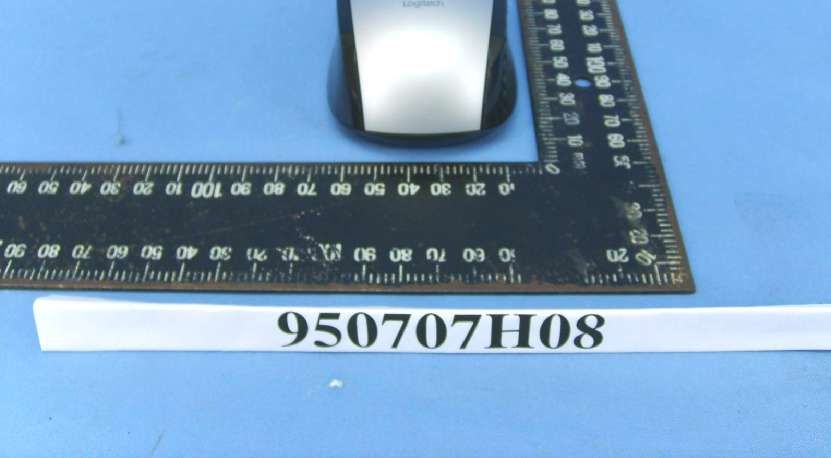

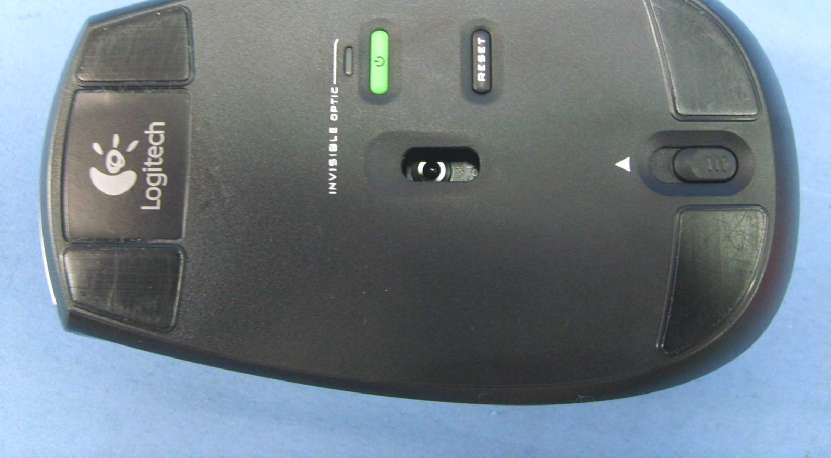

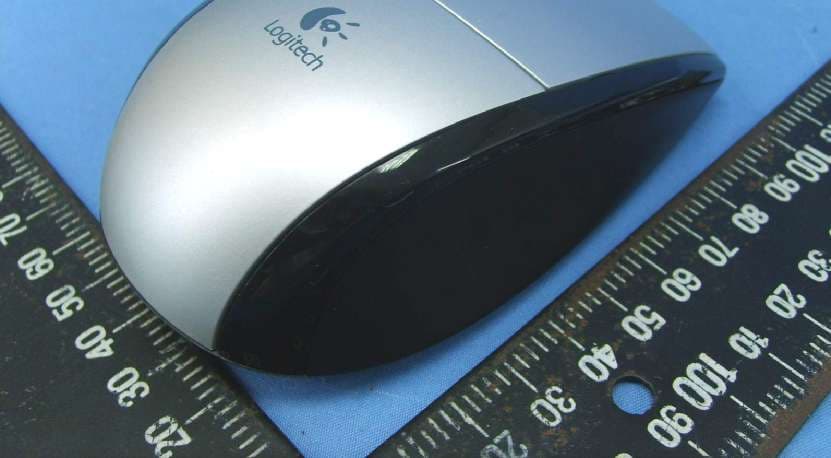

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: JNZ212316 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC Label 1.4 cm 2 cm

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

Report No.: RF950707H08 1Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950707H08 MODEL NO.: M-RBV114 RECEIVED: July 07, 2006 TESTED: July 21, 2006 ISSUED: July 27, 2006 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950707H08 2Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.2DESCRIPTION OF TEST MODES..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4DESCRIPTION OF SUPPORT UNITS............................................................7 3.5CONFIGURATION OF SYSTEM UNDER TEST.............................................7 4TEST PROCEDURES AND RESULTS...........................................................8 4.1CONDUCTED EMISSION MEASUREMENT..................................................8 4.2RADIATED EMISSION MEASUREMENT.......................................................8 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................8 4.2.2TEST INSTRUMENTS..................................................................................10 4.2.3TEST PROCEDURES....................................................................................11 4.2.4DEVIATION FROM TEST STANDARD..........................................................11 4.2.5TEST SETUP................................................................................................12 4.2.6EUT OPERATING CONDITIONS..................................................................12 4.2.7TEST RESULTS............................................................................................13 4.3BAND EDGES MEASUREMENT..................................................................19 4.3.1LIMITS OF BAND EDGES MEASUREMENT...............................................19 4.3.2TEST INSTRUMENTS..................................................................................19 4.3.3TEST PROCEDURE.....................................................................................19 4.3.4DEVIATION FROM TEST STANDARD.........................................................19 4.3.5EUT OPERATING CONDITION....................................................................19 4.3.6TEST RESULTS............................................................................................20 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................22 6INFORMATION ON THE TESTING LABORATORIES..................................23 APPENDIX-A....................................................................................................A-1 Report No.: RF950707H08 3Report Format Version 2.0.4 1 CERTIFICATION PRODUCT : Gorilla24 2.4GHz Mouse BRAND NAME : Logitech MODEL NO : M-RBV114 TESTED: July 21, 2006 APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: M-RBV114) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY: , DATE:July 27, 2006 ( Carol Liao ) TECHNICAL ACCEPTANCE: , DATE:July 27, 2006 Responsible for RF ( Hank Chung ) APPROVED BY:, DATE:July 27, 2006 ( May Chen, Deputy Manager ) Report No.: RF950707H08 4Report Format Version 2.0.4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test TypeResultRemark 15.207Conducted Emission TestNA Power supply is 1.5VDC from battery 15.249Radiated Emission TestPASS Minimum passing margin is –11.30dB at 2484.00MHz 15.249 Band Edge Measurement PASS Meet the requirement of limit Report No.: RF950707H08 5Report Format Version 2.0.4 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Gorilla24 2.4GHz Mouse MODEL NO. M-RBV114 FCC ID JNZ212316 POWER SUPPLY 1.5VDC from battery MODULATION TYPE GFSK CARRIER FREQUENCY OF EACH CHANNEL 2402MHz ~ 2481MHz NUMBER OF CHANNEL 80 ANTENNA TYPE PCB printed meander line antenna with 0dBi antenna gain DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950707H08 6Report Format Version 2.0.4 3.2 DESCRIPTION OF TEST MODES Eighty channels are provided to this EUT. Channel Freq. (MHz) Channel Freq. (MHz) Channel Freq. (MHz) Channel Freq. (MHz) 02402202422402442602462 12403212423412443612463 22404222424422444622464 32405232425432445632465 42406242426442446642466 52407252427452447652467 62408262428462448662468 72409272429472449672469 82410282430482450682470 92411292431492451692471 102412302431502452702472 112413312433512453712473 12…

Text truncated - open the document above for the full version.

Report No.: RF950707H08 22Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
