JNZ221394USB Mouse

Logitech Far East Ltd

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Jan 27, 2000
Application Purpose: Original Equipment
Date of Application: Jan 16, 2000
Equipment Note: USB Mouse
Company: Logitech Far East Ltd
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

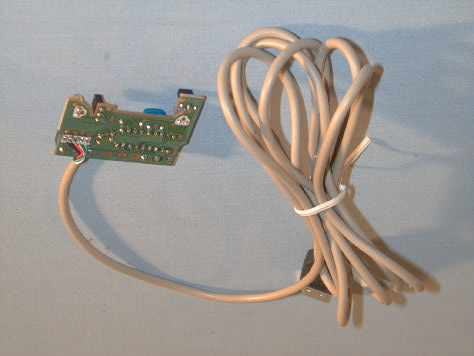

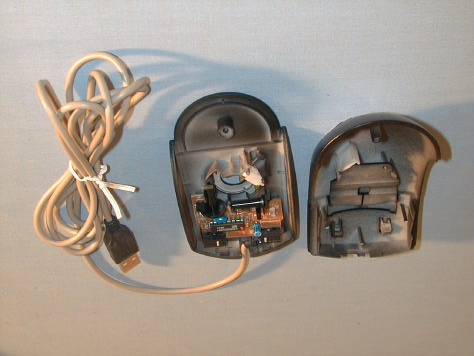

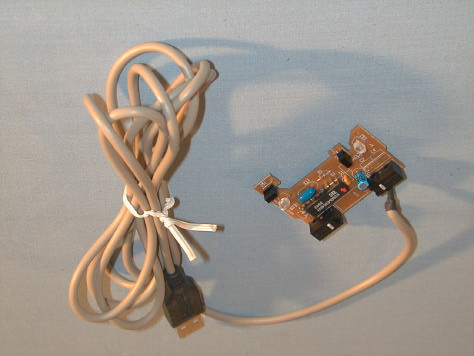

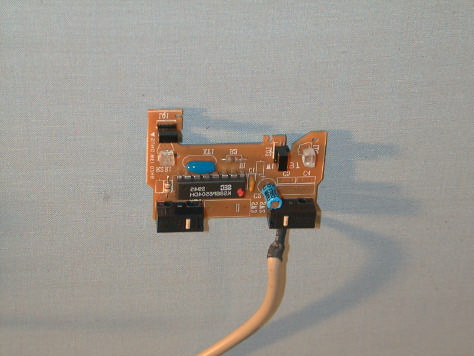

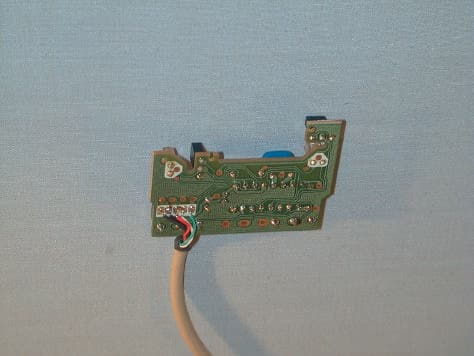

QuieTek Corporation Page: 1 of 4 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detail Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 4 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 4 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo (6) EUT Photo QuieTek Corporation Page: 4 of 4 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo (8) EUT Photo

External Photos

Test Report

QuieTek Corporation Page: 1 of 15 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : Logitech Far East Ltd. Equipment Type : Mouse Model : M-UL-IBM6 FCC ID : JNZ221394 Report No. : 99CH015FI QuieTek Corporation Page: 2 of 15 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : Logitech Far East Ltd. Address : No.2 Creation Rd.4, Science-Based Ind. Park, Hsinchu Taiwan, R.O.C. Equipment Type : Mouse Model : M-UL-IBM6 FCC ID. : JNZ221394 Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 Operation Voltage : DC 5V Classification : Class B Test Result : Complied Test Date : December 28, 1999 Report No. : 99CH015FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Zoe Lee Test Engineer: Peter Wu Approved: Gene Chang QuieTek Corporation Page: 3 of 15 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................7 1.4 EUT Exercise Software.......................................................................................................................................7 1.5 Test performed....................................................................................................................................................8 1.6 Test Facility........................................................................................................................................................9 2. CONDUCTED EMISSION.............................................................................................................................10 2.1 Test Equipment List...........................................................................................................................................10 2.2 Test Setup.........................................................................................................................................................10 2.3 Limits...............................................................................................................................................................10 2.4 Test Procedure...................................................................................................................................................11 2.5 Test Results.......................................................................................................................................................11 3. RADIATED EMISSION.................................................................................................................................12 3.1 Test Equipment.................................................................................................................................................12 3.2 Test Setup.........................................................................................................................................................12 3.3 Limits...............................................................................................................................................................13 3.4 Test Procedure...................................................................................................................................................13 3.5 Test Results.......................................................................................................................................................13 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................14 5. ATTACHMENT..............................................................................................................................................15 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAIL PHOTOGRAPHS QuieTek Corporation Page: 4 of 15 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : Logitech Far East Ltd. Address : No.2 Creation Rd.4, Science-Based Ind. Park, Hsinchu Taiwan, R.O.C. Equipment Type : Mouse Model : M-UL-IBM6 FCC ID : JNZ221394 Operation Voltage : DC 5V Data Cable : Shielded, 1.8m Remark: 1.The EUT is a USB interface Mouse. 2.QuieTek had verified the construction and function in typical operation, then shown in test report. QuieTek Corporation Page: 5 of 15 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted cards ) are: 1.2.1 Mouse (EUT) Model Number : M-UL IBM6 Serial Number :N/A FCC ID : JNZ22…

Text truncated - open the document above for the full version.

Test Report

QuieTek Corporation Page: 1 of 5 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 1 : Summary of Test Results The test results in the emission were performed according to the requirements of measurement standard and process. QuieTek Corporation is assumed full responsibility for the accuracy and completeness of these measurements. The test data of the emission are listed as the attached data. All the tests were carried out with the EUT in normal operation, which was defined as: Mode 1 : M-UL-IBM6 The EUT passed all the tests. The uncertainty is calculated in accordance with NAMAS NIS 81, The total uncertainty for this test is as follows: ÿÿ Emission Test • Uncertainty in the Conducted Emission Test: < ± 2.0 dB • Uncertainty in the field strength measured: < ± 4.0 dB QuieTek Corporation Page: 2 of 5 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 28, 1999 EUT : Mouse Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ====================================================================== 0.182 0.01 0.10 37.10 37.21 64.39 0.232 0.02 0.10 30.70 30.82 62.38 9.146 0.27 0.20 39.10 39.56 60.00 *9.942 0.28 0.20 38.70 39.18 60.00 14.119 0.32 0.33 37.50 38.14 60.00 24.579 0.38 0.53 28.50 29.40 60.00 Average: 0.182 0.01 0.10 37.10 37.21 54.39 0.232 0.02 0.10 30.70 30.82 52.38 9.146 0.27 0.20 39.10 39.56 50.00 9.942 0.28 0.20 37.40 37.88 50.00 14.119 0.32 0.33 37.50 38.14 50.00 24.579 0.38 0.53 28.50 29.40 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 3 of 5 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : December 28, 1999 EUT : U-ML IBM6 Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.204 0.02 0.10 30.30 30.42 63.45 0.305 0.04 0.10 21.50 21.64 60.11 0.411 0.05 0.10 25.90 26.05 57.63 8.752 0.26 0.19 40.00 40.46 60.00 *9.345 0.27 0.20 40.00 40.47 60.00 13.970 0.31 0.32 36.70 37.34 60.00 Average: 0.204 0.02 0.10 28.10 28.22 53.45 0.305 0.04 0.10 21.40 21.54 50.11 0.411 0.05 0.10 25.70 25.85 47.63 8.752 0.26 0.19 34.60 35.06 50.00 9.345 0.27 0.20 38.30 38.77 50.00 13.970 0.31 0.32 34.90 35.54 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 4 of 5 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 R ADIATED E MISSION D ATA Date of Test : December 10, 1999 EUT : Mouse Test Mode : Mode 1 Test Site : No.1 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Horizontal MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ================================================================== 48.000 1.33 8.92 0.00 6.39 16.64 13.36 30.00 400 153 108.000 1.90 11.79 0.00 4.74 18.43 11.57 30.00 400 187 *144.000 2.24 11.16 0.00 9.20 22.60 7.40 30.00 400 15 168.020 2.48 9.59 0.00 2.17 14.23 15.77 30.00 400 203 192.020 2.71 9.00 0.00 2.82 14.53 15.47 30.00 400 51 228.033 3.06 10.08 0.00 5.25 18.38 11.62 30.00 400 189 264.035 3.40 14.08 0.00 9.23 26.71 10.29 37.00 400 11 624.093 5.44 19.30 0.00 4.61 29.36 7.64 37.00 130 92 648.093 5.56 19.23 0.00 4.27 29.06 7.94 37.00 130 97 Remarks: 1.All Readings below 1GHz are Quasi-Peak, above are average value. 2.“ * ”, means this data is the worst emission level. 3.Emission Level = Reading Level + Antenna Factor + Cable loss QuieTek Corporation Page: 5 of 5 FCC Report No.: 99CH015FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 R ADIATED E MISSION D ATA Date of Test : December 10, 1999 EUT : U-ML IBM6 Test Mode : Mode 1 Test Site : No.1 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Vertical MHz dB dB/m dB dBuV dBuV dB dBuV/m cm deg ==================================================================== 36.000 1.21 14.68 0.00 5.18 21.06 8.94 30.00 105 29 *48.000 1.33 8.03 0.00 17.55 26.91 3.09 30.00 105 155 108.000 1.90 11.17 0.00 13.71 26.78 3.22 30.00 105 196 144.023 2.24 10.86 0.00 5.47 18.57 11.43 30.00 105 180 191.992 2.71 8.88 0.00 6.71 18.30 11.70 30.00 105 124 240.038 3.17 11.22 0.00 4.82 19.21 17.79 37.00 105 79 264.035 3.40 14.12 0.00 9.13 26.65 10.35 37.00 105 125 Remarks: 1.All Readings below 1GHz are Quasi-Peak, above are average value. 2.“ * ”, means this data is the worst emission level. 3.Emission Level = Reading Level + Antenna Factor + Cable loss
