JNZ221613Joystick and USB Transceiver

Logitech Far East Ltd

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Sep 16, 2002
Application Purpose: Original Equipment
Date of Application: Sep 12, 2002
Equipment Note: Joystick and USB Transceiver
Frequency Range: 2402.00000000 - 2480.00000000
Company: Logitech Far East Ltd
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910709R01. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention. LOGITECH FAR EAST LTD. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Tel: 035-778-241 Fax: 035-778-246

Users Manual

ENGLISH You are now ready to play a game. DEUTSCH Sie können jetzt ein Spiel aufrufen. FRANÇAIS Vous êtes maintenant prêt à jouer. ITALIANO Ora è possibile incominciare a giocare. ESPAÑOL Ya puede empezar a jugar. PORTUGUÊS Agora você está preparado para jogar um jogo. NEDERLANDS U bent nu klaar om een spel te beginnen. SVENSKA Nu kan du börja spela. DANSK Nu er du klar til at spille et spil. NORSK Du er nå klar til å begynne å spille. SUOMI Olet nyt valmis pelaamaan. ∂ÏÏËÓÈÎ¿ DÒÚ· ÌÔÚÂ›ÙÂ Ó· ·Ú ̄›ÛÂÙÂ ÙÔ ·È ̄Ó›‰È. По-русски Теперь можно начать игру. MAGYAR Máris játszhat! ČESKÁ VERZE Nyní můžete spustit hru. PO POLSKU Teraz już możesz przystąpić do gry. ENGLISH You are now ready to play a game. DEUTSCH Sie können jetzt ein Spiel aufrufen. FRANÇAIS Vous êtes maintenant prêt à jouer. ITALIANO Ora è possibile incominciare a giocare. ESPAÑOL Ya puede empezar a jugar. PORTUGUÊS Agora você está preparado para jogar um jogo. NEDERLANDS U bent nu klaar om een spel te beginnen. SVENSKA Nu kan du börja spela. DANSK Nu er du klar til at spille et spil. NORSK Du er nå klar til å begynne å spille. SUOMI Olet nyt valmis pelaamaan. ∂ÏÏËÓÈÎ¿ DÒÚ· ÌÔÚÂ›ÙÂ Ó· ·Ú ̄›ÛÂÙÂ ÙÔ ·È ̄Ó›‰È. По-русски Теперь можно начать игру. MAGYAR Máris játszhat! ČESKÁ VERZE Nyní můžete spustit hru. PO POLSKU Teraz już możesz przystąpić do gry. 4 3 USB ENGLISH When prompted, insert connector into USB port. DEUTSCH FRANÇAIS ITALIANO ESPAÑOL PORTUGUÊS NEDERLANDS SVENSKA DANSK NORSK SUOMI ∂ÏÏËÓÈÎ¿ По-русски MAGYAR ČESKÁ VERZE PO POLSKU 3 4 6 1 2 ENGLISH On joystick, remove battery cover, insert batteries, and replace cover. Press a joystick button to establish connection. Joystick status indicator: 1. Orange for 5 seconds when joystick searches for connection with receiver. 2. Green for 5 seconds after connectioin is made with receiver. 3. Blinks red when batteries are low. Receiver LED: 1. Slowly blinks green when there is no connection between joystick and receiver. 2. Is solid green when joystick and receiver are communicating. 3. Quickly blinks green when receiver searches for new joystick. DEUTSCH FRANÇAIS ITALIANO ESPAÑOL PORTUGUÊS NEDERLANDS SVENSKA DANSK NORSK SUOMI ∂ÏÏËÓÈÎ¿ По-русски MAGYAR ČESKÁ VERZE PO POLSKU 5 ENGLISH Software includes the Profiler: use it to optimize the performance of your device. DEUTSCH Mit der mitgelieferten Software (Profiler) können Sie die Geräteleistung optimieren. FRANÇAIS Le logiciel inclut Profiler: utilisez-le pour optimiser les performances de votre dispositif. ITALIANO Il software comprende Profiler: utilizzare questa applicazione per ottimizzare le prestazioni del dispositivo. ESPAÑOL El software incluye Profiler: utilícelo para optimizar el rendimiento del dispositivo. PORTUGUÊS Profiler incluso no software: use-o para otimizar o desempenho do dispositivo. NEDERLANDS Software omvat de Profiler: hiermee kunt u de prestaties van uw apparaat optimaliseren. SVENSKA Profiler ingår i programmet: använd det för att finjustera enheten. DANSK I softwaren findes programmet Profiler: Brug det til at optimere denne enhed. NORSK Programvaren inkluderer Profiler: Bruk den for å optimere enhetens funksjoner. SUOMI Profiler sisältyy ohjelmistoon: Käytä sitä optimoidaksesi laitteen toiminta. ∂ÏÏËÓÈÎ¿ ìÙÔ ÏÔÁÈÛÌÈÎfi ÂÚÈÏØÌ‚¿ÓÂÙØÈ ÙÔ Profiler: ÃÚËÛÈÌÔÔÈ‹ÛÙÂ ÙÔ ÁÈØ ÓØ ‚ÂÏÙÈÛÙÔÔÈ‹ÛÂÙÂ ÙËÓ ØfiòÔÛË ÙË ̃ Û ̆ÛÎÂ ̆‹ ̃ ÛØ ̃. По-русски В состав программного обеспечения входит программа Profiler, которая позволяет повысить эффективность работы данного устройства. MAGYAR A szoftver tartalmazza a Profiler programot, amellyel optimalizálhatja az eszköz teljesítményét. ČESKÁ VERZE Součástí softwaru je program Profiler. Slouží k optimalizaci výkonu tohoto zařízení. PO POLSKU Oprogramowanie zawiera tzw. Profiler, który pomoże ci zoptymalizować dzia’anie urządzenia. LOGITECH ON THE WORLD WIDE WEB: WWW.LOGITECH.COM ©2002 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. © 2002 Logitech. Tous droits réservés. Logitech, le logo Logitech et les autres marques Logitech sont la propriété exclusive de Logitech et sont susceptibles d’être des marques déposées. Toutes les autres marques sont la propriété exclusive de leurs détenteurs respectifs. Logitech décline toute responsabilité en cas d'erreurs dans ce manuel. Les informations énoncées dans le présent document peuvent faire l’objet de modifications sans avis préalable. Pa rt number: 623051-0914

Users Manual

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 18, 2002 RE: Logitech Far East Ltd. FCC ID: JNZ221613 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The block diagram should show the frequency of all oscillators in the transmitter portion of the device (CFR 2.1033(a)(5)). Please provide a corrected copy. 2) Based on information given by the FCC, (see attachment), it is our understanding that this submittal will need to be separated into 2 independent submittals, one for the joystick, the other for the USB transceiver. Please let us know how you wish for us to handle this submittal (i.e., should this application be for the joystick or the USB transceiver). We are going ahead and proofing all information supplied assuming the device being certified is the joystick portion. The remaining questions assume that that this submittal will be for the joystick portion of the system. 3) Please provide a cover letter stating the device being certified in this application is the joystick portion only, and to ignore any information given related to the USB transceiver portion. 4) The schematics appear to be of the main portion of the joystick. However, schematics were not provided for the RF TX circuitry. Please provide the missing schematics. 5) The internal photographs show an antenna labeled as “ANT2”. Where is antenna 1? 6) Please provide an updated RF exposure exhibit for the Joystick portion only. 7) Please show compliance at the bandedge, given the frequency hopping transients at the bandedge, as can be seen in the plots given on page 20 of the test report. 8) This device shall use a pseudorandomly ordered list of hopping frequencies. Please explain how this device accomplishes this and also provide sample hopping tables. 9) System receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. Please provide information that shows this device does this. 10) Please provide information showing compliance with 15.247(g)/(h). 11) FYI, the wireless USB TX portion of the system is applicable to DoC labeling as well. It does not appear that the label includes this. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 14, 2002 RE: Logitech Far East Ltd. FCC ID: JNZ221613 After a review of the submitted information, I have a few comments on the above referenced Application. 1) After receiving a majority of the previously requested information, it has been determined that the frequency hopping nature of this device is not pseudo-random and therefore this device may not be approved under 15.247 as a spread spectrum device. However, information presented within the test report shows that the device meets 15.249 requirements. After discussing this with Logitech it was found acceptable. However, please redraft the report for 15.249 compliance. 2) The schematics for the Joystick board have still not been provided. Please provide. 3) Regarding the bandedge compliance, there are spurs that appear during hopping as shown on page 20 of the test report. Please comment on the compliance of these as the test results shown for the bandedge were performed with the unit hop-stopped. The unit must also meet during hopping. 4) FYI, Please note that the FCC logo provided on the updated label is strictly for the USB Transceiver and not the joystick. 5) FYI, The statement "This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter" may be removed from the manual for 15.249 compliance. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

FYI ----- Forwarded by Bharat Shah/CA/US/LOGITECH on 09/03/2002 09:08 AM ----- Bharat Shah To: [email protected] 08/27/2002 12:08 cc: Yu-Min Cheng/TW/AP/LOGITECH@LOGITECH, Philippe PM Vulliens/CH/EU/LOGITECH@LOGITECH, Jason Huang/TW/AP/LOGITECH@LOGITECH, Marc Ledin/CA/US/LOGITECH@LOGITECH Fax to: Subject: Question on FCC ID : JNZ221613 (Embedded image moved (Embedded image moved to file: pic24946.pcx) to file: pic06422.pcx) Hello Steve, It was nice to talk with you. I understand as follows from our discussion: SInce both of the device sold together in a same box, it is OK to have SAME FCC ID on (both) device. If my understanding is different than what you have said, please response. Also, I have enclosed you email which I have send to Richard yesterday for your reference. Thank you, Regards, Bharat Shah Tele : (510)-713-4777 Fax : (510)-713-4790 ----- Forwarded by Bharat Shah/CA/US/LOGITECH on 08/27/2002 11:58 AM ----- Bharat Shah To: [email protected] Subject: Question on FCC ID : JNZ221613 To: [email protected] Page 1 of 3In 9/3/02Printed for "Timothy R. Johnson" <[email protected]> 08/26/2002 01:50 cc: Yu-Min Cheng/TW/AP/LOGITECH@LOGITECH, Philippe PM Vulliens/CH/EU/LOGITECH@LOGITECH, Jason Huang/TW/AP/LOGITECH@LOGITECH Fax to: Subject: Question on FCC ID : JNZ221613 Hello Richard, How are you doing ? My company, Logitech, manufactures Computer Peripherals products. Here is a question regarding Gaming Device for PC product. Background : Gaming Device device is made of two parts. GamePad (J-UE16) and Receiver (C-UG10b). Since, both of the device are bundled together, we have used same FCC ID, JNZ221613, on Gamepad as well as on Receiver. We have done same thing on previous models of Gaming device. But, for this project with different interpretation of the law by FCC, I am being asked to use two different FCC ID on Game pad and Receiver. Current situation: We have already produced 4500 units for USA with same FCC ID, JNZ221613, printed on Gamepad and on Receiver. Request: I am requesting you to accept same FCC ID, JNZ221613, for Gamepad and Receiver units for this time. or Permit Logitech to use these 4500 units the way it is and roll in the new FCC ID on the next build of the device. Please advise. Thank you for your great assistance. Thank you, Regards, Bharat Shah Tele : (510)-713-4777 Fax : (510)-713-4790 Page 2 of 3In 9/3/02Printed for "Timothy R. Johnson" <[email protected]> pic06422.pcx pic24946.pcx Page 3 of 3In 9/3/02Printed for "Timothy R. Johnson" <[email protected]>

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 15, 2002 RE: Logitech Far East Ltd. FCC ID: JNZ221613 After a review of the submitted information, I have a few comments on the above referenced Application. 1) After receiving a majority of the previously requested information, it has been determined that the frequency hopping nature of this device is not pseudo-random and therefore this device may not be approved under 15.247 as a spread spectrum device. However, information presented within the test report shows that the device meets 15.249 requirements. After discussing this with Logitech it was found acceptable. However, please redraft the report for 15.249 compliance. 2) The schematics for the Joystick TX board have still not been provided. Please provide. 3) Regarding the bandedge compliance, there are spurs that appear during hopping as shown on page 20 of the test report. Please comment on the compliance of these as the test results shown for the bandedge were performed with the unit hop-stopped. The unit must also meet during hopping. 4) FYI, Please note that the FCC logo provided on the updated label is strictly for the USB Transceiver and not the joystick. 5) FYI, The statement "This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter" may be removed from the manual for 15.249 compliance. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

External Photos

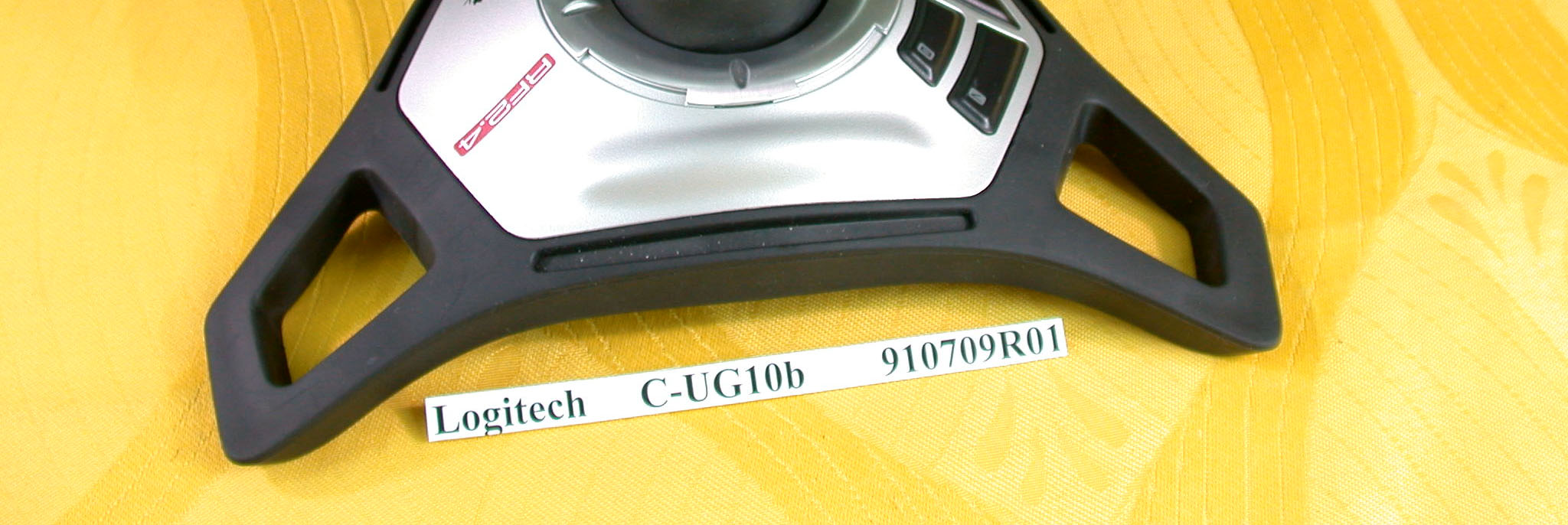

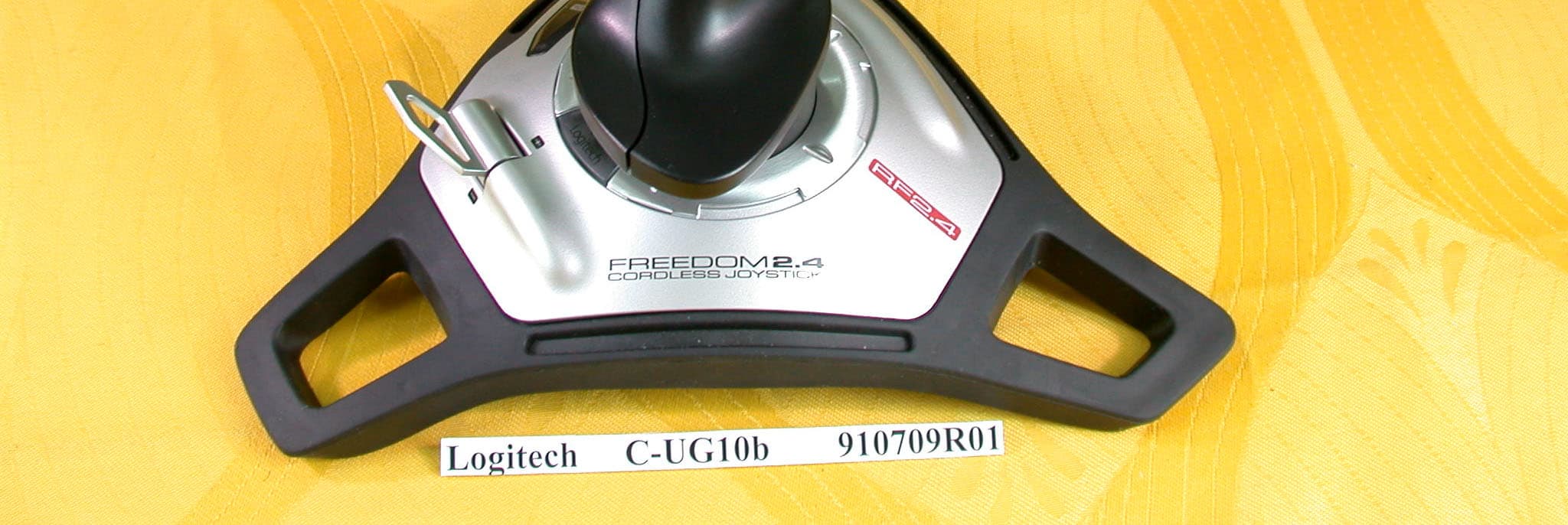

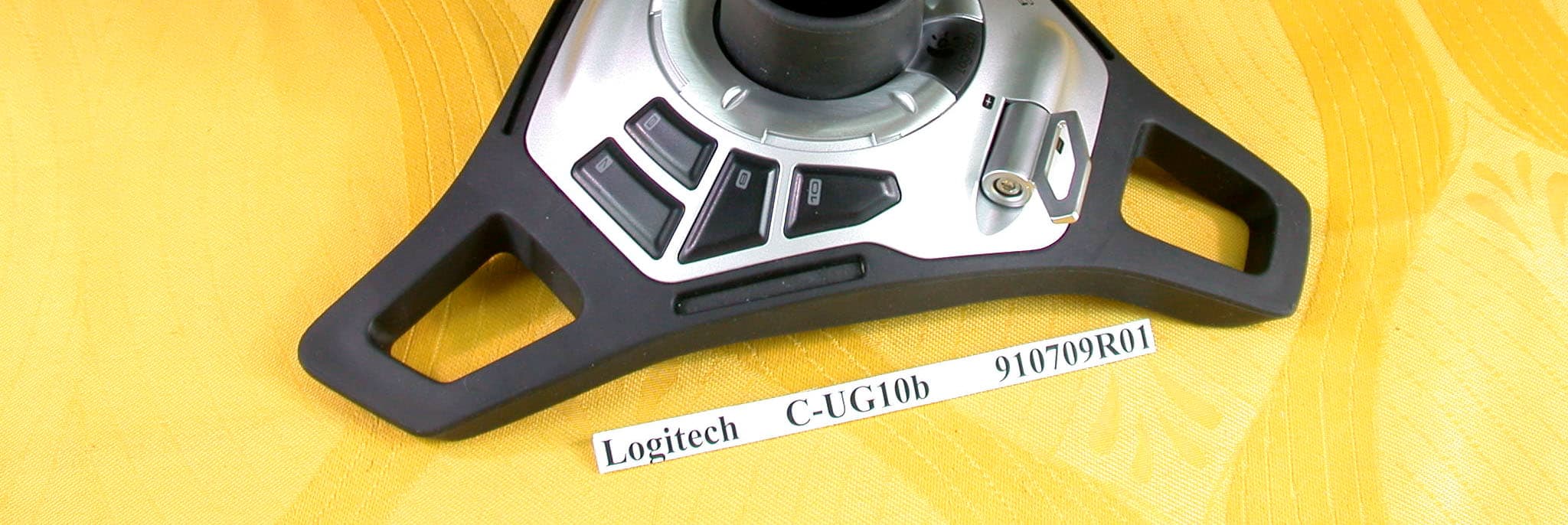

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

External Photos

Page 13 Page 14

ID Label/Location Info

LABEL LOCATION FOR FCC ID

ID Label/Location Info

LABEL LOCATION FOR FCC ID

ID Label/Location Info

label_Master (638x385x16M jpeg)

Internal Photos

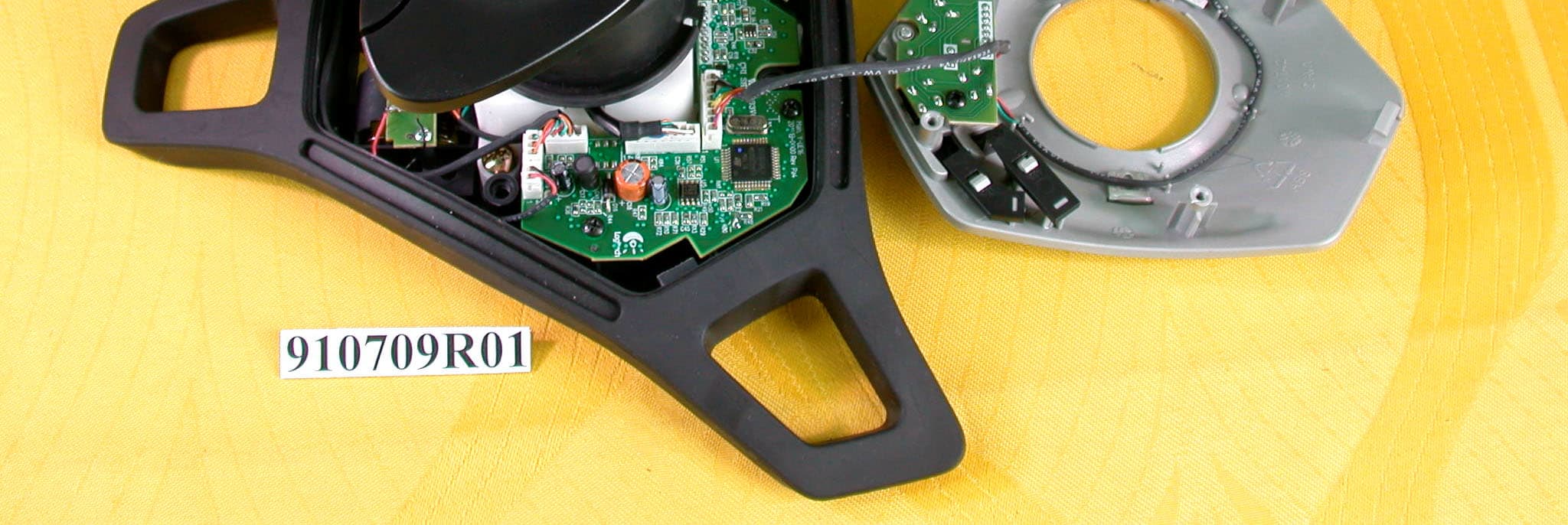

Page 4 Page 5

Internal Photos

Page 6 Page 7 Page 8

Internal Photos

Page 9 Page 10 Page 11 Page 12

Internal Photos

Page 15 Page 16

Operational Description

FCC ID: JNZ221613 ADT No.910709R01 Operational Description The EUT (Wireless JoyStick) includes two individual parts. One is the wireless Joystick which is held on the user’s hand, the other is USB transceiver which is connected with the PC. The wireless joystick is powered by 6VDC battery and USB transceiver is 5VDC from PC. This device is a Frequency Hopping device with 79 hopping frequencies. The declared output power is only 1.06mW. The hopping rate as well as the protocol is not the same as bluetooth, so it could not link with the bluetooth device.
