JNZA00150Wireless Dongle

English Read Manual Before Product Use. Warning! Exposure to noise above 85 decibels for long periods may cause hearing damage. Protect your hearing by establishing safe volumes. Establish safe listening volumes. –Start your audio playing device with the volume control at its lowest setting. –Slowly increase the volume until you can hear it comfortably and without distortion. –Avoid using this headset in noisy environments where you may want to turn up the volume. –Turn down the volume if you cannot hear people speaking near you. Listen safely. To use this headset safely, avoid listening at high sound levels. Follow the guidelines established by the U.S. Occupational Safety Health Administration on maximum time exposure to sound pressure levels before hearing damage occurs: Sound pressure level dB(A) Permissible noise exposure duration per day 908 hours 954 hours 1002 hours 1051 hour 11030 minutes 115Hearing damage will occur. Protect your hearing during use. If using this headset with an unfamiliar or unstable sound system (airplane, public access ports, etc.) keep volume low to account for possible “break-in” bursts of loud sounds. Hearing damage can be gradual and cumulative. Your ears may adapt over time to a higher volume of sound, which could result in damage to your hearing. Sometimes, no obvious warning signs present for hearing damage. However ringing or buzzing in the ears, difficulty understanding speech, a sensation of pressure or fullness in your ears, or muffling of sounds can indicate hearing damage. If you experience any of these symptoms, STOP using this headset. POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply included with your product. Do not attempt to repair or use a damaged power supply. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for cable, plug, and casing damage. This product is intended to be supplied by a Listed/ Certified power supply, rated 5 Vdc,300 mA minimum, Tma (maximum ambient temperature) 40 degree C and altitude 5000 m. If needed, please contact the Manufacturer for further information. BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion and personal injury. Risk of fire or explosion if the battery is replaced by an incorrect type. Ensure batteries are installed correctly by following the instructions provided. Mistreated rechargeable batteries may present a risk of fire or chemical burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above 54° C (130° F). A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave your battery discharged or unused for extended periods. Do not short circuit. Your device may contain an internal, rechargeable battery that is not replaceable. Battery life varies with usage. Non-operational batteries should be discarded according to local laws. If no laws or regulations govern, dispose of your device in a waste bin for electronics. Keep batteries away from children. Safe Usage Guidelines for Products –WARNING! The product contains small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts, and keep them away from children under 4 years of age. –Do not open or modify the product except for battery removal and replacement. –Do not disassemble or attempt to service this product. –Use the product with listed/certified ITE computers and accessories. –Connect power supply to a properly wired and grounded electrical outlet. –This product is safe under normal and reasonably foreseeable operating conditions. –If product is operating improperly, call Logitech support. –Product must be returned to the manufacturer for any service or repair. –This is not a Children's Product and is not intended for use by children under 14 years old. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. And, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. Warning: Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC. Changes or modifications to product not expressly approved by Logitech, Inc could void your right to use or operate your product by the FCC. IC statement : CAN ICES-3 (B) / NMB-3 (B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with …

Text truncated - open the document above for the full version.

Logitech Far East Ltd. 7700 Gateway Boulevard Newark California 94560 United States Date: 2021/07/14 FCC ID: JNZA00150 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Underwriters Laboratories Taiwan Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Underwriters Laboratories Taiwan Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Underwriters Laboratories Taiwan Co., Ltd. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Logitech Far East Ltd. Contact Name: Paul Zahra Title of Person: Regulatory Compliance Manager Tel: +1-510-713-5436 Email: [email protected]

v1.0 Logitech Far East Ltd. 7700 Gateway Boulevard Newark California 94560 United States Date: Jul. 14, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality FCC ID : JNZA00150 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Permanent Confidentiality • Schematics Diagrams • Block Diagram • Operation Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. v1.0 Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we are requests that the commission to grant short-term confidentiality request on the following attachments for 180 day. • External Photo • Internal Photo • Test Setup Photo • User Manual It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Company Name: Logitech Far East Ltd. Contact Name: Paul Zahra Title of Person: Regulatory Compliance Manager Tel: +1-510-713-5436 Email: [email protected]

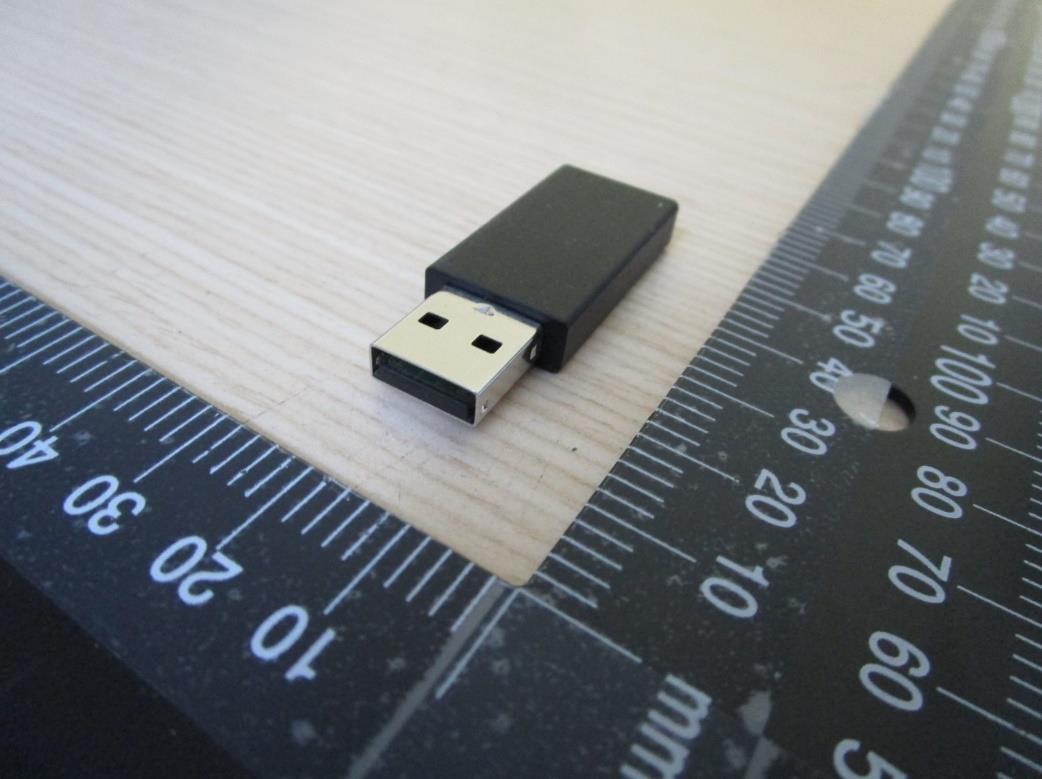

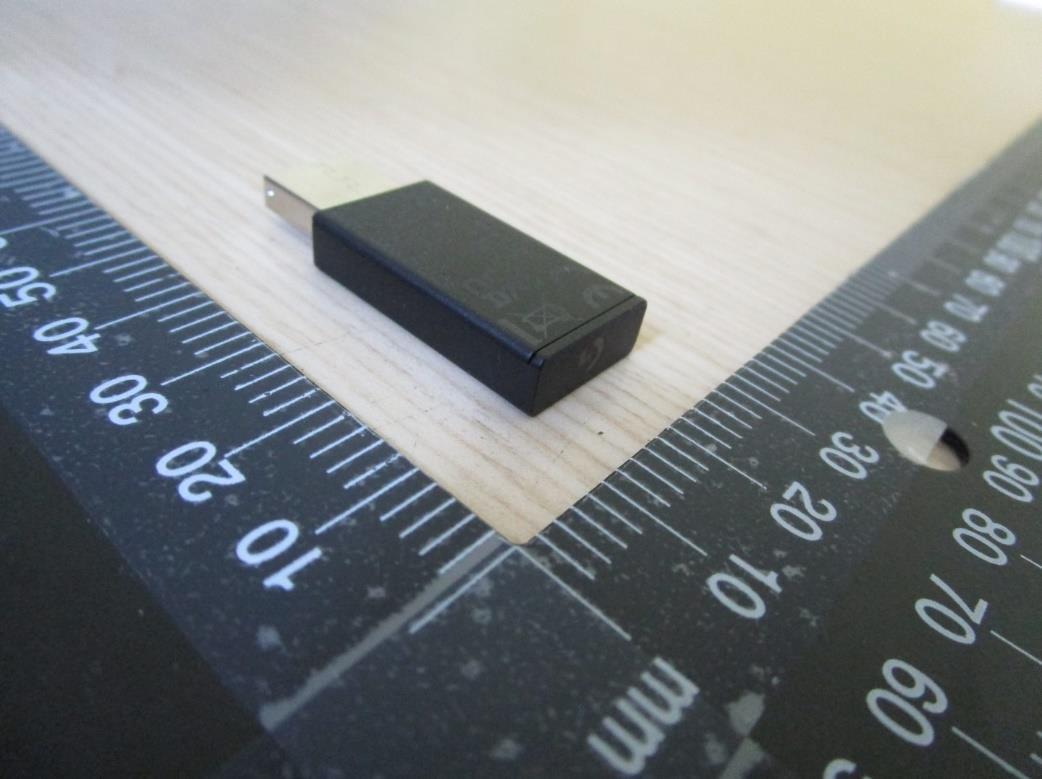

Test report No. : 4789988012-EP Page : 1 of 5 Issued date : 2021/7/20 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Product Photos External Photos Test report No. : 4789988012-EP Page : 2 of 5 Issued date : 2021/7/20 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948

Brand Name：logitech G Model Name: A00150 Label location and information:

Test report No. : 4789988012-EP Page : 3 of 5 Issued date : 2021/7/20 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos Test report No. : 4789988012-EP Page : 4 of 5 Issued date : 2021/7/20 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Test report No. : 4789988012-EP Page : 5 of 5 Issued date : 2021/7/20 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948

Report No.: 4789988012-US-S0-V0 Issue Date: 7/23/2021 Page 5 of 8 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Appendix B: SAR System Check Plots Date: 2021/7/1 Test Laboratory: Underwriters Laboratories Taiwan Co., Ltd 1.System Validation_Head_2450MHz DUT: D2450V2-SN:988; Type: D2450V2; Serial: D2450V2-SN:988 Communication System: UID 0, CW (0); Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 2450 MHz; σ = 1.808 S/m; ε r = 37.626; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3901; ConvF(7.52, 7.52, 7.52) @ 2450 MHz; Calibrated: 2020/9/23 o Modulation Compensation: • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1360; Calibrated: 2020/9/2 • Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 • DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/2450MHz/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.8 W/kg Configuration/2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 105.0 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 26.1 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.22 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 51.1% Maximum value of SAR (measured) = 21.4 W/kg 0 dB = 21.4 W/kg = 13.30 dBW/kg Report No.: 4789988012-US-S0-V0 Issue Date: 7/23/2021 Page 6 of 8 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Date: 2021/7/2 Test Laboratory: Underwriters Laboratories Taiwan Co., Ltd 2.System Validation_Head_2450MHz DUT: D2450V2-SN:988; Type: D2450V2; Serial: D2450V2-SN:988 Communication System: UID 0, CW (0); Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 2450 MHz; σ = 1.876 S/m; ε r = 38.423; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3901; ConvF(7.52, 7.52, 7.52) @ 2450 MHz; Calibrated: 2020/9/23 o Modulation Compensation: • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1360; Calibrated: 2020/9/2 • Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 • DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/2450MHz/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.4 W/kg Configuration/2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.6 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 29.4 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.01 W/kg Smallest distance from peaks to all points 3 dB below = 6.1 mm Ratio of SAR at M2 to SAR at M1 = 50.2% Maximum value of SAR (measured) = 22.4 W/kg 0 dB = 22.4 W/kg = 13.50 dBW/kg Report No.: 4789988012-US-S0-V0 Issue Date: 7/23/2021 Page 7 of 8 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Appendix C: Highest SAR Test Plots Date: 2021/7/2 Test Laboratory: Underwriters Laboratories Taiwan Co., Ltd 1.Bluetooth_Horizontal-Up_ch78 Communication System: UID 0, 802.11b/g/n (0); Communication System Band: 802.11b/g/n; Frequency: 2480 MHz;Communication System PAR: 0 dB; PMF: 1.369 Medium parameters used: f = 2480 MHz; σ = 1.907 S/m; ε r = 38.439; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration: • Probe: EX3DV4 - SN3901; ConvF(7.52, 7.52, 7.52) @ 2480 MHz; Calibrated: 2020/9/23 o Modulation Compensation: • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = -49.0, 31.0 • Electronics: DAE4 Sn1360; Calibrated: 2020/9/2 • Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 • DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Bottom/Bluetooth_ch0/Area Scan (51x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.459 W/kg Bottom/Bluetooth_ch0/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.36 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.544 W/kg SAR(1 g) = 0.261 W/kg; SAR(10 g) = 0.115 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 48.1% Maximum value of SAR (measured) = 0.431 W/kg 0 dB = 0.431 W/kg = -3.66 dBW/kg Report No.: 4789988012-US-S0-V0 Issue Date: 7/23/2021 Page 8 of 8 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Appendix D: SAR Probe and Dipole Calibration Certificates

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Page 1 of 22 17-EM-F0904 Issue: 5.0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 RSS-102 Issue 5 For Wireless Dongle FCC ID: JNZA00150 IC ID: 4418A-A00150 Model Name: A00150 Report Number: 4789988012-US-S0-V0 Issue Date: 7/26/2021 Prepared for Logitech Far East Ltd. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Prepared by Underwriters Laboratories Taiwan Co., Ltd., Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan TEL: +886-2-7737-3000 FAX: +886-3-583-7948 Website: www.ul.com Report No.: 4789988012-US-S0-V0 Issue Date: 7/26/2021 Page 2 of 22 Underwriters Laboratories Taiwan Co., Ltd. Form No: 17-EM-F0904 Issue: 5.0 This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. REVISION HISTORY Rev. Date Revisions Revised By V0 7/26/2021 Initial Issue Sally Lu Report No.: 4789988012-US-S0-V0 Issue Date: 7/26/2021 Page 3 of 22 Underwriters Laboratories Taiwan Co., Ltd. Form No: 17-EM-F0904 Issue: 5.0 This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Table of Contents 1. Attestation of Test Results ......................................................................................................... 4 2. Test Specification, Methods and Procedures ............................................................................ 5 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 13 6.1. DUT Description ...................................................................................................................... 13 6.2. Wireless Technologies ............................................................................................................. 13 7. Antenna Location ...................................................................................................................... 14 8. Dielectric Property Measurements & System Check .............................................................. 15 8.1. Dielectric Property Measurements ........................................................................................... 15 8.2. System Check.......................................................................................................................... 17 9. RF Exposure Conditions (Test Configurations) ...................................................................... 18 10. Conducted Output Power Measurements ................................................................................ 19 10.1. Bluetooth .............................................................................................................................. 19 11. Measured and Reported (Scaled) SAR Results ....................................................................... 20 11.1. Test Condition ...................................................................................................................... 20 11.2. Bluetooth .............................................................................................................................. 21 Appendixes .......................................................................................................................................... 22 4789988012-US-S0-V0_Appendix A: DUT and SAR Setup Photos .................................................... 22 4789988012-US-S0-V0_Appendix B: SAR System Check Plots ......................................................... 22 4789988012-US-S0-V0_Appendix C: Highest SAR Test Plots ............................................................ 22 4789988012-US-S0-V0_Appendix D: SAR Probe and Dipole Calibration Certificates ......................... 22 Report No.: 4789988012-US-S0-V0 Issue Date: 7/26/2021 Page 4 of 22 Underwriters Laboratories Taiwan Co., Ltd. Form No: 17-EM-F0904 Issue: 5.0 This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. 1. Attestation of Test Results Applicant Name Logitech Far East Ltd. FCC ID JNZA00150 IC ID 4418A-A00150 Model Name A00150 Exposure Category General Population/Uncontrolled Exposure Applicable Standards FCC 47 CFR § 2.1093 Published RF exposure KDB procedures IEEE Std 1528-2013 RSS-102 Issue 5 Exposure Category SAR Limits (W/Kg) Peak spatial-average(1g of tissue) General population/Uncontrolled exposure 1.6 RF Exposure Conditions Equipment Class - Highest Reported SAR (W/kg) Bluetooth Head 0.383 Date Tested 7/1/2021 ~ 7/22/2021 Test Results Pass Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed…

Text truncated - open the document above for the full version.

Test report No. : 4789988012-US-R0-V0 Page : 1 of 57 Issued date : 2021/7/23 FCC ID : JNZA00150 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 RADIO TEST REPORT The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Product : Wireless Dongle Model Name : A00150 FCC ID : JNZA00150 Test Regulation : FCC 47 CFR Part 15 Subpart C (Section 15.247) Received Date : 2021/6/23 Test Date : 2021/6/23 ~ 2021/7/22 Issued Date : 2021/7/23 Applicant : Logitech Far East Ltd. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Test report No. : 4789988012-US-R0-V0 Page : 2 of 57 Issued date : 2021/7/23 FCC ID : JNZA00150 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 REVISION HISTORY Original Test Report No.: 4789988012-US-R0-V0 Rev. Test report No. Date Page revised Contents Original 4789988012-US-R0-V0 2021/7/23 - Initial issue Test report No. : 4789988012-US-R0-V0 Page : 3 of 57 Issued date : 2021/7/23 FCC ID : JNZA00150 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures.............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Channel List ......................................................................................................... 9 6.3. Test Condition .................................................................................................... 10 6.4. Description of Available Antennas .................................................................... 10 6.5. Test Mode Applicability and Tested Channel Detail ......................................... 11 7. Test Equipment ............................................................................................................ 12 8. Description of Test Setup ............................................................................................ 14 9. Test Results ................................................................................................................... 16 9.1. Channel Bandwidth ............................................................................................ 16 9.2. Conducted Output Power ................................................................................... 18 9.3. Hopping Channel Separation ............................................................................. 20 9.4. Number of Hopping Frequency Used ................................................................ 22 9.5. Dwell Time on Each Channel ............................................................................ 24 9.6. Conducted Out of Band Emission ...................................................................... 28 9.7. Radiated Spurious Emission .............................................................................. 33 9.8. AC Power Line Conducted Emission ................................................................ 46 Appendix I Radiated Band Edge Measurement .............................................................. 52 Appendix II Radiated Spurious Emission Measurement ............................................... 56 Test report No. : 4789988012-US-R0-V0 Page : 4 of 57 Issued date : 2021/7/23 FCC ID : JNZA00150 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 1. Attestation of Test Results APPLICANT: Logitech Far East Ltd. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. MANUFACTURER: Logitech Europe S.A. EPFL - Quartier de l’Innovation, Daniel Borel Innovation Center, 1015 Lausanne, Switzerland EUT DESCRIPTION: Wireless Dongle BRAND: logitech G MODEL: A00150 SAMPLE STAGE: Identical Prototype DATE of TESTED: 2021/6/23 ~ 2021/7/22 APPLICABLE STANDARDS STANDARD Test Results FCC 47 CFR PART 15 Subpart C (Section 15.247) PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show tha…

Text truncated - open the document above for the full version.

Page : 1 of 4 Issued date : 2021/7/20 FCC ID : JNZA00150 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Radiated Spurious Emission Setup Configurations Above 1GHz Page : 2 of 4 Issued date : 2021/7/20 FCC ID : JNZA00150 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Below 1GHz…

Text truncated - open the document above for the full version.
