JNZA00178Wireless Headset

Important Safety, Compliance and Warranty Information Informations importantes concernant la sécurité, la mise en conformité et la garantie English Read Manual Before Product Use. Warning! Exposure to noise above 85 decibels for long periods may cause hearing damage. Protect your hearing by establishing safe volumes. Establish safe listening volumes. –Start your audio playing device with the volume control at its lowest setting. –Slowly increase the volume until you can hear it comfortably and without distortion. –Avoid using this headset in noisy environments where you may want to turn up the volume. –Turn down the volume if you cannot hear people speaking near you. Listen safely. To use this headset safely, avoid listening at high sound levels. Follow the guidelines established by the U.S. Occupational Safety Health Administration on maximum time exposure to sound pressure levels before hearing damage occurs: Sound pressure level dB(A)Permissible noise exposure duration per day 908 hours 954 hours 1002 hours 1051 hour 11030 minutes 115Hearing damage will occur. Protect your hearing during use. If using this headset with an unfamiliar or unstable sound system (airplane, public access ports, etc.) keep volume low to account for possible “break-in” bursts of loud sounds. Hearing damage can be gradual and cumulative. Your ears may adapt over time to a higher volume of sound, which could result in damage to your hearing. Sometimes, no obvious warning signs present for hearing damage. However ringing or buzzing in the ears, difficulty understanding speech, a sensation of pressure or fullness in your ears, or muffling of sounds can indicate hearing damage. If you experience any of these symptoms, STOP using this headset. POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply included with your product. Do not attempt to repair or use a damaged power supply. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for cable, plug, and casing damage. BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion and personal injury. Risk of fire or explosion if the battery is replaced by an incorrect type. Ensure batteries are installed correctly by following the instructions provided. Mistreated rechargeable batteries may present a risk of fire or chemical burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above 54° C (130° F). A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave your battery discharged or unused for extended periods. Do not short circuit. Your device may contain an internal, rechargeable battery that is not replaceable. Battery life varies with usage. Non-operational batteries should be discarded according to local laws. If no laws or regulations govern, dispose of your device in a waste bin for electronics. Keep batteries away from children. This product is intended to be supplied by a Listed/Certified power supply, rated 5.0 Vdc, 300mA minimum, Tma (maximum ambient temperature) 45 degree C and altitude 2000 m. If needed, please contact the Manufacturer for further information. Safe Usage Guidelines for Products –Do not open or modify the product except for battery removal and replacement. –Do not disassemble or attempt to service this product. –Use the product with listed/certified ITE computers and accessories. –Connect power supply to a properly wired and grounded electrical outlet. –This product is safe under normal and reasonably foreseeable operating conditions. –If product is operating improperly, call Logitech support. –Product must be returned to the manufacturer for any service or repair. –This is not a Children's Product and is not intended for use by children under 14 years old. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. And, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. Warning: Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC. Changes or modifications to product not expressly approved by Logitech, Inc could void your right to use or operate your product by the FCC. IC statement : CAN ICES-3 (B) / NMB-3 (B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the fol…

Text truncated - open the document above for the full version.

G733 SETUP GUIDE 3 ENGLISH SETUP INSTRUCTIONS 1 Insert the mic boom completely into the headset. 1 4 ENGLISH 4 logitechG.com/ghub 3 2 2 Insert receiver into the USB port of your PC. 3 Short press to turn ON. 4 (Optional) Download Logitech G HUB software to access advanced features. Download at logitechG.com/ghub 5 ENGLISH SIZE ADJUSTMENT 1 The earcups can be adjusted up and down. 2 The length of the headband can be adjusted. 1 2 6 ENGLISH FEATURES 1 Size-adjustable earcups 2 Removable and replaceable mic 3 USB-C port for charging 4 ON/OFF button 5 Reversible and replaceable headband strap 6 Headband strap adjusting feature 7 Removable and replaceable earpads 8 Mute/unmute button 9 Volume roller 1 3 4 2 5 6 7 8 9 7 ENGLISH UNDERSTAND LOGITECH G HUB SOFTWARE SPARE PARTS RECYCLING 1 When battery life is below 10%, the audio will beep every 15 min. 2 When battery life is below 2%, the lights will flash red and the audio will beep every 15 min. 3 When plugging the charging cable, the lights will breath green 5 times and revert to its previous state. 4 When muting the mic, the lights will flash red and the audio will beep twice. 5 When unmuting the mic, the lights will flash green and the audio will beep three times. 6 When using G HUB software, pressing the ON/OFF button once when the headset is ON will let you know the battery life remaining. (Optional) Download Logitech G HUB software to access advanced features. Download at logitechG.com/GHUB. Logitech G HUB software lets you customize many features, including: • Enable/disable DTS Headset:X 2.0 Surround Sound • Enable/disable Blue VO!CE mic enhancement • Adjust EQ settings • Sidetone • Lighting • Mute button assignment You can find replacement parts at logitechG.com in selected regions, including: • Headband strap • Earpads • Mic • Cable • Receiver We encourage you to resell or donate working products. Otherwise, batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be segregated and brought to an appropriate collection point to enable recycling and avoid potential impacts on the environment and human health. For more information, contact your local authorities or place of purchase, or visit www.logitech.com/recycling 8 ENGLISH QUESTIONS? logitechG.com/support/g733 www.logitech.com/recycling BATTERY REMOVAL FOR RECYCLING Li-ion Li-ion 12 34

Declaration letter Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Ddeclaration letter for label requirement Date: 2022-10-26 FCC ID: JNZA00178 The label is permanently affixed on the ear pads. Because the headset will not be installed the ear-cap when be sold, the users can see the FCC ID when they are putting on the ear- caps of ear pads. The ear-caps can be opened without any special tools. Please don’t hesitate to contact us, if you have any question(s). Thank you! ----------------------------------- Paul Zahra / Senior manager, Compliance Engineering LOGITECH FAR EAST LTD. Tel: +1-510-713-5436 E-mail: [email protected]

Date: 2022-10-26 FCC ID: JNZA00178 AUTHORIZATION LETTER To Whom It May Concern: LOG ITECH FAR EAST LTD. hereby authorizes Debby Lin / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin / Senior Specialist of BV CPS Taoyuan on LOGITECH FAR EAST LTD.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. I f you have any questions regarding the authorization, please don’t hesitate to contact us. S incerely yours, ----- ------------------------------------------ Paul Zahra / Senior manager, Compliance Engineering LOGITECH FAR EAST LTD. Tel: +1-510-713-5436 E- mail: [email protected]

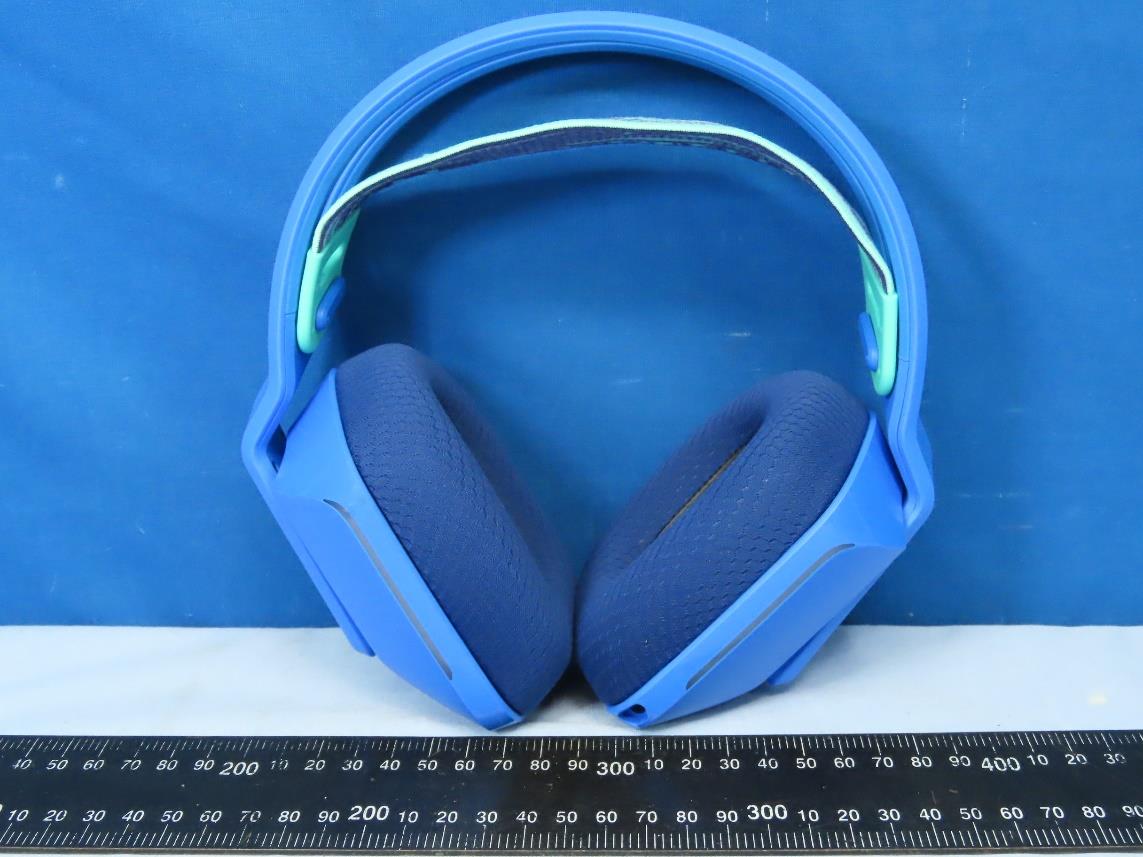

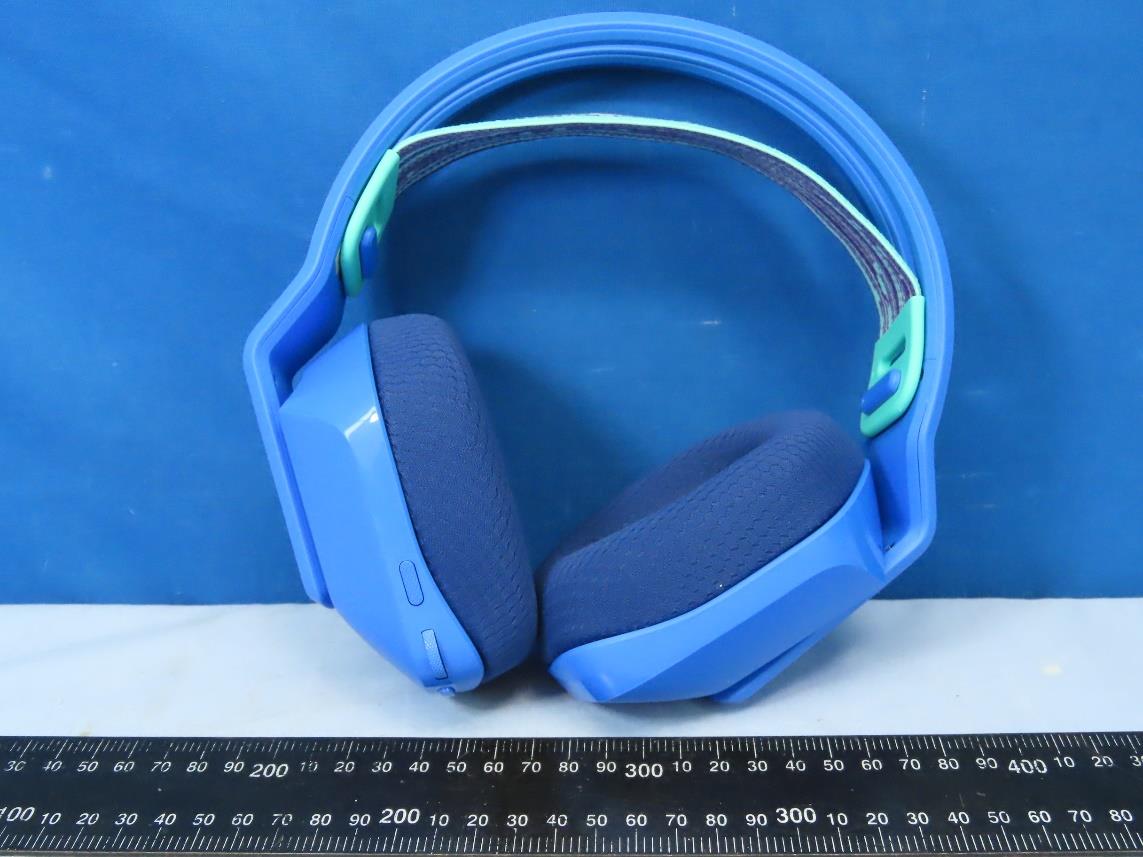

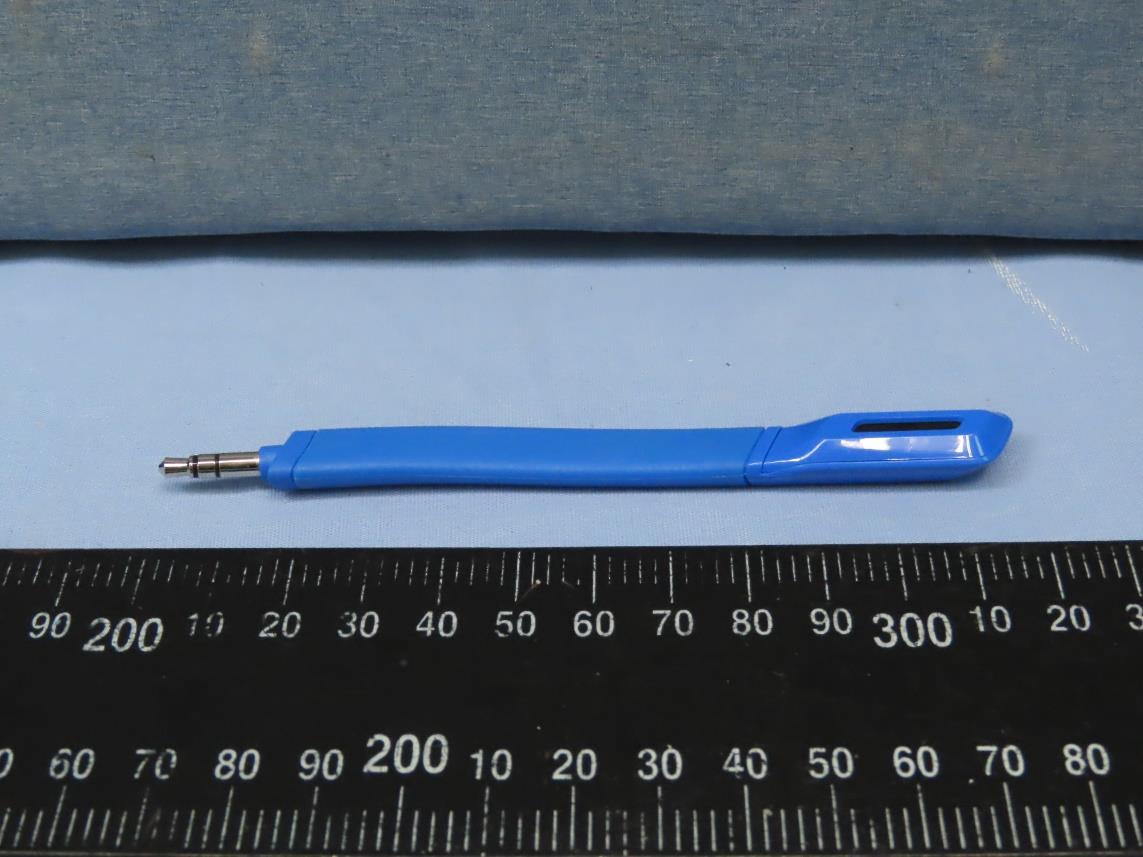

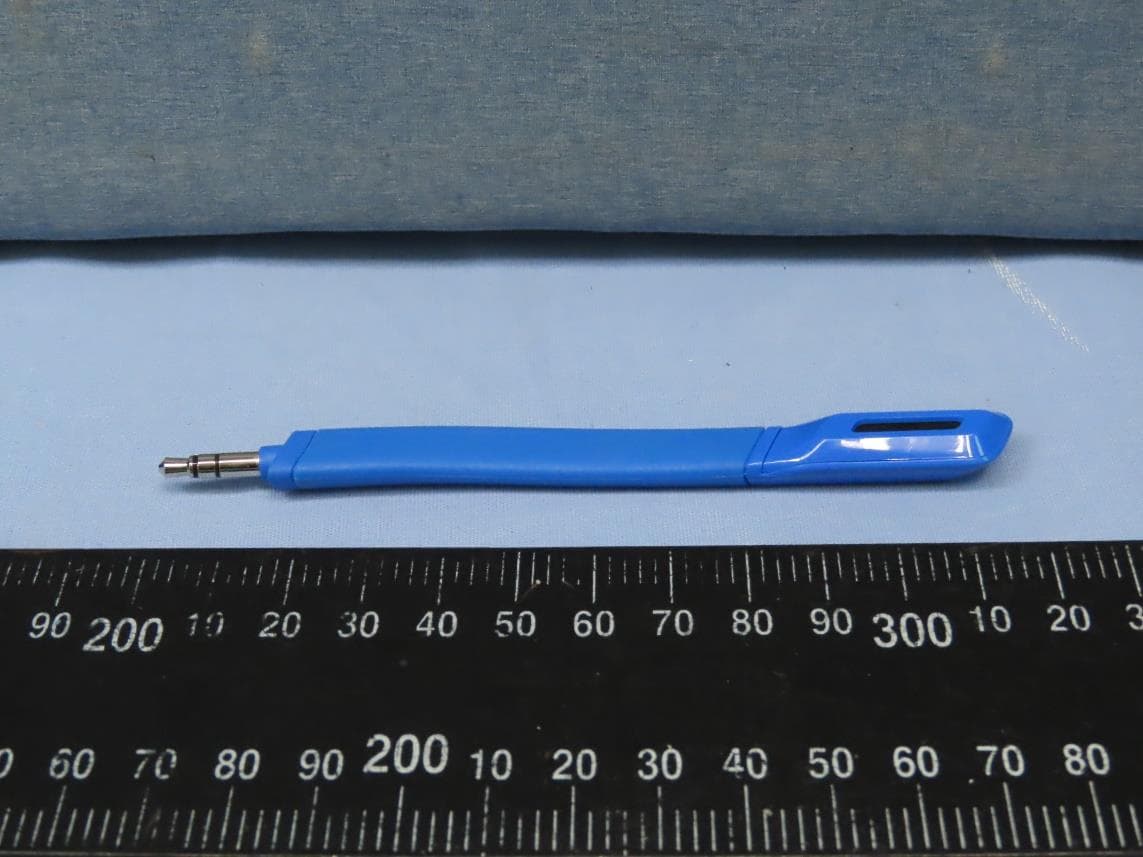

Reference No.: BDKG-WTW-P22090959_EXT Page 1/7 CONSTRUCTION PHOTOS OF EUT Reference No.: BDKG-WTW-P22090959_EXT Page 2/7 Reference No.: BDKG-WTW-P22090959_EXT Page 3/7 Reference No.: BDKG-WTW-P22090959_EXT Page 4/7 Reference No.: BDKG-WTW-P22090959_EXT Page 5/7 Reference No.: BDKG-WTW-P22090959_EXT Page 6/7 Reference No.: BDKG-WTW-P22090959_EXT Page 7/7

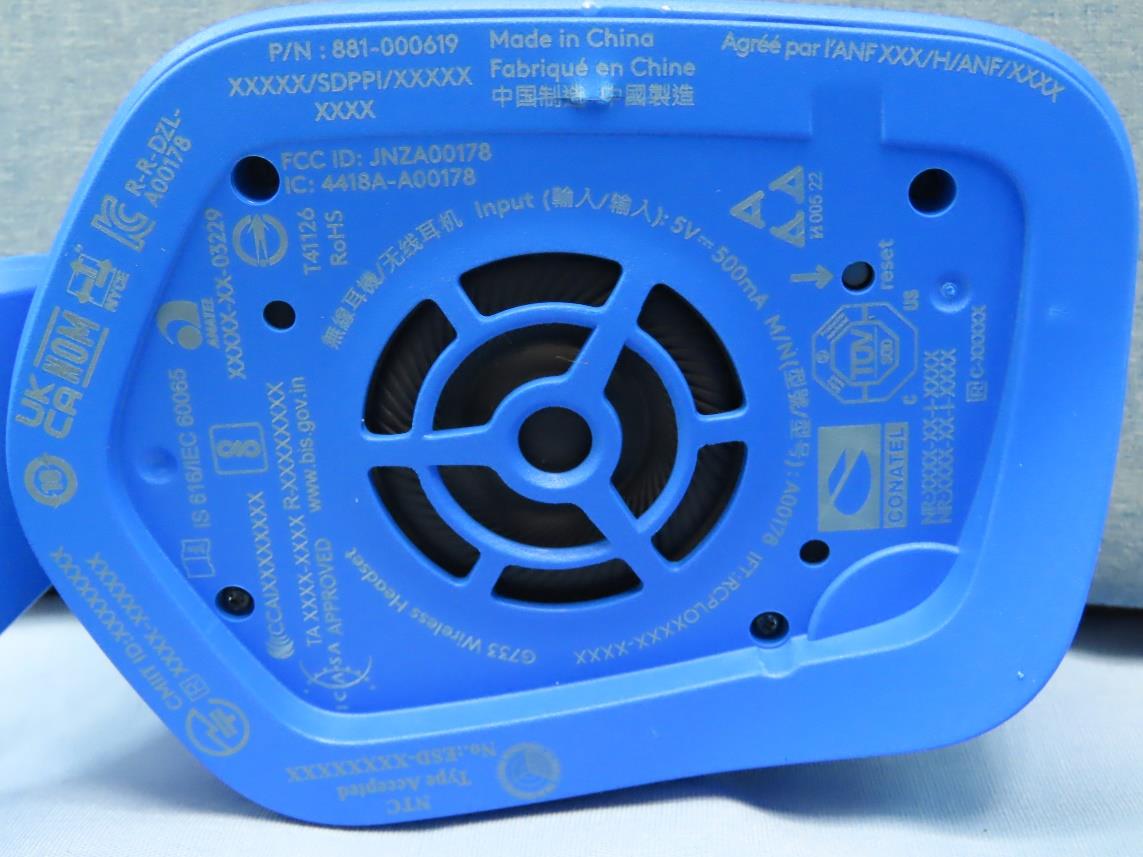

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Reference No.: BDKG-W TW-P22090959_INT Page 1/6 CONSTRUCTION PHOTOS OF EUT Reference No.: BDKG-W TW-P22090959_INT Page 2/6 Reference No.: BDKG-W TW-P22090959_INT Page 3/6 Antenna Reference No.: BDKG-W TW-P22090959_INT Page 4/6 Reference No.: BDKG-W TW-P22090959_INT Page 5/6 Reference No.: BDKG-W TW-P22090959_INT Page 6/6

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 25 Report No. : SFBDKG-WTW-P22090959 Issued Date : Nov. 16, 2022 SAR Test Report Report No. : SFBDKG-WTW-P22090959 Applicant : Logitech Far East Ltd. Address : 7700 Gateway Boulevard Newark California United States Product : Wireless Headset FCC ID : JNZA00178 Brand : logitech G Model No. : A00178 FCC Rule Part CFR §2.1093 Standards : IEC/IEEE 62209-1528:2020 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02, KDB 447498 D01 v06 Sample Received Date : Oct. 04, 2022 Date of Testing : Oct. 18, 2022 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Lena Wang / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 25 Report No. : SFBDKG-WTW-P22090959 Issued Date : Nov. 16, 2022 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot ............................................................................................................................................................... 7 3.2.2 Probes ............................................................................................................................................................. 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................. 8 3.2.4 Phantoms ......................................................................................................................................................... 8 3.2.5 Device Holder .................................................................................................................................................. 9 3.2.6 System Validation Dipoles ............................................................................................................................. 10 3.2.7 Power Source ................................................................................................................................................ 10 3.2.8 Tissue Simulating Liquids .............................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area Scan and Zoom Scan Procedure ............…

Text truncated - open the document above for the full version.

Plots of System Verification Appendix A. Plots of System Verification The plots for system verification are shown as follows. Report No.: SFBDKG-WTW-P22090959 Plots of System Verification Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/10/18 S01 System Check_H2450_221018 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N1_1018 Medium parameters used: f = 2450 MHz; σ = 1.848 S/m; ε r = 38.176; ρ = 1000 kg/m 3 Ambient Temperature：23.4°C ; Liquid Temperature：23.2°C DASY5 Configuration: - Probe: EX3DV4 - SN7707; ConvF(8.13, 8.13, 8.13) @ 2450 MHz; Calibrated: 2022/02/21 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2022/02/23 - Phantom: Twin SAM Phantom_1885; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Pin=50mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.59 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.69 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 5.64 W/kg SAR(1 g) = 2.74 W/kg; SAR(10 g) = 1.3 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 4.62 W/kg Report No.: SFBDKG-WTW-P22090959 Plots of Measurement Appendix B. Plots of Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination are shown as follows. Report No.: SFBDKG-WTW-P22090959 Plots of Measurement Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/10/18 P01 BT_EDR_Rear Face_0mm_Ch0_Microphone_w DUT: BDKG-WTW-P22090959 Communication System: UID 10032 - CAA, IEEE 802.15.1 Bluetooth (GFSK, DH5); Frequency: 2402 MHz;Duty Cycle: 1:1.30 Medium: H19T27N1_1018 Medium parameters used: f = 2402 MHz; σ = 1.805 S/m; ε r = 38.242; ρ = 1000 kg/m 3 Ambient Temperature：23.4°C ; Liquid Temperature：23.2°C DASY5 Configuration: - Probe: EX3DV4 - SN7707; ConvF(8.13, 8.13, 8.13) @ 2402 MHz; Calibrated: 2022/02/21 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2022/02/23 - Phantom: Twin SAM Phantom_1885; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Area Scan (101x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.153 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.862 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.127 W/kg SAR(1 g) = 0.023 W/kg; SAR(10 g) = 0.00651 W/kg (SAR corrected for target medium) Smallest distance from peaks to all points 3 dB below: Larger than measurement grid (> 15 mm) Ratio of SAR at M2 to SAR at M1 = 60.9% Maximum value of SAR (measured) = 0.0698 W/kg Report No.: SFBDKG-WTW-P22090959 Appendix Z. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Model：D2450V2S/N：737Measurement Date： 2022/8/25 Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Result Real Impedance 53.98951.387-2.602±5ΩPASS Imaginary Impedance 4.29265.36051.07±5ΩPASS Return Loss -24.989-24.145-3.38%±20%PASS 2450 Free Space 2450 MHz，Free Space Annual Confirmation of SAR Reference Dipole Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959 Report No.: SFBDKG-WTW-P22090959

0 Tico1.2_ Airoha AntennaSpec & RF Spec Presented by :Merry RF Date : 2022.11.15 1 Table of contents •RF antenna spec 2 RF antenna spec(A00178) A00178 HeadsetAntenna for Bluetooth /2.4GHz 1）Antenna Material：Metal (Antenna Type : Loop Antenna) 2）Operating Frequency：2.4GHz-2.5GHz 3）Input Impedance：50Ω 4）Standing-Wave Ratio：2:1 5）Antenna Gain：2.5 dBi 6）Polarization Type：Linear polarization 7）Connect Type：Welding 3 RF antenna spec(A00178) A00178 HeadsetAntenna for Bluetooth /2.4GHz 8）Antenna pattern (2D or 3D): 9）table of calibrated :E5071C ENA Vector Network Analyzer –Keysight Calibration Date: 2022/02/14 10）Names of test personnel : Oscar Chu 11）Test date:2022/9/7 4 RF antenna spec(A00178) A00178 HeadsetAntenna for Bluetooth /2.4GHz 12）names of commercial test software being used： ETS-Lindgren EM Quest 5 RF antenna spec(A00178) A00178 HeadsetAntenna for 2.4GHz 13）description of how measurements are made: Position the DUT on the test turntable Record the coordinates and take picture Connect the RF Cable Leave the chamber and close the door Run the software Wait for the test to end and confirm the data 6

Report No.: RFBDKG-WTW-P22090959-1 Page No. 1 / 48 Report Format Version: 7.1.0 Reference No.: BDKG-WTW-P22090959 TEST REPORT CERTIFICATE OF CONFORMITY Standard: 47 CFR FCC Part 15, Subpart C (Section 15.247) Report No.: RFBDKG-WTW-P22090959-1 FCC ID: JNZA00178 Product: Wireless Headset Brand: logitech G Model No.: A00178 Received Date: 2022/9/21 Test Date: 2022/10/4 ~ 2022/10/13 Issued Date: 2022/11/16 Applicant: Logitech Far East Ltd. Address: 7700 Gateway Boulevard Newark California United States Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2022/11/16 May Chen / Manager This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Cherry Chuo / Specialist This report is governed by, and incorporates by ref erence, the Conditions of Testing as posted at the date of issuance of this report at http://w w w.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended f or your exclusive use. Any copying or replication of this report to or f or any other person or entity, or use of our name or trademark, is permitted only w ith our prior w ritten permission. This report sets f orth our f indings solely w ith respect to the test samples identif ied herein. The results set f orth in this report are not indicative or representative of the quality or characteristics of the lot f rom w hich a test sample w as taken or any similar or identical product unless specif ically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the inf ormation that you provided to us. Measurement uncertainty is only provided upon request f or accredited tests. Statements of conf ormity are based on simple acceptance criteria w ithout taking measurement uncertainty into account, unless otherw ise requested in w riting. You have 60 days f rom date of issuance of this report to notif y us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in w riting and shall specifically address the issue you w ish to raise. A failure to raise such issue w ithin the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBDKG-WTW-P22090959-1 Page No. 2 / 48 Report Format Version: 7.1.0 Reference No.: BDKG-WTW-P22090959 Table of Contents Release Control Record ...........................................................................................................................................4 1 Certificate .......................................................................................................................................................5 2 Summary of Test Results ...............................................................................................................................6 2.1 Measurement Uncertainty.............................................................................................................................. 6 2.2 Supplementary Information ............................................................................................................................ 6 3 General Information........................................................................................................................................7 3.1 General Description ...................................................................................................................................... 7 3.2 Antenna Description of EUT .......................................................................................................................... 7 3.3 Channel List ................................................................................................................................................. 8 3.4 Test Mode Applicability and Tested Channel Detail .......................................................................................... 9 3.5 Duty Cycle of Test Signal ............................................................................................................................. 10 3.6 Test Program Used and Operation Descriptions ............................................................................................ 11 3.7 Connection Diagram of EUT and Peripheral Devices ..................................................................................... 11 3.8 Configuration of Peripheral Devices and Cable Connections .......................................................................... 12 4 Test Instruments........................................................................................................................................... 13 4.1 RF Output Power ........................................................................................................................................ 13 4.2 Power Spectral Density ............................................................................................................................... 13 4.3 6 dB Bandwidth .......................................................................................................................................... 13 4.4 Conducted Out of Band Emissions ..............................................................................…

Text truncated - open the document above for the full version.

A00178 Antenna test setup photo

Photographs of EUT Setup and Antenna Location The photographs of EUT and setup for SAR testing are shown as follows. Report No.: SFBDKG-WTW-P22090959 <Front Face View> Antenna BT Ant 0 / LIGHTSPEED Ant 0 Min Distance to Human Head (mm) 25.4mm BT Ant 0 LIGHTSPEED Ant 0 Right Side Left Side Top Side Bottom Side Left Ear Right Ear Report No.: SFBDKG-WTW-P22090959 To Top Side To Bottom Side To Front Face To Rear Face (mm)(mm)(mm)(mm) 10.0789.3320.4626.68 <Right Side View> Antenna BT Ant 0 / LIGHTSPEED Ant 0 BT Ant 0 Top Side Bottom Side Front Face Rear Face LIGHTSPEED Ant 0 Left Ear Report No.: SFBDKG-WTW-P22090959 <Photographs of Head SAR Test Setup> Front Face of EUT w/o Microphone mode Tested at 0 mmRear Face of EUT w/ Microphone mode Tested at 0 mm Left Ear of EUT w/ Microphone mode Tested at 0 mmRear Face of EUT w/o Microphone mode Tested at 0 mm Report No.: SFBDKG-WTW-P22090959

Reference No.: BDKG-WTW-P22090959-TSup Page 1/4 PHOTOGRAPHS OF THE TEST CONFIGURATION AC Power Conducted Emissions Reference No.: BDKG-WTW-P22090959-TSup Page 2/4 Unwanted Emissions below 1 GHz Reference No.: BDKG-WTW-P22090959-TSup Page 3/4 Unwanted Emissions above 1 GHz Reference No.: BDKG-WTW-P22090959-TSup Page 4/4
