JNZAR0002Logitech Wireless Headset F540

Ge tt ing started with Première ut ilisat ion Log ite ch ® Wi reless Headset F54 0 Languages English 3 Español 25 Français 47 Português 69 English 3 Logitech ® Wireless Headset F540 Contents Package contents 4 Powering up the wireless base station 5 Charging the headset 5 F540 setup with PS3 ™ 6 Connecting PS3 game audio 6 If you use HDMI or digital optical for PS3 audio 7 If you use PS3 analog AV cable for audio 8 Alternative: If you want to use your audio out from your TV or AV receiver 9 Connecting PS3 voice chat 10 F540 setup with Xbox 360 ® 11 Connecting Xbox 360 game audio 11 If you use HDMI or digital optical for Xbox 360 audio 12 If you use the red/white RCA connectors on the Xbox 360 AV cable for audio 13 Alternative Xbox 360 wireless base station setup 14 Connecting Xbox 360 voice chat 15 Connecting other AV sources 16 Using the headset 17 Features 17 Turning on the headset 18 Using the input selector button 18 Using the volume rollers and microphone mute button 19 Turning off the headset 19 Troubleshooting 20 Adjusting the headset fit 20 What do you think? 22 Logitech hardware product limited warranty 24 Logitech support telephone numbers 91 4 English Getting started with Headset F5401. Wireless base station2. RCA-to-RCA passthrough cable3. 2 5 mm Xbox 360 voice cable4. Mini-USB PS3 voice cable5. Micro-USB headset charging cable6. Power cable7. Getting started guide8. Ge tting started wit h Prem ière u tilisa tion Log ite ch ® Wireless Headset F54 0 Package contents English 5 Logitech ® Wireless Headset F540 Powering up the wireless base station Using the included power cable, plug your wireless base station into an available AC outlet to power up the unit Charging the headset Your Logitech Wireless Headset F540 is rechargeable and should have some charge when you take it out of the package It’s recommended to charge the headset fully before use To charge the headset, use the included • headset charging cable Plug the small connector into the headset and the large connector into the port on the front of the wireless base station The LED above the charging port of the headset will turn orange while charging and green when it’s fully charged The headset will take approximately 3-4 hours to fully re-charge from a completely • drained state If you use the headset while it’s being charged, the charging cycle will take longer When the headset rechargeable battery has only 30 minutes of charge left, you will • hear an audible warning through the headset speakers This warning will repeat intermittently until you plug in the headset for charging or when the battery is fully drained The LED above the charging port on the headset will also turn red when the charge is low Wireless base station Headset charging cable Xbox 360 Power cable Logitech wireless base station 6 English Getting started with F540 setup with PS3 ™ To use all the features of the Headset F540, you’ll need to make two connections: one for game audio and one for voice chat You make the game audio connection between the Logitech wireless base station and the PS3 Or you can connect the wireless base station to your primary audio system (television, home theater system, AV receiver, or audio switch) You make the voice connection between the wireless base station and the PS3 using the Logitech Mini-USB PS3 voice cable To make the connections described in this section, you may need the items shown below, which are included with the Headset F540: Connecting PS3 game audio How you make this connection is dependent upon how you have connected your PS3 to your primary audio system While every home gaming environment may be different, there are two basic ways to hook up your PS3: A digital connection using an HDMI or digital optical cable• An analog connection using the PS3 AV cable• RCA-to-RCA passthrough cable Mini-USB PS3 voice cable Wireless base station English 7 Logitech ® Wireless Headset F540 If you use HDMI or digital optical for PS3 audio If you are using an HDMI or digital optical cable to connect your PS3 to your primary audio system, use the PS3 AV cable (recommended) setup below or the alternative shown in Figure 3 Recommended setup for the wireless base station (Fig. 1) Connect the PS3 AV cable (typically included with the PS3) to the back of the PS3 1. Connect the red and white RCA plugs of the PS3 AV cable to the PS3 ports on the back 2. of the wireless base station Adjust the audio settings using the PS3™ XMediaBar™ You need to enable multi-3. output audio in the PS3 system (firmware 3 00 or later) settings for the PS3 to transmit stereo audio to the Headset F540 Within the XMediaBar, navigate to Settings• Sound Settings• Audio Multi-Output• In Audio Mulit-Output, select “On” to turn on the Audio Multi-Output feature Xbox 360 Xbox 360 PS3 PS3 AV cable Logitech wireless base station Figure 1 8 English Getting started with If you use PS3 analog AV cable for audio If you are using the red and white stereo connectors of the PS3 AV cable to connect your PS3 to your primary audio system, use the following wireless base station setup or the alternative on page 9 Recommended setup for the wireless base station (Fig. 2) Unplug the red and white connectors of the PS3 AV cable from your primary 1. audio system Plug these red and white connectors directly into the Logitech RCA-to-RCA 2. passthrough cable connectors Plug the male connectors of the Logitech RCA-to-RCA passthrough cable to 3. your primary audio system (where the PS3 AV cable was previously connected) On the other end of the Logitech RCA-to-RCA passthrough cable, plug the red 4. and white connectors into the PS3 ports on the back of the wireless base station. Figure 2 Xbox 360 Xbox 360 Logitech wireless base station Primary audio system Logitech RCA-to-RCA passthrough cable PS3 PS3 AV cable English 9 Logitech ® Wireless Headset F540 Alternative: If you want to use your audio out from your TV or AV receiver If the recommended steps are inconvenient or don’t work …

Text truncated - open the document above for the full version.

18 English Getting started with Turning on the headset Press the power button on the headset to turn it on • The headset will wirelessly connect with the wireless base station • You will see the three LEDs on the wireless base station turn on, blink briefly, • and then one of the LEDs will turn solid Using the input selector button If you have multiple audio devices connected to the wireless base station, • you can press the INPUT button on the headset to toggle through them Press the button to change the audio source On the front of the wireless base station, • the next LED will illuminate, representing the active audio source (If there is only one audio device connected to the back of the wireless base station, that input will remain active) Power button Input selector Wireless base station LEDs English 19 Logitech ® Wireless Headset F540 Using the volume rollers and microphone mute button Use the two rollers on the left ear cup to independently control the volume of • the game and voice chat audio You can mute your microphone by pressing the microphone mute button, • or by rotating the microphone boom all the way closed (up) When your microphone is muted, an LED located at the tip of the microphone will • illuminate red Turning off the headset Press and hold the power button for approximately one second • When powering off the headset, the LEDs on the wireless base station will blink briefly • and then turn off Chat volume roller Sound volume roller Microphone mute button Power button 20 English Getting started with Troubleshooting I don’t hear anything through my headset Check the LEDs on the front of the wireless base station No LEDs are lit Check to make sure the wireless base station is plugged into a power outlet If it is, then do the following: Make sure the headset is powered on by pressing the power button for approximately • one second If the headset doesn’t turn on, then the battery may be dead and you should recharge it If this doesn’t help, then confirm that your audio cables are correctly plugged into • the back of the wireless base station One LED is lit If you have multiple devices connected to your wireless base station, check to make sure you have the correct audio system selected To change the audio system, push the INPUT button on the headset If you are using a PS3, refer to Connecting PS3 voice chat to make sure your game system audio output is set up correctly Check to make sure your game system is on and a game is active Adjusting the headset fit The Headset F540 offers flexible adjustment of its ear cups, headband, and microphone boom so you can experience a comfortable fit Voice chat is muted when microphone boom is in the up position English 21 Logitech ® Wireless Headset F540 All three LEDs are blinking The headset has not made a wireless connection to the base station Try re-pairing the headset and the wireless base station by doing the following: Press and hold the power button on the 1. headset for 15 seconds to put it into search mode Press the connect button on the bottom of 2. the wireless base station My microphone doesn’t work The microphone will work with any game that 1. supports voice chat on the PS3 and Xbox 360 Please check your game manuals to make sure the game supports voice chat If you’re using a PS32. Please check the cable connection between the wireless base station and the PS3 Use the Mini-USB PS3 voice cable to make this connection Please refer to Connecting PS3 voice chat for more information If you’re using an Xbox 3603. Please check the cable connection between the Headset F540 and the Xbox 360 game controller Use the 2 5 mm Xbox 360 voice cable to make this connection Please refer to Connecting Xbox 360 voice chat for more information I’m hearing the wrong audio signal If you have multiple devices connected to the wireless base station, you can change the active audio system you are hearing To change the active audio system, push the INPUT button on the headset The voice chat volume roller isn’t working on my headset You may need to change the voice chat settings in your PS3 or Xbox 360 system settings For PS3, refer to Connecting PS3 voice chat • For Xbox 360, refer to Connecting Xbox 360 voice chat • 22 English Getting started with What do you think? Please take a minute to tell us Thank you for purchasing our product * www logitech com/ithink * The sample Customer Survey shown here is in English Logitech supports many languages on its website English 23 Logitech ® Wireless Headset F540 Protect your hearing: Listening advice to avoid hearing damage Listening via headphones, earbuds or headsets at a high volume may cause permanent hearing loss to occur The louder the volume, the less time is required before your hearing could be affected To establish a safe volume level: Start your equipment with the volume control at its lowest setting • Slowly increase the sound until you can hear it comfortably and clearly, and without distortion • Avoid setting the volume at a level that prevents you from hearing conversations and other similar noises around you • Once you have established a comfortable sound level, leave it there If you experience a ringing in your ears, discomfort or muffled speech, reduce the volume or stop listening and have your hearing checked See the product support page on the Logitech website www logitech com for additional information Battery warning Caution: risk of explosion and personal injury if batteries are replaced by incorrect type Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat (above 54° C or 130° F) Doing so may cause batteries to leak or explode, resulting in personal injury Dispose of spent, leaking, or damaged batteries according to manufacturer instructions and local laws Do not use or charge batteries (lithium-ion rechargeables) if leaking, discolored, or deformed Do not mix battery types Do not charge alkaline batteries Do not leave rechargeable batteri…

Text truncated - open the document above for the full version.

Español 41 Logitech ® Wireless Headset F540 Uso de los controles giratorios de volumen y el botón de silencio del micrófono Usa los dos controles giratorios situados en el auricular izquierdo para controlar • el volumen del juego y de las charlas por separado Para silenciar el micrófono, puedes pulsar el botón de silencio del micrófono o subir • la varilla del micrófono Cuando el micrófono está silenciado, un diodo situado en la punta del micrófono se • muestra de color rojo Apagado del audífono Mantén pulsado el botón de encendido durante un segundo • Al apagar el audífono, los diodos de la estación base inalámbrica parpadean durante • unos instantes antes de apagarse Control giratorio de volumen de voz Control giratorio de volumen de sonido Botón de silencio del micrófono Botón de encendido Utilización 42 Español Resolución de problemas No se oye sonido a través del audífono Comprueba los diodos situados en la parte frontal de la estación base inalámbrica No hay ningún diodo encendido Asegúrate de que la estación base inalámbrica está conectada a una toma de corriente De ser así, haz lo siguiente: Asegúrate de que el audífono está encendido Para ello, pulsa el botón de encendido • durante un segundo Si no se puede encender el audífono, puede que la batería se haya agotado y que debas cargarla Si esto no sirve de ayuda, asegúrate de que los cables de audio están bien conectados • en la parte posterior de la estación base inalámbrica Hay un diodo encendido Si tienes varios dispositivos conectados a la estación base inalámbrica, asegúrate de haber seleccionado el sistema de audio correcto Para cambiar el sistema de audio, pulsa el botón INPUT del audífono Si usas una consola PS3, consulta Conexión de charlas para PS3 para asegurarte de que la salida de audio del sistema de videojuegos se ha configurado correctamente Asegúrate de que el sistema de videojuegos está encendido y de que hay un juego en ejecución Ajuste del audífono El audífono F540 permite ajustar los auriculares, la diadema y la varilla del micrófono para un ajuste cómodo Cuando la varilla del micrófono está en posición horizontal, se silencia la voz Español 43 Logitech ® Wireless Headset F540 Los tres diodos parpadean El audífono no ha establecido una conexión inalámbrica con la estación base Intenta volver a emparejar el audífono con la estación base inalámbrica Para ello, haz lo siguiente: Mantén pulsado el botón de encendido 1. del audífono durante 15 segundos para entrar en el modo de búsqueda Pulsa el botón de conexión situado en la parte 2. inferior de la estación base inalámbrica El micrófono no funciona El micrófono funciona con cualquier juego 1. que admita charlas en las consolas PS3 y Xbox 360 Consulta el manual del juego en cuestión para asegurarte de que éste admite charlas Si usas una consola PS32. Comprueba la conexión por cable entre la estación base inalámbrica y la consola PS3 Usa el cable de voz mini USB para PS3 para establecer esta conexión Para obtener más información, consulta Conexión de charlas para PS3 Si usas una consola Xbox 3603. Comprueba la conexión por cable entre el audífono F540 y el dispositivo de juego de Xbox 360 Usa el cable de voz de 2,5 mm para Xbox 360 para establecer esta conexión Para obtener más información, consulta Conexión de charlas para Xbox 360 Oigo la señal de audio equivocada Si tienes varios dispositivos conectados a la estación base inalámbrica, puedes cambiar el sistema de audio activo que estés escuchando Para cambiar el sistema de audio activo, pulsa el botón INPUT del audífono El control giratorio de volumen de voz no funciona en el audífono Puede que necesites cambiar los ajustes de las charlas en la configuración de sistema de la consola PS3 o Xbox 360 Para la consola PS3, consulta Conexión de charlas para PS3 • Para la consola Xbox 360, consulta Conexión de charlas para Xbox 360 • Utilización 44 Español ¿Cuál es tu opinión? Nos gustaría conocerla, si puedes dedicarnos un minuto Te agradecemos la adquisición de nuestro producto * www logitech com/ithink * La encuesta a clientes que se muestra aquí está en inglés Logitech admite muchos idiomas en su página Web Español 45 Logitech ® Wireless Headset F540 Proteger los oídos: Consejos para evitar lesiones La escucha con auriculares o audífonos a un volumen alto puede causar la pérdida del oído con carácter permanente Cuanto más alto sea el volumen de escucha, mayor será la celeridad con la que puede producirse el daño Para asegurar el uso de un volumen adecuado: Inicia tu equipo con el control de volumen al mínimo • Incrementa el volumen paulatinamente, hasta que escuches el sonido claramente y sin distorsión • Evita niveles de volumen que te impidan seguir una conversación o ruidos similares a tu alrededor • Mantén el nivel de volumen establecido Si notas un zumbido o una sensación incómoda en el oído, o si percibes el sonido debilitado, reduce el volumen o interrumpe la escucha, y consulta con tu médico Visita la sección de asistencia al producto en la página Web de Logitech (www logitech com) para más información Advertencia sobre baterías Precaución: riesgo de explosión y lesiones físicas si se sustituyen las baterías por un tipo no adecuado Las baterías no deben abrirse, dañarse ni exponerse a materiales conductores (metal), humedad, líquidos, fuego o calor (superior a 54° C) Tales acciones podrían provocar fugas en las baterías o hacerlas estallar, con el resultado de posibles lesiones físicas Deshazte de las baterías gastadas, con fugas o dañadas de acuerdo con las instrucciones del fabricante y las normativas aplicables No uses o cargues baterías (recargables de ion litio) con fugas, pérdida de color o deformaciones No mezcles distintos tipos de baterías No cargues baterías alcalinas No dejes baterías recargables descargadas o sin utilizar durante periodos prolongados La duración de las baterías depende del uso Cuando las sustituyas, retira todas las baterías gastadas y no mezcles baterías nuevas y viejas Cuando…

Text truncated - open the document above for the full version.

Français 61 Logitech ® Wireless Headset F540 Utilisation du casque Une fois la configuration de la station d'accueil sans fil terminée, vous pouvez utiliser le casque F540 Cette section décrit le fonctionnement de ce dernier en abordant les fonctions, les commandes et les paramètres disponibles Micro anti-bruits1. Témoin lumineux de sourdine 2. du microphone Tige de micro modulable3. Réglage de précision du bandeau4. Protections de bandeau5. Ecouteurs rembourrés6. Ecouteurs à isolation phonique 7. fermés Bouton de mise en sourdine 8. du microphone Molette de volume du flux vocal9. Molette de volume du flux audio 10. des jeux Bouton d'alimentation11. Témoin d'état de la connexion sans fil12. Sélecteur de source13. Port de connexion vocale Xbox 36014. Port de chargement du casque15. Première utilisation 62 Français Fonctions Mise sous tension du casque Appuyez sur le bouton d'alimentation pour mettre le casque sous tension • Le casque se connecte à la station d'accueil sans fil • Les trois témoins de la station d'accueil s'allument, puis clignotent brièvement • L'un des témoins reste ensuite allumé Utilisation du bouton de sélection de la source Si plusieurs périphériques audio sont connectés à la station d'accueil sans fil, • vous pouvez appuyer sur le bouton INPUT (Source) pour sélectionner le périphérique souhaité Appuyez sur le bouton pour changer de source audio A l'avant de la station d'accueil, • le témoin correspondant à la source audio active s'allume Si un seul périphérique est connecté à l'arrière de la station d'accueil sans fil, cette source reste active Bouton d'alimentation Sélecteur de source Témoins de la station d'accueil sans fil Français 63 Logitech ® Wireless Headset F540 Utilisation des molettes de volume et du bouton de mise en sourdine du microphone Les deux molettes situées sur l'écouteur gauche permettent de régler séparément • le volume du flux audio des jeux vidéo et des conversations vocales Vous pouvez mettre le microphone en sourdine en appuyant sur le bouton • correspondant ou en faisant pivoter la tige vers le haut (position fermée) Lorsque le microphone est en sourdine, un témoin de couleur rouge s'allume sur • ce dernier Mise hors tension du casque Maintenez le bouton d'alimentation enfoncé pendant approximativement • une seconde Lorsque vous mettez le casque hors tension, les témoins situés sur la station d'accueil • sans fil clignotent brièvement, puis s'éteignent Molette de volume du flux vocal Molette de volume sonore Bouton de mise en sourdine du microphone Bouton d'alimentation Première utilisation 64 Français Dépannage Les écouteurs n'émettent aucun son Contrôlez les témoins sur la partie avant de la station d'accueil sans fil Tous les témoins sont éteints Vérifiez que la station d'accueil sans fil est reliée à une prise de courant Si c'est le cas, effectuez la procédure suivante: Vérifiez que le casque est sous tension en appuyant sur le bouton d'alimentation • pendant environ une seconde Si le casque ne s'allume pas, il se peut que la batterie soit complètement déchargée Dans ce cas, rechargez-la Si le problème vient d'ailleurs, vérifiez que les câbles audio sont correctement • branchés à l'arrière de la station d'accueil sans fil Un témoin est allumé Si plusieurs périphériques sont reliés à la station d'accueil sans fil, vérifiez que vous avez sélectionné la source audio correcte Pour sélectionner le système audio, appuyez sur le bouton INPUT (Source) du casque Si vous utilisez une PS3, reportez-vous à la section Configuration des conversations vocales sur PS3 et vérifiez que la sortie audio de votre console est correctement configurée Vérifiez que la console est sous tension et qu'un jeu a été lancé Réglage de la position du casque La position des écouteurs, du bandeau et de la tige du microphone du casque F540 peut être réglée afin d'offrir un confort optimal Les conversations vocales sont mises en sourdine lorsque la tige du microphone est relevée Français 65 Logitech ® Wireless Headset F540 Les trois témoins clignotent La connexion sans fil entre le casque et la station d'accueil n'a pas été établie Réessayez de connecter le casque et la station d'accueil en effectuant la procédure suivante: Maintenez le bouton d'alimentation du casque 1. enfoncé pendant 15 secondes pour activer le mode de recherche Appuyez sur le bouton de connexion situé 2. dans la partie inférieure de la station d'accueil Mon microphone ne fonctionne pas Le microphone fonctionne avec tous les jeux 1. prenant en charge les conversations vocales sur PS3 et Xbox 360 Reportez-vous à la notice du jeu afin de vérifier la prise en charge des conversations vocales Sur PS32. Vérifiez la connexion du câble reliant la station d'accueil et la PS3 Cette connexion doit être assurée par le câble vocal mini-USB PS3 Pour plus d'informations, reportez- vous à la rubrique Configuration des conversations vocales sur PS3 Sur Xbox 3603. Vérifiez la connexion du câble reliant le casque F540 et la manette de jeu Xbox 360 Cette connexion doit être assurée par le câble vocal Xbox 360 2,5 mm Logitech Pour plus d'informations, reportez-vous à la rubrique Configuration des conversations vocales sur Xbox 360 Le signal audio est incorrect Si plusieurs dispositifs sont connectés à la base sans fil, vous pouvez changer le système audio actif Pour ce faire, appuyez sur le bouton INPUT du casque La molette de volume du flux vocal de mon casque ne fonctionne pas Vous devez peut-être modifier les paramètres de conversation vocale sur votre système PS3 ou Xbox 360 Sur PS3, reportez-vous à la rubrique Configuration des conversations vocales sur PS3 • Sur Xbox 360, reportez-vous à la rubrique Configuration des conversations vocales • sur Xbox 360 Première utilisation 66 Français Partagez votre avis Prenez quelques minutes pour nous faire part de vos commentaires Vous venez d'acheter ce produit et nous vous en remercions * www logitech com/ithink * L'exemple d'enquête clientèle présenté ici est en anglais Logite…

Text truncated - open the document above for the full version.

FCC ID:JNZAR0002

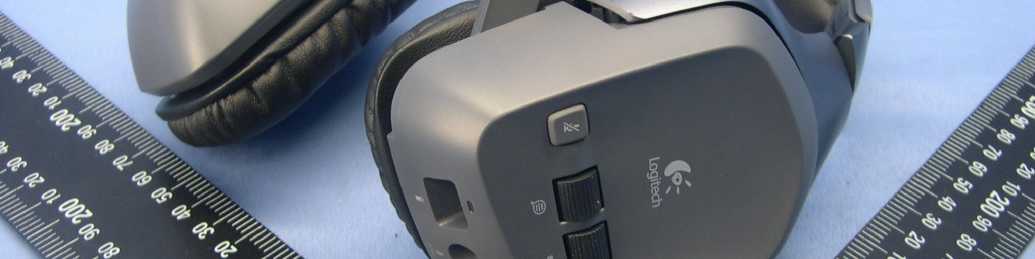

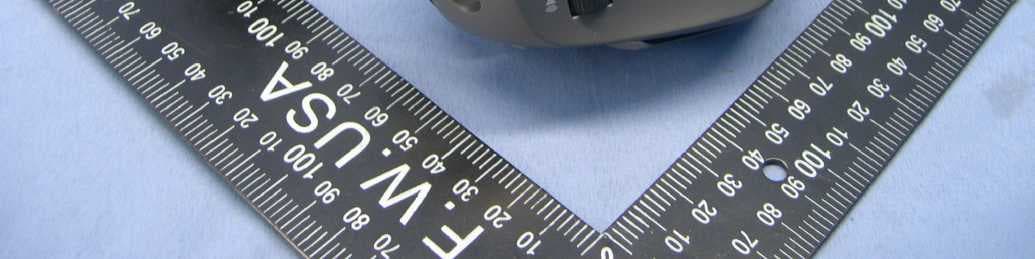

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

9.26 30.0 M/N : A-R0002 P/N :843-000039 IC:4418A-AR0002 MADE IN CHINA Rating: 5.0V 550mA FCC ID:JNZAR0002

(Fig.1) FCC ID: JNZAR0002 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

Report No.: SA990810E03 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990810E03 MODEL NO.: A-R0002 FCC ID: JNZAR0002 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : LOGITECH FAR EAST LTD. ADDRESS : #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990810E03 Report Format Version 3.0.1 2 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High 60/f SAR Limitation (mW) 2.405 2.477 24.22 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) -0.3 0.9 7.7 5.50 Threshold for no SAR evaluation is 24.22 mW Maximum TX Power is 0.9 mW Conducted and 5.50 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

Report No.: RF990810E03 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990810E03 MODEL NO.: A-R0002 FCC ID: JNZAR0002 RECEIVED: Aug. 10, 2010 TESTED: Aug. 12 to 18, 2010 ISSUED: Aug. 20, 2010 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 41 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: RF990810E03 2 Report Format Version 3.0.1 Table of Contents 1 CERTIFICATION................................................................................................................4 2 SUMMARY OF TEST RESULTS.........................................................................................5 2.1 MEASUREMENT UNCERTAINTY......................................................................................6 3 GENERAL INFORMATION.................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................................7 3.2 DESCRIPTION OF TEST MODES......................................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL........................................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................................11 3.5 DESCRIPTION OF SUPPORT UNITS...............................................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST.................................................................13 4 TEST TYPES AND RESULTS............................................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.....................................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................14 4.1.2 TEST INSTRUMENTS.......................................................................................................14 4.1.3 TEST PROCEDURES.......................................................................................................15 4.1.4 TEST SETUP....................................................................................................................15 4.1.5 DEVIATION FROM TEST STANDARD..............................................................................15 4.1.6 EUT OPERATING CONDITIONS.......................................................................................16 4.1.7 TEST RESULTS(MODE 1)................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT..........................................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................................19 4.2.2 TEST INSTRUMENTS.......................................................................................................20 4.2.3 TEST PROCEDURES.......................................................................................................21 4.2.4 TEST SETUP....................................................................................................................22 4.2.5 DEVIATION FROM TEST STANDARD..............................................................................22 4.2.6 EUT OPERATING CONDITIONS.......................................................................................22 4.2.7 TEST RESULTS................................................................................................................23 4.3 6DB BANDWIDTH MEASUREMENT.................................................................................31 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT............................................................…

Text truncated - open the document above for the full version.
