JNZCRL65WIFI REMOTE CONTROL

FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LETTER OF AUTHORITY / DRUG ATTESTATION February 25, 2008 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Gentlemen: This is a letter of authorization to accept Electro Magnetic Test, Inc. as an Agent for Logtitech, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Logitech product: Jive Wireless Residential Remote Control under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Logitech nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Logitech will notify the Federal Communications Commission if, at any time, the situation changes causing Logitech to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at +886 3 5778241* 2146 Sincerely, T.C. Chang / Sr. Manager AP Region Compliance Logitech Far East LTD. TEL: +886 3 5778241* 2146 FAX: +886 3 5772393 E-mail: [email protected]

FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 February 22, 2008 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Request for a new certification for: Logitech, Inc. Jive Model: C-RL65 FCC ID: JNZCRL65 Gentlemen, Please find enclosed an original package for the Jive, Model: C-RL65. The EUT is a WiFi remote control; it allows the customer to control other Logitech products on an 802.11 wireless network. The digital device portion of the EUT is approved under the Verification procedure. Logitech, Inc. would like to keep the block diagrams, operational description, and schematics with this application confidential. Please see the request for confidentiality enclosed with the block diagrams, operational description, and schematics. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (650)965-4000. Sincerely, Kevin Bothmann Lab Manager

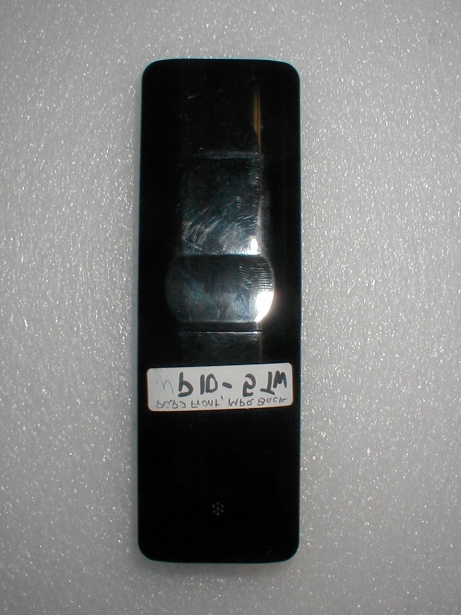

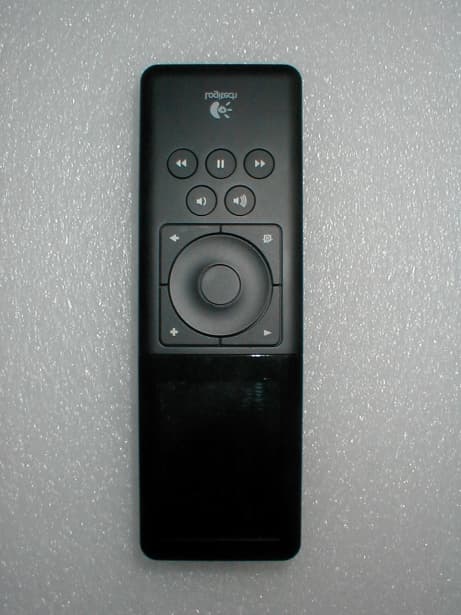

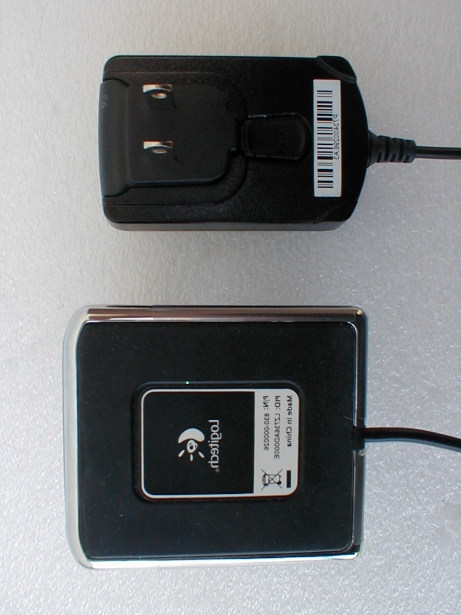

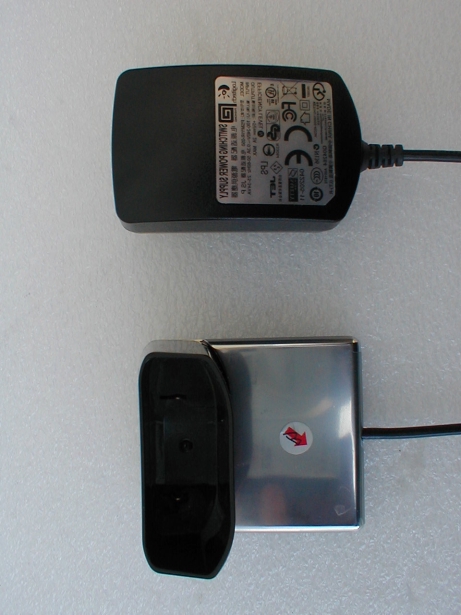

FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 EXTERNAL PHOTOGRAPHS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT EXTERNAL VIEW OF EUT (REMOTE) FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR EXTERNAL VIEW OF EUT (REMOTE) FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP EXTERNAL VIEW OF EUT (REMOTE) FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM EXTERNAL VIEW OF EUT (REMOTE) FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF EUT (BASE) AND POWER ADAPTER FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM VIEW OF EUT (BASE) AND POWER ADAPTER

FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FCC LABEL AND ITS LOCATION

FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 INTERNAL PHOTOGRAPHS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 INSIDE VIEW OF EUT (REMOTE) FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF MAIN BOARD FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF MAIN BOARD (BUTTON PLATE REMOVED) FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM VIEW OF MAIN BOARD FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF WIRELESS BOARD FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM VIEW OF WIRELESS BOARD FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF LCD SCREEN FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM VIEW OF LCD SCREEN FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP VIEW OF FLASH MEMORY FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM VIEW OF FLASH MEMORY FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 INTERNAL VIEW OF EUT (BASE)

RF Exposure Statement Radiation exposure evaluation The Jive is a Wireless remote Controller. It is battery operated handheld device. AC power adapter is used for charging purposes only. The maximum calculated conducted average power is 6.8 dBm, antenna is fix-mounted, - 2 dBi gain (maximum). Therefore, to comply with RF Exposure Requirement, the MPE is calculated. The maximum Average EIRP calculated is 4.8mWatts. The Power Density can be calculated using the formula S = EIRP/ 4 π D 2 Where: S is Power Density in W/m 2 D is the distance from the antenna. At distance of 0.2 m, S = 0.010 W/m 2 which is below MPE Limit of 10 W/m 2

APPENDIX A Plot 6.1 A Ref 117 dBμV Offset 26.5 dB LVL 11 MHz/Center 2.365 GHzSpan 110 MHz * RBW 1 MHz SWT 5 ms * VBW 1 MHz Att 0 dB * MAXH *1 RM PRN 20 30 40 50 60 70 80 90 100 110 SWP 100 of 100 1 Marker 1 [T1 ] 68.84 dBμ V 2.398220000 GHz D1 74 dBμV F1 Comment: Bandedge Ch1 CCK 11Mbps Peak Date: 20.FEB.2008 21:30:02 Plot 6.2 A Ref 117 dBμV Offset 26.5 dB LVL 11 MHz/Center 2.365 GHzSpan 110 MHz * RBW 1 MHz Att 0 dB * *1 RM CLRWR * VBW 10 Hz SWT 28 s PRN 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 52.65 dBμ V 2.398220000 GHz F1 D1 54 dBμV Comment: Bandedge Ch1 CCK 11Mbps avg Date: 20.FEB.2008 21:37:00 Plot 6.3 A Offset 26.5 dB LVL * RBW 1 MHz Att 0 dB * Ref 110 dBμV Center 2.365 GHzSpan 110 MHz11 MHz/ * VBW 1 MHz SWT 5 ms *1 RM MAXH PRN 10 20 30 40 50 60 70 80 90 100 110 SWP 100 of 100 1 Marker 1 [T1 ] 63.77 dBμV 2.399720000 GHz F1 D1 74 dBμV Comment: Lower Bandge_OFDM_9MBPS_at 1meter Peak Date: 19.FEB.2008 20:55:31 Plot 6.4 A Offset 26.5 dB LVL * RBW 1 MHz Att 0 dB * Ref 110 dBμV Center 2.365 GHzSpan 110 MHz11 MHz/ * VBW 1 MHz SWT 5 ms *1 RM MAXH PRN 10 20 30 40 50 60 70 80 90 100 110 SWP 100 of 100 1 Marker 1 [T1 ] 62.86 dBμ V 2.399720000 GHz F1 D1 74 dBμV Comment: Lower Bandge_OFDM_54Mbpsat 1meter Date: 19.FEB.2008 20:52:12 Plot 6.5 A Offset 26.5 dB LVL * RBW 1 MHz Att 0 dB * Ref 110 dBμV Center 2.365 GHzSpan 110 MHz11 MHz/ * VBW 10 Hz SWT 28 s *1 RM CLRWR PRN 10 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 50.64 dBμV 2.399500000 GHz F1 D1 54 dBμV Comment: Lower Bandge_Avg OFDM_54Mbpsat 1meter Date: 19.FEB.2008 20:48:55 Plot 6.6 A Ref 117 dBμV Offset 26.5 dB LVL Att 0 dB * 5 MHz/Start 2.45 GHzStop 2.5 GHz * RBW 1 MHz * VBW 1 MHz SWT 5 ms *1 RM MAXH PRN 20 30 40 50 60 70 80 90 100 110 SWP 100 of 100 1 Marker 1 [T1 ] 52.45 dBμ V 2.484100000 GHz F1 D1 74 dBμV Comment: Bandedge Ch1 CCK 11Mbps Peak Date: 20.FEB.2008 21:46:24 Plot 6.7 A Ref 117 dBμV Offset 26.5 dB LVL Att 0 dB * *1 RM CLRWR 5 MHz/Start 2.45 GHzStop 2.5 GHz * RBW 1 MHz * VBW 10 Hz SWT 12.5 s PRN 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 46.80 dBμ V 2.484100000 GHz D1 54 dBμV F1 Comment: Bandedge Ch1 CCK 11Mbps avg Date: 20.FEB.2008 21:44:12 Plot 6.8 A Offset 26.5 dB LVL Att 0 dB * Ref 110 dBμV 5 MHz/Start 2.45 GHzStop 2.5 GHz * * RBW 1 MHz VBW 1 MHz SWT 5 ms *1 RM MAXH PRN 10 20 30 40 50 60 70 80 90 100 110 SWP 100 of 100 1 Marker 1 [T1 ] 57.55 dBμ V 2.483900000 GHz D1 74 dBμV F1 Comment: Upper Bandge_OFDM_9MBPS_at 1meter Peak Date: 19.FEB.2008 21:00:07 Plot 6.9 A Offset 26.5 dB LVL Att 0 dB * Ref 110 dBμV 5 MHz/Start 2.45 GHzStop 2.5 GHz * RBW 1 MHz *1 RM CLRWR * VBW 10 Hz SWT 12.5 s 10 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 49.97 dBμ V 2.483900000 GHz F1 D1 54 dBμV Comment: Upper Bandge_OFDM_54MBPS_at 1meter Average Date: 19.FEB.2008 21:05:19 Plot 6.10 A Offset 26.5 dB LVL Att 0 dB * Ref 110 dBμV 5 MHz/Start 2.45 GHzStop 2.5 GHz * RBW 1 MHz *1 RM CLRWR * VBW 10 Hz SWT 12.5 s PRN 10 20 30 40 50 60 70 80 90 100 110 1 Marker 1 [T1 ] 50.08 dBμ V 2.483900000 GHz F1 D1 54 dBμV Band edge OFDM 54Mbps Average

APPENDIX B Test Results: Channel Frequency MHz Standard Date rate Mbps 26-dB Bandwidth MHz Occupied Bandwidth MHz Plot 1 2412 802.11b 11 13.92 B1 6 2437 802.11b 11 17.73 B2 6 2437 802.11b 11 13.93 B3 11 2462 802.11b 11 17.5 B4 11 2437 802.11b 11 13.98 B5 1 2412 802.11g 9 22.02 B6 1 2412 802.11g 9 17.38 B7 1 2412 802.11g 54 22.02 B8 1 2412 802.11g 54 17.38 B9 6 2437 802.11g 9 17.67 B10 6 2437 802.11g 54 17.61 B11 11 2462 802.11g 9 17.33 B12 11 2462 802.11g 9 21.78 B13 11 2462 802.11g 54 17.38 B14 Plot B1 Center 2.412 GHzSpan 25 MHz2.5 MHz/ Ref 13 dBmAtt 10 dB RBW 1 MHz VBW 3 MHz SWT 5 ms * * * Offset 29.5 dB 1 RM MAXH A LVL PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -39.85 dB m 2.424500000 GHz OBW 13.925000000 MHz T1 Temp 1 [T1 OBW] -7.22 dB m 2.405125000 GHz T2 Temp 2 [T1 OBW] -6.71 dB m 2.419050000 GHz Comment: OCBW_CCK_Ch#1 Date: 19.FEB.2008 18:40:34 Plot B2 Ref 13 dBm Offset 29.5 dB A LVL Center 2.437 GHzSpan 25 MHz2.5 MHz/ SWT 5 ms MAXH Att 20 dB * * *1 RM RBW 1 MHz VBW 3 MHz PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -18.80 dB m 2.445975000 GHz 1 Delta 1 [T1 ] 0.16 dB -17.750000000 MHz Comment: 26dBBW_CCK_Ch#6 Date: 19.FEB.2008 18:47:40 Plot B3 Ref 13 dBmAtt 10 dB Offset 29.5 dB A LVL Center 2.437 GHzSpan 25 MHz2.5 MHz/ * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -39.34 dB m 2.424500000 GHz OBW 13.950000000 MHz T1 Temp 1 [T1 OBW] -6.35 dB m 2.430075000 GHz T2 Temp 2 [T1 OBW] -5.89 dB m 2.444025000 GHz Comment: OCBW_CCK_Ch#6 Date: 19.FEB.2008 18:43:01 Plot B4 Ref 13 dBm Offset 29.5 dB A LVL Att 20 dB Center 2.462 GHzSpan 25 MHz2.5 MHz/ * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -16.42 dB m 2.453350000 GHz 1 Delta 1 [T1 ] 0.23 dB 17.500000000 MHz Comment: 26dBBW_CCK_Ch#11 Date: 19.FEB.2008 18:51:49 Plot B5 Ref 13 dBm Offset 29.5 dB A LVL Center 2.462 GHzSpan 25 MHz2.5 MHz/ Att 10 dB * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] 9.62 dB m 2.463950000 GHz OBW 13.800000000 MHz T1 Temp 1 [T1 OBW] -2.39 dB m 2.455175000 GHz T2 Temp 2 [T1 OBW] -3.20 dB m 2.468975000 GHz Comment: OCBW_CCK_Ch#11 Date: 19.FEB.2008 18:53:13 Plot B6 Ref 13 dBm Offset 29.5 dB A LVL Center 2.412 GHzSpan 30 MHz3 MHz/ SWT 5 ms MAXH Att 20 dB * * *1 RM RBW 1 MHz VBW 3 MHz PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -25.81 dB m 2.401080000 GHz 1 Delta 1 [T1 ] 0.08 dB 22.020000000 MHz Comment: OFDM_Ch#1_9mbps_26dBBW Date: 19.FEB.2008 19:20:32 Plot B7 Ref 13 dBm Offset 29.5 dB A LVL Att 10 dB Center 2.412 GHzSpan 30 MHz3 MHz/ * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -40.31 dB m 2.427000000 GHz OBW 17.580000000 MHz T1 Temp 1 [T1 OBW] -8.28 dB m 2.403270000 GHz T2 Temp 2 [T1 OBW] -9.23 dB m 2.420850000 GHz Comment: OCBW_OFDM_Ch#1_9mbps Date: 19.FEB.2008 19:17:50 Plot B8 Ref 13 dBm Offset 29.5 dB A LVL Center 2.412 GHzSpan 30 MHz3 MHz/ SWT 5 msAtt 20 dB * * RBW 1 MHz VBW 3 MHz *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -25.83 dB m 2.401080000 GHz 1 Delta 1 [T1 ] 0.17 dB 22.020000000 MHz Comment: OFDM_Ch#1_54mbps_26dBBW Date: 19.FEB.2008 19:22:37 Plot B9 Ref 13 dBm Offset 29.5 dB A LVL Att 10 dB Center 2.412 GHzSpan 30 MHz3 MHz/ * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -40.17 dB m 2.427000000 GHz OBW 17.580000000 MHz T1 Temp 1 [T1 OBW] -9.29 dB m 2.403300000 GHz T2 Temp 2 [T1 OBW] -9.65 dB m 2.420880000 GHz Comment: OCBW_OFDM_Ch#1_54mbps Date: 19.FEB.2008 19:16:01 Plot 10 Ref 13 dBm Offset 29.5 dB A LVL Att 10 dB Center 2.437 GHzSpan 30 MHz3 MHz/ * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -39.15 dB m 2.452000000 GHz OBW 17.670000000 MHz T1 Temp 1 [T1 OBW] -8.68 dB m 2.428180000 GHz T2 Temp 2 [T1 OBW] -7.80 dB m 2.445850000 GHz Comment: OCBW_OFDM_Ch#6_9mbps Date: 19.FEB.2008 19:11:16 Plot 11 Ref 13 dBm Offset 29.5 dB A LVL Center 2.437 GHzSpan 30 MHz3 MHz/ *1 RM MAXH Att 10 dB * * RBW 1 MHz VBW 3 MHz SWT 5 ms PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -38.39 dB m 2.452000000 GHz OBW 17.610000000 MHz T1 Temp 1 [T1 OBW] -5.13 dB m 2.428270000 GHz T2 Temp 2 [T1 OBW] -6.86 dB m 2.445880000 GHz Comment: OCBW_OFDM_Ch#6_9mbps Date: 19.FEB.2008 19:13:43 Plot 12 Ref 13 dBm Offset 29.5 dB A LVL Center 2.462 GHzSpan 30 MHz3 MHz/ MAXH *1 RM Att 10 dB * * RBW 1 MHz VBW 3 MHz SWT 5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] 3.91 dB m 2.465510000 GHz OBW 17.550000000 MHz T1 Temp 1 [T1 OBW] -5.76 dB m 2.453270000 GHz T2 Temp 2 [T1 OBW] -5.07 dB m 2.470820000 GHz Comment: OCBW_OFDM_Ch#11_9mbps Date: 19.FEB.2008 19:07:04 Plot B13 Ref 13 dBm Offset 29.5 dB A LVL Center 2.462 GHzSpan 30 MHz3 MHz/ SWT 5 msAtt 20 dB * * RBW 1 MHz VBW 3 MHz *1 RM VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] -22.11 dB m 2.472860000 GHz 1 Delta 1 [T1 ] 0.04 dB -21.780000000 MHz Comment: 26DBBW_OFDM_Ch#11 Date: 19.FEB.2008 18:59:21 Plot B14 Ref 13 dBm Offset 29.5 dB A LVL Center 2.462 GHzSpan 30 MHz3 MHz/ Att 10 dB * * RBW 1 MHz VBW 3 MHz SWT 5 ms *1 RM MAXH PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T1 ] 4.46 dB m 2.466350000 GHz OBW 17.580000000 MHz T1 Temp 1 [T1 OBW] -5.39 dB m 2.453240000 GHz T2 Temp 2 [T1 OBW] -5.43 dB m 2.470820000 GHz Comment: OCBW_OFDM_Ch#11 Date: 19.FEB.2008 18:56:49

EMC Report for C-RL65 for Logitech, Inc. File: M71121A4 Page 1 of 47 TEST REPORT Report Number: M71121A4 February 25, 2008 Testing performed on the Jive Model Number: C-RL65 FCC ID: JNZCRL65 IC ID: 1807A-CRL65 to FCC Part 15 Subpart C (15.247) RSS-210 Annex 8 for Logitech, Inc. Test Performed by: Test Authorized by: Suresh Kondapalli Kevin Bothmann Prepared by: Kevin Bothmann Date: 2-25-08 Reviewed by: Jay Gandhi Date: 2-25-08 EMC Report for C-RL65 for Logitech, Inc. File: M71121A4 Page 2 of 47 TABLE OF CONTENTS 1.0 Summary of Tests .......................................................................................................................... 3 2.0 General Description ....................................................................................................................... 4 2.1 Product Description ............................................................................................................4 2.2 Related Submittal(s) Grants ................................................................................................ 5 2.3 Test Methodology ...............................................................................................................5 2.4 Test Facility ........................................................................................................................ 5 3.0 System Test Configuration............................................................................................................ 6 3.1 Support Equipment ............................................................................................................. 6 3.2 Block Diagram of Test Setup.............................................................................................. 6 3.3 Justification ......................................................................................................................... 7 3.4 Software Exercise Program................................................................................................. 7 3.5 Mode of Operation During Test.......................................................................................... 7 3.6 Modifications Required for Compliance ............................................................................ 7 3.7 Additions, deviations and exclusions from standards ......................................................... 7 4.0 Measurement Results..................................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals............................................... 8 4.2 6 dB RF Bandwidth .......................................................................................................... 10 4.3 Power Spectral Density..................................................................................................... 18 4.4 Out-of-Band Conducted Emissions .................................................................................. 28 4.5 Out of Band Radiated Emissions ...................................................................................... 29 4.6 Transmitter Radiated Emissions in Restricted Bands ....................................................... 29 4.6.4 Test Result – bands: 2483.5 – 2500 MHz and 2310 – 2390 MHz....................... 34 4.7 AC Line Conducted Emission .......................................................................................... 35 4.8 Radiation exposure evaluation .......................................................................................... 42 5.0 List of Test Equipment ................................................................................................................ 43 6.0 Document History ........................................................................................................................ 44 Appendix A – Band edge plots ................................................................................................................. 46 Appendix B - 26dB and Occupied Band width Plots ............................................................................. 47 EMC Report for C-RL65 for Logitech, Inc. File: M71121A4 Page 3 of 47 1.0 Summary of Tests FCC ID: JNZCRL65 TEST REFERENCE FCC Part 15 C REFERENCE RSS-210 Annex 8 RESULTS RF output power 15.247(b) A8.4 Complies 6 dB Bandwidth 15.247(a)(2) A8.2(1) Complies Power Density 15.247(d) A8.2(2) Complies Out of Band Antenna Conducted Emission 15.247(c) A8.5 Antenna is integral part of the EUT Out of Band Radiated Emission (except emissions in restricted bands) 15.247(c) A8.5 Complies Radiated Emission in Restricted Bands 15.247(c), 15.209, 15.205 A8.5 Complies AC Conducted Emission 15.207 RSS-Gen Complies Radiated Emission from Digital Part and Receiver 15.109 RSS-Gen Complies. A separate verification report is issued Antenna Requirement 15.203 RSS-Gen Complies. Antenna is integral part of the EUT EMC Report for C-RL65 for Logitech, Inc. File: M71121A4 Page 4 of 47 2.0 General Description 2.1 Product Description The Jive, model C-RL65, is an IEEE 802.11b/g Wireless Residential remote contoller operating at 2.4 GHz. It allows the customer to control other Logitech products. Overview of the Equipment under Test: Applicant Logitech, Inc. Model No. C-RL65 FCC Identifier JNZCRL65 IC Identifier 1807A-CRL65 Use of Product Wireless Residential remote contoller Manufacturer & Model of Spread Spectrum Module Logitech, Inc. Modulation Technique DSSS (802.11b) & OFDM (802.11g) Rated RF Output 15dBm Frequency Range 2412 – 2462 MHz Type of modulation CCK, Number of Channel(s) 11 Antenna(s) & Gain, Internal Antenna Requirement The EUT does not have an external antenna connector Manufacturer Name & Address Logitech, Inc. 6505 Kaiser Drive, Fremont, California 94555 EUT receive date: November 20, 2007 EUT receive condition: The EUT was received in good condition with no apparent damage. Test start date: November 20, 2007 Test comp…

Text truncated - open the document above for the full version.

FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TEST SETUP PHOTOGRAPHS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT VIEW LOGITECH, INC. JIVE MODEL: C-RL65 FCC CLASS B - RADIATED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR VIEW LOGITECH, INC. JIVE MODEL: C-RL65 FCC CLASS B - RADIATED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT VIEW LOGITECH, INC. JIVE MODEL: C-RL65 FCC CLASS B - CONDUCTED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR VIEW LOGITECH, INC. JIVE MODEL: C-RL65 FCC CLASS B - CONDUCTED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT VIEW LOGITECH, INC. JIVE MODEL: C-RL65 FCC PART 15, SUBPART C - RADIATED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: JNZCRL65 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR VIEW LOGITECH, INC. JIVE MODEL: C-RL65 FCC PART 15, SUBPART C - RADIATED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS
