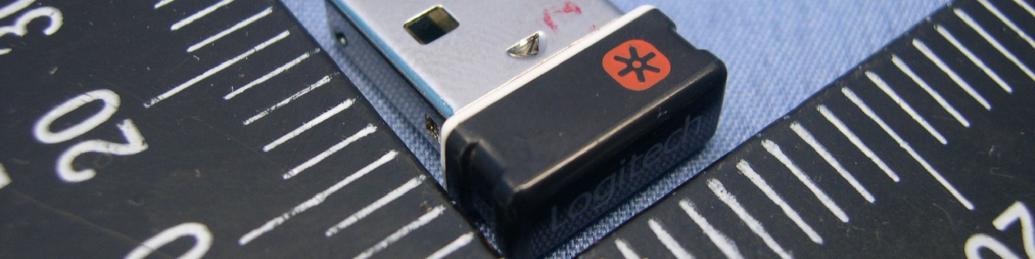

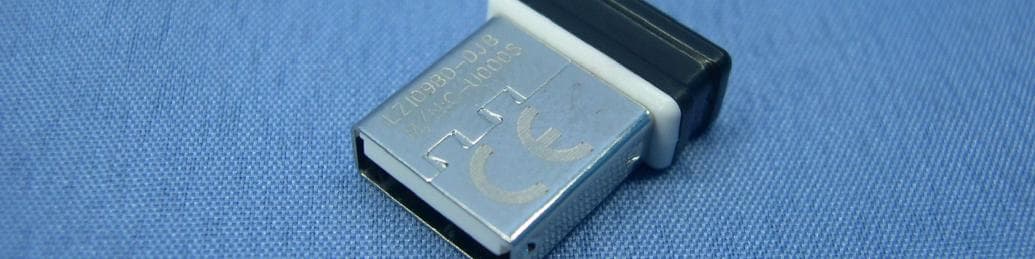

JNZCU00082.4GHz Transceiver

Package contents Setting up the mouse Thank you! Merci! Gracias! Obrigado! 1 2 3 EnglishPackage contents1 . Mouse 2 . USB Plug-and-Forget Nano-receiver 3 . Desktop USB extension stand 4 . Two AA alkaline batteries 5 . Quick start guide EspañolEsta caja contiene1 . Ratón 2 . Nanorreceptor USB de tipo "conectar y olvidar" 3 . Base de extensión USB de sobremesa 4 . Dos pilas alcalinas AA 5 . Guía de inicio rápido FrançaisContenu1 . Souris 2 . Nano-récepteur USB ultra-discret 3 . Support d'extension USB pour le bureau 4 . Deux piles alcalines de type AA 5 . Guide de démarrage rapide PortuguêsConteúdo da embalagem1 . Rato 2. Nano-Receptor USB “Ligar e Esquecer” 3. Suporte de secretária de extensão USB 4. Duas pilhas AA alcalinas 5. Guia de iniciação rápida EnglishThank you for purchasing the Logitech ® V450 Nano Cordless Laser Mouse for Notebooks. Follow the easy steps in this guide to begin enjoying the features of your new mouse. EspañolLe agradecemos la adquisición de Logitech ® V450 Nano Cordless Laser Mouse for Notebooks. El sencillo procedimiento detallado en esta guía le permitirá empezar a disfrutar de las funciones de su nuevo ratón. FrançaisNous vous remercions d'avoir acheté la souris Logitech ® V450 Nano Cordless Laser Mouse for Notebooks. Suivez les étapes de ce guide pour commencer à apprécier les fonctionnalités de votre nouvelle souris. PortuguêsObrigado por ter adquirido o Rato Laser Sem Fios Logitech ® V450 Nano para Portáteis. Siga os passos simples neste guia para começar a desfrutar das funcionalidades do novo rato. 1 2 3 ON 1 Quick start guide 4 5 EnglishSetting up the mouse1 . Turn on the computer. 2 . Slide the Release button on the bottom of the mouse to release the battery door. 3 . Remove the battery door. 4 . Insert the two AA alkaline batteries in the mouse battery compartment. 5 . Replace the battery door. 6 . Insert the USB Plug-and-Forget Nano-receiver into a notebook USB port. So small, the USB Nano-receiver can stay attached to your notebook permanently. 7 . The green LED light on the mouse bottom should be on. (If the green LED light is not on, go to the Troubleshooting section for more information.) Congratulations! You can now enjoy the basic functions of your mouse, including the left- and right-mouse buttons, up and down scrolling with the wheel, and the middle mouse button (the wheel button). In Microsoft ® Windows ® , the function assigned to the middle button depends on the application you are using. In Macintosh ® OS X, the middle button typically does not have a function unless the software is installed. EspañolConfiguración del ratón1 . Encienda el ordenador. 2 . Deslice el botón situado en la parte inferior del ratón para abrir el compartimiento de las pilas. 3 . Quite la tapa. 4. Coloque las dos pilas alcalinas AA en el compartimento. 5. Coloque la tapa en su sitio. 6. Conecte el nanorreceptor USB a un puerto USB del portátil. El nanorreceptor es de tipo "conectar y olvidar", tan pequeño que puede seguir conectado al portátil permanentemente. 7. Debería iluminarse el diodo verde, en la parte inferior del ratón. De no ser así, consulte la sección de resolución de problemas. ¡Enhorabuena! Ya puede disfrutar de las funciones básicas del ratón: con los botones izquierdo y derecho, el botón rueda para desplazamiento vertical y dicho botón también utilizable como botón central, mediante pulsación. En Microsoft ® Windows ® , la función asignada al botón central depende de la aplicación en uso. En Macintosh ® OS X, el botón central no suele realizar ninguna función a menos que se haya instalado el software. FrançaisConfiguration de la souris1 . Mettez l'ordinateur sous tension. 2. Faites glisser le bouton d'ouverture situé sous la souris pour ouvrir le clapet du compartiment à piles. 3. Otez le clapet du compartiment. 4. Insérez les deux piles alcalines de type AA dans le compartiment. 5. Remettez le clapet en place. 6. Insérez le nano-récepteur USB ultra-discret dans l'un des ports USB de l'ordinateur portable. Le nano-récepteur est si petit que vous pouvez le laisser relié à l'ordinateur portable en permanence. 7. Le témoin vert situé sous la souris doit être illuminé. Si ce n'est pas le cas, accédez à la section de dépannage pour en savoir plus. Félicitations! Vous pouvez maintenant profiter des fonctions élémentaires de la souris, comme les boutons gauche et droit, la roulette de défilement vertical et le bouton central (bouton de la roulette). Sous Microsoft ® Windows ® , la fonction attribuée au bouton central dépend de l'application en cours d'utilisation Sous Macintosh ® OS X, le bouton central ne possède généralement aucune fonction, à moins que le logiciel ne soit installé. PortuguêsConfigurar o rato1 . Ligue o computador. 2. Desloque o botão Release na parte inferior do rato para libertar a porta do compartimento das pilhas. 3. Remova o compartimento das pilhas. 4. Introduza as duas pilhas alcalinas AA no compartimento de pilhas do rato. 5. Volte a colocar a porta das pilhas. 6. Introduza o Nano-Receptor USB “Ligar e Esquecer” numa porta USB do portátil. Devido à sua pequena dimensão, o Nano-Receptor USB pode estar permanentemente ligado ao portátil. 7. O LED verde na parte inferior do rato deve estar ligado. (Se o LED verde não estiver ligado, consulte a secção Resolução de Problemas para obter mais informações.) Parabéns! Agora pode desfrutar das funções básicas do rato, incluindo botões esquerdo e direito do rato, deslocamento para cima e para baixo com a roda e o botão central do rato (o botão da roda). No Microsoft ® Windows ® , a função atribuída ao botão central depende da aplicação que estiver a usar. No SO Macintosh ® X, o botão central geralmente não tem uma função, a menos que seja instalado o software. USB 2 3 4 5 6 7 Downloading the mouse software + www.logitech.com/support [email protected] WWW EnglishFAQsTroubleshootingDownloadsForumsRegistrationWarranty informationEspañol Preguntas más habitualesResolución de problemasDescar…

Text truncated - open the document above for the full version.

Troubleshooting English Mouse features 1. Tilt wheel. Tilt the wheel left or right to scroll side to side. (The mouse software must be installed to enable this function.) •Windows: Press the wheel down to activate Document Flip •Macintosh: Press the wheel down to activate Exposé. • The mouse software must be installed to enable these functions. 2.Battery LED. The LED flashes red when batteries are low. 3.Left and right mouse buttons. Use the mouse software to change functions. 4.Battery door release button. Slide the button to open the battery door to store the USB Nano-receiver in the battery compartment or to insert batteries in the mouse. 5. Power LED. The LED glows green briefly when the mouse is turned on. 6.Power button. To conserve battery power while the mouse is not in use and the USB Nano-receiver is plugged into your notebook, press the Power button for two seconds to turn off the mouse. The Power LED turns off. 7.USB Nano-receiver storage. 8.USB Nano-receiver. Leave the USB Nano-receiver plugged into a notebook USB port, or store it inside the mouse battery compartment. When stored inside the battery compartment, the mouse turns off automatically. When removed from the battery compartment, the mouse turns on automatically. When plugged into your notebook, exercise care when handling your notebook to avoid damage to the USB Nano-receiver or notebook. CAUTION: CHOKING HAZARD. HARMFUL OR FATAL IF SWALLOWED. Package contains small parts. Not for children under 6 years. 9. Desktop USB extension stand. Use this stand with a desktop computer for easier access to your computer’s USB port. Español Características del ratón 1. Botón rueda inclinable. Mueva el botón rueda inclinable hacia la derecha o la izquierda para desplazamientos horizontales. El software de ratón debe estar instalado para disponer de esta función. • Windows: Pulse el botón rueda para activar el cambio rápido de documentos • Macintosh: Pulse el botón rueda para activar Exposé. •El software de ratón debe estar instalado para disponer de estas funciones. 2.Diodo de estado de pilas. El diodo emite destellos rojos si la carga de pila es baja. 3.Botones izquierdo y derecho. Utilice el software de ratón para cambiar funciones. 4. Botón de compartimento de pilas. Deslice el botón para abrir el compartimento de las pilas, para guardar el nanorreceptor USB o para colocar las pilas del ratón. 5. Diodo de encendido. El diodo emite luz verde brevemente cuando se enciende el ratón. 6. Botón de encendido. Para ahorrar energía de las pilas mientras el ratón no se utiliza y el nanorreceptor USB está conectado al portátil, pulse durante dos segundos el botón de encendido para apagar el ratón. El diodo de encendido se apagará. 7.Almacenamiento del nanorreceptor USB. 8. Nanorreceptor USB. Puede tener el nanorreceptor USB conectado a un puerto USB del portátil o guardarlo en el compartimento de las pilas del ratón. Cuando el microrreceptor se guarda dentro del ratón, éste se apaga automáticamente. Al sacar el microrreceptor del compartimento de las pilas, el ratón se enciende automáticamente. Si el nanorreceptor está conectado al portátil, tenga cuidado al manipular el ordenador para evitar dañar tanto éste como el receptor. PRECAUCIÓN: RIESGO DE ASFIXIA. PUEDE RESULTAR PERJUDICIAL O MORTAL SI SE INGIERE. El paquete contiene piezas pequeñas. No recomendado para niños menores de 6 años. 9. Base de extensión USB de sobremesa. Utilice esta base con un ordenador de sobremesa para facilitar el acceso al puerto USB del ordenador. Information Français Fonctions de la souris 1. Roulette multidirectionnelle. Inclinez la roulette vers la droite ou vers la gauche pour faire défiler le contenu de l'écran latéralement. Pour utiliser cette fonction, vous devez avoir installé le pilote de la souris. • Windows: appuyez sur la roulette pour activer la fonction de changement rapide de document. • Macintosh: appuyez sur la roulette pour activer la fonction Exposé. • Pour utiliser ces fonctions, vous devez avoir installé le pilote de la souris. 2. Témoin lumineux des piles. Le témoin lumineux clignote en rouge lorsque le niveau de charge des piles est faible. 3. Boutons droit et gauche de la souris. Utilisez le logiciel de la souris pour changer les fonctions. 4. Bouton d'ouverture du compartiment à piles. Faites glisser le bouton d'ouverture du compartiment à piles afin d'y ranger le nano-récepteur USB ou d'y insérer des piles pour la souris. 5. Témoin d'alimentation. Le témoin s'illumine brièvement en vert lorsque la souris est sous tension. 6. Bouton d'alimentation. Afin d'économiser la charge des piles lorsque la souris n'est pas en cours d'utilisation et lorsque le nano-récepteur USB est branché sur l'ordinateur, appuyez sur le bouton Power pendant deux secondes pour désactiver la souris. Le témoin d'alimentation s'éteint. 7. Boîtier du nano-récepteur USB. 8. Nano-récepteur USB. Laissez le nano-récepteur branché sur le port USB de l'ordinateur portable ou rangez-le dans le comparti- ment à piles. La souris est alors automatiquement désactivée. Une fois le nano-récepteur retiré du compartiment à piles, la souris est automatiquement réactivée. Lorsque le nano-récepteur est branché sur l'ordinateur portable, manipulez l'ordinateur et le nano-récepteur avec précaution, afin de ne pas les endommager. ATTENTION: RISQUE D'ETOUFFEMENT. NOCIF VOIRE MORTEL EN CAS D'INGESTION. Le coffret contient de petits composants. Tenez-le hors de portée des enfants de moins de six ans. 9. Support de rallonge USB pour bureau. Utilisez ce support avec un ordinateur de bureau pour accéder plus facilement au port USB. Português Funcionalidades do rato 1. Roda de inclinação. Incline a roda para a esquerda ou direita para deslocar na horizontal. (O software do rato deverá estar instalado para activar esta função.) • Windows: Prima a roda para activar a Rotação de Documentos • Macintosh: Prima a roda para activar Exposé. •O software do rato deverá estar instalado para activar es…

Text truncated - open the document above for the full version.

June. 30. 2011

Mª Gema Briseño Pascual De: [email protected] Enviado el: martes, 11 de marzo de 2008 12:59 Para: Mª Gema Briseño Pascual Asunto: Fw: FCC ID on manual Page 1 of 2 10/04/2008 Hello Gema, Here you are. Thank you Kind regards Pascal Bornel ----- Forwarded by Pascal Bornel/CH/EU/LOGITECH on 03/11/2008 12:30 PM ----- Hi Pascal, Below info from FCC telling us "device is small and warrants placing the ID in the user manual." Thank you, Best Regards, Bharat Shah E: [email protected] Tel : (510)-713-4777 Fax : (510)-713-5294 efax :(419)-828-4405 ----- Forwarded by Bharat Shah/CA/US/LOGITECH on 03/10/2008 08:08 AM ----- I agree this device is small and warrants placing the ID in the user manual. Raymond LaForge Chief, (FCC-OET) Auditing and Compliance Branch (301) 362-3041 03/10/2008 04:10 PM Bharat Shah/CA/US/LOGITECH To Pascal Bornel/CH/EU/LOGITECH@LOGITECH cc Philippe Vulliens/CH/EU/LOGITECH@LOGITECH Subject Fw: FCC ID on manual 03/10/2008 04:47 AM "Raymond Laforge" <[email protected]> To <[email protected]> cc Subject RE: FCC ID on manual -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, March 07, 2008 2:26 PM To: Rich Fabina; Raymond Laforge Cc: [email protected] Subject: Fw: FCC ID on manual Hi Rich & Raymond, How are you ? We are in process of designing Receiver. The receiver is too small in size, larger place is 2mm, as you see from below attached drawing. (See attached file: C-UBD58 outline drawing .JPG)(See attached file: P1010012.JPG)(See attached file: P1010014.JPG)(See attached file: P1010015.JPG) Laser etching on the metallic part could be subject to rubbing and could be hardly legible as well due to the bad contrast. Unless we remove the Logitech brand there is no other space on the plastic part. Due to described problem above, it has been decided to put FCC ID in the manual. I hope that it is acceptable to FCC, correct ? Please advise otherwise. Thank you very much for your help. Best Regards, Bharat Shah E: [email protected] Tel : (510)-713-4777 Fax : (510)-713-5294 efax :(419)-828-4405 Page 2 of 2 10/04/2008

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: C-U0008 Page 2

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: C-U0008 Page 2

Report No.: RF110308E11 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110308E11 MODEL NO.: C-U0008 FCC ID: JNZCU0008 RECEIVED: Mar. 08, 2011 TESTED: Mar. 11 to 15, 2011 ISSUED: Mar. 21, 2011 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 32 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110308E11 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD.................................................................................4 1 CERTIFICATION.............................................................................................5 2 SUMMARY OF TEST RESULTS.....................................................................6 2.1 MEASUREMENT UNCERTAINTY..................................................................6 3 GENERAL INFORMATION.............................................................................7 3.1 GENERAL DESCRIPTION OF EUT................................................................7 3.2 DESCRIPTION OF TEST MODES..................................................................8 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................10 3.5 DESCRIPTION OF SUPPORT UNITS...........................................................11 3.6 CONFIGURATION OF SYSTEM UNDER TEST............................................11 4 TEST PROCEDURES AND RESULTS.........................................................12 4.1 CONDUCTED EMISSION MEASUREMENT................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................12 4.1.2 TEST INSTRUMENTS..................................................................................12 4.1.3 TEST PROCEDURES...................................................................................13 4.1.4 TEST SETUP................................................................................................13 4.1.5 EUT OPERATING CONDITIONS..................................................................14 4.1.6 TEST RESULTS............................................................................................15 4.2 RADIATED EMISSION MEASUREMENT.....................................................17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................17 4.2.2 TEST INSTRUMENTS..................................................................................18 4.2.3 TEST PROCEDURES...................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD.........................................................19 4.2.5 TEST SETUP................................................................................................20 4.2.6 EUT OPERATING CONDITIONS..................................................................20 4.2.7 TEST RESULTS............................................................................................21 4.3 CONDUCTED - OUT BAND MEASUREMENT.............................................28 4.3.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................28 4.3.2 TEST INSTRUMENTS..................................................................................28 4.3.3 TEST PROCEDURE.....................................................................................28 4.3.4 DEVIATION FROM TEST STANDARD.........................................................28 4.3.5 EUT OPERATING CONDITION....................................................................28 4.3.6 TEST RESULTS............................................................................................29 5 INFORMATION ON THE TESTING LABORATORIES..................................31 Report No.: RF110308E11 3 Report Format Version 4.0.0 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB..........................................................32 Report No.: RF110308E11 4 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Mar. 21, 2011 Report No.: RF110308E11 5 Report Format Version 4.0.0 1 CERTIFICATION PRODUCT : 2.4GHz Transceiver BRAND NAME : Logitech MODEL NO. : C-U0008 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : LOGITECH FAR EAST LTD. TESTED : Mar. 11 to 15, 2011 STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (Model: C-U0008) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 21, 2011 ( Carol Liao, Specialist ) APPROVED BY : , DATE: Mar. 21, 2011 ( May Chen, Deputy Manager ) Report No.: RF110308E11 6 Report Format Version 4.0.0 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, S…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
