JNZCUASDEL12.4GHz internal Transceiver

1 2.4GHz internal Transceiver C-UAS-DEL1 Installation Manual 2 1. Click the icon, then a small window would show up. 2. Select the RF power = -6.85 dB by single clicking the icon: PA Bias – 3. Select Random Data 4. Select frequency 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. 4 However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: JNZCUASDEL1”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device 5 IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NCC 警語 警語警語 警語 : 經型式認證合格之低功率射頻電機，非經許可，公司 、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即 停用 ，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通 信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 本模組於取得認證後將依規定於模組本體標示審合格籤，並要求平台上標示「本產品內含 射頻模組：ID編號 」

FCC ID: JNZCUASDEL1 Report No. RF961116H06 Mobile Modular Approval Request Letter Advance Data Technology Nov 23, 2007 Dear Application Examiner, LOGITECH FAR EAST LTD’s 2.4GHz internal Transceiver, FCC ID: JNZCUASDEL1, would like to have your authorization as a mobile modular approval specific to the Notebook Computer Access Point...etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CY7C63803. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.3VDC powered. The USB interface provides 5VDC, so there are regulators in front of these chips, the part number of this regulator is CY7C63803. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: JNZCUASDEL1 Report No. RF961116H06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

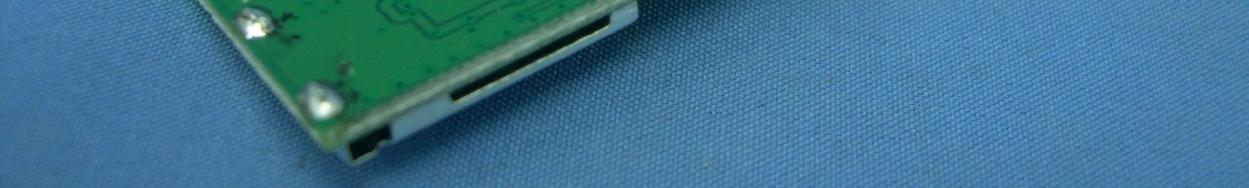

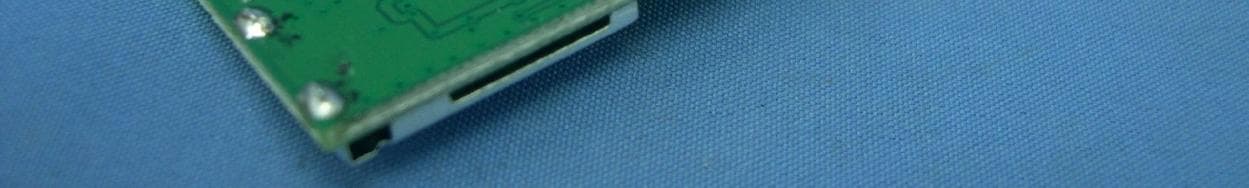

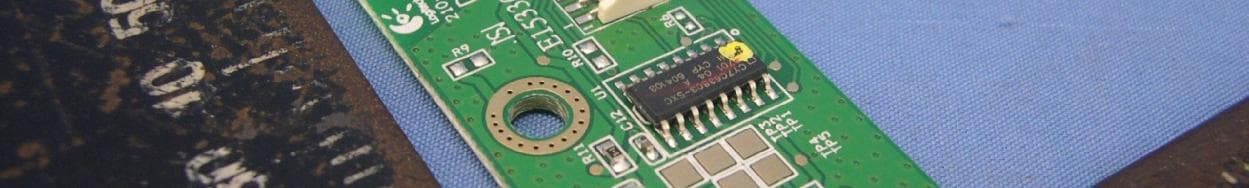

CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: JNZCUASDEL1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label FCC ID 3cm 1.8 cm

FCC ID: JNZCUASDEL1 Report No: SA961116H06 1 RF EXPOSURE REPORT REPORT NO.: SA961116H06 MODEL NO.: C-UAS-DEL1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: JNZCUASDEL1 Report No: SA961116H06 2 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.402 2479 2.441 24.20 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) -6.85 0.207 2.18 0.34 Threshold for no SAR evaluation is 24.20 mW Maximum TX Power is 0.207 mW Conducted and 0.34 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

Report No.: RF961116H06 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF961116H06 MODEL NO.: C-UAS-DEL1 RECEIVED: Nov. 16, 2007 TESTED: Nov. 21 to 22, 2007 ISSUED: Nov. 22, 2007 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF961116H06 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION.....................................................................................................4 2 SUMMARY OF TEST RESULTS..............................................................................5 2.1 MEASUREMENT UNCERTAINTY...........................................................................5 3 GENERAL INFORMATION......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................................7 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS........................................10 3.5 DESCRIPTION OF SUPPORT UNITS...................................................................11 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................................12 4 TEST TYPES AND RESULTS................................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................13 4.1.2 TEST INSTRUMENTS...........................................................................................13 4.1.3 TEST PROCEDURES...........................................................................................14 4.1.4 TEST SETUP........................................................................................................14 4.1.5 EUT OPERATING CONDITIONS...........................................................................15 4.1.6 TEST RESULTS....................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT..............................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................18 4.2.2 TEST INSTRUMENTS...........................................................................................19 4.2.3 TEST PROCEDURES...........................................................................................20 4.2.4 TEST SETUP........................................................................................................21 4.2.5 EUT OPERATING CONDITIONS...........................................................................22 4.2.6 TEST RESULTS....................................................................................................23 4.3 6DB BANDWIDTH MEASUREMENT.....................................................................31 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT..................................................31 4.3.2 TEST INSTRUMENTS...........................................................................................31 4.3.3 TEST PROCEDURE..............................................................................................32 4.3.4 TEST SETUP........................................................................................................32 4.3.5 EUT OPERATING CONDITIONS...........................................................................32 4.3.6 TEST RESULTS....................................................................................................33 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................................36 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................36 4.4.2 TEST INSTRUMENTS...........................................................................................36 4.4.3 TEST PROCEDURES...........................................................................................37 4.4.4 TEST SETUP........................................................................................................37 4.4.5 EUT OPERATING CONDITIONS...........................................................................37 Report No.: RF961116H06 3 Report Format Version 2.0.6 4.4.6 TEST RESULTS....................................................................................................38 4.5 POWER SPECTRAL DENSITY MEASUREMENT.................................................39 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................39 4.5.2 TEST INSTRUMENTS...........................................................................................39 4.5.3 TEST PROCEDURE..............................................................................................40 4.5.4 TEST SETUP........................................................................................................40 4.5.5 EUT OPERATING CONDITIONS...........................................................................40 4.5.6 TEST RESULTS....................................................................................................41 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
