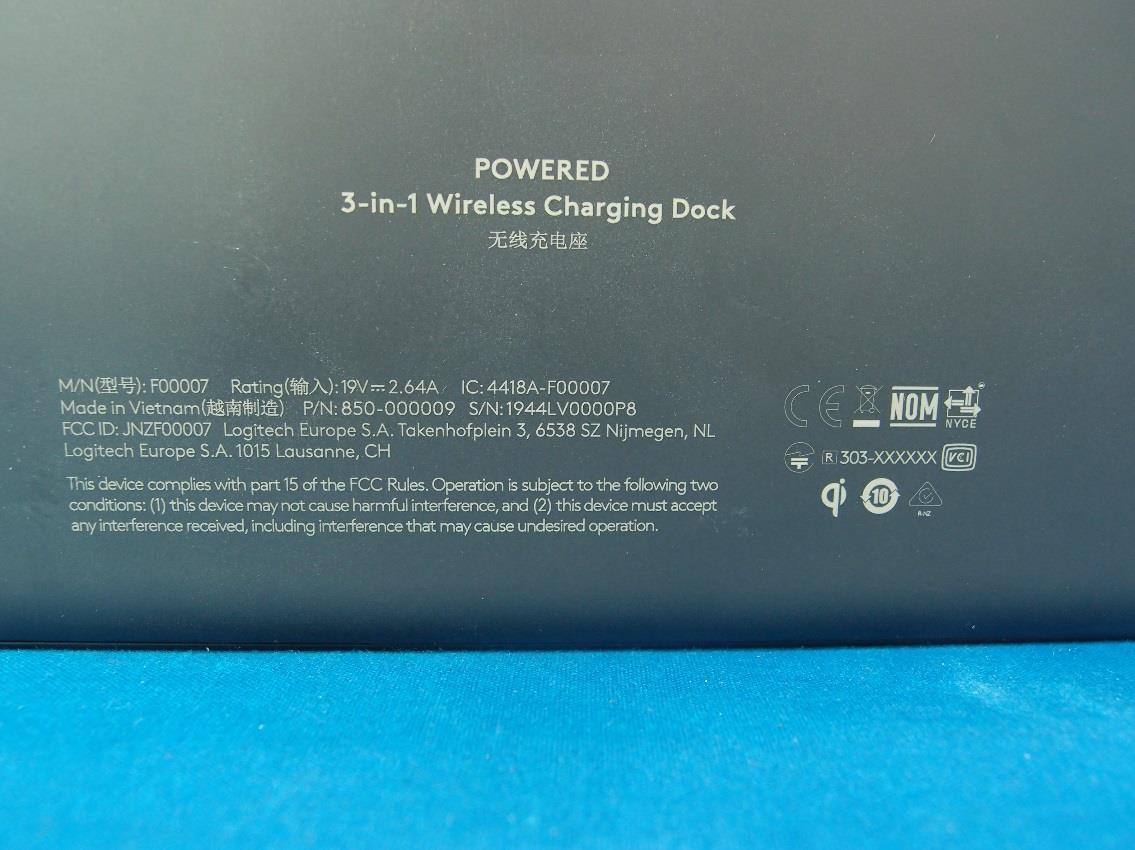

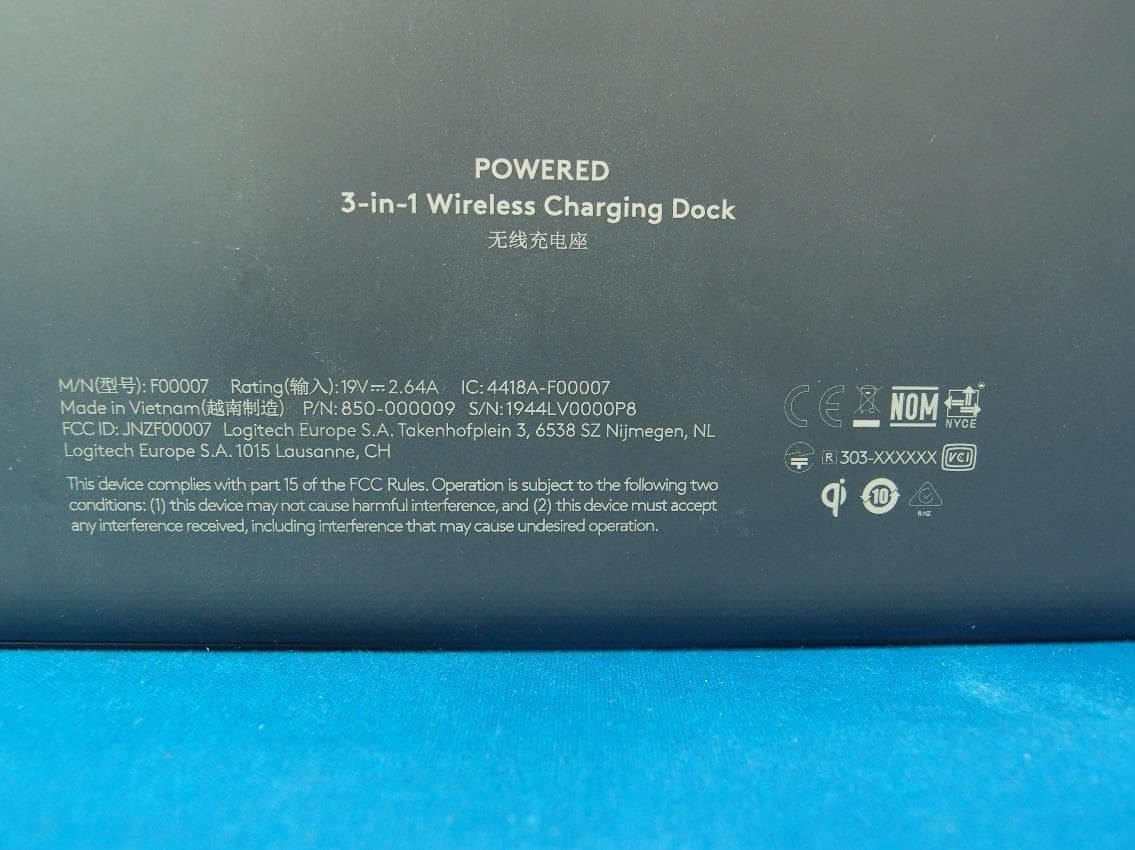

JNZF00007Powered 3-in-1 Dock

POWERED 3-IN-1 DOCK 620-009658.00B © 2019 Logitech, Logi and the Logitech Logo are trademarks or registered trademarks of Logitech Europe S.A. and/or its affiliates in the U.S. and other countries. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. © 2019 Logitech, Logi and the Logitech Logo are trademarks or registered trademarks of Logitech Europe S.A. and/or its affiliates in the U.S. and other countries. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. 3MM http://www.logitech.com/ 3-in-1-dock FPO Important Safety, Compliance and Warranty Information Informations importantes concernant la sécurité, la mise en conformité et la garantie English (US) Read Manual Before Product Use. For Product Safety, EMC, RF and Energy information, go to www.logitech.com/compliance. Maintenance is not required for product compliance. WARNING! The power supply is for indoor use only. Only use the power supply included with your product. Do not attempt to repair or use a damaged power supply. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for cable, plug, and casing damage. Safe Usage Guidelines for Products • Do not open or modify the product except for battery removal and replacement. • Do not disassemble or attempt to service this product. • This product is safe under normal and reasonably foreseeable operating conditions. • If product is operating improperly, please contact Logitech support. • Product must be returned to the manufacturer for any service or repair. • This is not a Children's Product and is not intended for use by children under 14 years old. • Wireless Charging. Magnetic Field present and may interfere with medical devices. • Avoid shorting the product charge contacts. Logitech Compliance: For Product Safety, EMC, RF and Energy information, go to www.logitech.com/compliance. Maintenance is not required for product compliance. This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE) in the EU, Turkey, Ukraine, United Arab Emirates, India, China and Taiwan. For RoHS and WEEE information, go to www.logitech.com/compliance. Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be segregated and brought to an appropriate collection point to enable recycling and avoid potential impacts on the environment and human health. For more information, contact your local authorities or place of purchase, or visit www.logitech.com/recycling. FCC statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates , uses and can radiate radio frequency energy. And, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC rules. Changes or modifications to product not expressly approved by Logitech, Inc could void your right to use or operate your product by the FCC. IC statement : CAN ICES-3 (B) / NMB-3 (B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Radiation Exposure Statement This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Logitech Limited Hardware Warranty – A Summary Logitech warrants that its hardware product shall be free from defects in materials and workmanship for the length of time identified on your product package beginning from the date of the original retail purchase. See support.logitech.com for specific warranty information about your product and procedures to act on a warranty claim. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to repair or replace a functional equivalent of the product, or to refund the price paid, if the hardware is returned to the point of purchase or such other place as Logitech may direct along with a receipt. Warranty protections are in addition to righ…

Text truncated - open the document above for the full version.

3MM https://www.logitech.com/ 3-in-1-dock 650-035206 006 Operating Frequency Band in the European Union (MHz) and Maximum Radio-Frequency Power Transmitted (dBm): F00007 (Wireless Energy Transfer): 127.795 kHz; 13.1 dBμA/m Vertical Corrugation Project Date File Name P/N Quince inbox QSG 28 November 2019 UDOC_1366 - 650-035206 006 Quince inbox QSG 19.ai 650-035206 Rev. 006 DielineDWS-650-035206 QUINCE ACCESSORY FinishMatte PP Lamination Print size Trim size 468mm x 517mm 468mm x 517mm FontsBrown Pro/Alt Inks Dieline (does not print) Inks CMYK Important Safety, Compliance and Warranty Information English Read Manual Before Product Use. For Product Safety, EMC, RF and Energy information, go to www.logitech.com/compliance. Maintenance is not required for product compliance. WARNING! The power supply is for indoor use only. Only use the power supply included with your product. Do not attempt to repair or use a damaged power supply. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for cable, plug, and casing damage. Safe Usage Guidelines for Products • Do not open or modify the product except for battery removal and replacement. • Do not disassemble or attempt to service this product. • This product is safe under normal and reasonably foreseeable operating conditions. • If product is operating improperly, please contact Logitech support. • Product must be returned to the manufacturer for any service or repair. • This is not a Children›s Product and is not intended for use by children under 14 years old. • Wireless Charging. Magnetic Field present and may interfere with medical devices. • Avoid shorting the product charge contacts. Logitech Compliance: For Product Safety, EMC, RF and Energy information, go to www.logitech.com/compliance. Maintenance is not required for product compliance. This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE) in the EU, Turkey, Ukraine, United Arab Emirates, India, China and Taiwan. For RoHS and WEEE information, go to www.logitech.com/compliance. Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be segregated and brought to an appropriate collection point to enable recycling and avoid potential impacts on the environment and human health. For more information, contact your local authorities or place of purchase, or visit www.logitech.com/recycling. OR Hereby, Logitech Europe S.A., EPFL - Innovation Park, Daniel Borel Innovation Center, 1015 Lausanne, Switzerland, declares that the radio equipment type Radio-Frequency peripheral is in compliance with Directive 2014/53/EU. Operating Frequency Band in the European Union (MHz) and Maximum Radio- Frequency Power Transmitted (dBm): See – Product information in product documents or on packaging. Logitech Limited Hardware Warranty – A Summary This device contains licence-exempt transmitter(s)/receiver(s) that comply Logitech warrants that its hardware product shall be free from defects in materials and workmanship for the length of time identified on the product package beginning from the date of original retail purchase, but in no instance shall this be less than two (2) years. See support.logitech.com for specific warranty information about your product and procedures to act on a warranty claim. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to repair or replace the product, or to refund the price paid, provided that the hardware is returned to the point of purchase or such other place as required by law along with a receipt. Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty. Logitech Address: Logitech, Inc. 7700 Gateway Blvd. Newark, California 94560. For European Union Consumers Only: Please note that in the European Union, any warranty period less than two years shall be increased to two (2) years. Manufacturer: Logitech Europe S.A., 1015 Lausanne, CH. Importer: Logitech Europe S.A., Takenhofplein 3, 6538 SZ Nijmegen, NL. Legal Representative: Logitech Ireland Services Ltd., 3400 Airport Business Park, Kinsale Road, Cork, Ireland. Full Warranty Information: support.logitech.com Deutsch Lesen Sie vor der Nutzung des Produkts die Bedienungsanleitung. Informationen zu Produktsicherheit, EMC, Funktechnologie und Stromversorgung finden Sie unter www.logitech.com/compliance. Das Produkt erfordert zur Einhaltung der Standards keine Wartung. WARNUNG! Das Netzteil ist nur auf den Betrieb in geschlossenen Räumen ausgelegt. Verwenden Sie nur das im Lieferumfang enthaltene Netzteil. Verwenden Sie das Netzteil nicht, wenn es beschädigt ist, und versuchen Sie nicht, es zu reparieren. Achten Sie darauf, dass das Netzteil nicht nass wird, und gehen Sie sorgsam damit um. Prüfen Sie Kabel, Stecker und Gehäuse des Netzteils regelmäßig auf Schäden. Sicherheits- und Einsatzrichtlinien für Produkte • Öffnen Sie das Produkt lediglich zum Entfernen und Ersetzen von Batterien oder Akkus. • Versuchen Sie nicht, dieses Produkt zu zerlegen oder eigenhändig zu warten. • Unter normalen und einigermaßen vorhersehbaren Betriebsbedingungen ist dieses Produkt sicher. • Bitte wenden Sie sich bei nicht erwartungsgemäßem Betrieb an den Logitech Support. • Senden Sie das Produkt zur Wartung oder Reparatur an den Hersteller. • Dies ist kein Produkt für Kinder und wurde nicht für die Nutzung durch Kinder unter 14 Jahren entwickelt. • Kabelloses Laden. Das Produkt erzeugt ein Magnetfeld, das die Funktion von medizinischen Geräten stören kann. • Achten Sie darauf, keine Kurzschlüsse der Ladekontakte des Produkts zu verursachen. Einhaltung von Bestimmungen du…

Text truncated - open the document above for the full version.

Logitech Far East Ltd. No. 2 Creation Road 4, Science-Based Industrial Park, Hsinchu, 300 Taiwan Agent Authorization Letter Date: 12/12/2019 Dear TCB I authorise Amy Lie of Logitech Inc. to act on my behalf in applying for grants of authorisation for Logitech Far East Ltd. This authorisation expires on 12/12/2021. Sincerely, Applicant’s company name : Logitech Far East Ltd. Applicant’s company address : No. 2 Creation Road 4, Science-Based Industrial Park, Hsinchu, 300 Taiwan Signature : Name and Job Title : Bonnie Chou / Sr. Certification Engineer E-Mail : [email protected] Tel : +886-3-577-8241 Ext. 2053 Fax : +886-3-579-2394

Logitech Far East Ltd. No. 2 Creation Road 4, Science-Based Industrial Park, Hsinchu, 300 Taiwan Confidential Letter Date: 2019/12/05 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：JNZF00007 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Sincerely, Applicant’s company name : Logitech Far East Ltd. Applicant’s company address : No. 2 Creation Road 4, Science-Based Industrial Park, Hsinchu, 300 Taiwan Signature : Name and Job Title : Bonnie Chou / Sr. Certification Engineer E-Mail : [email protected] Tel : +886-3-577-8241 Ext. 2053 Fax : +886-3-579-2394

Applicant: Logitech Far East Ltd. FCC ID: JNZF00007 RF Exposure Requirements ( FCC KDB 680106 D01 v03) Requirements Statements Power transfer frequency is less that 1 MHz Yes. Operating frequency is 127.795 kHz for the charging pad and charging stand. Operating frequency is 326.5 kHz for Apple watch charging module. (b) Output power from each primary coil is less than or equal to 15 watts. There are three coils that can operate simultaneously.  Phone Charging Coils: The maximum power per coil is 10W for two of the coils  Apple Watch Charging coil: The Maximum Power is 5W. The total maximum power is 25 watts across all three coils. (c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The three coils can be active simultaneously but each coil is charging a separate device. Each coil is only capable of charging a single device so for each coil there is only one primary and one secondary coil. (d) Client device is placed directly in contact with the transmitter. Yes. The client device is placed directly in contact with the transmitter. The device is a charging pad which the client device is placed (close coupling). (e) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes. (f) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes. Please refer to RF Exposure report.

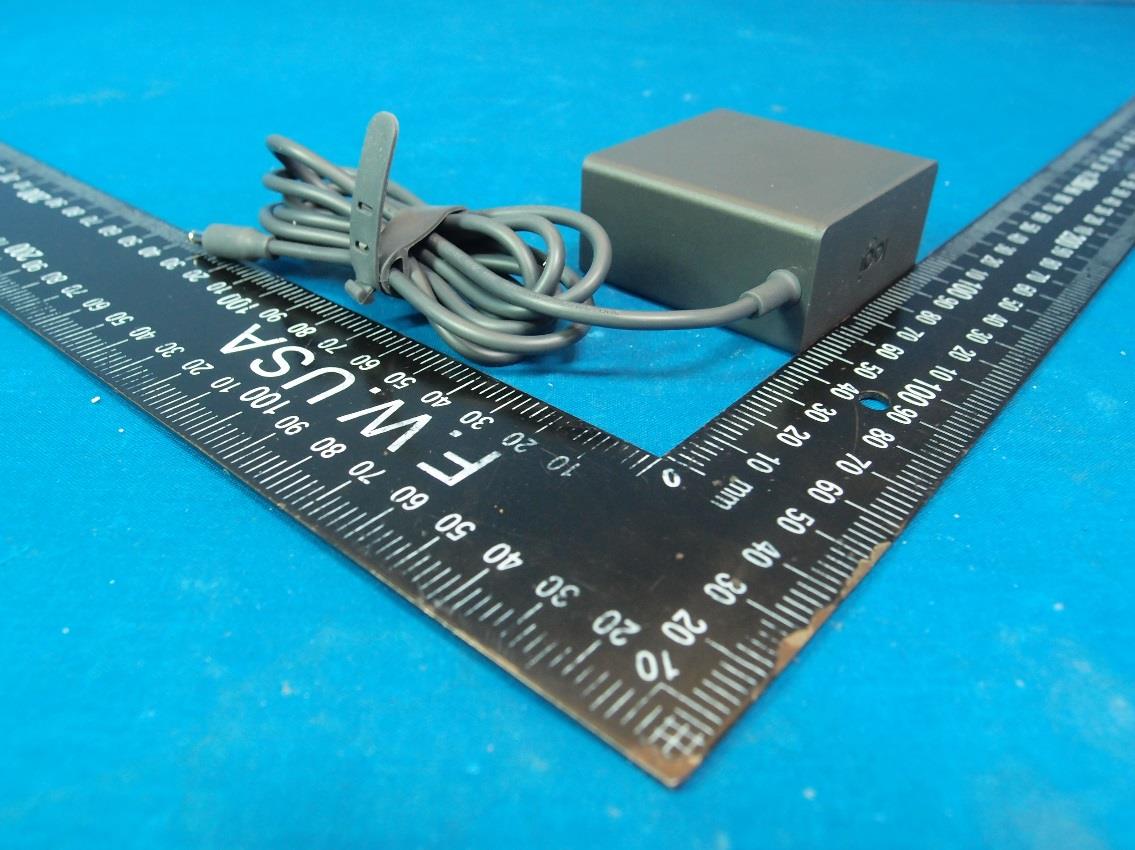

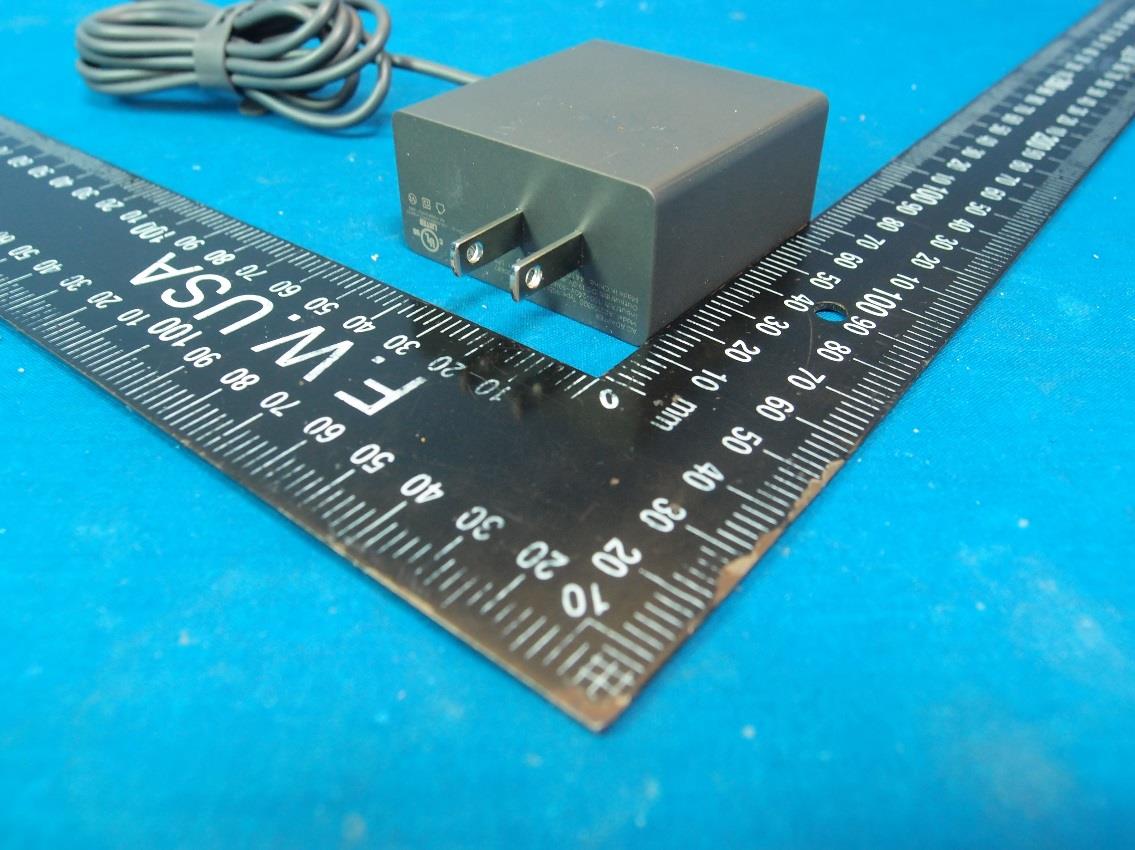

Reference No.: 191002E02-1 Page 1 Reference No.: xxxxxxxx CONSTRUCTION PHOTOS OF EUT Reference No.: 191002E02-1 Page 2 Reference No.: xxxxxxxx Reference No.: 191002E02-1 Page 3 Reference No.: xxxxxxxx Reference No.: 191002E02-1 Page 4 Reference No.: xxxxxxxx Reference No.: 191002E02-1 Page 5 Reference No.: xxxxxxxx Brand: logi, Model: AD2105320 Reference No.: 191002E02-1 Page 6 Reference No.: xxxxxxxx

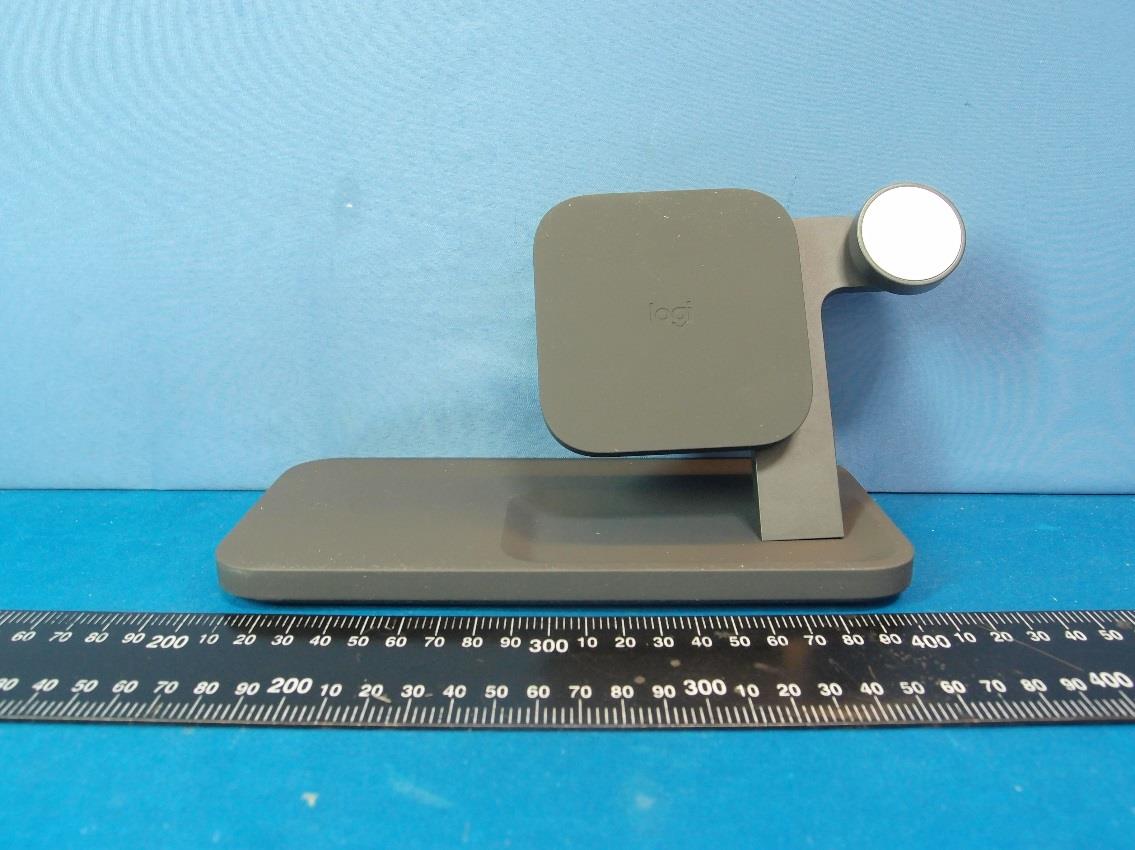

Powered 3-in-1 Dock, Model PR0004

Reference No.: 191002E02-2 Page 1 Reference No.: xxxxxxxx CONSTRUCTION PHOTOS OF EUT Reference No.: 191002E02-2 Page 2 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 3 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 4 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 5 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 6 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 7 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 8 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 9 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 10 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 11 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 12 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 13 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 14 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 15 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 16 Reference No.: xxxxxxxx Reference No.: 191002E02-2 Page 17 Reference No.: xxxxxxxx

Report No.: SA191002E02 R3 Page No. 1 / 17 Report Format Version: 6.1.1 Cancels and replaces the report No.: SA191002E02 R2 dated Jan. 17, 2020 RF Exposure Test Report Report No.: SA191002E02 R3 FCC ID: JNZF00007 Test Model: F00007 Received Date: Oct. 02, 2019 Test Date: Oct. 05 to Nov. 19, 2019 Issued Date: Jan. 20, 2020 Applicant: LOGITECH FAR EAST LTD. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA191002E02 R3 Page No. 2 / 17 Report Format Version: 6.1.1 Cancels and replaces the report No.: SA191002E02 R2 dated Jan. 17, 2020 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 General Information .............................................................................................................................. 5 2.1 General Description of EUT ................................................................................................................ 5 3 RF Exposure .......................................................................................................................................... 6 3.1 Description of Support Units ............................................................................................................... 6 3.1.1 Configuration of System under Test .................................................................................................... 6 3.2 Test Setup ........................................................................................................................................... 7 3.3 Test Instruments .................................................................................................................................. 7 3.4 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 8 3.5 Test Point Description ......................................................................................................................... 8 4 Measurement Result of Maximum E/H-Field ...................................................................................... 9 5 Photographs of the Test Configuration ............................................................................................ 17 Report No.: SA191002E02 R3 Page No. 3 / 17 Report Format Version: 6.1.1 Cancels and replaces the report No.: SA191002E02 R2 dated Jan. 17, 2020 Release Control Record Issue No. Description Date Issued SA191002E02 Original release. Dec. 03, 2019 SA191002E02 R1 Revised the charging mode and standby mode data. Jan. 13, 2020 SA191002E02 R2 Revised the calculation result. Jan. 17, 2020 SA191002E02 R3 Revised the calculation result. Jan. 20, 2020 Report No.: SA191002E02 R3 Page No. 4 / 17 Report Format Version: 6.1.1 Cancels and replaces the report No.: SA191002E02 R2 dated Jan. 17, 2020 1 Certificate of Conformity Product: Powered 3-in-1 Dock Brand: Logitech Test Model: F00007 Sample Status: ENGINEERING SAMPLE Applicant: LOGITECH FAR EAST LTD. Test Date: Oct. 05 to Nov. 19, 2019 Standards: FCC Part 2 (Section 2.1091) FCC Part 1 (Section 1.1307(c) and (d), Section 1.1310) KDB 680106 D01 RF Exposure Wireless Charging v03 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Jan. 20, 2020 Vivian Huang / Specialist Approved by : , Date: Jan. 20, 2020 Clark Lin / Technical Manager Report No.: SA191002E02 R3 Page No. 5 / 17 Report Format Version: 6.1.1 Cancels and replaces the report No.: SA191002E02 R2 dated Jan. 17, 2020 2 General Information 2.1 General Description of EUT Product Powered 3-in-1 Dock Test Model F00007 Sample Status ENGINEERING SAMPLE Rating DC 19V from power adapt…

Text truncated - open the document above for the full version.

Report No.: RF191002E02 R1 Page No. 1 / 38 Report Format Version: 6.1.1 Cancels and replaces the report No.: RF191002E02 dated Dec. 03, 2019 FCC Test Report Report No.: RF191002E02 R1 FCC ID: JNZF00007 Test Model: F00007 Received Date: Oct. 02, 2019 Test Date: Oct. 05 to Dec. 18, 2019 Issued Date: Jan. 13, 2020 Applicant: LOGITECH FAR EAST LTD. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan. FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF191002E02 R1 Page No. 2 / 38 Report Format Version: 6.1.1 Cancels and replaces the report No.: RF191002E02 dated Dec. 03, 2019 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.2 Description of Test Modes ................................................................................................................... 6 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 7 3.3 Description of Support Units ............................................................................................................... 8 3.3.1 Configuration of System under Test .................................................................................................... 8 3.4 General Description of Applied Standards .......................................................................................... 9 4 Test Types and Results ...................................................................................................................... 10 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 10 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 10 4.1.2 Test Instruments ................................................................................................................................. 11 4.1.3 Test Procedures ................................................................................................................................. 12 4.1.4 Deviation from Test Standard ............................................................................................................ 12 4.1.5 Test Set Up ........................................................................................................................................ 13 4.1.6 EUT Operating Conditions ................................................................................................................. 13 4.1.7 Test Results ....................................................................................................................................... 14 4.2 Conducted Emission Measurement .................................................................................................. 30 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 30 4.2.2 Test Instruments ................................................................................................................................ 30 4.2.3 Test Procedures ................................................................................................................................. 32 4.2.4 Deviation fro…

Text truncated - open the document above for the full version.

Reference No.: 191002E02-1 Page No. 1 / 12 PHOTOGRAPHS OF THE TEST CONFIGURATION E-Field (Charging Mode - Left) E-Field (Charging Mode - Right) Reference No.: 191002E02-1 Page No. 2 / 12 E-Field (Charging Mode – Z-axis) E-Field (Charging Mode - Top) Reference No.: 191002E02-1 Page No. 3 / 12 E-Field (Charging Mode - Bottom) Reference No.: 191002E02-1 Page No. 4 / 12 E-Field (Standby Mode - Left) E-Field (Standby Mode - Right) Reference No.: 191002E02-1 Page No. 5 / 12 E-Field (Standby Mode – …

Text truncated - open the document above for the full version.
