Applicant: Logitech Far East Ltd. FCC ID: JNZF00008 RF Exposure Requirements ( FCC KDB 680106 D01 v03) Requirements Statements (a) Power transfer frequency is less that 1 MHz Yes. Operating frequency is 127.795 kHz. (b) Output power from each primary coil is less than or equal to 15 watts. Yes. The maximum power is 10 watts. (c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes. The system includes three primary coils and the device is designed to charge a single client device. (d) Client device is placed directly in contact with the transmitter. Yes. The client device is placed directly in contact with the transmitter. The device is a charging pad which the client device is placed (close coupling). (e) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes. (f) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes. Please refer to RF exposure report.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: JNZF00008 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant of Equipment Authorization. External Photos Internal Photos User Manual Test Setup photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Bonnie Chou / Sr. Certification Engineer LOGITECH FAR EAST LTD. Tel: +886 3 5778241* 2053 Fax: +886 3 5792393 E-mail: [email protected] 2/7/2020

Date: 2020-02-21 FCC ID: JNZF00008 AUTHORIZATION LETTER To Whom It May Concern: We, the undersigned,hereby authorizes Debby Lin / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin of BV CPS Taoyuan on our behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Bonnie Chou / Sr. Certification Engineer LOGITECH FAR EAST LTD. Tel: +886 3 5778241* 2053 Fax: +886 3 5792393 E-mail: [email protected] 2/7/2020

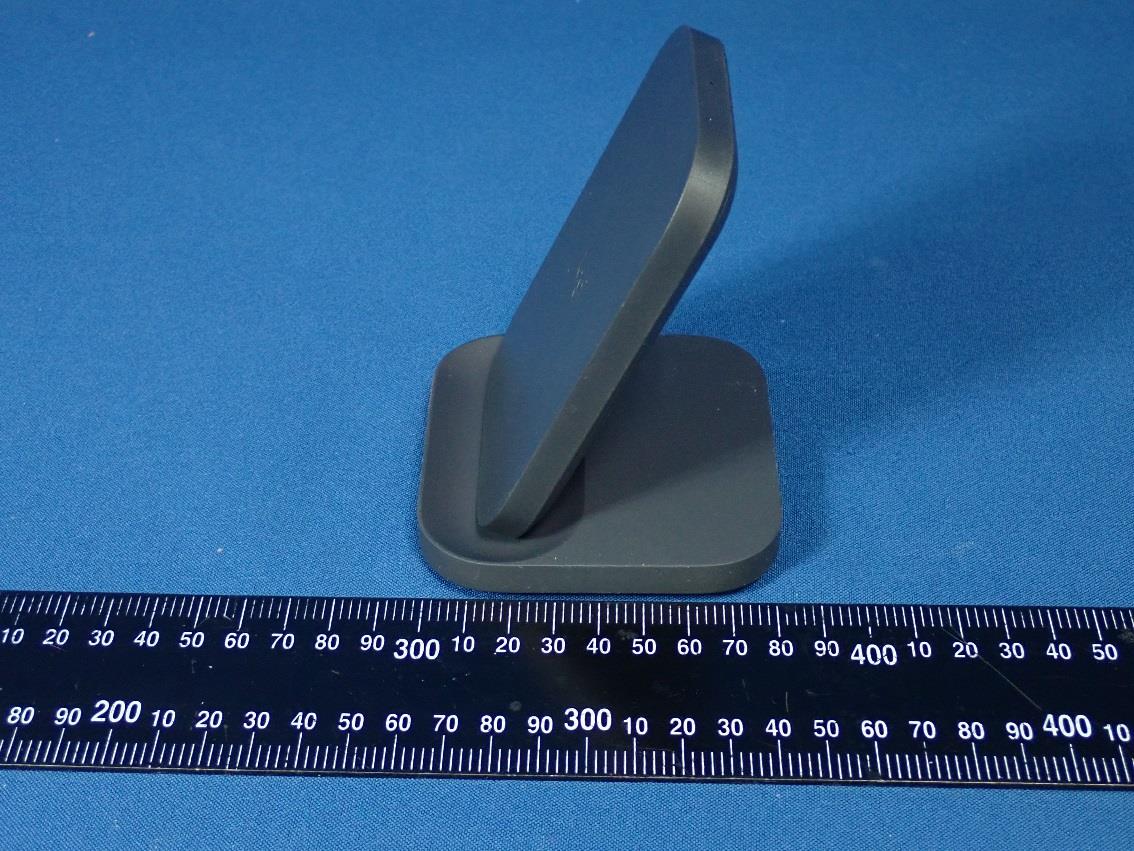

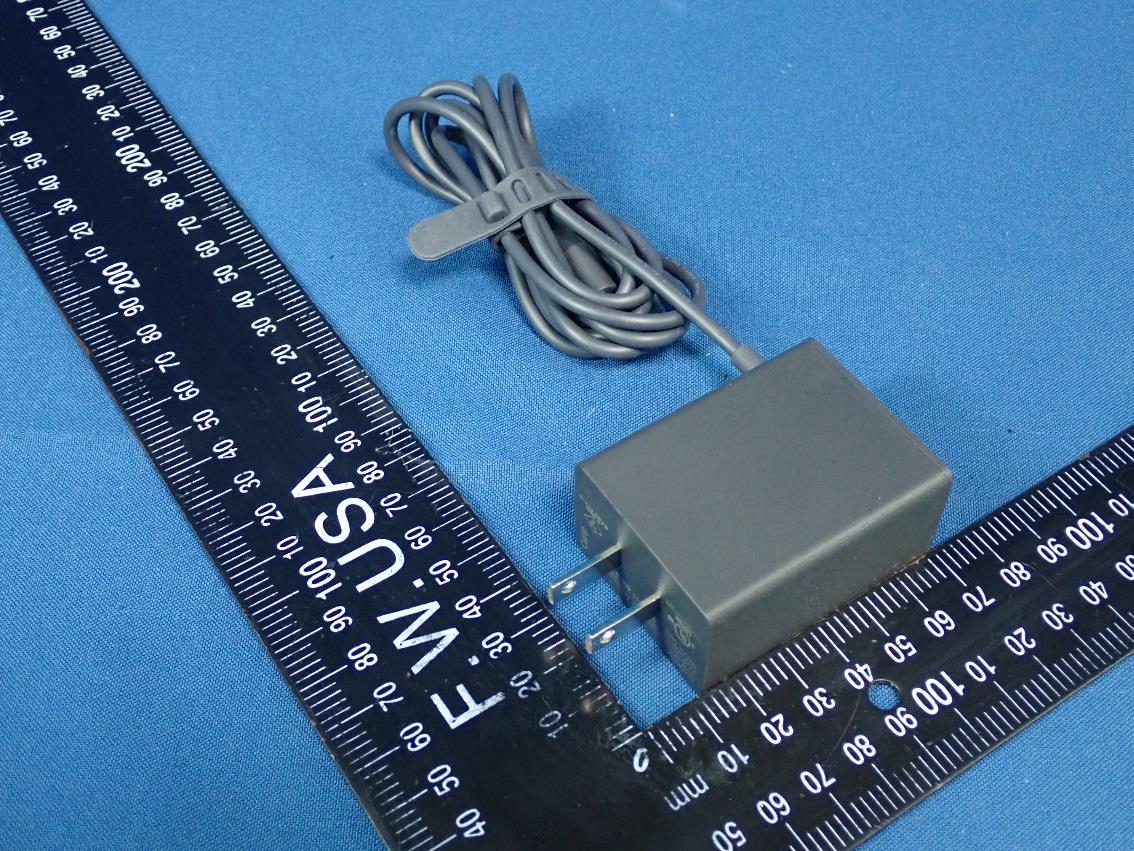

Reference No.: 191231E04-1 Page 1 Reference No.: xxxxxxxx CONSTRUCTION PHOTOS OF EUT Reference No.: 191231E04-1 Page 2 Reference No.: xxxxxxxx Reference No.: 191231E04-1 Page 3 Reference No.: xxxxxxxx Reference No.: 191231E04-1 Page 4 Reference No.: xxxxxxxx Adapter: AD2103320 Reference No.: 191231E04-1 Page 5 Reference No.: xxxxxxxx

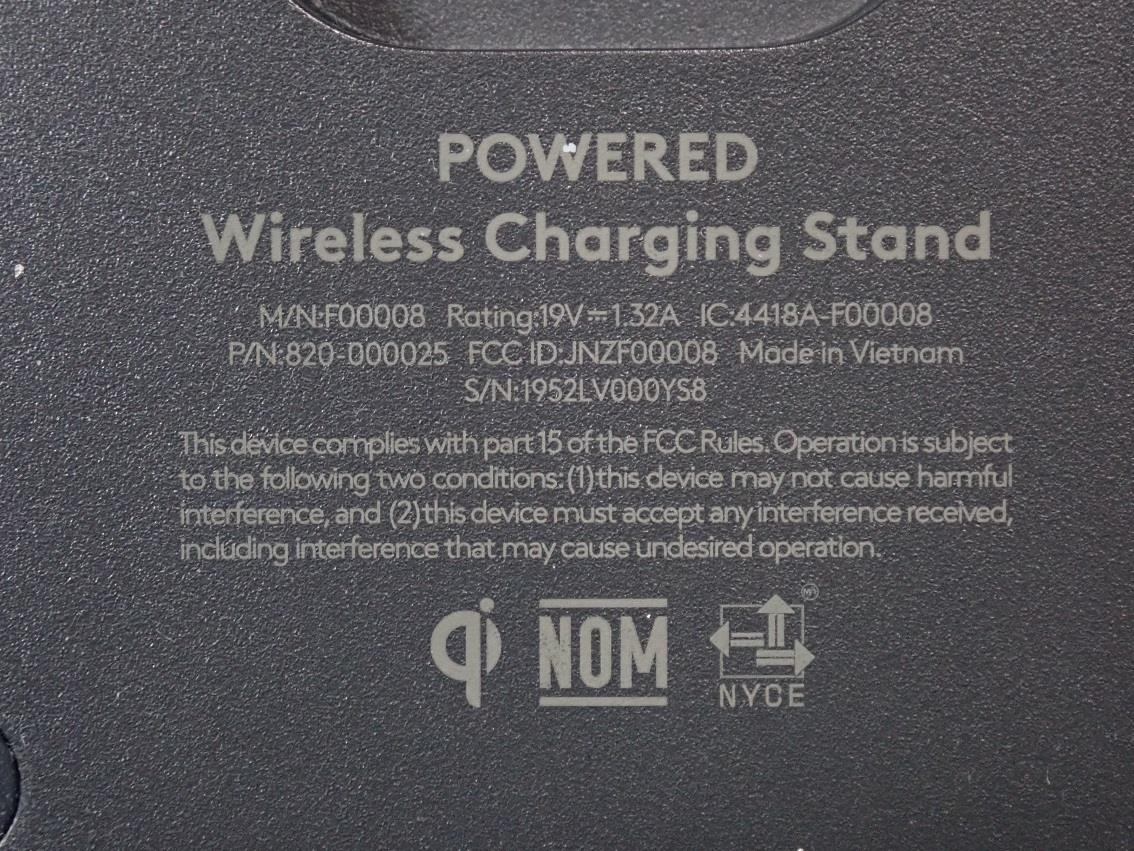

FCC LABEL & Label LOCATION The label will be permanently affixed at a conspicu ous location on the device. Bottom of the EUT label FCC ID: JNZF00008

Reference No.: 191231E04-2 Page 1 Reference No.: xxxxxxxx CONSTRUCTION PHOTOS OF EUT Reference No.: 191231E04-2 Page 2 Reference No.: xxxxxxxx Reference No.: 191231E04-2 Page 3 Reference No.: xxxxxxxx Reference No.: 191231E04-2 Page 4 Reference No.: xxxxxxxx Reference No.: 191231E04-2 Page 5 Reference No.: xxxxxxxx Reference No.: 191231E04-2 Page 6 Reference No.: xxxxxxxx Reference No.: 191231E04-2 Page 7 Reference No.: xxxxxxxx

Report No.: SA191231E04 Page No. 1 / 13 Report Format Version: 6.1.1 RF Exposure Test Report Report No.: SA19231E04 FCC ID: JNZF00008 Test Model: F00008 Received Date: Dec. 31, 2019 Test Date: Feb. 15, 2020 Issued Date: Feb. 21, 2020 Applicant: LOGITECH FAR EAST LTD. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA191231E04 Page No. 2 / 13 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 General Information .............................................................................................................................. 5 2.1 General Description of EUT ................................................................................................................ 5 3 RF Exposure .......................................................................................................................................... 6 3.1 Description of Support Units ............................................................................................................... 6 3.1.1 Configuration of System under Test .................................................................................................... 6 3.2 Test Setup ........................................................................................................................................... 7 3.3 Test Instruments .................................................................................................................................. 7 3.4 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 8 3.5 Test Point Description ......................................................................................................................... 8 4 Calculation Result of Maximum Field Strength ................................................................................. 9 5 Photographs of the Test Configuration ............................................................................................ 13 Report No.: SA191231E04 Page No. 3 / 13 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA191231E04 Original release. Feb. 21, 2020 Report No.: SA191231E04 Page No. 4 / 13 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Powered Wireless Charging Stand Brand: Logitech Test Model: F00008 Sample Status: ENGINEERING SAMPLE Applicant: LOGITECH FAR EAST LTD. Test Date: Feb. 15, 2020 Standards: FCC Part 2 (Section 2.1091) FCC Part 1 (Section 1.1307(c) and (d), Section 1.1310) References Test Guidance: KDB 680106 D01 RF Exposure Wireless Charging v03 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Feb. 21, 2020 Vivian Huang / Specialist Approved by : , Date: Feb. 21, 2020 Clark Lin / Technical Manager Report No.: SA191231E04 Page No. 5 / 13 Report Format Version: 6.1.1 2 General Information 2.1 General Description of EUT Product Powered Wireless Charging Stand Brand Logitech Test Model F00008 Sample Status ENGINEERING SAMPLE Rating DC 19V from power adapter Operating Frequency 127.795 kHz / 326.5 kHz Antenna Type Coil Antenna Field Strength 91.76 dBuV/m Dimensions 85mm x 89mm x 111mm Accessory Device Adapter x1 Data Cable Supplied NA Maximum Power Output from the Charging Coil 10W Note: 1. The EUT may have a lot of colors for marketing requirement. 2. The EUT could be supplied with a power adapter as the following table: Brand Model No. Spec. logi AD2103320 Input: 100-240Vac, 50/60Hz, 0.7A Output: 19V, 1.32A DC cable: 1.5 m 3. The above EUT information is declared by manufacturer …

Text truncated - open the document above for the full version.

Report No.: RF191231E04 Page No. 1 / 37 Report Format Version: 6.1.1 FCC Test Report Report No.: RF191231E04 FCC ID: JNZF00008 Test Model: F00008 Received Date: Dec. 31, 2019 Test Date: Jan. 10 to 15, 2020 Issued Date: Feb. 21, 2020 Applicant: LOGITECH FAR EAST LTD. Address: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan. FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF191231E04 Page No. 2 / 37 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.2 Description of Test Modes ................................................................................................................... 6 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 7 3.3 Description of Support Units ............................................................................................................... 8 3.3.1 Configuration of System under Test .................................................................................................... 8 3.4 General Description of Applied Standards .......................................................................................... 9 4 Test Types and Results ...................................................................................................................... 10 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 10 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 10 4.1.2 Test Instruments ................................................................................................................................. 11 4.1.3 Test Procedures ................................................................................................................................. 12 4.1.4 Deviation from Test Standard ............................................................................................................ 12 4.1.5 Test Set Up ........................................................................................................................................ 13 4.1.6 EUT Operating Conditions ................................................................................................................. 13 4.1.7 Test Results ....................................................................................................................................... 14 4.2 Conducted Emission Measurement .................................................................................................. 30 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 30 4.2.2 Test Instruments ................................................................................................................................ 30 4.2.3 Test Procedures ................................................................................................................................. 31 4.2.4 Deviation from Test Standard ............................................................................................................ 31 4.2.5 Test Setup .......…

Text truncated - open the document above for the full version.

Reference No.: 191231E04-1 Page No. 1 / 12 PHOTOGRAPHS OF THE TEST CONFIGURATION E-Field (Charging Mode - Left) E-Field (Charging Mode - Right) Reference No.: 191231E04-1 Page No. 2 / 12 E-Field (Charging Mode – Z-axis) E-Field (Charging Mode - Top) Reference No.: 191231E04-1 Page No. 3 / 12 E-Field (Charging Mode - Bottom) Reference No.: 191231E04-1 Page No. 4 / 12 E-Field (Standby Mode - Left) E-Field (Standby Mode - Right) Reference No.: 191231E04-1 Page No. 5 / 12 E-Field (Standby Mode – Z-axis) E-Field (Standby Mode - Top) Reference No.: 191231E04-1 Page No. 6 / 12 E-Field (Standby Mode - Bottom) Reference No.: 191231E04-1 Page No. 7 / 12 H-Field (Charging Mode - Left) H-Field (Charging Mode - Right) Reference No.: 191231E04-1 Page No. 8 / 12 H-Field (Charging Mode – Z-axis) H-Field (Charging Mode - Top) Reference No.: 191231E04-1 Page No. 9 / 12 H-Field (Charging Mode - Bottom) Reference No.: 191231E04-1 Page No. 10 / 12 H-Field (Standby Mode - Left) H-Field (Standby Mode - Right) Reference No.: 191231E04-1 Page No. 11 / 12 H-Field (Standby Mode – Z-axis) H-Field (Standby Mode - Top) Reference No.: 191231E04-1 Page No. 12 / 12 H-Field (Standby Mode - Bottom)

Reference No.: 191231E04 Page No. 1 / 2 Reference No.: PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: 191231E04 Page No. 2 / 2 Reference No.: RADIATED EMISSION TEST
