JNZGR0006Logitech G CLOUD Gaming Handheld

Important Safety, Compliance and Warranty Information Informations importantes concernant la sécurité, la mise en conformité et la garantie English Read Manual Before Product Use. POWER SUPPLY WARNING! The power supply is for indoor use only. Only use the power supply included with your product. Do not attempt to repair or use a damaged power supply. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for cable, plug, and casing damage. BATTERY WARNING!: Improperly replaced batteries may present a risk of leak or explosion and personal injury. Risk of fire or explosion if the battery is replaced by an incorrect type. Ensure batteries are installed correctly by following the instructions provided. Mistreated rechargeable batteries may present a risk of fire or chemical burn. Do not disassemble or expose to conducting materials, moisture, liquid, or heat above 54°C (130°F). A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave your battery discharged or unused for extended periods. Do not short circuit. Your device may contain an internal, rechargeable battery that is not replaceable. Battery life varies with usage. Non-operational batteries should be discarded according to local laws. If no laws or regulations govern, dispose of your device in a waste bin for electronics. Keep batteries away from children. Warning! Exposure to noise above 85 decibels for long periods may cause hearing damage. Protect your hearing by establishing safe volumes. Safe Usage Guidelines for Products –Do not open or modify the product except for battery removal and replacement. –Do not disassemble or attempt to service this product. –This product is safe under normal and reasonably foreseeable operating conditions. –If product is operating improperly, call Logitech support. –Product must be returned to the manufacturer for any service or repair. –This is not a Children‘s Product and is not intended for use by children under 14 years old. –Long periods of repetitive motion using the product may be associated with nerve, tendon or muscle injury in your hands, wrists, arms, shoulders, neck or back. See a qualified health professional for pain, numbness, weakness, swelling, burning, cramping, or stiffness. Please read guidelines at http://www.logitech.com/comfort. –Use caution when operating moving parts. –WARNING! The product contains small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts, and keep them away from children under 4 years of age. –For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. –Use the product with listed/certified ITE computers and accessories. –Connect power supply or power cord to a properly wired and grounded electrical outlet. –Disconnect the power source prior to defeating or bypassing the equipment safeguard. Restore the equipment safeguard before restoring power. REGULATORY INFORMATION To view Legal and Regulatory certification information and marks on the device: For Handheld Mode: Go to: ”Settings icon ” > ”Device information” > ”Legal and Regulatory” For Tablet Mode: Go to: ”Settings icon ” > ”About Tablet” > ”Legal and Regulatory” Logitech Compliance: The product complies with all applicable requirements for Restriction of Hazardous Substances (RoHS) and Waste Electronic and Electrical Equipment (WEEE). For Product Safety, EMC, RF, Energy, RoHS and WEEE information, go to www.logitech.com/compliance. Maintenance is not required for product compliance. Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be segregated and brought to an appropriate collection point to enable recycling and avoid potential impacts on the environment and human health. For more information, contact your local authorities or place of purchase, or visit www.logitech.com/recycling. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. And, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Warning: Where shielded interface cables or accessories have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC. Changes or modifications to product not expressly approved by Logitech, Inc could void your right to use or operate your product by the FCC. IC statement : CAN …

Text truncated - open the document above for the full version.

CLOUD GAMING HANDHELD CONSOLE PORTABLE POUR CLOUD GAMING SETUP GUIDE | GUIDE D’INSTALLATION A Y XB ENGLISH 3 FRANÇAIS 6 A Y XB CLOUD GAMING HANDHELD CONSOLE PORTABLE POUR CLOUD GAMING SETUP GUIDE | GUIDE D’INSTALLATION A Y XB This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10 mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided 3 ENGLISH DEVICE DESCRIPTION COMPONENT NAMES 1 Left Function Button 2 Left Joystick/L3 Button 3 D-Pad 4 G Button 5 Touch Screen 6 Right Function Button 7 A/B/X/Y Buttons 8 Right Joystick/R3 Button 9 Home Button 10 Left Bumper/Trigger (L1, L2) 11 Volume Button 12 Power Switch 13 TF Card Slot 14 Right Bumper/Trigger (R1, R2) 15 3.5 mm Jack 16 USB Type-C/Charging port 17 Dual Speaker 18 Dual Mic A Y XB 1 5 6 2 7 3 8 1011121314 4 9 18181516 17 4 ENGLISH SETUP INSTRUCTIONS –Power on: Slide and hold the power switch to power on the device –First-time setup: Follow the on-screen setup wizard to complete the first-time setup of the device A Y XB 5 ENGLISH –Charging: Connect the USB cable Type-C end into the USB Type-C port on the bottom of the device, connect the USB cable Type-A end to the power adapter, and then connect the power adapter into the socket to charge the device A Y XB QUESTIONS? logitechG.com/support/cloud USB 6 FRANÇAIS DESCRIPTION DU DISPOSITIF NOM DES COMPOSANTS 1 Bouton de fonction gauche 2 Joystick gauche/Bouton L3 3 Croix directionnelle 4 Bouton G 5 Écran tactile 6 Bouton de fonction droit 7 Boutons A, B, X, Y 8 Joystick droit/Bouton R3 9 Bouton Accueil 10 Pare-chocs gauche/Déclencheur (L1, L2) 11 Bouton Volume 12 Commutateur d'alimentation 13 Emplacement de carte TF 14 Pare-chocs droit/Déclencheur (R1, R2) 15 Prise de 3,5 mm 16 USB type C/Port de charge 17 Double haut-parleur 18 Deux micros A Y XB 1 5 6 2 7 3 8 1011121314 4 9 18181516 17 7 FRANÇAIS INSTRUCTIONS D'INSTALLATION –Mise sous tension: Faites glisser et maintenez le commutateur d’alimentation pour allumer le dispositif –Première configuration: Suivez les étapes de l’assistant de configuration à l’écran pour configurer le dispositif pour la première fois A Y XB 8 FRANÇAIS –Chargement: Connectez le câble USB de type C dans le port USB de type C à l’arrière du dispositif, connectez le câble USB de type A à l’adaptateur secteur, puis connectez l’adaptateur secteur à une prise pour charger le dispositif A Y XB DES QUESTIONS? logitechG.com/support/cloud USB © 2022 Logitech Logitech, Logitech G, Logi and their respective logos are trademarks or registered trademarks of Logitech Europe S A and/or its affiliates in the U S and other countries All other trademarks are the property of their respective owners Logitech assumes no responsibility for any errors that may appear in this manual Information contained herein is subject to change without notice © 2022 Logitech Logitech, Logitech G, Logi et leurs logos respectifs sont des marques commerciales ou déposées de Logitech Europe S A et/ou de ses sociétés affiliées aux États-Unis et dans d’autres pays Toutes les autres marques sont la propriété exclusive de leurs détenteurs respectifs Logitech décline toute responsabilité en cas d’erreurs susceptibles de s’être glissées dans le présent manuel Les informations énoncées dans ce document peuvent faire l’objet de modifications sans préavis WEB-621-002199 002

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: JNZGR0006 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Software Operating Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant of Equipment Authorization. External Photos Internal Photos User Manual Test Setup photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Paul Zahra / Senior manager, Compliance Engineering LOGITECH FAR EAST LTD. Tel: +1-510-713-5436 E-mail: [email protected]

Date: 2022-07-28 FCC ID: JNZGR0006 A U T H O R I Z A T I O N L E T T E R To Whom It May Concern: LOGITECH FAR EAST LTD. hereby authorizes Debby Lin / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin / Senior Specialist of BV CPS Taoyuan on LOGITECH FAR EAST LTD.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Paul Zahra / Senior manager, Compliance Engineering LOGITECH FAR EAST LTD. Tel: +1-510-713-5436 E-mail: [email protected]

Date: 2022-08-22 FCC ID: JNZGR0006 FCC E-Label Information: 1. Justification of using the alternative method of e-labeling for the product The electronic labeling method was used because the radiofrequency device is equipped with an integrated electronic display screen. 2. According to KDB 784748 D02 e labeling v02 section 4, for devices with an integrated electronic display, or those devices that only operate in conjunction with another associated product that has an electronic display, below info has been stated in e-label and/or user manual. A. User Steps to Access Information Users can access the information in no more than three steps from the product’s menu. Product access process is as follows: For Handheld Mode: Starting from Main or Home Menu: Step 1 – Click on “Settings icon ” Step 2 – Click on “Device information” Step 3 – Click on “Legal and Regulatory” For Tablet Mode: Starting from Main or Home Menu: Step 1 Click on “Settings icon ” Step 2 – Click on “About Tablet” Step 3 – Click on “Legal and Regulatory” B. Products must not require special accessories or supplemental plug-ins (e.g., the installation of a SIM/USIM card) to access the information. The product does not require special accessories or supplemental plug-ins to access the information. Access to the information does not require special codes, accessories, or permissions beyond the normal security protection to unlock the screen, sign-in page, or overall product access. C. Information to be Displayed and Readability of Regulatory Information Information on E-label In Manual FCC ID number Yes No FCC logo No No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) Yes Yes Class A / B Digital Device user manual statements No Yes Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. No Yes Product’s e-label screen is provided below: The above information is displayed electronically in a manner that is clearly legible without the aid of magnification. D. Regulatory Information must be Secure The regulatory information and dedicated exclusive application(s) or script(s) are secured and implemented in a factory-set-unalterable format. The regulatory information is capable of being retrieved and displayed locally and accessed by the end user. The e-label information is pre- programmed by the grantee. The information cannot be modified by the end user. E. Physical and Temporary label for Purchasing and Importation The below information is also on the packaging, at the time of importation, marketing, and sales: 1. FCC ID; 2. FCC 2-part statement; and 3. Product model number. F. Additional Considerations (Modular transmitters) The device is not a modular device. ----------------------------------- Paul Zahra / Senior Manager, Compliance Engineering LOGITECH FAR EAST LTD. Tel: +1-510-713-5436 E-mail: [email protected]

DFS client device channel plan and software operational declaration Date: 2022-07-28 We, LOGITECH FAR EAST LTD., declare that the device, FCC ID: JNZGR0006 Model Name: GR0006, does not have Ad Hoc on “non-US frequencies” and/or on“ DFS frequencies“. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. Below is the channel / frequency plan for the device Also, on DFS channels, the WLAN driver in the device operates under the control of an AP at all times, except when in ad-hoc mode on US non-DFS channels. The device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by a special signature and CRC checksum. Signature and CRC checksum will be calculated and verified before firmware upgrade. Unauthorized modification to firmware will lead to the failure of verification and thus firmware upgrade will not be allowed. Sincerely yours, Sincerely yours, CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 46 48 Frequency (MHz) 5180 5190 5200 5210 5220 5230 5240 Scan Type Active Active Active Active Active Active Active CH 52 54 56 58 60 62 64 Frequency (MHz) 5260 5270 5280 5290 5300 5310 5320 Scan Type Passive Passive Passive Passive Passive Passive Passive CH 100 102 104 106 108 110 112 116 118 120 122 Frequency (MHz) 5500 5510 5520 5530 5540 5550 5560 5580 5590 5600 5610 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 124 126 128 132 134 136 138 140 142 144 Frequency (MHz) 5620 5630 5640 5660 5670 5680 5690 5700 5710 5720 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 5755 5765 5775 5785 5795 5805 5825 Scan Type Active Active Active Active Active Active Active Active ----------------------------------- Paul Zahra / Senior manager, Compliance Engineering LOGITECH FAR EAST LTD. Tel: +1-510-713-5436 E-mail: [email protected]

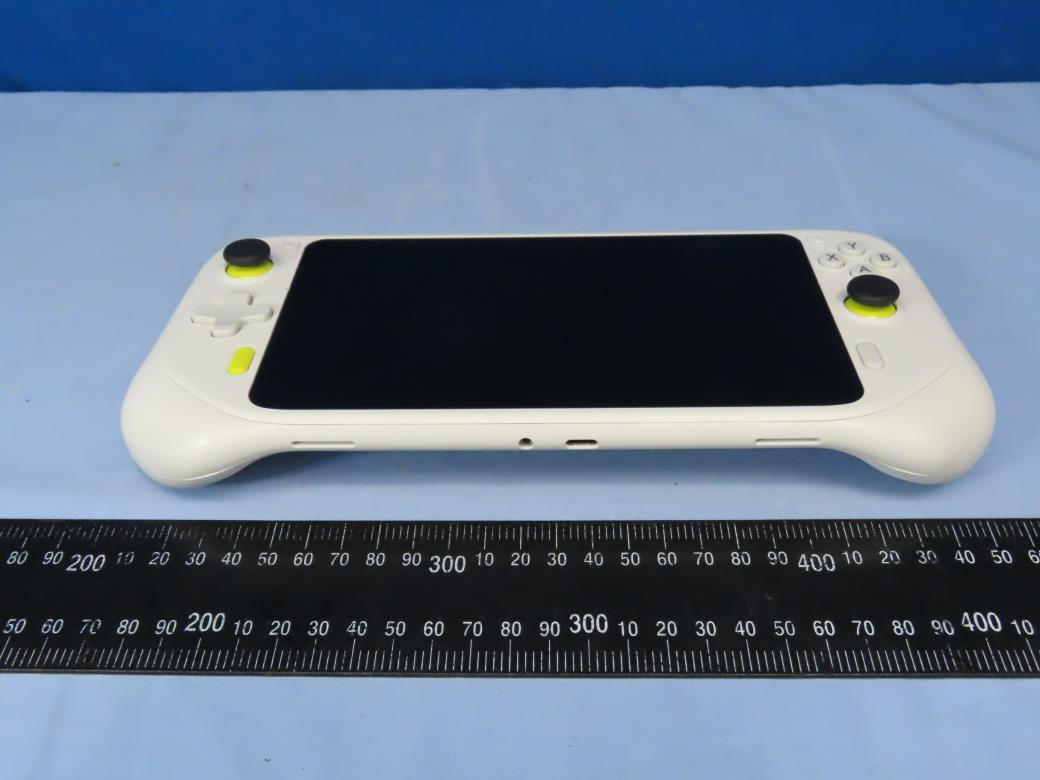

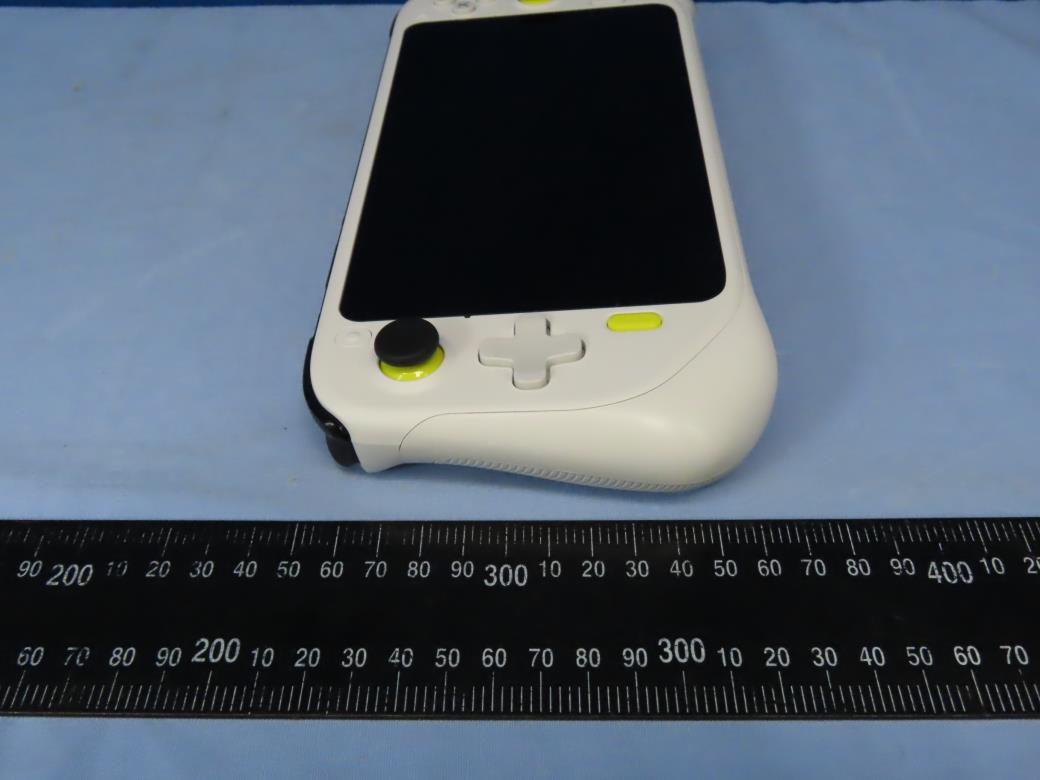

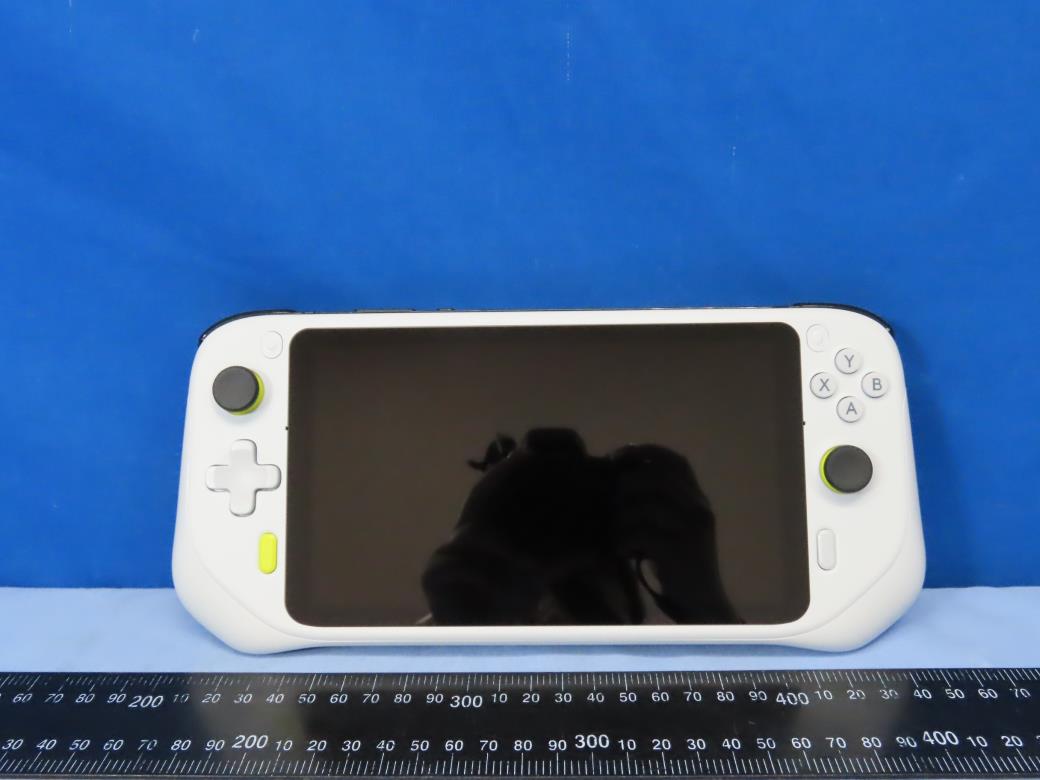

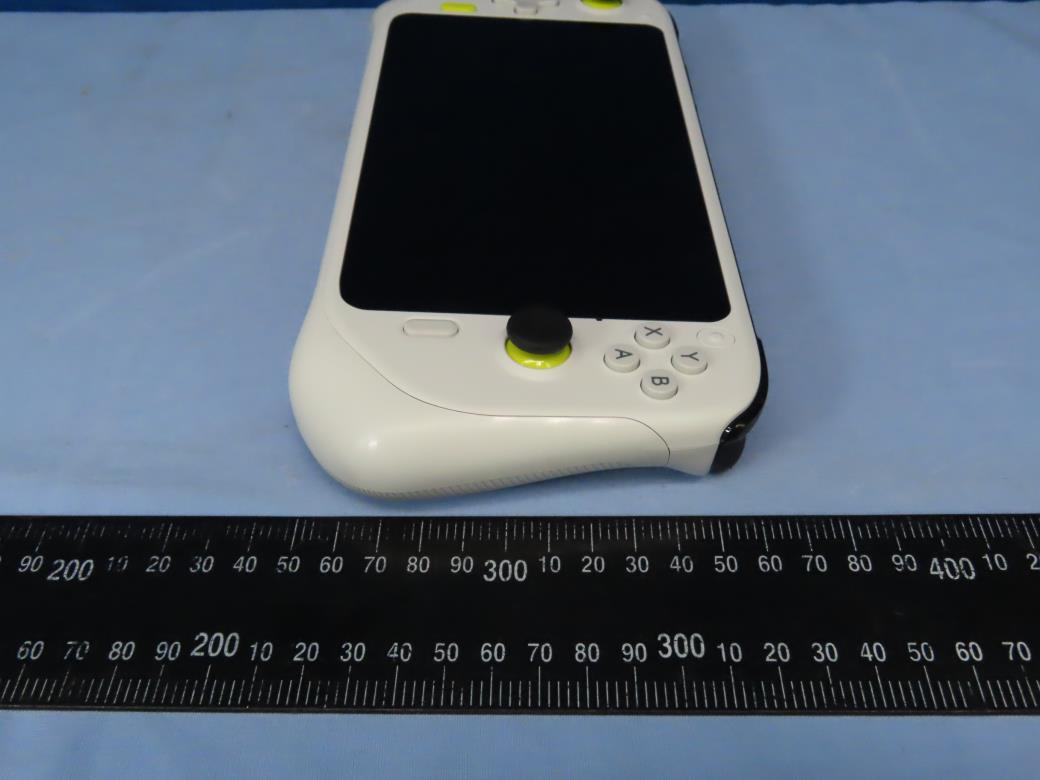

Reference No.: BDKG-WTW-P22040722_EXT Page 1 / 4 CONSTRUCTION PHOTOS OF EUT Brand ：logitech G ／ Model：GR0006 Reference No.: BDKG-WTW-P22040722_EXT Page 2 / 4 Reference No.: BDKG-WTW-P22040722_EXT Page 3 / 4 Reference No.: BDKG-WTW-P22040722_EXT Page 4 / 4

For Handheld Mode: Starting from Main or Home Menu: Step 1 – Click on “Settings icon ” Step 2 – Click on “Device information” Step 3 – Click on “Legal and Regulatory” For Tablet Mode: Starting from Main or Home Menu: Step 1 Click on “Settings icon ” Step 2 – Click on “About Tablet” Step 3 – Click on “Legal and Regulatory” Product’s e-label screen is provided below:

Reference No.: BDKG-WTW-P22040722_INT Page 1 / 14 CONSTRUCTION PHOTOS OF EUT Brand ：logitech G ／ Model：GR0006 Ant 2 Ant 1 Reference No.: BDKG-WTW-P22040722_INT Page 2 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 3 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 4 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 5 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 6 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 7 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 8 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 9 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 10 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 11 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 12 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 13 / 14 Reference No.: BDKG-WTW-P22040722_INT Page 14 / 14

Plots of System Verification Annex A. Plots of System Verification The plots for system verification are shown as follows. Report No. : SFBDKG-WTW-P22040722 Plots of System Verification Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/06/29 S01 System Check_H2450_220629 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0629 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.87 S/m; ε r = 39.052; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(7.61, 7.61, 7.61) @ 2450 MHz; Calibrated: 2022/04/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2021/08/20 - Phantom: ELI Phantom_1245; Type: QDOVA002AA; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.24 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.32 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 5.39 W/kg SAR(1 g) = 2.55 W/kg; SAR(10 g) = 1.19 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 4.36 W/kg Report No. : SFBDKG-WTW-P22040722 Plots of System Verification Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/06/29 S02 System Check_H5250_220629 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: UID 0, CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: H34T60N1_0629 Medium parameters used: f = 5250 MHz; σ = 4.699 S/m; ε r = 36.155; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(5.54, 5.54, 5.54) @ 5250 MHz; Calibrated: 2022/04/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2021/08/20 - Phantom: ELI Phantom_1245; Type: QDOVA002AA; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 7.88 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 46.90 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 12.8 W/kg SAR(1 g) = 3.51 W/kg; SAR(10 g) = 1.04 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 8.38 W/kg Report No. : SFBDKG-WTW-P22040722 Plots of System Verification Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/06/30 S03 System Check_H5600_220630 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: UID 0, CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: H34T60N1_0630 Medium parameters used: f = 5600 MHz; σ = 5.086 S/m; ε r = 35.168; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C ; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(4.8, 4.8, 4.8) @ 5600 MHz; Calibrated: 2022/04/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2021/08/20 - Phantom: ELI Phantom_1245; Type: QDOVA002AA; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.51 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 47.36 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 15.6 W/kg SAR(1 g) = 3.82 W/kg; SAR(10 g) = 1.1 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 9.70 W/kg Report No. : SFBDKG-WTW-P22040722 Plots of System Verification Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/06/30 S04 System Check_H5750_220630 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: UID 0, CW; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: H34T60N1_0630 Medium parameters used: f = 5750 MHz; σ = 5.228 S/m; ε r = 34.961; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C ; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(4.97, 4.97, 4.97) @ 5750 MHz; Calibrated: 2022/04/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2021/08/20 - Phantom: ELI Phantom_1245; Type: QDOVA002AA; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.13 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 47.36 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 17.2 W/kg SAR(1 g) = 3.76 W/kg; SAR(10 g) = 1.07 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 10.0 W/kg Report No. : SFBDKG-WTW-P22040722 Plots of System Verification Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/06/29 S05 System Check_H2450_220629 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0629 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.87 S/m; ε r = 39.052; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7537; ConvF(7.61, 7.61, 7.61) @ 2450 MHz; Calibrated: 2022/04/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1341; Calibrated: 2021/08/20 - Phantom: ELI Phantom_1245; Type: QDOVA002AA; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.24 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.32 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 5.39 W/kg SAR(1 g) = 2.55 W/kg; SAR(10 g) = 1.19 W/kg (SAR…

Text truncated - open the document above for the full version.

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 26 Report No. : SFBDKG-WTW-P22040722 Issued Date : Aug. 10, 2022 SAR Test Report Report No. : SFBDKG-WTW-P22040722 Applicant : Logitech Far East Ltd Address : 7700 Gateway Boulevard Newark California United States Product : Logitech G CLOUD Gaming Handheld FCC ID : JNZGR0006 Brand : logitech G Model No. : GR0006 FCC Rule Part : CFR §2.1093 Standards : IEC/IEEE 66209-1528:2020 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02, KDB 447498 D01 v07 KDB 248227 D01 v02r02, KDB 941225 D07 v01r02 Sample Received Date : May 11, 2022 Date of Testing : Jun. 29, 2022 ~ Jul. 01, 2022 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 26 Report No. : SFBDKG-WTW-P22040722 Issued Date : Aug. 10, 2022 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY6 System ............................................................................................................................................... 6 3.2.1 Robot ............................................................................................................................................................... 7 3.2.2 Probes ..........................................................................................…

Text truncated - open the document above for the full version.
