JNZGX5C11ACordless Precision(�Piett� Gamepad)

PLAYSTATION ® 3 For/Pour ENGLISHRegister Today! Thank you for purchasing a Logitech ® game controller. Please take a moment to register your new product. Registration helps to ensure that you have the latest product information by providing you with these benefits: 1) Customer Service Updates – special notices about your new product and related upgrade offers; 2) Advance notice of new products and special offers. Visit our website at http://register.logitech.com and register now!Installation. 1. Remove battery compartment cover on controller, insert two AA-batteries, and replace cover. 2. Insert mini-receiver into USB port on PLAYSTATION ® 3. 3. Set up controller in game. For more information regarding your Logitech ® device and Logitech ® support, visit Logitech ® online at www.logitech.com.1. L1 shoulder button and L2 trigger 2. R1 shoulder button and R2 trigger 3. 8-way D-pad4. Two analog sticks with buttons (press down to activate buttons) 5. D/MODE button (Switches the left analog stick and D-pad functions in supported games; especially useful in sports games in which D-pad control is preferred over analog-stick control) 6. Mode/status light (Scanning Mode: light blinks for up to 10 seconds while controller searches for connection with receiver. Low Battery Status: light blinks briefly every few seconds. D/MODE: light is on continuously.) 7. Select button 8. Start button 9. Action buttons 10. PS button (Operates like the first party controller except it will not turn ON the console from an OFF state. Note: Some games require the primary controller to be ID1. If you intend to use your Logitech controller as the primary, please follow the PS button procedure to change ID to 1.)Receiver Status Light. Light blinks slowly when there is no connection between controller and receiver. Light turns solid green for 2 seconds (then off) when controller and receiver have established a connection. Light blinks each time a control is used on a "connected controller." (Rapid usage of a controller gives the appearance that the light is on constantly.) Light blinks quickly when the receiver searches for a new controller.Troubleshooting. The controller and receiver are paired at the factory. If the pairing (communication) between the controller and receiver is disrupted, (LED on controller blinks for up to 10 seconds), press the Connect button on the receiver to restore communication between the two units.IMPORTANT ERGONOMIC INFORMATION: Long periods of repetitive motion using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling, burning, cramping, or stiffness in your hands, wrists, arms, shoulders, neck, or back, see a qualified health professional. For more information, please read the Comfort Guidelines located on the Logitech ® web site at http://www.logitech.com/comfort.WARNING! CHOKING HAZARD: SMALL PARTS, NOT FOR CHILDREN UNDER 3 YEARS.UL SAFETY: Your product has been UL tested. It is safe to use with UL listed devices for use with TVs. LIMITED WARRANTY. Logitech warrants that any hardware product accompanying this documentation shall be free from significant defects in material and workmanship for a period of one (1) year from the date of purchase. Logitech's limited warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws. REMEDIES. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a) repair or replace the hardware, or (b) refund the price paid, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct, with a copy ofthe sales receipt. Any replacement hardware will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident, abuse, misapplication, or any unauthorised repair, modification or disassembly. Further, for cordless devices, these remedies are void if you use battery types other than those recommended by Logitech. Upon request from Logitech, you must prove the date of the original purchase of the hardware by a dated bill of sale or dated itemised receipt. DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES. LOGITECH AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT TO THE HARDWARE. NO LOGITECH DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. LIMITATION OF LIABILITY. IN NO EVENT WILL LOGITECH OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY LOGITECH PRODUCT OR SERVICE, EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LOGITECH'S AND ITS SUPPLIERS' TOTAL LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LOGITECH PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability. HOW TO OBTAIN WARRANTY SUPPORT: Before submitting a warranty cla…

Text truncated - open the document above for the full version.

2007/02/06

2007/02/06

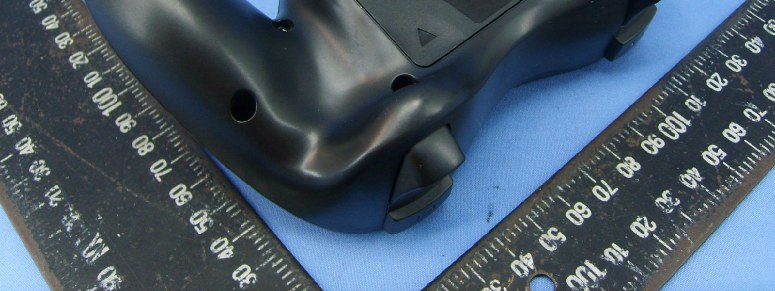

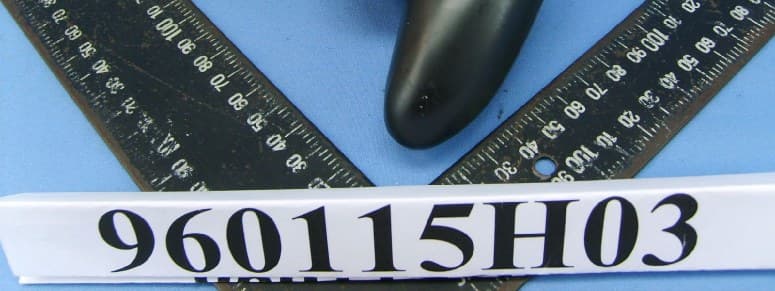

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: JNZGX5C11A FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. 3.6 cm 2.5 cm Label

Page 2 Page 3 Page 4 Page 5 Page 6

Report No.: RF960115H03 20 Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
