® ' 2000 Logitech. All Rights Reserved. Logitech, the Logitech logo, and the Logitech products referred to herein are either the trademarks or the registered trademarks of Logitech. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. Part Number: 622808-0403 EnglishEspa olFran aisPortugu s Logitech ¤ Cordless Optical Mouse Getting Started Guide 1 Important Safety Information Before using your mouse, please read the Comfort Guidelines that come with your product. 2 Install the Battery and Connect the Mouse Receiver 1. Re m o ve the battery compartment cover, then insert the battery. Follow the diagram inside the battery c o m partment, then replace the cover. 2. For a PS/2 connection, turn off the computer. Connect the receiver cable to the PS/2 mouse port on the computer, then turn on your system. 3. For a USB-port connection, re m o ve the PS/2 adapter (Window s ¤ 98 or higher or Macintosh ¤ OS 8.6 or higher required). Connect the receiver cable to the USB port. (For Window s, you may be pro m pted to insert the Window s software CD into the computer s CD-ROM drive.) Follow the on-screen instructions. 3 Install the Mouse Software: Important! 1. For PCs, start Window s ¤ , insert the Logitech ¤ software CD into the computer s CD-ROM drive, then follow the on-screen instructions. (If Autorun is not enabled, select Run from the Start Menu on the Taskbar. Next, type D:\Setup.exe, where D: is the designation of the CD-ROM drive.) 2. For the Macintosh ¤ , start the Macintosh operating system, insert the Logitech software CD into the c o m puter s CD-ROM drive, find the Installer icon in the appropriate language folder, double-click the icon, then follow the on-screen instructions. 4 Establish Communication between Mouse and Receiver Press the connect button on the receiver, then press the connect button on the bottom of the mouse. USB Port PS/2 Port PS/2 Port Adapter ® EnglishEspa olFran aisPortugu s 5 Battery Life The surface on which you use the mouse can significantly affect battery life. Lighter surfaces extend battery life, darker ones shorten it. Bright, matte surfaces (not glossy ones) are recommended. 6 Get More Information! A User s Guide, which has valuable information about your product (e.g., customer support numbers) is on the Logitech ¤ software CD and was copied to your hard drive. To find the User s Guide, do the following: For PCs: Go to the Taskbar, then select Start, Programs, Logitech ¤ , MouseWare ¤ , then User s Guide. For the Macintosh ¤ : On the desktop, find the MouseWare ¤ folder, then open the folder by double-clicking it. Find the icon for the User s Guide, then double-click the icon to open the document. 7 Troubleshooting The Mouse Does Not Work after Installation or Is Not Detected ¥ Make sure you have connected the receiver correctly. The receiver cable goes into the computer s USB port or PS/2 mouse port. For optimal performance, place the receiver at least 8 inches or 20 centimeters aw ay from other electrical devices, such as the computer, the computer monitor, or external storage drives. ¥ For PCs, make sure the PS/2 mouse port has the proper configuration. Refer to your computer documentation for the correct port configuration. You may also have other system devices that conflict with the mouse. Check the IRQ/address settings of these devices for conflicts, and change the settings as required. ¥Establish communication between the receiver and the mouse. Press the Connect button on the receiver, then press the Connect button under the mouse. ¥ Make sure you have installed the batteries correctly. If you are working on a metallic surface, try turning the receiver on its side for better reception. ¥Try unplugging then reconnecting the receiver cable to the computer. 8 International Standards and Safety This mouse has no serviceable parts included. User-observable light is 15 microwatts in normal operation. This mouse is rated as a commercial product for operation at 32 o F (0 o C) to 104 o F (40 o C). This product has been tested to comply with International Standard IEC 825-1: 1993. The standard requires the following statement: CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Class 1 LED Product Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to User – The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or …

Text truncated - open the document above for the full version.

FCC ID: JNZM-RR67A Logitech Far East Ltd No. 2, Creation Rd., 4, Science-Based Ind. Park, hsinchu Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TC Chang Manager

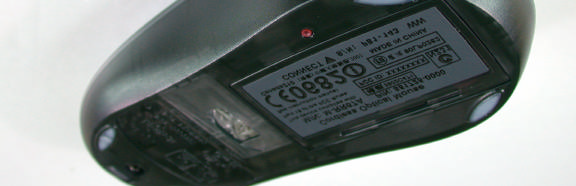

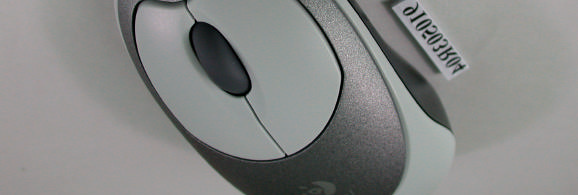

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID : JNZM-RR67A

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: JNZM-RR67A ADT No.910503R04 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use loop antenna. Because the room inside the housing is very limited, so the size of the antenna is far smaller than one wavelength (27MHz), which means the radiation efficiency is very low. But under normal use condition, the transmitter and the receiver is quite close, so high EIRP power is not needed and neither not allowed because of interference.

FCC ID: JNZM-RR67A Report No.: RF901003R01A1Issued: May 21, 2002 Reference No.: RF900626R03 FCC TEST REPORT REPORT NO.: RF901003R01A MODEL NO.: M-RR67A RECEIVED: May 3, 2002 TESTED: May 7 ~ May 15, 2002 APPLICANT:LOGITECH FAR EAST LTD. ADDRESS: No.2 Creation Rd. 4, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 FCC ID: JNZM-RR67A Report No.: RF901003R01A2Issued: May 21, 2002 Reference No.: RF900626R03 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT...............................................................5 3.2DESCRIPTION OF TEST MODES.................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4DESCRIPTION OF SUPPORT UNITS............................................................7 4TEST PROCEDURE AND RESULT................................................................7 4.1CONDUCTED EMISSION MEASUREMENT..................................................7 4.2RADIATED EMISSION MEASUREMENT.......................................................7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT....................................7 4.2.2TEST INSTRUMENT......................................................................................8 4.2.3TEST PROCEDURE.......................................................................................9 4.2.4TEST SETUP................................................................................................10 4.2.5EUT OPERATING CONDITION....................................................................10 4.2.6TEST RESULT...............................................................................................11 5PHOTOGRAPHS OF THE TEST CONFIGURATION...................................13 6INFORMATION ON THE TESTING LABORATORIES..................................14 FCC ID: JNZM-RR67A Report No.: RF901003R01A3Issued: May 21, 2002 Reference No.: RF900626R03 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : Logitech MODEL NO : M-RR67A APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from May 7 ~ May 15, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: JNZM-RR67A Report No.: RF901003R01A4Issued: May 21, 2002 Reference No.: RF900626R03 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –17.60dBuV at 81.00MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: JNZM-RR67A Report No.: RF901003R01A5Issued: May 21, 2002 Reference No.: RF900626R03 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Mouse MODEL NO.M-RR67A POWER SUPPLY3VDC from battery MODULATION TYPEFSK CARRIER FREQUENCY OF EACH CHANNEL 27.045 / 27.195 MHz BANDWIDTH OF EACH CHANNEL 10KHz NUMBER OF CHANNEL2 ANTENNA TYPEPrinted Antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. This report is issued as a supplementary report to the original report no.: RF900626R03. The difference compared with the original application is model name and channel numbers. The new model name is M-RR67A and there are two channels provided to this EUT. 3. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: JNZM-RR67A Report No.: RF901003R01A6Issued: May 21, 2002 Reference No.: RF900626R03 3.2 DESCRIPTION OF TEST MODES Two channels are provided in this EUT. ChannelFrequencyChannelFrequency 127.045 MHz227.195 MHz NOTE: Two channels were pre-tested in chamber. Channel 1, the worst case, was chosen for final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C(15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. FCC ID: JNZM-RR67A Report No.: RF901003R01A7Issued: May 21, 2002 Reference No.: RF900626R03 3.4 DESCRIPTION OF SUPPORT UNITS NA 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Field strength limits are at the distance of 3 met…

Text truncated - open the document above for the full version.

FCC ID: JNZM-RR67A Report No.: RF901003R01A13Issued: May 21, 2002 Reference No.: RF900626R03 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
