JNZMR00092.4GHz Cordless Mouse

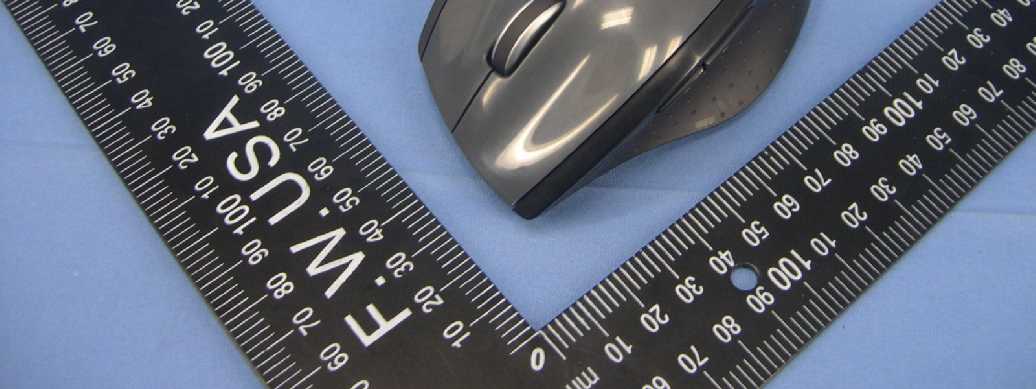

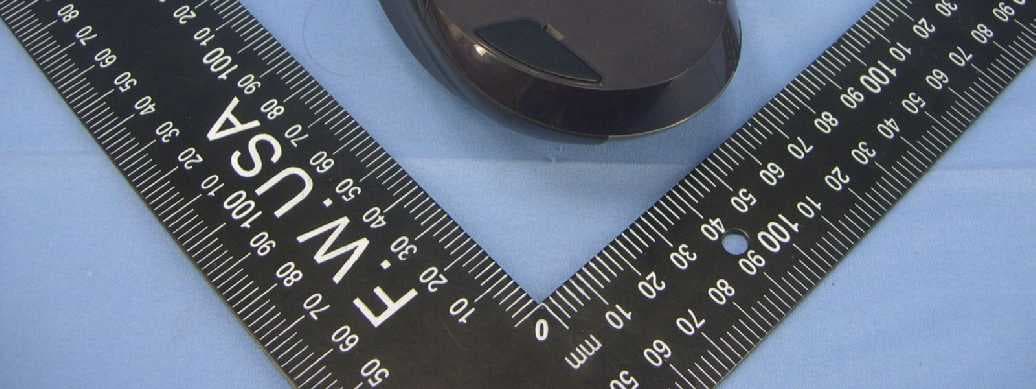

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: JNZMR0009 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label FCC ID

Page 2 Page 3 Page 4

Report No.: RF980421H01 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF980421H01 MODEL NO.: M-R0009 RECEIVED: Apr. 21, 2009 TESTED: Apr. 22 to 28, 2009 ISSUED: May 11, 2009 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. Report No.: RF980421H01 2 Report Format Version 3.0.0 Table of Contents 1 CERTIFICATION.............................................................................................3 2 SUMMARY OF TEST RESULTS.....................................................................4 2.1 MEASUREMENT UNCERTAINTY......................................................................4 3 GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT................................................................5 3.2 DESCRIPTION OF TEST MODES..................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4 DESCRIPTION OF SUPPORT UNITS............................................................7 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................7 4 TEST PROCEDURES AND RESULTS...........................................................8 4.1 RADIATED EMISSION MEASUREMENT.......................................................8 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................8 4.1.2 TEST INSTRUMENTS....................................................................................9 4.1.3 TEST PROCEDURES...................................................................................10 4.1.4 DEVIATION FROM TEST STANDARD.........................................................10 4.1.5 TEST SETUP.................................................................................................11 4.1.6 EUT OPERATING CONDITIONS...................................................................11 4.1.7 TEST RESULTS............................................................................................12 4.2 CONDUCTED - OUT BAND MEASUREMENT.............................................18 4.2.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................18 4.2.2 TEST INSTRUMENTS..................................................................................18 4.2.3 TEST PROCEDURE.....................................................................................18 4.2.4 DEVIATION FROM TEST STANDARD.........................................................18 4.2.5 EUT OPERATING CONDITION....................................................................18 4.2.6 TEST RESULTS............................................................................................19 5 INFORMATION ON THE TESTING LABORATORIES..................................20 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB..........................................................21 Report No.: RF980421H01 3 Report Format Version 3.0.0 1 CERTIFICATION PRODUCT : 2.4GHz Cordless Mouse BRAND NAME : Logitech MODEL NO. : M-R0009 TESTED : Apr. 22 to 28, 2009 TEST SAMPLE : MASS-PRODUCTION APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: M-R0009) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 11, 2009 ( Sunny Wen, Specialist ) TECHNICAL ACCEPTANCE : , DATE: May 11, 2009 Responsible for RF ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: May 11, 2009 ( May Chen, Deputy Manager ) Report No.: RF980421H01 4 Report Format Version 3.0.0 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test NA Power supply is DC 1.5V from batteries 15.249 Radiated Emission Test PASS Minimum passing margin is -8.27dB at 2399.00MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Radiated emissions (30MHz-1GHz) 3.94 dB Radiated emissions (1GHz -18GHz) 2.49 dB Radiated emissions (18GHz -40GHz) 2.70 dB Report No.: RF980421H01 5 Report Format Version 3.0.0 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4GHz Cordless Mouse MODEL NO. M-R0009 FCC ID JNZMR0009 POWER SUPPLY DC 1.5V from batteries MODULATION TYPE GFSK CARRIER FREQUENCY OF EACH CHANNEL 2405MHz ~ 2474MHz NUMBER OF CHANNEL 12 ANTENNA TYPE PCB printed quarter wave antenna with 0.57dBi antenna gain DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manu…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
