JNZMR00192.4GHz Cordless Mouse

DIE LINES SPOT COLORS PROCESS COLORS COL OR SPECIFIC ATIONS BRAND / L AUNCH: Logitech 2010 PROJECT TITLE: GomeraDETAILS: AMR / GSW Guide K525507595 SPECIFICATIONS / NOTES: F inal files Job is grey scale MODIFICATION DATE: January 11, 2010 THIS PRINT SIZE / SCALE: 100% of original Designer: Gregory Gomez Location: Fremont, CA, USA DIE LINE COLOR (NO PRINT) DIELINE NAME: n/a DIELINE RECEIVED: n/a 2 3 4 1 English Features 1. Battery LED flashes red when battery power is low. 2. Back and forward buttons. Customize with other preferred functions, like application switch or full screen through Logitech software. 3. Side-to-side scrolling. Great for navigating through photo albums and spreadsheets. (Function requires software download.) 4. On/Off slider. 5. Battery door release. To lighten your mouse, you can use it with just one AA battery. 6. Unifying Receiver storage. Español Funciones 1. El diodo de estado de batería emite destellos rojos cuando la batería se está agotando. 2. Botones de avance y retroceso. Personalizables con otras funciones preferidas, como el cambio de aplicaciones o pantalla completa mediante el software Logitech. 3. Desplazamiento horizontal. Excelente para navegar por álbumes de fotos y hojas de cálculo. (La función requiere descarga de software.) 4. Control deslizante de encendido/apagado. 5. Botón de compartimento de baterías. Para aligerar el mouse, puedes usarlo con una sola batería AA. 6. Almacenamiento de receptor Unifying. Français Fonctions 1. Le témoin lumineux clignote en rouge lorsque le niveau de charge de la pile est faible. 2. Boutons Précédente et Suivante. Personnalisez votre souris avec vos autres fonctions préférées, comme le changement d’application ou le mode plein écran grâce au logiciel Logitech. 3. Défilement horizontal. Parfait pour visionner les photos numériques et parcourir les feuilles de calcul (cette fonction nécessite le téléchargement d’un logiciel). 4. Curseur de marche/arrêt. 5. Bouton d'ouverture du compartiment des piles. Pour alléger votre souris, vous pouvez utiliser une seule pile AA. 6. Rangement du récepteur Unifying. Português Recursos 1. A luz vermelha do LED de pilhas pisca quando a energia está baixa. 2. Botões de avançar e voltar. Personalize com outras funções preferidas, como alternância de aplicativos ou tela inteira, através do software da Logitech. 3. Rolagem lado a lado. Excelente para a navegação de álbuns de fotografia e planilhas. (A função requer download do software.) 4. Controle deslizante para ligar/desligar. 5. Livramento da porta do compartimento de pilhas. Para tornar o mouse mais leve, use-o com apenas uma pilha AA. 6. Armazenamento do receptor Unifying. Getting started with Première utilisation Logitech ® Wireless Mouse M510 English 1. Pull the tab to activate the mouse batteries. 2. The ON/Off slider should be in the ON position. Español 1. Tira de la lengüeta para activar las baterías del mouse. 2. El conmutador deslizante de encendido/apagado debería estar en la posición ON. Français 1. Retirez la languette pour activer les piles de la souris. 2. Le curseur de marche/arrêt doit être sur la position ON. Português 1. Empurre a lingüeta para ativar as pilhas do mouse. 2. O controle deslizante de ON/Off deve estar na posição ON. Important information Safety, compliance, and warranty Getting started with Première utilisation Logitech ® Wireless Mouse M510 English Insert the Unifying receiver into a laptop USB port. Mac ® OS X Users: When plugging in the Unifying receiver, the Keyboard Assistant dialog box may appear. You can just close this window. Español Inserta el receptor Unifying en un puerto USB del laptop. Usuarios de Mac® OS X: Al conectar el receptor Unifying, puede aparecer el cuadro de diálogo Asistente Teclado. Puedes cerrar esta ventana. Français Insérez le récepteur Unifying dans un port USB de l’ordinateur portable. Utilisateurs Mac® OS X: lorsque vous branchez le récepteur Unifying, la boîte de dialogue de l'assistant de configuration du clavier peut s'afficher. Vous pouvez simplement fermer cette boîte de dialogue. Português Conecte o receptor Unifying a uma porta USB no laptop. Usuários do Mac® OS X: ao conectar o receptor Unifying, poderá ser exibida a caixa de diálogo Assistente de instalação do teclado. Simplesmente feche a janela. English Congratulations! You are now ready to use your mouse. Advanced features. Software is optional for this mouse! Download the free mouse software (Logitech® Setpoint™ for Windows® or Logitech Control Center for Macintosh®) at www.logitech.com/downloads to customize the mouse buttons and to enable side-to-side scrolling and middle button features. Español ¡Enhorabuena! Ya puedes empezar a usar el mouse. Funciones avanzadas. El software es opcional para este mouse. Descarga el software de mouse gratuito (Logitech® Setpoint™ para Windows® o Logitech Control Center para Macintosh®) en www.logitech.com/downloads para personalizar los botones del mouse y activar las funciones de desplazamiento horizontal y de botón central. Français Félicitations! Vous pouvez à présent utiliser la souris. Fonctions avancées. Le logiciel de cette souris est disponible en option. Téléchargez-le gratuitement (Logitech® Setpoint™ pour Windows® ou Logitech Control Center pour Macintosh®) sur www.logitech.com/downloads pour personnaliser l’utilisation des boutons de la souris et activer le défilement horizontal ainsi que les fonctionnalités du bouton central. Português Parabéns. Agora você está preparado para usar seu mouse. Recursos avançados. O software é opcional para este mouse! Faça o download gratuito do software do mouse (Logitech® Setpoint™ para Windows® ou Logitech Control Center para Macintosh®) em www.logitech.com/downloads para personalizar os botões do mouse e ativar os recursos de rolagem lado a lado e do botão do meio. 2 1 3 6 English Plug it. Forget it. Add to it. You’ve got a Logitech ® Unifying receiver. Now add a compatible wireless keyboard that uses the same rec…

Text truncated - open the document above for the full version.

LOGITECH FAR EAST LTD. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. TEL: 886-3-5778241 FAX: 886-3-5772393 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: JNZMR0019 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until Jul. 30, 2010 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards T.C. Chang / Sr. Manager AP Region Compliance LOGITECH FAR EAST LTD. Tel: +886 3 5778241* 2146 Fax: +886 3 5772393 E-mail: [email protected] 2010/4/22

LOGITECH FAR EAST LTD. #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. TEL: 886-3-5778241 FAX: 886-3-5792393 POWER OF ATTORNEY We, the undersigned LOGITECH FAR EAST LTD. hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! 1.Model name: M-R0019 Product name: 2.4GHz Cordless Mouse Brand name: Logitech Sincerely yours, Signature: ------------------------------------------------------------------- T.C. Chang / Sr. Manager AP Region Compliance LOGITECH FAR EAST LTD. Tel: +886 3 5778241* 2146 Fax: +886 3 5772393 E-mail: [email protected] 2010/4/22

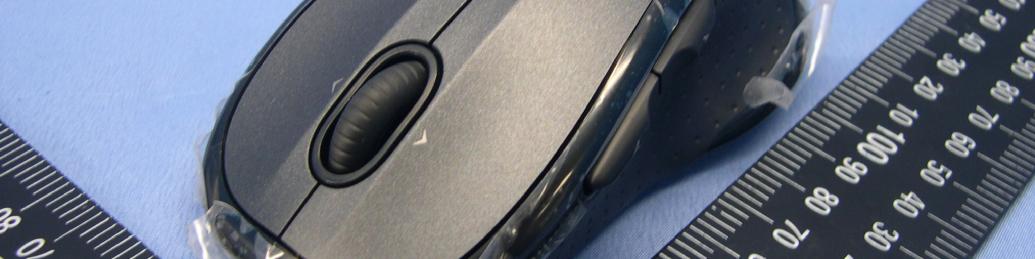

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig.1) FCC ID: JNZMR0019 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC ID 5.5cm 1.7cm

Page 2 Page 3 Page 4 Page 5 Page 6

Report No.: RF990316H01 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990316H01 MODEL NO.: M-R0019 RECEIVED: Apr. 14, 2010 TESTED: Apr. 16, 2010 ISSUED: Apr. 20, 2010 APPLICANT: LOGITECH FAR EAST LTD. ADDRESS: #2 Creation Rd. 4, Science-Based Ind. Park Hsinchu Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 23 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. Report No.: RF990316H01 2 Report Format Version 3.0.1 Table of Contents 1 CERTIFICATION.............................................................................................3 2 SUMMARY OF TEST RESULTS.....................................................................4 2.1 MEASUREMENT UNCERTAINTY..................................................................4 3 GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT................................................................5 3.2 DESCRIPTION OF TEST MODES..................................................................6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4 DESCRIPTION OF SUPPORT UNITS............................................................7 3.5 CONFIGURATION OF SYSTEM UNDER TEST.............................................7 4 TEST PROCEDURES AND RESULTS...........................................................8 4.1 RADIATED EMISSION MEASUREMENT.......................................................8 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................8 4.1.2 TEST INSTRUMENTS....................................................................................9 4.1.3 TEST PROCEDURES...................................................................................10 4.1.4 DEVIATION FROM TEST STANDARD.........................................................10 4.1.5 TEST SETUP.................................................................................................11 4.1.6 EUT OPERATING CONDITIONS...................................................................11 4.1.7 TEST RESULTS............................................................................................12 4.2 CONDUCTED - OUT BAND MEASUREMENT.............................................19 4.2.1 LIMITS OF CONDUCTED - OUT BAND MEASUREMENT..........................19 4.2.2 TEST INSTRUMENTS..................................................................................19 4.2.3 TEST PROCEDURE.....................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD.........................................................19 4.2.5 EUT OPERATING CONDITION....................................................................19 4.2.6 TEST RESULTS............................................................................................20 5 INFORMATION ON THE TESTING LABORATORIES..................................22 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB..........................................................23 Report No.: RF990316H01 3 Report Format Version 3.0.1 1 CERTIFICATION PRODUCT : 2.4GHz Cordless Mouse BRAND NAME : Logitech MODEL NO. : M-R0019 TESTED : Apr. 16, 2010 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : LOGITECH FAR EAST LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: M-R0019) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Apr. 20, 2010 ( Claire Kuan, Specialist ) TECHNICAL ACCEPTANCE : , DATE: Apr. 20, 2010 ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: Apr. 20, 2010 ( May Chen, Deputy Manager ) Report No.: RF990316H01 4 Report Format Version 3.0.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test Type Result Remark 15.207 Conducted Emission Test NA Power supply is DC 1.5V from battery 15.249 Radiated Emission Test PASS Minimum passing margin is -5.9dB at 2400.00MHz 15.249 Conducted - Out Band Measurement PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Value Radiated emissions (30MHz-1GHz) 3.76 dB Radiated emissions (1GHz -18GHz) 2.19 dB Radiated emissions (18GHz -40GHz) 2.55 dB Report No.: RF990316H01 5 Report Format Version 3.0.1 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4GHz Cordless Mouse MODEL NO. M-R0019 FCC ID JNZMR0019 POWER SUPPLY DC 1.5V from battery MODULATION TYPE GFSK CARRIER FREQUENCY OF EACH CHANNEL 2405MHz ~ 2474MHz NUMBER OF CHANNEL 12 ANTENNA TYPE PCB printed antenna, meander quarter wave with 2.23dBi antenna gain DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF9903…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
